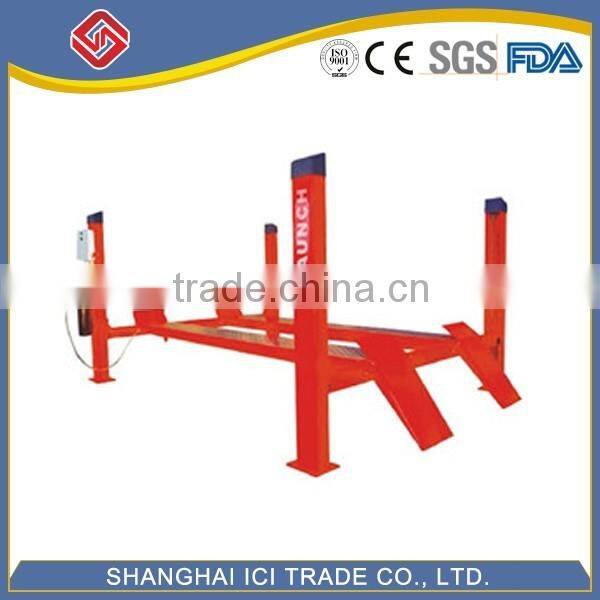

TLT440 FOUR POST LIFT
Economical 4 Post Lift (Rated Capacity: 4 Ton)
Feature
Two-layer concealed plate structure, excellent synchronizing performance with the horizontal precision of 1mm.
Driven by hydraulic cylinder and steel cable synchronization
makes stable lifting and lowering.
Full-range mechanical safety protection by using the safety
latches, manual lowering operation.
Full-range mechanical safety lock system.
Cylinder travel limit device effectively protects cylinder and
extends its lifespan.
Cable rupture safety system ,effectively protects vehicle from
overturn.
Electric controlled lifting and lowering , safe and easy
operation.
Mechanical safety device for rope rupture .
Four connected steel cables force synchronized movement of
the lift, effectively prevent vehicles from sloping.
Distance between two platforms is adjustable for vehicles
with different wheel track .
Specification
Rated load: 4000kg
Lifting height:1900mm
Initial height:170mm
Lifting time:≤60s
Lowering time:≥20s≤40s
Max. drive-on width:3045mm
Platform length:4240mm
Platform width:500mm
Overall width:3445mm
Overall height:2172mm
Motor power :2. 2kw
Motor voltage:3 phase/380v or Single phase/220V
Working noise:≤75dB(A)
Working oil pressure:16MPa
Working air pressure: 0.5-0.7MPa
ICI has developed several production lines, including Launch shanghai Auto Diagnosis, Launch shanghai Auto Testing,Launch shanghai Auto Cleaning, Launch shanghai Tire Machine, Launch shanghai Auto Electron, Launch shanghai Hand tools, and so on.
Taking mission of Offering high-quality products, technology and service for Auto field, ICI has set up cooperation relationship with almost all the mainland Automobile Manufactories and become their full range maintenance equipment and technology supplier.
ICI adheres to People Oriented, scientific management, transcend limits and Continuous Innovation,following the road of technology management,industrialization,collectivize and internationalization to struggled forward to form a one hundred years multinational enterprise.
