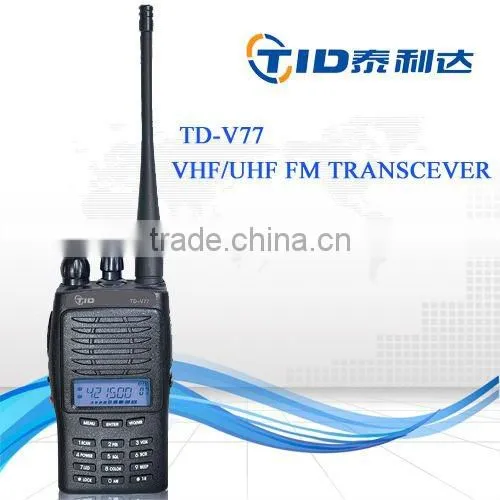

Cheap Durable Portable Thailand Two Way Radio

Cheap Durable Portable Thailand Two Way Radio thumbnail-1
Cheap Durable Portable Thailand Two Way Radio photo-1
US$ 20 - 37 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-V77
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou xiamen dubai hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TD-V77
Type Handheld
Dimensions 115*60*32%28without antenna%29
Frequency Range 136-174Mhz ,245-246MHz,400-470MHz,445MHz-520MHz
Storage Channel 128 channels by voice annunciation
Talk Range 5km under empty environment

Specifications

6w walki talki
Tri-color backlight adjustable
Multi & priority channel sca

5w display 6w walki talki

  • Tri-color backlight adjustable uhf long range two way radio
  • scrambler function (optional)
  • Multi and priority channel scan function
  • Emergency alert
  • low battery alarm
  • high / low power control
  • channel name setting
  • TOT(Time-out-timer)
  • BCL(Busy channel lock)
  • 12.5 /25KHz band selectable
  • VOX Function
  • Group calls
  • DTMF code

cheap durable portable thailand two way radio

Main Features

  • Tri-color backlight adjustable
  • scrambler function (optional)
  • ANI code
  • Multi and priority channel scan function
  • Emergency alert
  • low battery alarm
  • high / low power control
  • channel name setting
  • TOT(Time-out-timer)
  • BCL(Busy channel lock)
  • PC programmable
  • 12.5 /25KHz band selectable
  • 50 CTCSS /104 DCS
  • VOX Function
  • Group calls
  • DTMF code

1). Specification of Profesional FM transceiver vhf uhf two way radio ( TD-V77)

1). Frequency Range

136-174Mhz ,245-246MHz,400-470MHz,445MHz-520MHz

2). Channel Capacity 128
3). Channel Spacing 5,10,12.5,20,25,30,50KHz optional
4). Operation Voltage DC7.2V Li-ion
5).Mode of operation simplex or semi-duplex
6).Antenna impedance 50Ω
7).Operating Temperature -20~50 °c
8). Dimension(H*W*D)(Without Antenna) 115*60*32MM
9). Weight(With Antenna & Battery) 210g

2).Accessories

1).Battery Pack 1 set
2.Antenna 1 set
3).Charger 1 set
4).AC Adapter 1 set
5).Belt Clip 1 set
6).Hand strap 1 set

cheap durable portable thailand two way radio

3).Transmitter

1). RF power output ≤5W
2). Current ≤1.6A
3). Maximum deviation ≤5KHz
4). Frequency stablity ≥±2.5ppm
5). Spruious radiation ≤7.5 μW
6). Modulation charter 1dB~3dB
7).Modulation distortion ≤5%
8).Occupied bandwidth ≥60dB

4).Receiver

1). RF sensitivity 0.2μV
2). Audio distortion ≤10%
3). Audio power ≥500Mv
4). Selectivity ≥65dB
5. Co-channel suppression ≥-8dB
6).Adjacent channel selectivity ≥60dB
7).Intermediation response ≥60dB
8).Spurious response ≥55dB
9).Blocking ≥85dB

5). Payment Terms

1. 100% T/T Advance

2. Western Union

3. Sample by paypal

6).Shipping Terms

1. EX-works Guangzhou

2. EX-works Hongkong

3. EX-works Xiamen

4. EX-works Dubai

7).Shipping Method

The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…

8).Lead time:

Most of our product have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.

9).Packaging :

Unique packaging with durable ,environmental , beauty design character (plastic bag color gift box) .
