Professional Supply Anti-explosion Safety Portable Scissor Lift Table

Name: Professional Supply Anti-explosion Safety Portable Scissor Lift Table
Brand: LAUNCH
Availability: InStock

FOB Price

US$ 800 - 1,500 / Set

1 Set(Min. Order)

Port SHANGHAI

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Design	Scissor	Type	Double Cylinder Hydraulic Lift
Certification	CE	Lifting Capacity	3000kg
Lifting Height(mm)	1850mm	Overall Width(mm)	2160mm
Place of Origin	Shanghai, China	Brand Name	LAUNCH
Model Number	TLT830WA	Warranty	1 Years

Product Description

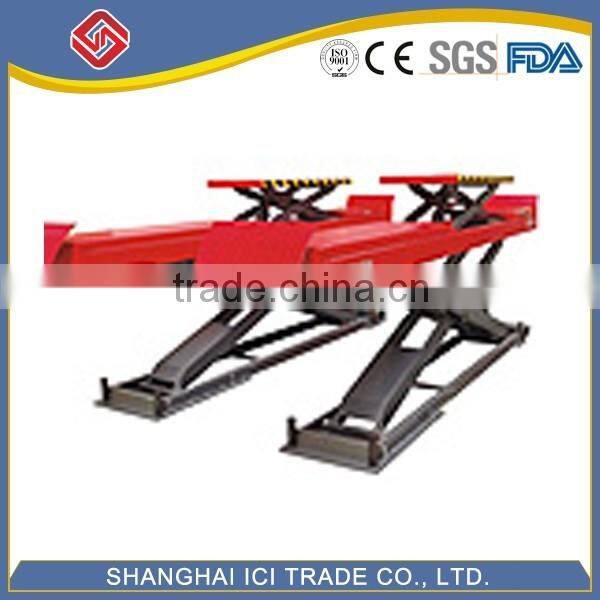

TLT830WA Big scissor lift with secondary lift

Wheel Alignment Scissor Lift (Rated Capacity:3Ton) used for lifting light vehicles under 3.0 tons for vehicle test, service, four-wheel alignment, maintenance or cleaning.

Feature

In-ground and on-ground installation are optional
Double scissors lift, with the front wheel turntable positions, rear wheel side
sliding plate and scissor type secondary lifting, suitable for the four-wheel
alignment.
Hydraulic interlocking and anti-explosion safety device makes it stable and
reliable operation.
Bilateral hydraulic synchronizing system ensures high synchronization
performance.
Widened secondary lift's runway design ,more applicable for vehicles with
different wheel track.
Travel limit safety device ,protects machine from being damaged.
Oil hose anti-explosion device.
CE-STOP function with safety alarm beep would automatically warn
operators to keep safe distance from lift when it lowers to 400mm high from
ground.
All moving points adopt automatic lubricating oil-free bearing for ensuring
long lifespan.
CE certificated.

Specification

Rated load:3000kg
Lifting height:1850mm
Secondary lifting height: 450mm
Initial height: 340mm
Lifting time:≤60s
Secondary lifting time:≤30s
Lowering time:≥20s
Secondary lowering time: ≥12s
Runway width :610mm
Runway width:4000mm
Secondary runway width: 1450mm
Side slip plate length :1600mm
Advised distance between runways: 940mm
Overall width:2160mm
Safety method:Mechanical lock +pneumatic release
Motor power:2.2kw
Motor voltage:3 phase/380v or Single phase/220V
