Product name:

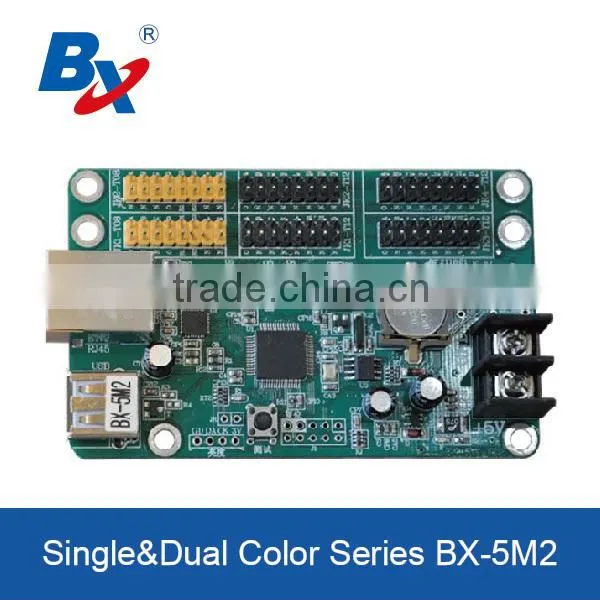

P10 modules BX-5M2 LED panel control card
Technical supports before sale
Any customers who want to buy our BX controllers, should confirm the controller model with our technical persons in advance(u can check with us by TM ) ,if customers who bought the unsuitable models without asking our technical person,we will not afford the result .
All the product pictures are for your reference, if there is a little bit color difference with reality,it is normal.
Shipment and Payment
1. We accept T/T ,Western Union and Escrow.
2. Goods will be delivered within 1-2 business days (excluding weekends and holidays) after payment.
3. We will be not responsible for accidents, lost,delay or accurate shipping time since express service is provided by express company.
4. Any importing charges or fees are on buyers.
Return items
1. If the controller is defective, please notice us within 1-2 days after you receive the goods.
2. Returns accepted within 7 days, we will change goods for you.
3. The controller should be returned in its original conditions.
4. Buyers will afford all freight cost.
Applications:
The controllers mainly for website application, support the LAN and internet. A best choice for single screen or cluster display system.
Widely used in larger display screen and LED cluster display system.
Features:
High cost performance, Support large screen, on-board USB Interface on-board 100M Ethernet Interface, MAC bindings Mechanism,Ethernet auto-connection.
3.5V- 6.5V wide voltage range: -40°C~80°C wide wrok temperature.
Support PC direct connection/cross-Ethernet connection/cross-internet connection, support firmware update online.
Technical parameters:
| Product model | BX-5M2 |
| Product status | The latest 5th generation products,put into market on March 28,2012. |
| Control area | Single color 128K:3200*16 3200*32 2688*48 2048*64 Dual color 64K:3200*16 2048*32 1344*48 1024*64 |
| Memory storage | 2MByte |
| Screen types | All kinds of single and double colors LED screens |
| Software function | Screens cluster management/multi-program/multi-areas display/multi-languages |
| Program type | Normal/Shared program |
| Program quantity | Support 128 programs,24 areas for each program |
| Area type | Image/text/animation/lunar calendar/digital clock/analogue clock /timer/temperature/temperature & humidity sensor |
| Frame mode | Most advanced colorful / magic graphics frame/Area frame |
| Background | Support text/image/colorful and active background |
| Time mode | Analogue clock/digital clock/timing and counting-down timer (support multi-groups) |
| Communication mode | USB port, 100M ethernet |
| Interface | 2 nos T8 and 4 nos T12 |
| Sensors supported | Temperature /humidity sensor |
| Remote control | Remote control program/lock screen/brightness adjustment/power on/off /screen test |
| Bright regulation | 16 grades brightness, manual and auto-timing adjustment/remote control |
| Power on/off mode | Auto-timing powered on/off /remote control |
| Voltage | 5V (3.5V~6.5VwideVoltage) |
| Maximum power | ≤2W |
| Temperature | -40°C~80°C |
| Secondary development | Provide the DLL and corresponding demos |
| Software | LedshowTW2015 |
| User manual | LEDshowTW software user manual |
Notes: Because of the update, the actual functions and parameters may have some differences with the one on the website.
