Home > Consumer Electronics > Two Way Radio > Handheld Two Way Radio > TD-M558 New Special Offer Vhf Amateur Radio Mobile Radio

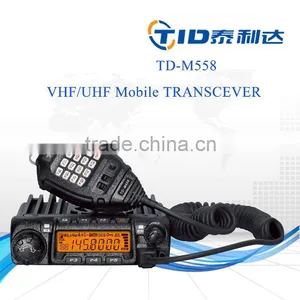

TD-M558 New Special Offer Vhf Amateur Radio Mobile Radio
US$ 100 - 115
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-M558
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Xiamen Dudai Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TD-V70 Professional Army Defense Two Way RadioUS$ 20 - 50MOQ: 1 Piece -
TD-M558 Tour Guide System CE Radio Mobile TransceiverUS$ 100 - 125MOQ: 1 Piece
-
TD-V59 VHF UHF Amateur Cheap Transceiver RadioUS$ 29 - 42MOQ: 1 Piece
-
Professional Handheld Radio TD-V33 With High Power Walkie TalkieUS$ 30 - 55MOQ: 1 Parcel
-
TID-V32 Hot Small UHF VHF Portable Walkie TalkieUS$ 20 - 32MOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
TID
Model Number
TD-M558
Type
Vehicle Mouted
Dimensions
160*43*143mm
Frequency Range
136-520MHz
Storage Channel
200
Talk Range
More than 20 km
TD-M558 New special offer vhf amateur radio mobile radio
- Remote Kill/stun/activate/revive
- Wide/Narrow band setting
- Channel Name editing
- CTCSS/DCS Setting& Scanning
- High/Mid/Low Power selectable
Our Services
Trail order is acceptable, all the products are best quality with 18 months warranty. We promise small quantity can be ship out once receive payment, big quantity can be shipping out within 1 week after receive payment. We also can do OEM/ODM.
TD-M558 mobile transceiver radio Main functions:
- Menu setting
- Work by repeater station
- Auto repeater offset frequency
- Remote Kill/stun/activate/revive
- Wide/Narrow band setting
- Channel Name editing
- CTCSS/DCS Setting& Scanning
- High/Mid/Low Power selectable
- Voice compander
- Repeater offset shift
- DTMF/2 ton/5 tone
- Talk around
- Voice prompt
- Auto Power off
- Scrambler
- Emergency Alarm
- COMP function
- Scan function
- 1750Hz tone
- ANI ID
- Microphone lock/ Mic programmable menu
- Call keypad
- 200 channels
Specification of car mobile radio wireless :
| Frequency range (TX) | 136-174MHz |
| 245-260MHz | |
| 350-370MHz | |
| 400-490MHz | |
| 470-520Mhz | |
| Frequency range (RX) | 136-174MHz |
| 245-260MHz | |
| 350-370MHz | |
| 400-490MHz | |
| 470-520Mhz | |
| Modulation mode | F3E(FM) |
| Antenna impedance | 50Ω |
| Rated voltage | 13.8V DC ±15% |
| Current | Transmitting <12A |
| Receiving <1.0A (Output 2W) | |
| Frequency stability | ≤±2.5PPm |
| Transmitting | |
| Output power | VHF: 60W(H) 25W(Mid) 10W(Low) |
| UHF: 40W(H) 25WMid) 10W(Low) | |
| Reactance modulation | Reactance |
| Modulation limit | 25KHz±5KH, 12.5KHz±2.5KHz |
| Audio distortion | <5% |
| Adjacent channel power | 25KHz≥65dB, 12.5KHz≥60dB |
| Stray radio frequency measure | <-60dB |
| Modulation character | 3dB~-3dB (Modulation frequency: 300Hz~3KHz) |
| Receiving | |
| Circuitry | Adopt quadratic frequency conversion superheterodyne mode |
| Mid-frequency (1st/2nd) | 49MHz/450Khz |
| Sensitivity | 25KHz<0.2μV, 12.5KHz<0.25μV |
| Selectivity | minus 6dB 25KHz<12KHz, 12.5KHz<10KHz |
| minus 60dB 25KHz<30KHz, 12.5KHz<24KHz | |
| Same channel restrain | >-8dB |
| Adjacent channel selective | 25KHz≥65dB, 12.5KHz≥60dB |
| Stray response anti-interference | 25KHz≥65dB, 12.5KHz≥60dB |
| Intermodulation anti-interference | 25KHz≥60dB, 12.5KHz≥55dB |
| Blocking | ≥90dB |
| Audio response | 1dB~-3dB (Modulation frequency: 300Hz~3KHz) |
| Audio distortion | <5% (>2W)(Microphone internal resistance is 8Ω |
| Modulation limit |
Certificate
5). Payment Terms
1. 100% T/T Advance
2. 100% Western Union Advance
3. 100% Sample by paypal Advance
6).Shipping Terms
1. EX-works Guangzhou
2. EX-works Hongkong
3. EX-works Xiamen
4. EX-works Dubai
7).Shipping Method
The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…
8).Lead time:
Most of our product have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.
9).Packaging :
Unique packaging with durable ,environmental , beauty design character (plastic bag color gift box) .
