TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio

TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio thumbnail-1
TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio thumbnail-2
TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio thumbnail-3
TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio thumbnail-4
TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio thumbnail-5
TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio thumbnail-6
TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio photo-1

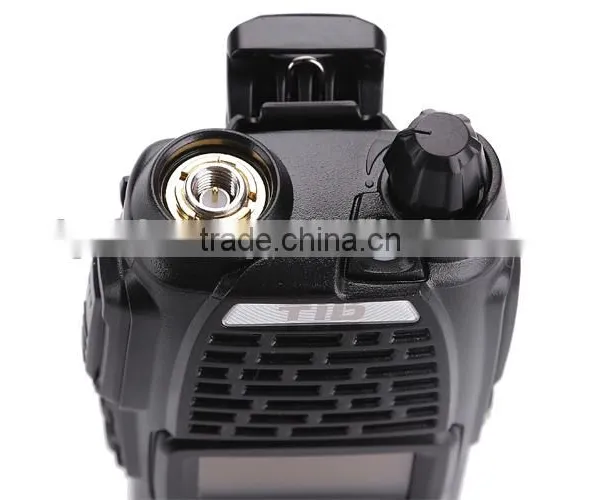

TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio photo-2

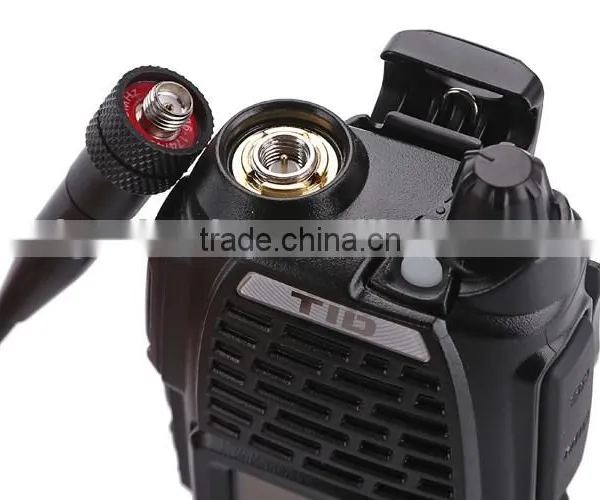

TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio photo-3
TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio photo-4

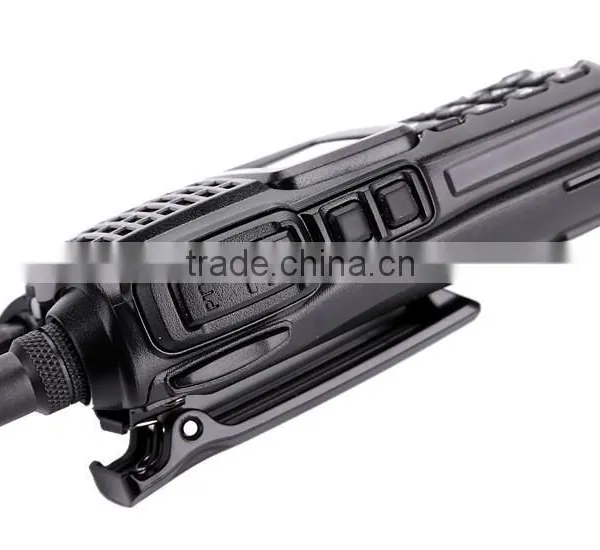

TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio photo-5

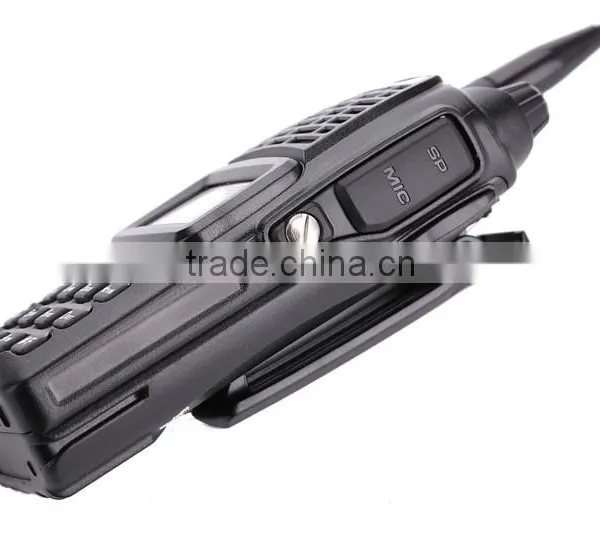

TD-V80 Vhf and Uhf Dual Band Handsfree Two Way Radio photo-6
US$ 52 - 55 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-V80
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Hongkong/Guangzhou/Dubai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TD-V80
Type Other, Handheld, Property Two-way radio
Dimensions 117*52*33mm
Frequency Range 136-174MHz / 400-470MHz
Storage Channel 128
Talk Range 5km

           TD-V80  dual band radio handsfree two way radio


Main Features

Large half dot matrix LCD display

Tri-color LCD illumination

dual freqency display

128 channels , 3 types channel scan

Priority channel scan

50 CTCSS / 214 DCS Encode & Decode , and 1 group user defined CTCSS / DCS

8 Groups of voice scrambler

voice compandor

high / low power swithchable

DTMF , MSK Signaling

selective call , group call

remote kill , Stun & Activate

Programmble 25kHz / 12.5khHz channel spacing

voice operated transmit vox

squelch tail elimination

time out timer

crystal audio FM Radio

1).  Specification of Profesional long range two way radios ( TD-V80)

1). Frequency Range



136-174Mhz ,245-246MHz,400-470MHz,450MHz-520MHz
2). Channel Capacity 128
3). Channel Spacing 12.5 / 25.0KHz
4). Operation Voltage DC7.4V Li-ion
5). Battery capacity 1600mAh (Li-ion)
6). Battery life About 13 hours
7). Frequency stability ±2.5ppm
8). Dimension(H*W*D)(Without Antenna) 114*52*29.5MM
9). Weight(With Antenna & Battery)    250g

2).Accessories

TD-V80 vhf and uhf dual band handsfree two way radio

3).Transmitter

1). RF power output UHF:4.0W / 1.0W ,VHF:5.0W / 1.0W
2). Modulation Type F3E
3). Spurious and harmonics -36dBm<1GHz ; -30dBm >1GBz
4). FM Noise 40 / 45dB
5). Audio Distortion ≤5%
6). Audio Resonse +1dB~3dB

4).Receiver

1). RF sensitivity ≤0.30 / 0.2uV
2). Adjacent chnnel Selectivity 60 / 70dB
3). Intermodulation 65 dB
4). Spurious response rejection 70 dB
5). S/N 40 / 45dB
6). Audio power output 750mW
7). Audio Distortion ≤5%

TD-V80 vhf and uhf dual band handsfree two way radioTD-V80 vhf and uhf dual band handsfree two way radioTD-V80 vhf and uhf dual band handsfree two way radioTD-V80 vhf and uhf dual band handsfree two way radioTD-V80 vhf and uhf dual band handsfree two way radioTD-V80 vhf and uhf dual band handsfree two way radioTD-V80 vhf and uhf dual band handsfree two way radioTD-V80 vhf and uhf dual band handsfree two way radioTD-V80 vhf and uhf dual band handsfree two way radio

5). Payment Terms

1. 100% T/T Advance

2. Western Union

3. Sample by paypal



6).Shipping Terms

1. EX-works Guangzhou

2. EX-works Hongkong

3. EX-works Xiamen

4. EX-works Dubai



7).Shipping Method



The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…



8).Lead time:



Most of our product have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.





9).Packaging :



Unique packaging with durable ,environmental , beauty design character (plastic bag +color gift box) .
