Dual Band 5watts 1800mAh Display Baofeng UV-5R Two Way Radio

Dual Band 5watts 1800mAh Display Baofeng UV-5R Two Way Radio thumbnail-1
Dual Band 5watts 1800mAh Display Baofeng UV-5R Two Way Radio photo-1
US$ 20 - 25 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Baofeng
Model Number:
UV-5R
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou xiamen dubai hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Baofeng
Model Number UV-5R
Type Other, Handheld, Property Two-way radio
Dimensions 117*52*33mm
Frequency Range 136-174MHz / 400-470MHz
Storage Channel 128
Talk Range 5-10km

Specifications

dual band 5watts 1800mAh display Baofeng UV-5R Two way radio
1,UV-5R Two way radio,
2,VOX ,Scanning function,
3,H/L TX powe

dual band 5watts 1800mAh display Baofeng UV-5R Two way radio



Baofeng UV-5R Two Way Radio Main function:

  • Large Half Dot Matrix LCD Display
  • Tri-Color LCD Illuminaton
  • Dual Band dual frequency standby and Display
  • 128 Channels, 3 Types Channel scan
  • Priority Channel Scan
  • 50 CTCSS/214DCS Encode &Decode And 1 Group User Defined CTCSS/DCS
  • 8 Groups of Voice Scrambler
  • Voice Compandor
  • High/ Low Power Switchable
  • DTMF, MSK Signaling
  • Selective Call, Group Call
  • Remote Kill, Group Call
  • Remote Kill, Stun&Activate
  • Programmable 25kHz/12.5kHz Channel Spacing
  • Voice Operated Transmit VOX
  • Squelch Tail Elimination
  • Time Out Timer
  • Crystal Audio FM Radio





Baofeng UV-5R Two Way Radio Speciation:



Specifications
Frequency Range 136~174MHz  /  400~470MHz
Channel Capacity 48
Operating Voltage 7.4V LI-ION
Working temperature -20°C~+60°C
Frequency Stability ±2.5ppm
Dimension(Height×length×width) 117×52×33mm
Channel Spacing 12.5/25.0 KHz
weight 245g





Transmitter
Power output LO:1W  HI: <4W
Modulation type F3E
Spurious and Harmonics 60dB
FM Noise 40dB
Audio Distortion ≤5%
Modulation limiting ±2.5/5.0KHz
Audio response ±3 dB





Receiver
Sensitivity ≤0.30/0.20uV
Selectivity 65dB
Intermodulation 65dB
Spurious Response Rejection 65dB
S/N 45dB
Audio Power Output 700mW
Audio Distortion ≤5%

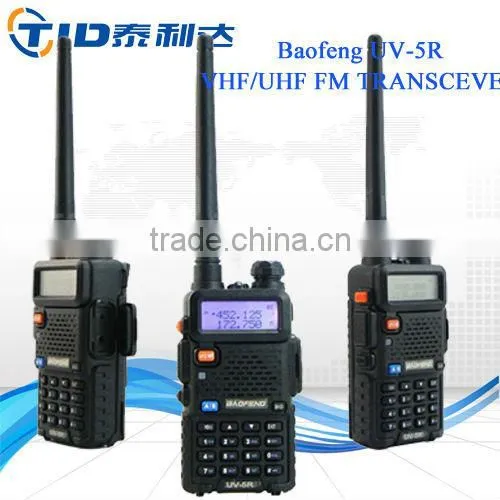

Baofeng UV-5R Two Way Radio Picture:





dual band 5watts 1800mAh display Baofeng UV-5R Two way radiodual band 5watts 1800mAh display Baofeng UV-5R Two way radiodual band 5watts 1800mAh display Baofeng UV-5R Two way radiodual band 5watts 1800mAh display Baofeng UV-5R Two way radio
