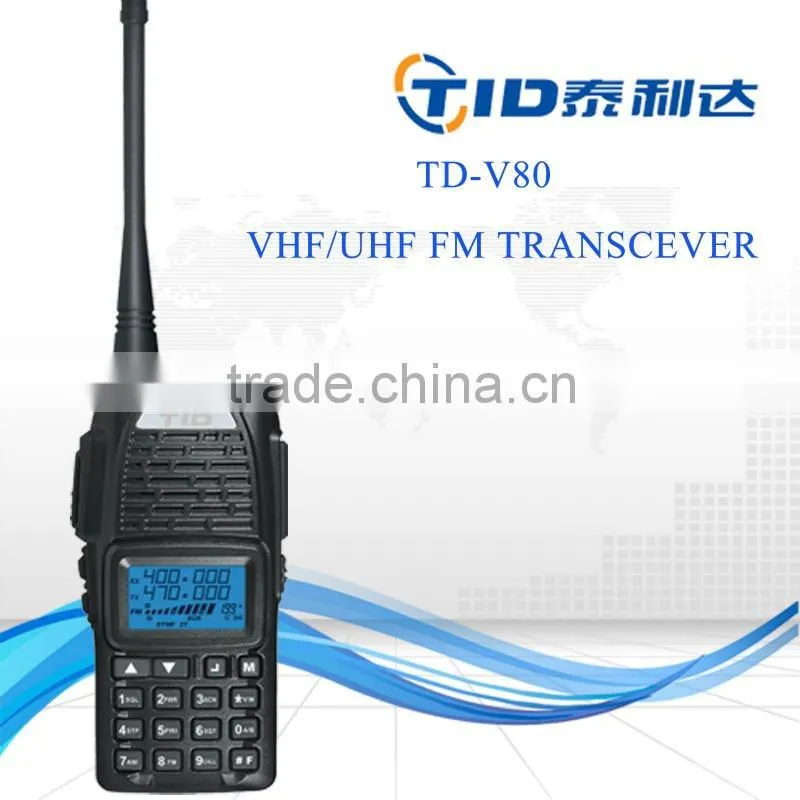

TD-V80 Portable Dual Band Ham 2 Way Radio Marine

TD-V80 Portable Dual Band Ham 2 Way Radio Marine thumbnail-1
TD-V80 Portable Dual Band Ham 2 Way Radio Marine photo-1
US$ 20 - 55 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-V80
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen/Guangzhou/Dubai/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TD-V80
Type Handheld
Dimensions 114*52*29.5mm
Frequency Range VHF:136-174MHz/UHF:400-470MHz,450-520MHz
Storage Channel 128
Talk Range 5-10km

Specifications

TD-V80 portable dual band ham 2 way radio marine
1.8 groups of voice scrambler
2.selective call , group call

TD-V80 portable dual band ham 2 way radio marine   TD-V80 portable dual band ham 2 way radio marine



Full functional Profesional two way radio systems ( TD-V80)

  • DTMF , MSK Signaling
  • Crystal Audio FM Radio
  • Large half dot matrix LCD disply
  • Dual frequency display
  • 8 groups of voice scrambler
  • selective call , group call
  • Remote kill , Stun & Activate

TD-V80 portable dual band ham 2 way radio marine



Main Features

  • Large half dot matrix LCD display
  • Tri-color LCD illumination
  • dual freqency display
  • 128 channels , 3 types channel scan
  • Priority channel scan
  • 50 CTCSS / 214 DCS Encode & Decode , and 1 group user defined CTCSS / DCS
  • 8 Groups of voice scrambler
  • voice compandor
  • high / low power swithchable
  • DTMF , MSK Signaling
  • selective call , group call
  • remote kill , Stun & Activate
  • Programmble 25kHz / 12.5khHz channel spacing
  • voice operated transmit vox
  • squelch tail elimination
  • time out timer
  • crystal audio FM Radio

Specification



Specifications
Frequency Range 136~174MHz / 400~470MHz
Channel Capacity 48
Operating Voltage 7.4V LI-ION
Working temperature -20°C~+60°C
Frequency Stability ±2.5ppm
Dimension(Height×length×width) 117×52×33mm
Channel Spacing 12.5/25.0 KHz
weight 245g



Transmitter
Power output LO:1W HI: <4W
Modulation type F3E
Spurious and Harmonics 60dB
FM Noise 40dB
Audio Distortion ≤5%
Modulation limiting ±2.5/5.0KHz
Audio response ±3 dB



Receiver
Sensitivity ≤0.30/0.20uV
Selectivity 65dB
Intermodulation 65dB
Spurious Response Rejection 65dB
S/N 45dB
Audio Power Output 700mW
Audio Distortion ≤5%
