Specifications
HDMI Switch 3X1with multiple HDMI inputs to single HDMI output,
3 port,4 port,5 port available
CE FCC certificate

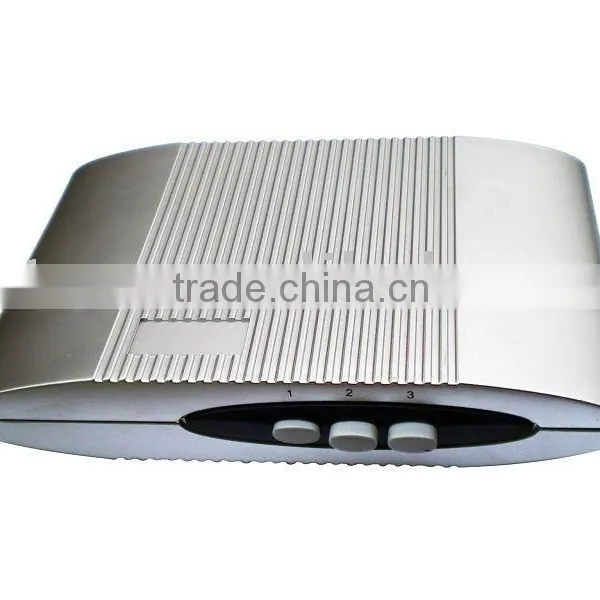

HDMI Switch 3X1
HDMI Switch box with multiple HDMI inputs to single HDMI output,
3 port,4 port,5 port available
*FEATURES:
1. Simplify home entertainment connections,connecting mutiple HDMI source devices to singal HDTV.
2. Support HDMI 1.3 Deep color
3. Support HDMI 1.3 digital audio format:LPCM/Dolby-AC3/DTS7.1/DSD/Dolby true HD/DTS-HD master Audio.
4. Perfect compatibility with any HDMI applications.
5. Great working stability.
6. User can choose manual operated or remote operated.
7. Automatic selection function enables it smartly jump over those input sources which are not in work.
8. Reset function on remote control enables it remember the temporal active input source as default input when restart.
9. Brand-new product packaed nicely in retail window box.
10. Power Adapter included , plug and play.
11. 3 port,4 port,5 port Switch/ Matrix Switcher 4X2;4X4 available
*SPECIFICATIONS
1. Operating temperature range: -5 to+35 oC (-41 to +95 oF)
2. Operating humidity range: 5 to 90% RH ( no condensation)
3. Data transfer speed: 10.2Gbps
4. Input video signal: 0.5-1.0 volts p-p
5. Input DDC signal: 5 volts p-p (TTL)
6. Max working current: 800mA
7. Power adapter supply: DC: 5V
8. Power adapter format: input:AC(50HZ. 60HZ)A100V-240V; Output:DC5V
9. Output Video: HDMI1.3 + HDCP 1.0/ 1.2
10.Support resolution: 1250p/1080p/1080i/720p/576p/480p/576i/480i
11.Support video color format: deep color 24bit/36bit
12.Support audio format: LPCM,Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master Audio
13.HDMI output cable distance: ≤15m ( if need longer, amplifier is needed)
14.Product size: See specified product.
15.HDMI version: 1.3 version
16.HDCP version: 1.2 version
