Help CenterDigital Direct Printing Belt Fabric Printer Belt Textile Printer
Related Products
-
2015 Hot Sale Direct Garment Printer Fabric Textile/cotton /silkUS$ 1 - 20,000MOQ: 1 Piece -
Special Flat Screen Printing Machine With Safety Device and Vacuum TableUS$ 1 - 5,000MOQ: 1 Set
-
Small Size Printer for T-shirt/A4 A3 A2 T-shirt Printer/black T-shirt PrinterNegotiableMOQ: 1 Piece
-
Hot Sale A2 Size UV Digital Flatbed PrinterUS$ 6,500 - 7,500MOQ: 1 Piece
-
Stable Quality Manual Screen Printing Machine 4 Color / 4 StationsNegotiableMOQ: 1 Set
Can be usd for clothing, fabric, sweaters, t-shirts, footwear, handbags, bags, caps, umbrella, curtains, bedding, leather, leather, PU, PVC, glass, chemical fiber, nylon cloth, canvas and all kinds of cotton, hemp, silk, wool, and other personalized products,@Laura
Application industry
1), personality print: such as shops, cell phone decoration shop, personality gift shop.
2), advertising industry: indoor and outdoor advertising.
3), products proofing: all kinds of traditional printing sample production.
4), studio: digital image production.
5), clothing industry: sample print or character pattern of color printing.
6), leather products: high-grade leather color printing.
7), electronic products: notebook shell, the mobile phone shell, U disk, mp3, mp4 appearance color printing.
8), gift packaging: personality appearance color printing
9), plate production: various kinds of plate production.
10), decoration industry: ceramic tile and the ceiling color printing
11), is applicable to other industries
Parameter
Item Model |
YH- 1902 |
||
Print Head |
GEN5/DX5/DX7/Konica |
||
Print Width |
1.9M |
||
Number of Print-heads |
2 |
||
Printing Speed |
2pass |
76m2/H |
|
4pass |
38m2/H |
||
6pass |
25m2/H |
||
Ink |
Sort |
acid,reactive,disperse dyes,pigment |
|
Capacity |
4 Colors |
||
Media |
Width |
1900mm |
|
Sort |
cotton,polyester,TC,non,woven,fabric,etc. |
||
Control station |
Windows7 |
||
Power Supply |
50hz/60hz 110/220V 10A |
||
Precision |
7-35PL |
||
Image |
BIP,TIFF,JPG,EPS,PDF |
||
RIP Software |
PHPTOPRINT,MAINTOP |
||
Operation Environments |
Temperature:18°C-28°C,Humidity:35%RH-65%RH |
||
Machine Size(L*W*H) |
2.89*1.9*1.33M |
||
Packaging Size(L*W*H) |
3.19*2.17*1.43M |
||
Gross Weight |
800KGS |
||

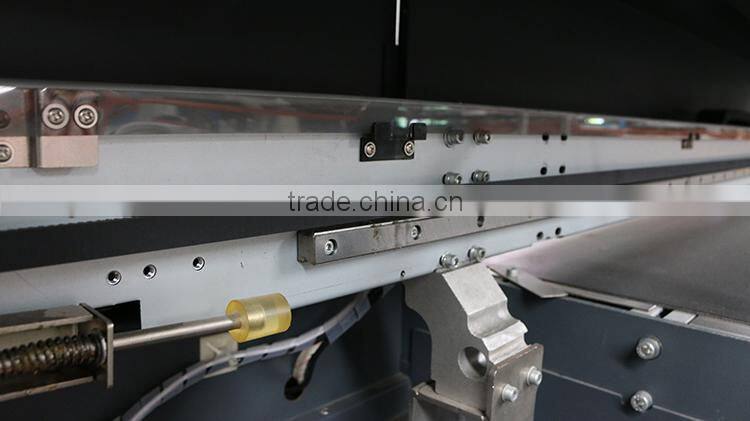

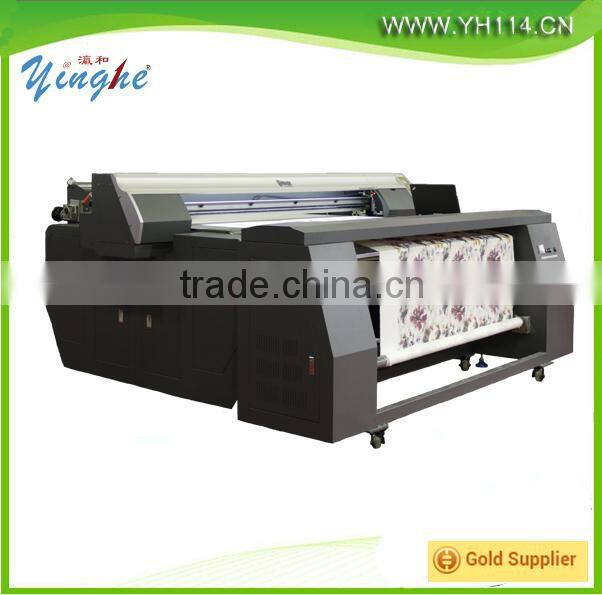

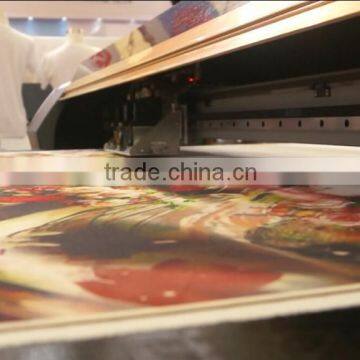

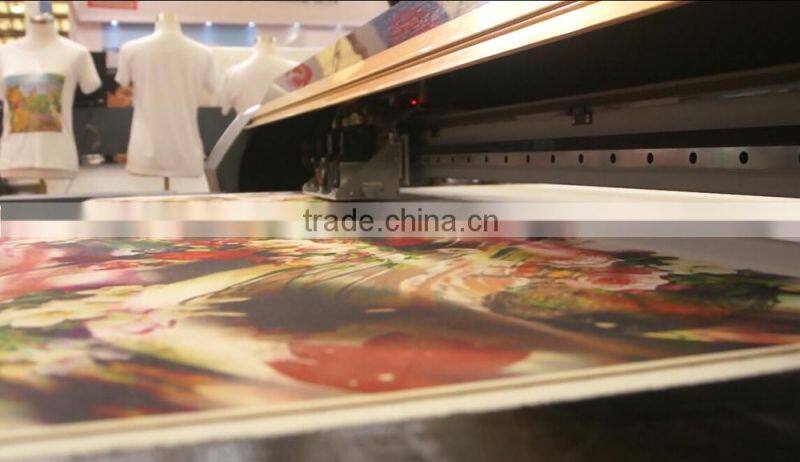

Machine images

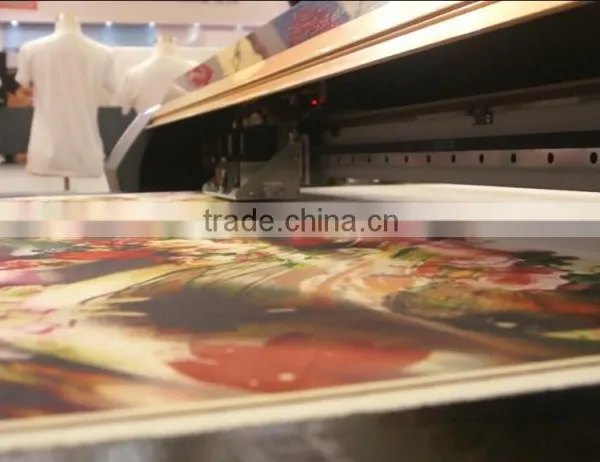

Sample show
High resolution 1.9M digital textile printer
The piezoelectric inkjet printer is a inkjet printer, is a large-format printers, inkjet printer press nozzle technology is mainly divided into two categories: Piezo inkjet printer and hot foam-type inkjet printer, the advantage of the piezoelectric inkjet printer precision high, reaching more than 1440dpi, long nozzle life, almost more than a year; the disadvantage is partial gray color, the machine purchase costs are higher. General use Epson 2nd generation, 3rd generation, 4th generation, 5th generation nozzle. The average life expectancy of up to four generations head 1.5-2 ten thousand square feet or more. E-PSON Piezo print head is completely controlled by the price volatility is relatively large.
Advantages
1.Printing part:
* DX7 heads, or DX5 or gen5 heads optional.
*Printhead height adjustable from 2mm to 30mm. For cotton printing, 2mm-3mm; For wool printing,3mm-5mm
*Sublimation ink, reactive ink, pigment ink etc can be used by this printer.
*After printing, a drying system helps to dry the wet ink.
2.Parts:
*Panasonic server motor and variator
*Japanese bearing and bearing seat;
*Cartridge AC Server motor for high speed;

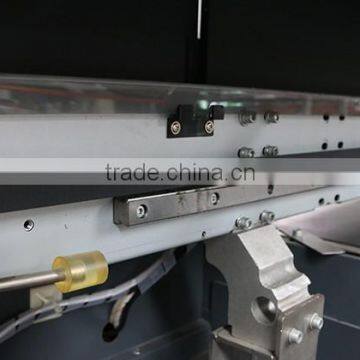

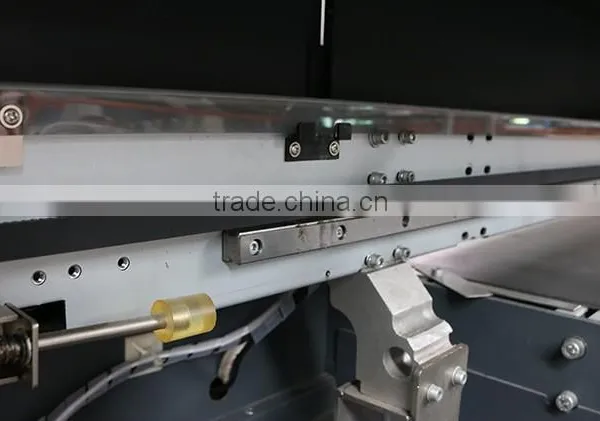

*THK rail guide.
*304# stainless steel shafts and screws.
*Machine body structure thickness: 10mm ~12mm.@laura
3.Belt conveyor:
*German“SIEGLIN” Conveyor belt specially for digital textile printing , it can work over 10 years.
*Belt system automatically adjusted by Siemens PLC sensor and motor.
*Glue: oil based, prevents fabric dislocation or movement, elastic fabric can be printed as well.
*Front and back Belt shafts diameter to 200mm.
*Bracket props up the belt and makes it smooth.
4.Belt auto self-clean system:
*2pcs sponge shafts instead of brush to protect the belt better and prolong the glue lifespan.
*Water-cycled pipe to keep the water tank and sponge clean.
*The washing system height is adjustable.
*After washing, the PID controlled drying system can dry the belt effectively.
5.Feeding and taking up system:
*Auto feeding shaft for fabric roll feeding; special tension bar attached for fabric sheet feeding.
*Silicone cylinder with pneumatic pressure control for fixing the fabric on the blanket.
*Taking up system: taking up convey strength and speed is controllable, according to different fabric adhesive feature.
Refilled ink supply:
Continuous ink supply system, cost saving and easy maintenance.
About my company
My wechat code, please kindly scan and add me .thank you so much @laura
