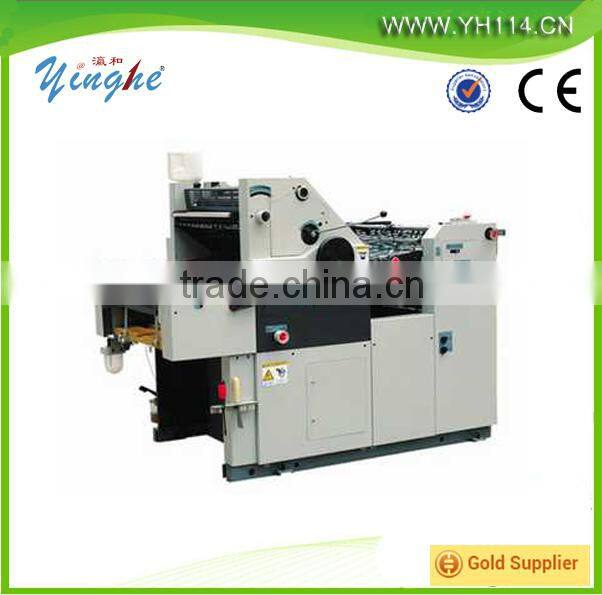

One Color Offset Press Machine With Code Function

One Color Offset Press Machine With Code Function thumbnail-1
One Color Offset Press Machine With Code Function thumbnail-2
One Color Offset Press Machine With Code Function thumbnail-3
One Color Offset Press Machine With Code Function photo-1

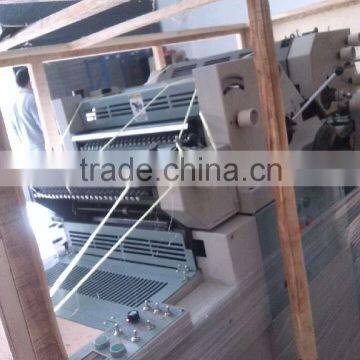

One Color Offset Press Machine With Code Function photo-2
One Color Offset Press Machine With Code Function photo-3
US$ 4,000 - 8,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, offset press printer
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Guangzhou Yinghe Electronic Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, offset press printer
Place of Origin Guangdong, China
Brand Name Yinghe
Model Number YH-47A
Usage Paper Printer
Automatic Grade Automatic
Voltage 220v
Gross Power 0.75kw
Dimensions(L*W*H) 2100(L) *1000(W) *1450(H)mm
Weight 800KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



one color offset press machine with code function

one color offset press machine with code function

1. Easy operation:Dampening,inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactlyly and reliably.
2. Exact registration:Front paper stopper of registration,  both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment,plate cylinder registration of up/down.
3. Dampening and inking separated:Dampening system is separated from inking system,which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.
4. Presetted counter:This machine adopts electromagnetic presetted counter. If the quantited printing work finishes, the paper feeding stops automatically.
5. Double sheets detection:It can avoid the problem such as double sheets,paper overlap and non-stop.
6. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward.
Parameter
Model YH47NPA
Max. printing size 460 × 345mm
Max. sheet size 470 × 365mm
Plate size 470 × 395 × 0.15mm
Blanket size 470 × 420 × 1.95mm
Usable paper 28-250g/m2
Ink roller 10pcs (2 forme inking rollers)
Dampening roller 4pcs (1 forme dampening roller)
Molleton    thick: 76 stitches; thin: 44stitches
Numbering device Straight type(horizontal): 49 heads Max.
(7 heads on a ring × 7 rings on a shaft)
Convex type(vertical):   40 heads Max.
 (5 heads on a ring × 8 rings on a shaft)
Letter press printing device Cylinder type: 90 × 345mm Max.
Mounting ring type: 30 × 40mm Max.
Perforating device Cross perforation:Min 25mm
Vertical perforation: 5mm(blade-perfo type)                  2cm(rotary-perfo type)
Ink rollers for NP unit 6pcs(2 forme inking rollers)
Printing speed 2000-7000 sheet/hour
Power supply Single-phase: 220v, 50Hz
Main motor 0.75kw
Air pump motor 0. 55kw
Machine dimension 1730(L) × 880(W) × 1200(H)mm
Net weight 800kg
Packing case dimension 2100(L) × 1000(W) × 1450(H)mm




one color offset press machine with code function one color offset press machine with code function

one color offset press machine with code functionone color offset press machine with code function

one color offset press machine with code function

one color offset press machine with code function

one color offset press machine with code functionone color offset press machine with code function

one color offset press machine with code function

one color offset press machine with code functionone color offset press machine with code functionone color offset press machine with code function

In our showroom have sample machine could show you,welcome to visit our company

one color offset press machine with code function
