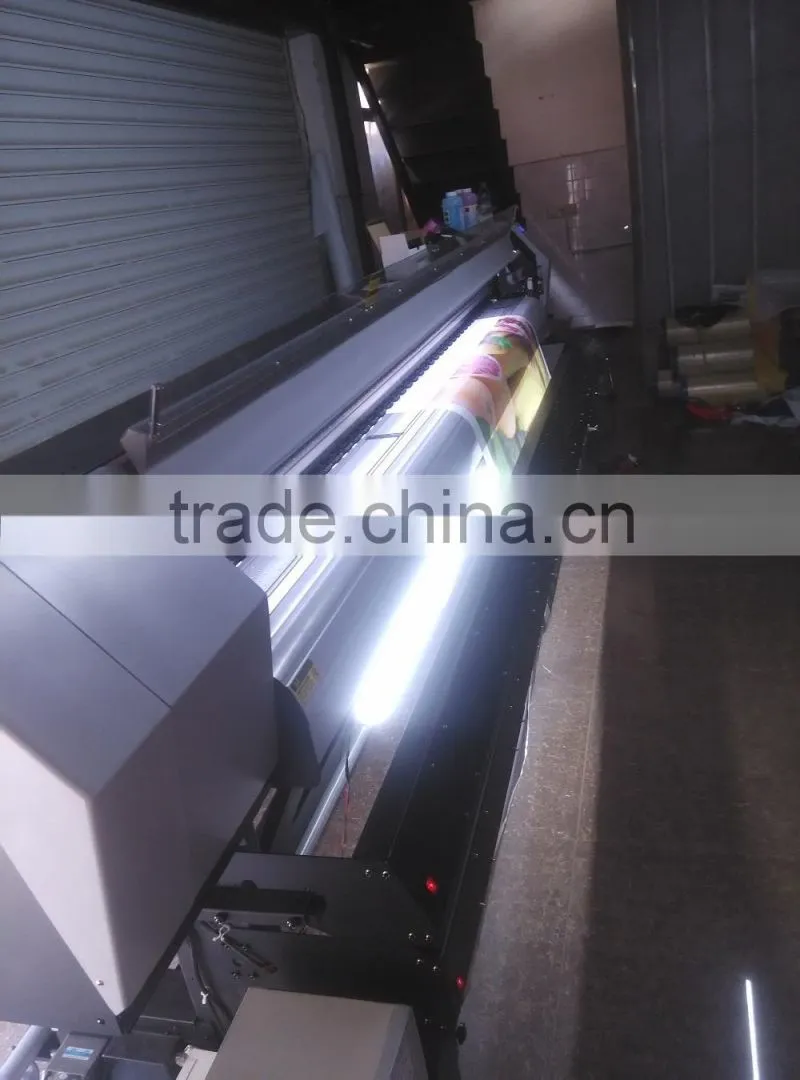

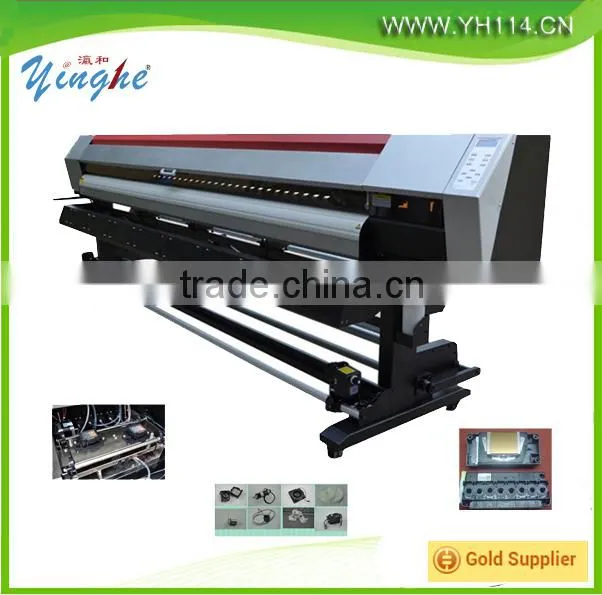

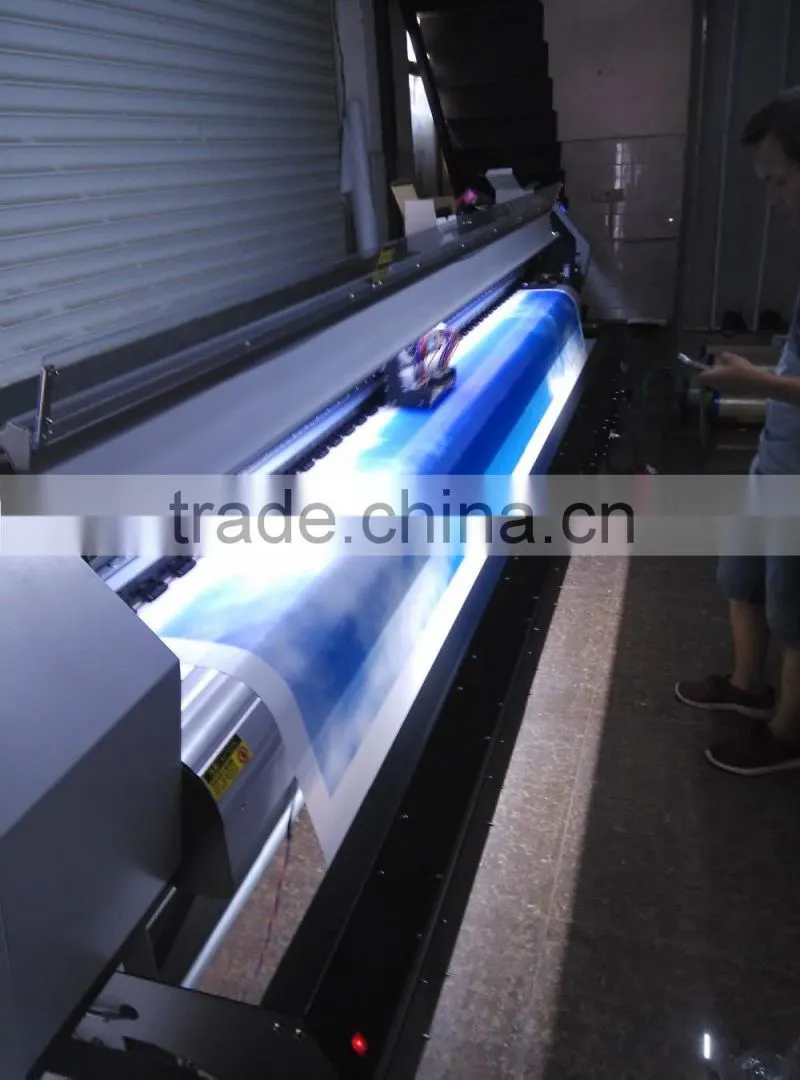

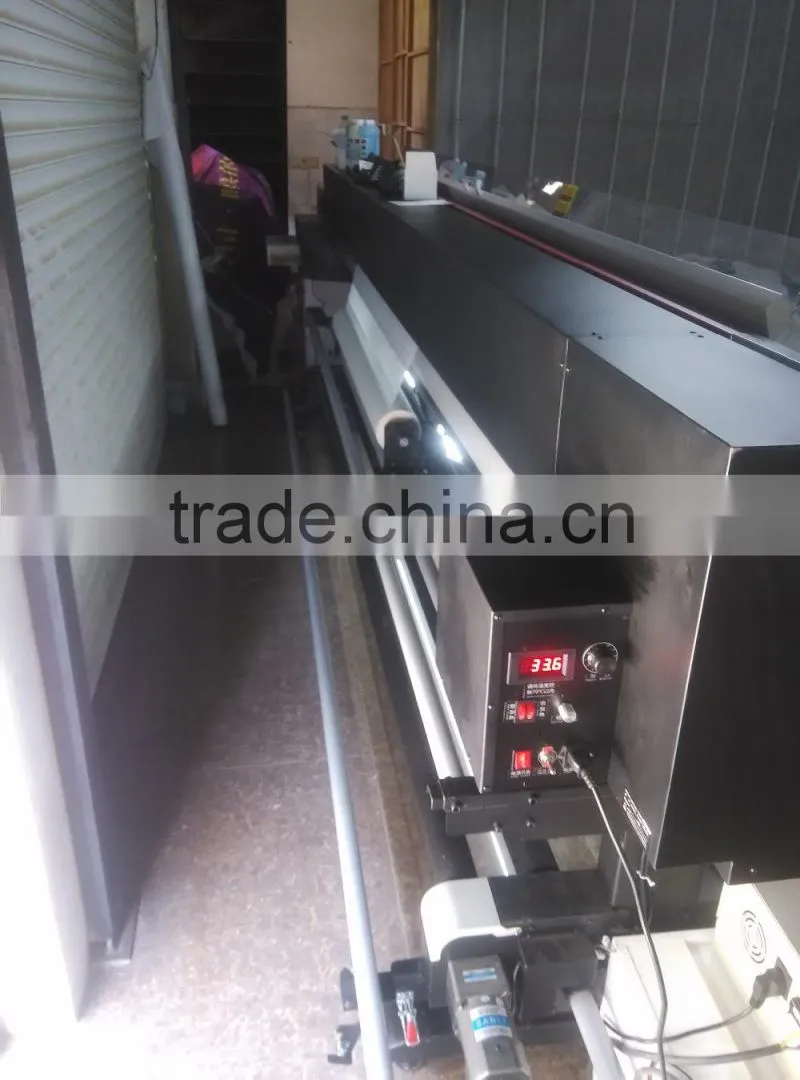

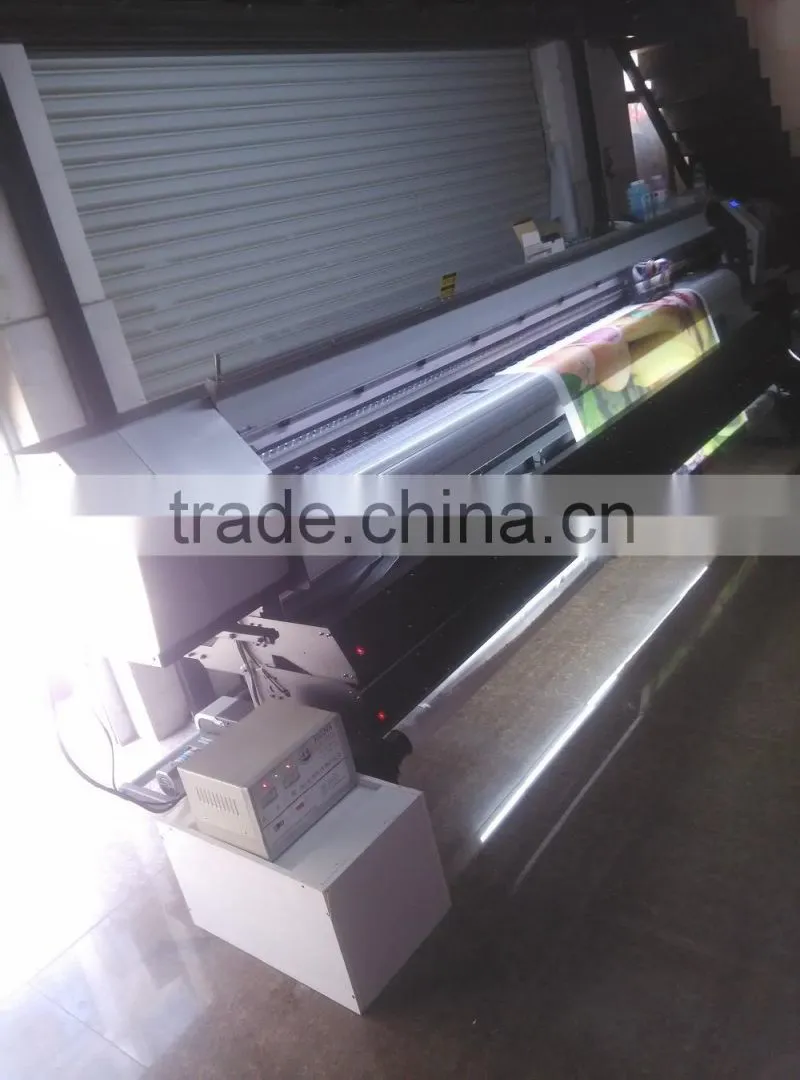

Dx5/dx7 Head High Resolution Stretch Ceiling Flim Printer
US$ 9,000 - 11,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, BANNER PRINTING
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU HUANGPU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Best Quality DX5 Print and Cut Printer for Sticker Easy Use Printing and Cuting Machine Quality ChoiceUS$ 3,000 - 8,000MOQ: 1 Piece -
Outdoor Car Sticker Print and Cut PrinterUS$ 3,000 - 8,000MOQ: 1 Piece
-
Print and Cut PrinterUS$ 3,000 - 8,000MOQ: 1 Piece
-
Print and Cut Printer With DX5 or DX7 HeadUS$ 3,000 - 8,000MOQ: 1 Piece
-
Roland Print and Cut Printer Plotter for Vinyl,canvas,flex BannerUS$ 3,000 - 8,000MOQ: 1 Piece
Condition
New
Plate Type
Other, BANNER PRINTING
Place of Origin
Guangdong, China
Brand Name
YINGHE
Model Number
YH-3200M
Usage
Bill Printer, Label Printer, Paper Printer
Automatic Grade
Automatic
Voltage
110V/220V
Gross Power
3000W
Dimensions(L*W*H)
H1500mm * L4400mm* W950mm
Weight
1280KG
Certification
CE Certification
After-sales Service Provided
Engineers available to service machinery overseas
| 1. Adopt double DX5 printhead, which with 180 nozzles / roll *8 lines *2. With high output quality that up to 1440DPI. | ||||||||
| 2. Staggered arrangement printing can imporve the productivity. The printing speed can be 36m2/h in 4 pass under the staggered arrangement printing mode. | ||||||||
| 3. Adopt New Variable Droplet Control Technology, which achieve the three grayscale to make the printing more delicate and accurate. It can output the perfect printing with VSD technology even in high speed or low resolution. | ||||||||

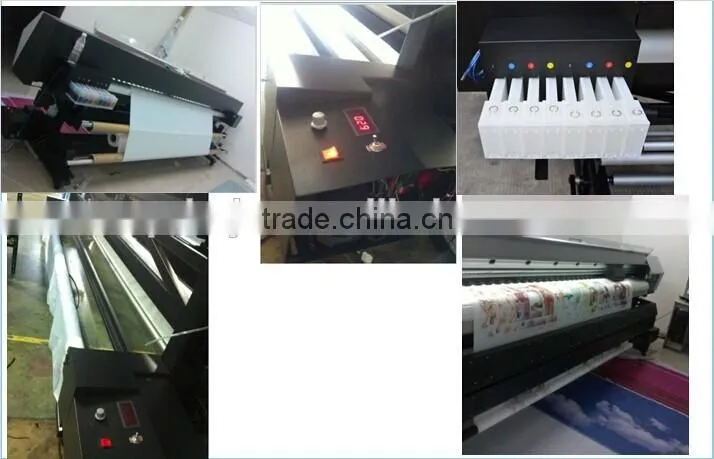

| 4. With separately front, middle and back heating system. | ||||||||

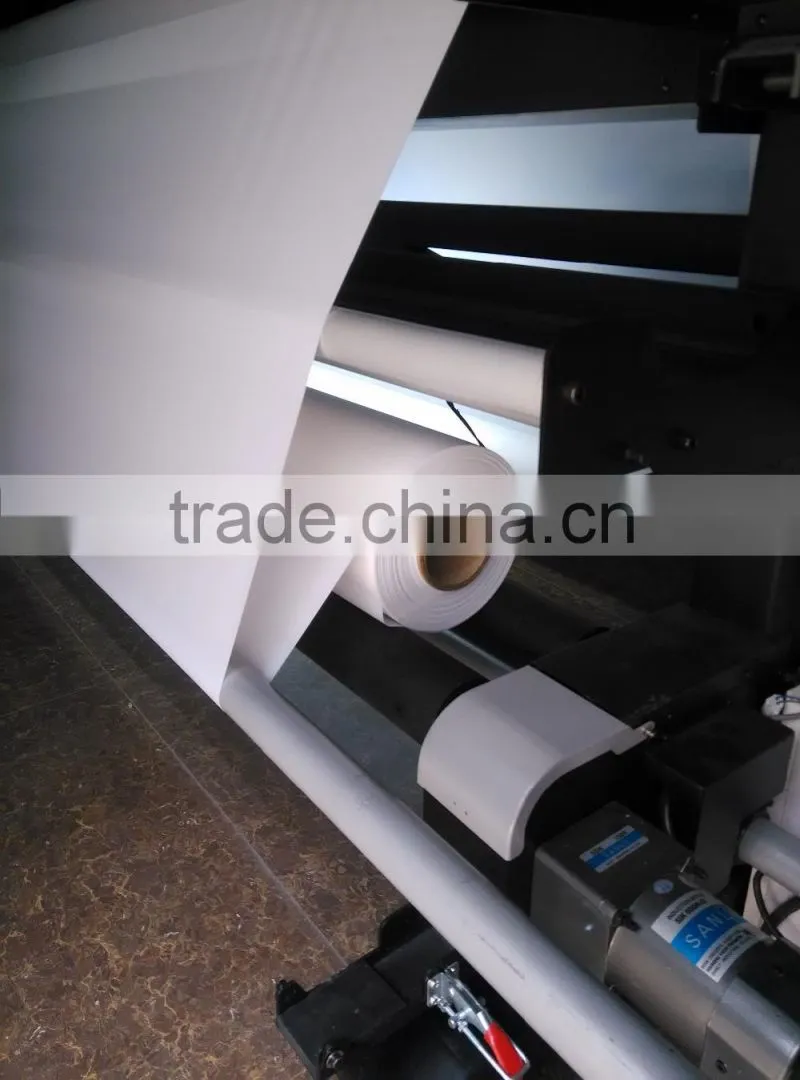

| 5. With automatic Media take-up system. | ||||||||
| 6. The height of printhead can be adjustable according to the thickness of media from 0.15mm to 8mm, to ensure the good spary quality. | ||||||||
| 7. Adopt the well-known HAVIN brand rails, to ensure the movement of carrier to be more stable, with longer life-time and be quieter. | ||||||||
| 8. Adopt Three Intelligent Eclosion Print Function, which can eliminate the broken picture and make the printing more perfect and delicate. | ||||||||
| 9. With Automatic Ink Maintenance station. The automatic self-designed absorbing device with simple operation is convenient for mantaining, And the automatic up / down sucking ink function can reduce to wast of ink. | ||||||||
| 10. Using Hight-power servo DC motor for X, Y axis to ensure accurate transmission. | ||||||||
| 11. Using High-speed USB interface, which can be up to 480m/s speed of maximum transmission. | ||||||||
| 12. Using Industrial Circuit Design to ensure the reliable and stable circuit. Good designs as high-capacity automatic ink supply system and so on, ensure the overall stability of the machine which make it become your right hand. | ||||||||
| Parameter | ||||||||
| Model | YH-3200M | |||||||
| print head | E-P-S-O-N DX5 head | |||||||
| Quantity of the printhead | 2pcs | |||||||
| Maximum print | 3200mm | |||||||
| print resolution/speed | 2pass | 66.4m²/h | ||||||
| 3pass | 45m²/h | |||||||
| 4pass | 36m²/h | |||||||
| Ink | Sort | water based ink / Eco solvent ink | ||||||
| Capacity | Double 4 color, 220ml each | |||||||
| Media | Width | 3200mm | ||||||

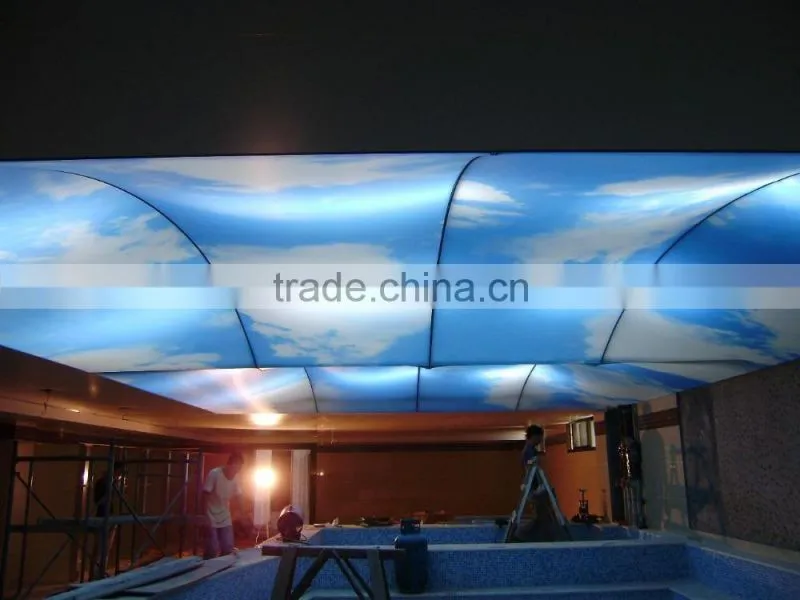

| Sort | PP Sythentic Paper, Vinyl Sheet, Film, Coated Paper, Acid Proof Paper Banner, Canvas etc, Adhesive Vinly Sheet, Banner and stretch ceiling | |||||||
| Media Heater | Pre/Post Heater (can be controlled separately) | |||||||
| Media Take-up Device | automatic paper release and take up system for stretch ceiling | |||||||
| Interface | USB 2.0 | |||||||
| RIP Software | Maintop V5.3, Photoprint | |||||||
| Operation Environments | Temperature:20℃-35℃,Humidity:35%RH-65%RH | |||||||
| Dimensions of Printer | H 1300mm X L 4360mm X W 850mm | |||||||
| Dimensions of Packing | H1500mm X L4400mmX W950mm | |||||||
| Net Weight | 700KG | |||||||
