Help Center18 Head Flatbed Cap Embroidery Machine
Related Products
-
High Speed Low Price 4 Heads 8 Heads 6 Needles 9 Needles 12 Needles Cap Embroidery Machine for SaleNegotiableMOQ: 1 Piece -
Good Price Two Head Compect Flat Embroidery MachineNegotiableMOQ: 1 Piece
-
2015 Sewing Embroidery MachinesNegotiableMOQ: 1 Piece
-
YH-902 Two Heads Embroidery MachineNegotiableMOQ: 1 Piece
-
4heads 6 Heads 8 Heads Computer Embroidery Machine China for Cap / t- Shirt EmbroideryUS$ 1 - 10,000MOQ: 1 Piece
Configure high-speed nose of the linear guide

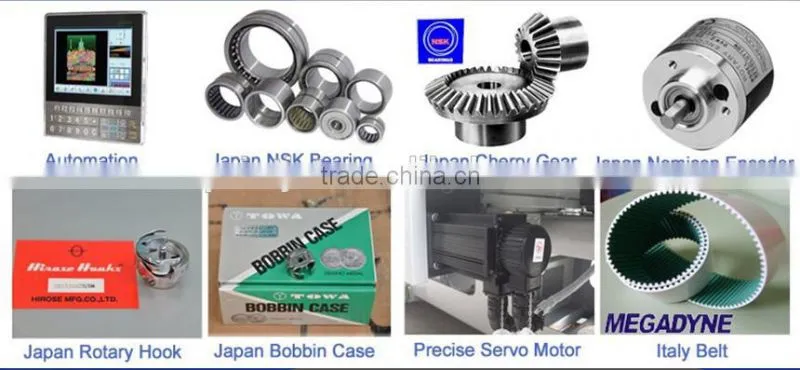

The main transmission parts
NSK Bearings
Imported materials timing belt
X / Y linear guide
Electronic control unit configuration
Optional according to customer's needs on the basis of flat embroidery, different forms of attachment, sequined embroidery, garment embroidery, cap embroidery.
Using advanced subdivision drive system, low noise.
The machine is built-in USB interface, can be directly read U disk pattern, easy to use.
5 inch color LCD screen, real-time tracking simple the current embroidery pattern, a multilingual interface operation.
Pin 12 million large-capacity memory, storage pattern 120 pattern.
Hardware limit, protection is more thoughtful.
Machine performance and specifications
Needles: 9-pin
Embroidered area: 400 * 450 mm
Stitch length: 0.1-12.7mm
Speed: 150-800rpm flat embroidery
Memory capacity: 12 million needles
Storage pattern Quantity: 120
Spindle motor: stepper motor (subdivided driver) / servo motor
X, Y motor: stepper motor (subdivision driver)
Power Supply: 200v-240v 50HZ/60HZ
Power consumption: 500w
Dimensions before packing: 1460X1080X1500mm
Packaging size:1600X900X1580mm
Stitch form:Locking linear
1,Display: color display, synchronized to track;
2,Storage functions: internal memory can store 200 patterns stored pin number 2000000 needle;
3,Pattern of rotation and scaling functions: make embroidery pattern 1 degree units is in the range of 360-degree rotation, can rotate around pattern along the longitudinal or transverse ratio zoom in or out;
4,Memory pattern display function: can watch the graphics memory tricks, then select the pattern of embroidery and pattern of the output is very convenient;
5,Pattern editing functions: memory tricks can edit to modify, flexibility and convenience;
6,Combined design features: more general pattern in accordance with the different magnification, rotation angle, the orientation of the image, and the relative displacement be combined to form a new pattern, so the pattern once embroidered.
model |
YH |
Sewing area(mm) |
800*1200 |
|
machine size |
At delivery |
1460*1080*1500mm |
Storage mode |
Disk/U Disk |
after setup |
1600*900*1580mm |
|||
G.weight |
550KG |
Max.number of stitch |
200 ten thousand Needle |
|
Power |
500W |
Sewing speed(s.m) |
100-800 needle/minute |
|
No.of Needle |
9 |
Stitch form |
Lock Stitch |
|
Stitch Width(mm) |
0.1-12.6 |
power source |
Singel phase 110v or 220v |
|
We have many model embroidery machine,welcome to visit our
showroom
