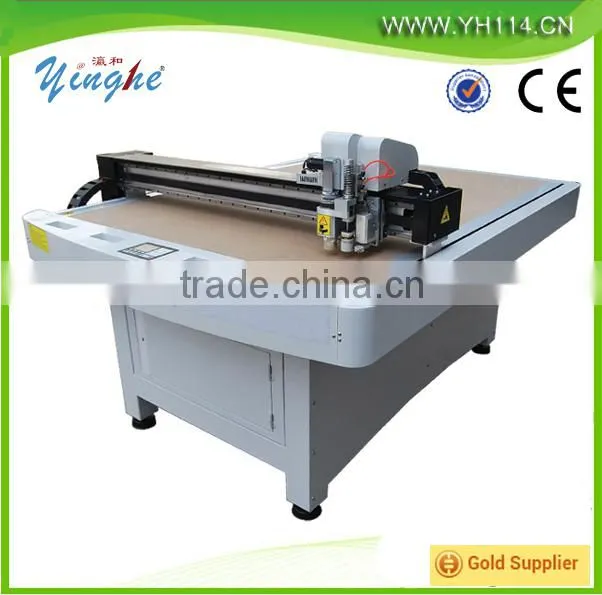

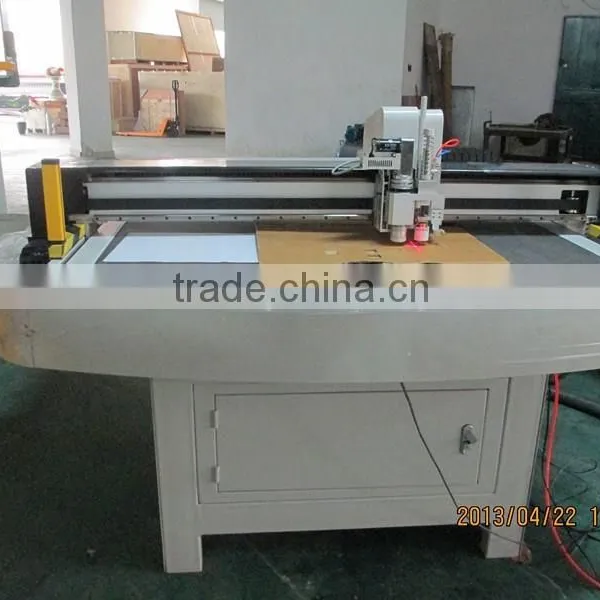

Cnc Carton Box Sample Cutting Machine
US$ 15,000 - 22,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Barrel, Belt, Cans, Cartons, Case, Film, Foil
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flatbed Cutting Plotter for Kinds of Paper Materials Quality ChoiceUS$ 4,000 - 8,000MOQ: 1 Piece -
Good Quality Cutting PlotterNegotiableMOQ: 1 Piece
-
Good Quality Cutting Plotters Usb DriverNegotiableMOQ: 1 Piece
-
2015 Cutting Plotters With Optical SensorNegotiableMOQ: 1 Piece
-
Yinghe High Quality Different Sizes Contour Cutting PlotterNegotiableMOQ: 1 Piece
Condition
New
Application
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type
Bags, Barrel, Belt, Cans, Cartons, Case, Film, Foil
Packaging Material
Paper, Plastic, Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V/220V
Power
50Hz
Place of Origin
Guangdong, China
Brand Name
Yinghe
Model Number
YH-2516
Weight
400KG
Dimension(L*W*H)
3300*2250*1200mm
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
| Advantages of the cutter | |||

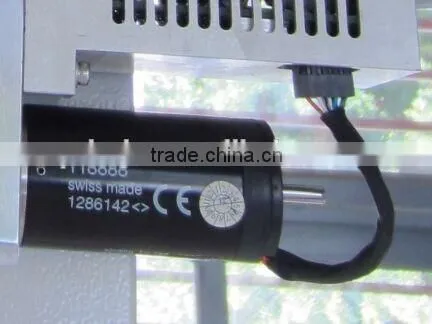

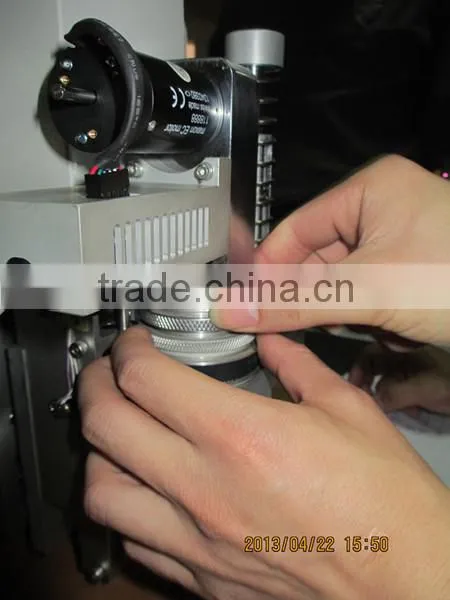

| 1. The superior quality servo motor of this machine origins from Switzerland, whose revolving speed is up to 25000rpm | |||

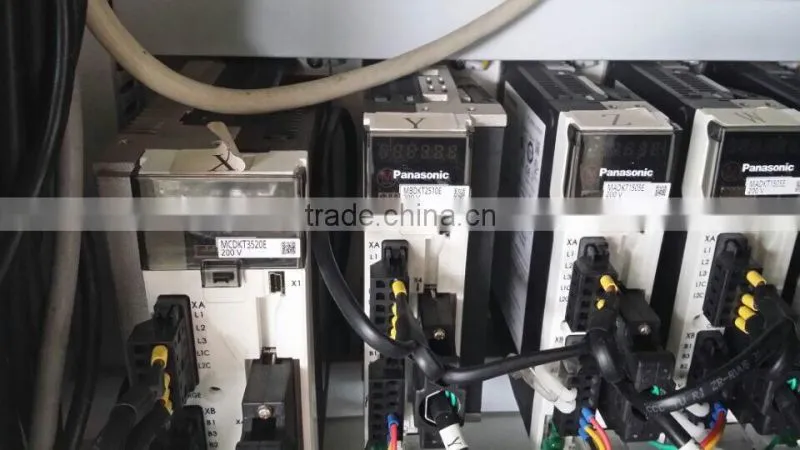

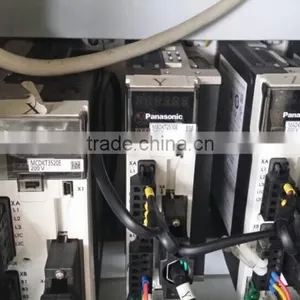

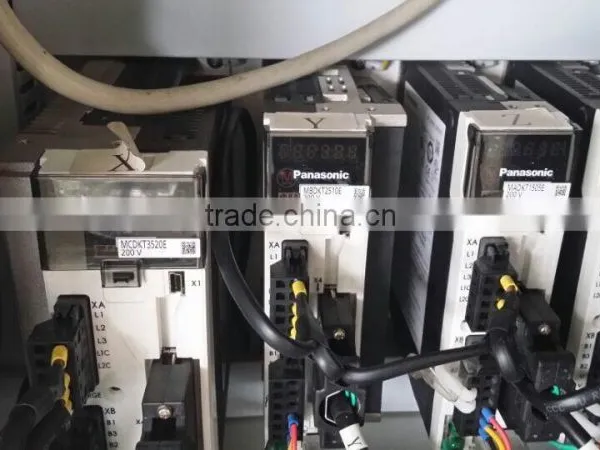

| 2. Panasonic servo motor is applied to the machine to command the Vibration of the cutter as well as the up and down of creasing wheel. With computerized conttrol,the depth of cutting and creasing is adjustable precisely according to your requirement. | |||

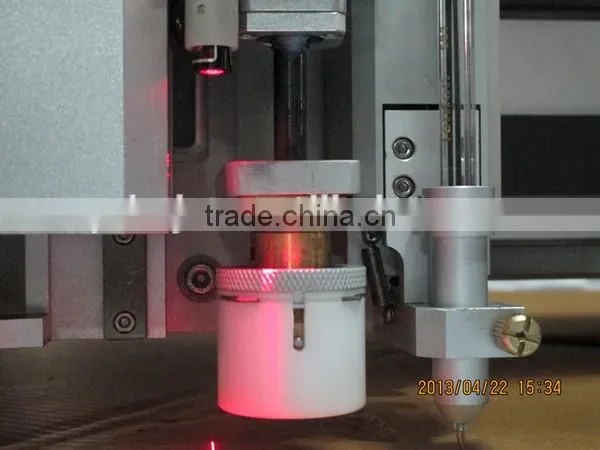

| 3. The machine has three functional heads: creasing wheels with V-Cutter and high speed milling Router, vibration cutting head and drawing pen, they enable the machine to work on different materials like corrugated paper, gray board, white cardboard, plastic sheets, composite materials, textiles, leathers, foam board, sponge etc at the maximum cutting height of 15mm . | |||
| 4. All data wires are Germany original. | |||
| 5.The table is made of fiber board which is imported from USA. It's with good permeability, very Durable and stable. | |||
| 6. Datas are transfered by Ethernet,the most stable way. Files can be conveyed to the machine directly through Adobe Illustrator,Coraldraw | |||
| 7. Infared sensor is equipped to avoid any working accident. It's easy and safe to operate (for example, if we put our hand on the working area, the machine will automatically stop working.) | |||
| 8. This machine can run at the maximum speed up to 1500mm per second. | |||
| 9. All fine tuning can be made on the control panel of the machine. | |||

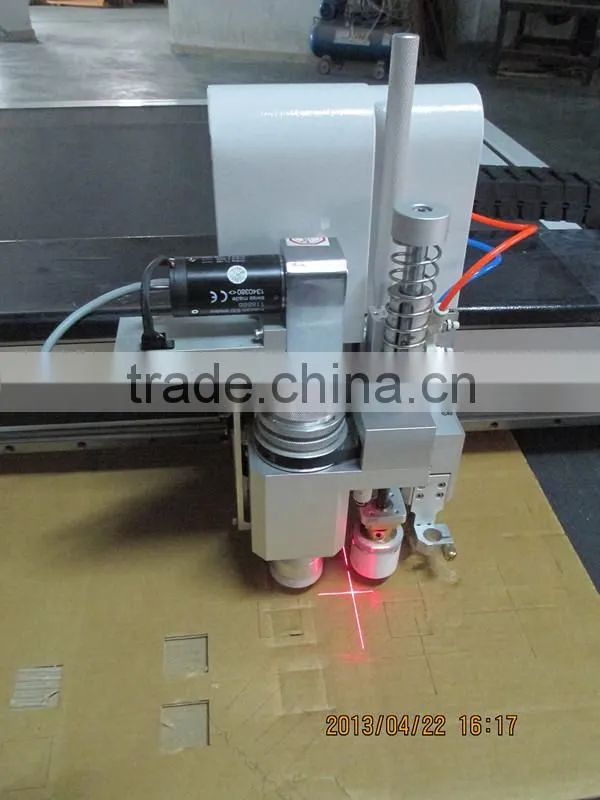

| 10. Infared laser lamp can position the well-printed carton then cut it fast and accurately | |||
| Parameters | |||
| Operation properties | Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations | ||
| Cutting speed | Maxi 1500mm/s | ||
| Cutting Thickness | 0.5-15mm | ||

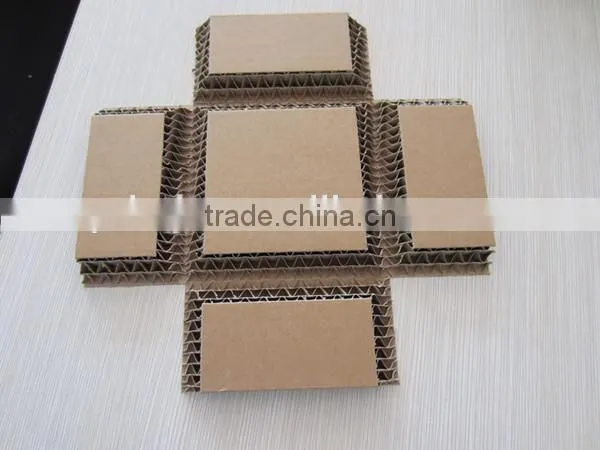

| Cut materials | Corrugated materials,sponge and foam board,lvory cardboard, gray paper, corrugated paper,plastic sheets,composite materials and leather materials maximum cutting thickness at 15mm | ||
| Number of pens | 8 different groups of strokes,half blades,full blades and pressure wheel are equiped | ||
| Positioning device | infared positioning | ||
| Method for fixing paper | Vacuum absorption | ||
| Cutting tolerance | ±0.2mm | ||
| Repeat accuracy | <0.05mm | ||
| Minimum circle | >5mm diameter | ||
| Transmission interface | Ethernet port | ||
| Format compatible | Compatibility format AI software,Autocad,Coraldraw and all box software | ||
| Direcive system | HP-GL and GP-GL | ||

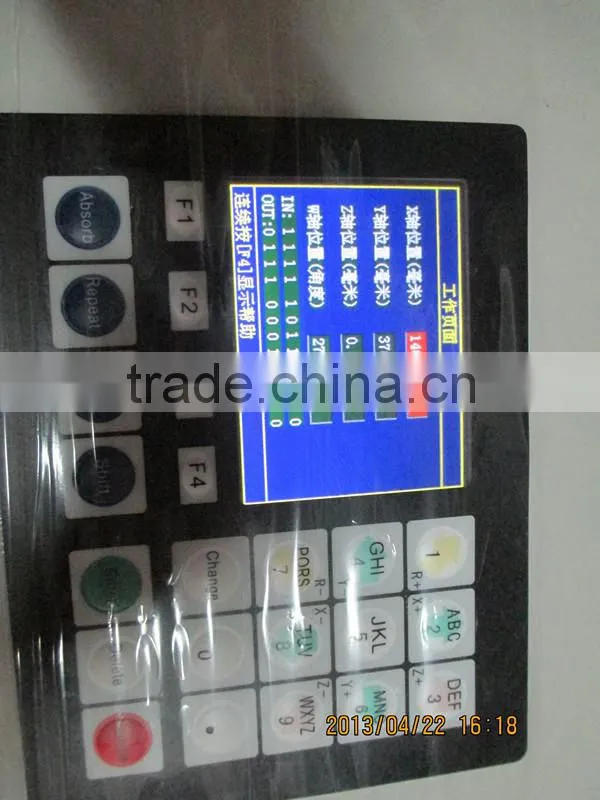

| Digital control panel | Liquid crystal display and touching button | ||
| Transmission materials | Linear guide rails and imported synchronous belts | ||
| Supply voltage | AC 220V 380V ±10%,50HZ | ||
| Vibration blade | Vibration cutter head motor at highest speed up to 25000rpm | ||
| Cutting area | 1400mm*1000mm | 1800mm*1300mm | 2500mm*1600mm |
| Overall dimension | 2160*1680*1220mm | 2570*1990*1200mm | 3300*2250*1200mm |
We have different kinds of size,welcome to contact with us!!
