2015 Newest PS201 Truck Code Reader OBD2 Auto Scanner for Heavy Duty Diesel Vehicles With 6/9 Pin

2015 Newest PS201 Truck Code Reader OBD2 Auto Scanner for Heavy Duty Diesel Vehicles With 6/9 Pin thumbnail-1
2015 Newest PS201 Truck Code Reader OBD2 Auto Scanner for Heavy Duty Diesel Vehicles With 6/9 Pin thumbnail-2
2015 Newest PS201 Truck Code Reader OBD2 Auto Scanner for Heavy Duty Diesel Vehicles With 6/9 Pin thumbnail-3
2015 Newest PS201 Truck Code Reader OBD2 Auto Scanner for Heavy Duty Diesel Vehicles With 6/9 Pin thumbnail-4
2015 Newest PS201 Truck Code Reader OBD2 Auto Scanner for Heavy Duty Diesel Vehicles With 6/9 Pin photo-1
2015 Newest PS201 Truck Code Reader OBD2 Auto Scanner for Heavy Duty Diesel Vehicles With 6/9 Pin photo-2
2015 Newest PS201 Truck Code Reader OBD2 Auto Scanner for Heavy Duty Diesel Vehicles With 6/9 Pin photo-3
2015 Newest PS201 Truck Code Reader OBD2 Auto Scanner for Heavy Duty Diesel Vehicles With 6/9 Pin photo-4
US$ 280 - 299 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Code Reader
Voltage:
12V
Power:
3w
Contact Supplier Request Quote Chat Now
Xtooltech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Code Reader
Voltage 12V
Power 3w
Certification CE.FCC,ROHS
Applicable Models All the OBDII compliant cars have OBD6,OBD9 Diagnostic socket
Place of Origin Guangdong, China
Brand Name XTOOL
Model Number PS201
Warranty 1 Years

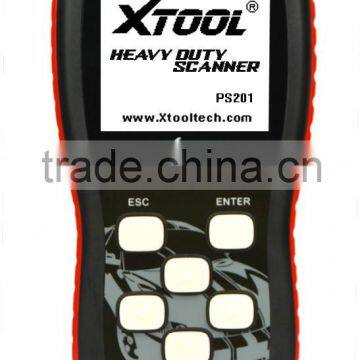

PS201 Heavy Duty Truck OBD2 Code Scanner

100% BRAND NEW & ORIGINAL!!!

1 YEAR WARRENTY!!!

THE FASTEST SHIPPING WITHIN THE U.S.!!!

OUTSTANDING CUSTOMER SERVICE!!!





The PS-201 HEAVY DUTY CAN OBDII Code Reader is the best solution for diagnose All 1996 and Newer OBD II/EOBD/CANBUS Compliant gasoline Vehicles, as well as diesel OBD vehicles, provides car owners and DIYers easy and quick access to Diagnostic all OBD II compliant vehicles sold worldwide since 1996. Though small in size, it is powerful enough to retrieve the same information as expensive workshop level scanners.

The scanner works with the following protocols:

Gasoline
--J1850 PWM
--J1850 VPW
--KPW 2000
--ISO 14230-04
--ISO 9141
--SAE J1850
-- ISO14230
-- ISO15765(CAN)
Diesel
--SAE J1939(CAN)
--SAE J1708/J1587




Description


Feature:

* Natural Ergonomic comfort Curve design
* Easy-to-read large mono-color screen
* Easy-to-operate large buttons

Diesel
*Class 4 - Class 8 truck coverage featuring "Automatic Protocol Search".
*HD J1587 / J1708 and J1939 CAN, Engine, Transmission/ABS coverage and more!


*Live vehicle data such as:
- Engine speed
- Engine ECU temperature
- Percent acceleration pedal position
- Engine intercooler temperature
- Engine coolant temperature
- Ambient air temperature
- Air inlet temperature

Gasoline


* Work with all 1996 and later OBD II compliant US, European and Asian vehicles
* Easily determine the cause of the Check Engine Light ( MIL)
* Retrieve generic (P0, P2, P3, B0, C0, U0), manufacturer specific (P1, P3, and U1) codes, and pending codes
* Turn off Check Engine Light (MIL), clear codes and reset monitors
* Display DTC definitions on unit screen
* View freeze frame data
* Read live data
* Display monitor and I/M readiness status (emissions)
* Retrieve vehicle information (VIN, CIN and CVN)
* Support CAN (Controller Area Network) and all other current OBD II protocols
* Support Mode 6
* Update via Internet

 Function:

* Read DTC
* Clear DTC
* View Freezing Frame
* View Live Data
* Special tests
-- I/M Readiness
-- MIL Status
-- O2 Sensor Test
--On-board Monitor test
-- EVAP system test
--Vehicle Info
* Code Lookup

Specification

Display: Backlit, 160 x 160 pixel mono-color screen with contrast adjustment
Operation Temperature: 0 ~ 50°C (32~122F°)
Storage Temperature: -20 ~ 70°C (-4~158F°)
Relative Humidity: < 90%
External Power: 8~18 Volts via DLC
Power Consumption: 3W
Mainframe Dimension: 225mm(L) x 98mm(W) x 36mm(H)
Exterior Memory: TF Card

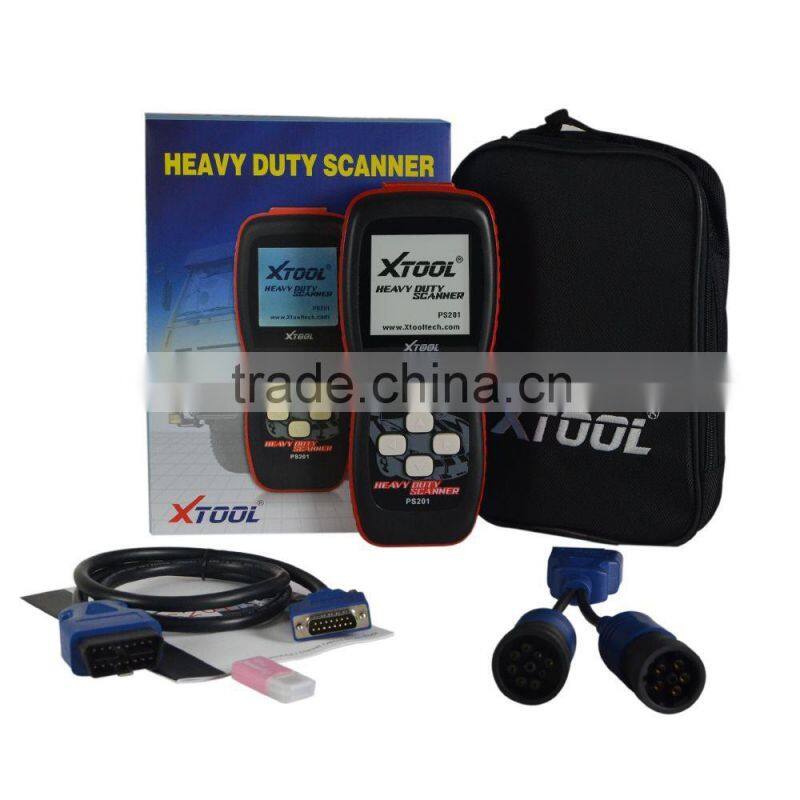

Accessories:

*PS201 Scanner

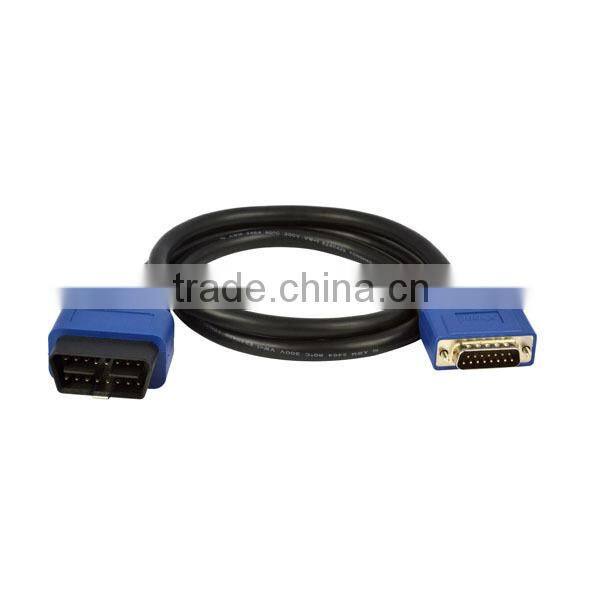

*Main Test Cable (OBD2-16pin)

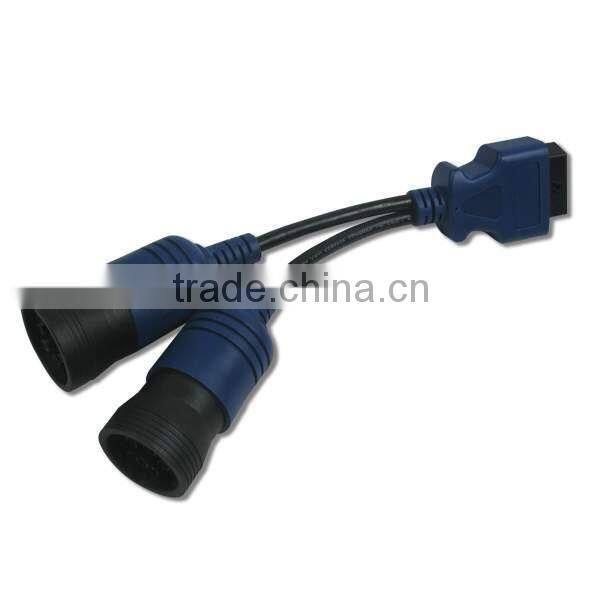

*OBD6/9 connector

*TF card

*TF Card Reader

*Nylon Bag

*User Manual
