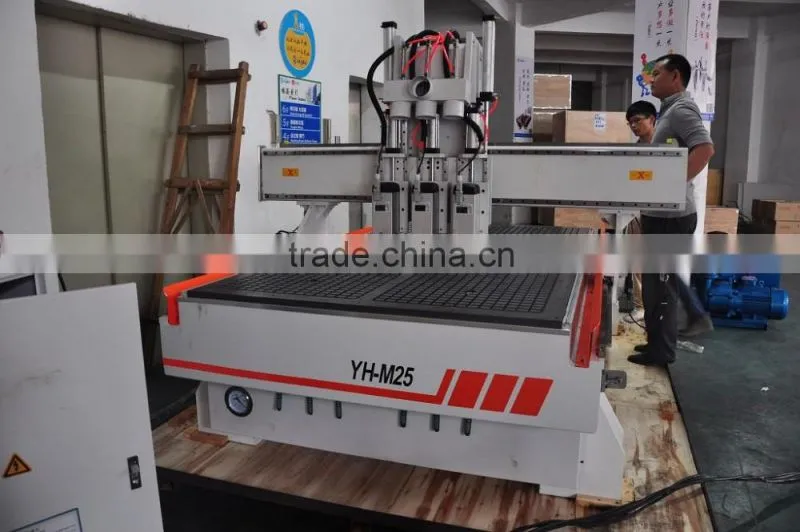

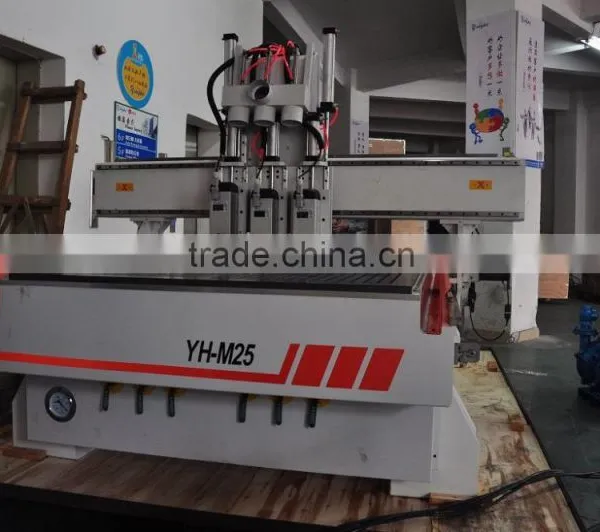

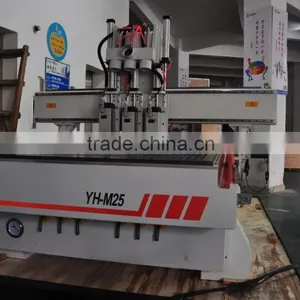

Wood CNC Router/Wood Cutting Machine
US$ 4,000 - 15,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Huangpu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cnc Wood Router With 1.3*2.5M 3 AxisUS$ 4,000 - 15,000MOQ: 1 Piece -
3 Axis New Model Wood Cnc RouterUS$ 4,000 - 15,000MOQ: 1 Piece
-
USB Glass CncNegotiableMOQ: 1 Piece
-
Good Service Hat Type Atc Cnc Router With ceNegotiableMOQ: 1 Piece
-
CNC Router Woodworking Center 1325/Table Moving CNC Woodworking Router for FurnitureNegotiableMOQ: 1 Piece
Condition
New
CNC or Not
CNC
Place of Origin
Guangdong, China
Brand Name
Yinghe
Model Number
YHM25
Voltage
380V
Power(W)
4.5KW
Dimension(L*W*H)
3300X2100X1980mm
Weight
1480kg
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
| 1.Easier and faster to change the tool automatically,even the price of the machine is cheaper than the tool changing machine. | ||||||||
| 2.Easy to control ,operate and maintain. | ||||||||

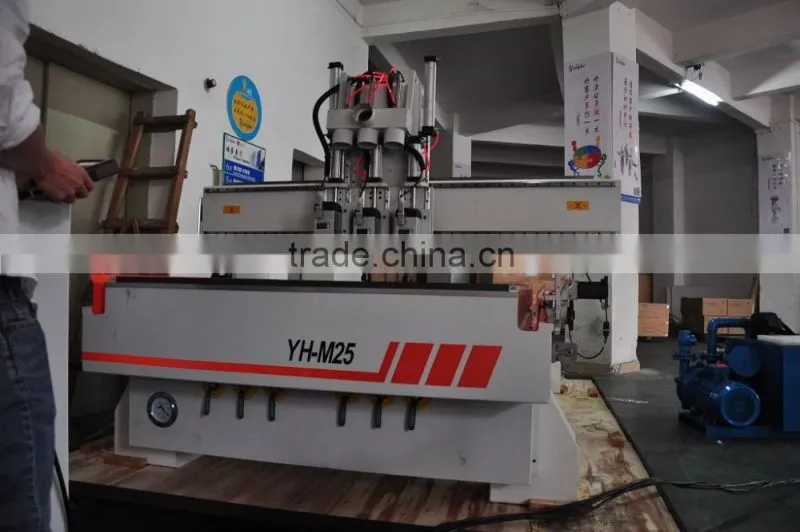

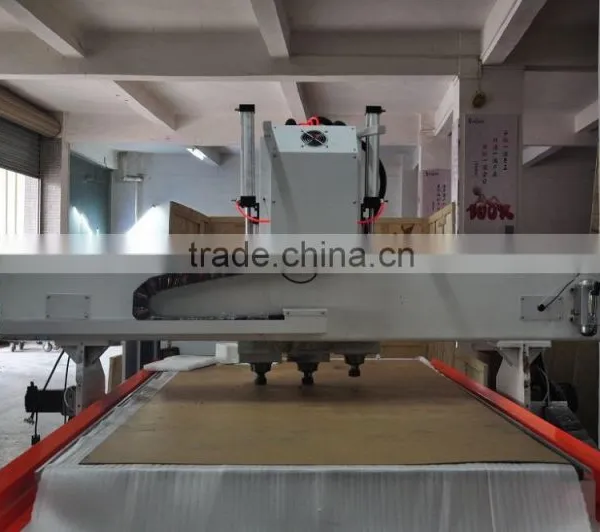

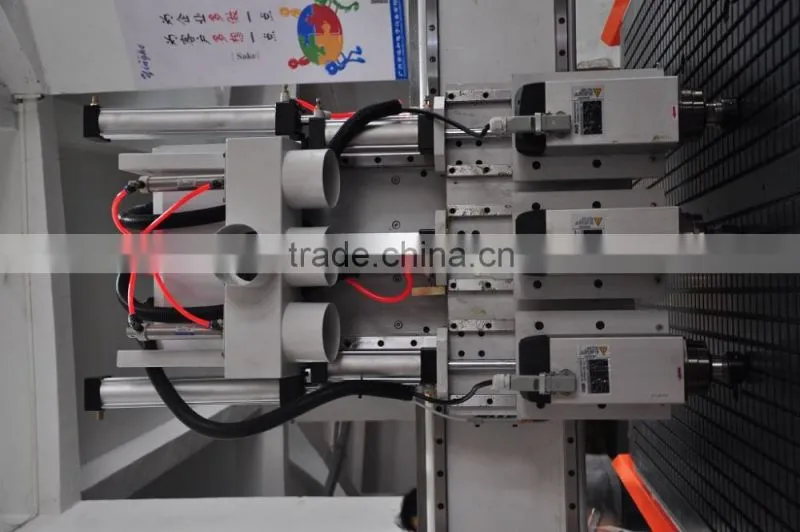

| 3.3 head can be used seperately and randomly,the engraving speed will be triple than before if 3 head being used at the same time. | ||||||||

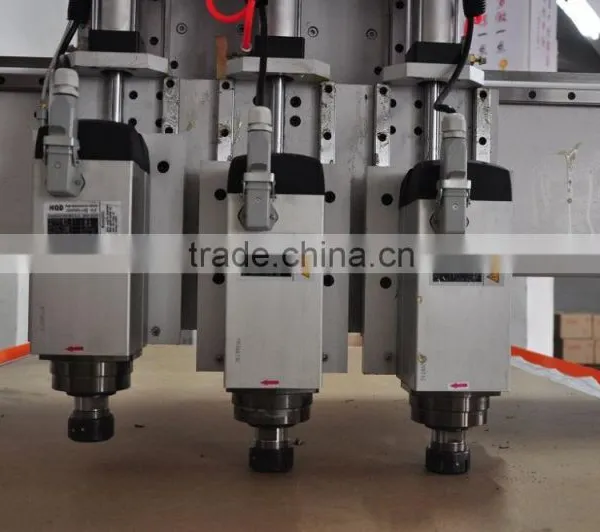

| 4.3 spindles can be use for engraving seperately or together at the same time on different size of the materials,it means more high-efficent. | ||||||||
| Application | ||||||||
| Furniture Industry: wood doors, cabinets, tables,chairs | ||||||||
| Advertising Industry:signage,logo,badges,display board,meeting sign board,billboard | ||||||||
| Artwork and Decoration Industry:wood crafts, gift box, jewelry box | ||||||||
| Electronic Industry:circuit board, insulation material | ||||||||
| Music Industry: musical instrments, loudspeaker box | ||||||||
| Soft Metal: aluminum, brass | ||||||||
| Parameter | ||||||||
| Model | YHM25 | |||||||
| X,Y,Z Working Area | 1300mmx2500mmx200mm | |||||||
| Table Size | 1330mm×3040mm | |||||||
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300 | |||||||
| X,Y,Z Repositioning Accuracy | ±0.03mm | |||||||
| Table Surface | Vacuum and T-slot Combined (Option: T-slot table) | |||||||
| Frame | Welded structure | |||||||
|
X, Y Structure X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings | |||||||
| Z Structure | Hiwin Rail Linear Bearings and Ball Screw | |||||||
| Max. Power Consumption | 4.5kw (Without Spindle) | |||||||
| Max. Rapid Travel Rate | 45000mm/min | |||||||
| Max. Working Speed | 30000mm/min | |||||||
| Spindle Power | 9.0 kw | |||||||
| Spindle Speed | 0-24000RPM | |||||||
| Drive Motors | Yaskawa servo motor | |||||||
| Working Voltage | AC 380V/50/60Hz,3PH | |||||||
| Command Language | G Code | |||||||
| Operating System | Syntec Control System | |||||||
| Computer Interface | Ethernet, CF Card | |||||||
| Flash Memory | 128M(U Disk) | |||||||
| Collet | ER32 | |||||||
| X,Y Resolution | <0.03mm | |||||||
| Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) | |||||||
| Running Environment Temperature | 0 - 45 Centigrade | |||||||
| Relative Humidity | 30% - 75% | |||||||
| Packing Size | 3300X2100X1980mm | |||||||
| N.W. | 1450KG | |||||||
| G.W. | G.W. | |||||||
| Model | YHM53 | |||||||
| Optional Parts | 3.8KW HSD Auto Spindle | |||||||
| Syntech Control System | ||||||||
| Dust Collector | ||||||||
| Vacuum Pump | ||||||||
| Rotary System | ||||||||
| Mist-cooling System | ||||||||
| 850W Yaskawa/800W Panasonic Servo motors | ||||||||
F A Q:
1.Q: what is the minimum order ?
A: one set.
2.Q: Shall I get sample to test the quality and market before ordering ?
A: Sure ,printer Sample order to test the quality and market is welcomed ,but sample fee need to be paid by your side.
But we can provide you free printing sample like Vinyl, flex banner
3.Q:What kind of shipping method available ?
A:DHL/Air cargo/China post are available.
4.Q:If goods be broken during shipping ,what should I do ?
A: Please offer us pictures ,We will check it and solve it .
5.Q: If I buy the goods and don't know how to use it ,what should I do ?
A: We offer free training and online technical support. Please feel free to contact us ,we have professional engineer to
teach you how to use it.
6. Q: what is the payment term?
A: 30% in advance to produce. 70% payment after you check the goods.
7. Q: should I believe in your company Since I didn't know you?
A: We are a big company which has many branches in other city and yield a best reputation from the oversea.
