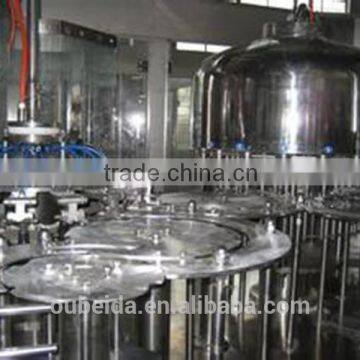

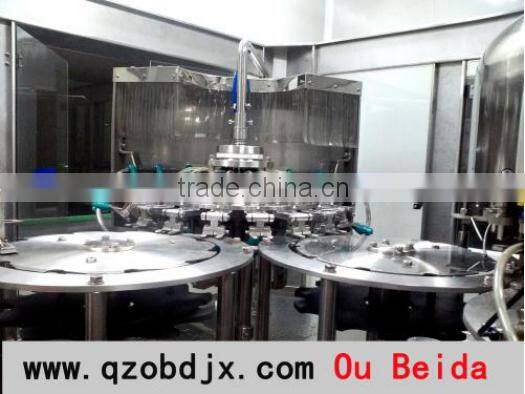

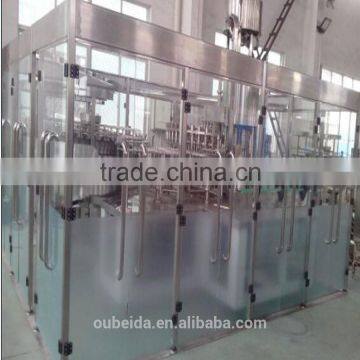

Help CenterAutomatic Bottle Water Filling Machine/small Bottle Water Filling Machine
Related Products
-
Air Knife Dryer/bottle Dryer/fully Automatic Bottle Dryer MachineUS$ 3,000 - 5,000MOQ: 1 Set -
Air Knife Dryer/fully Automatic Bottle Dryer MachineUS$ 3,000 - 5,000MOQ: 1 Set
-
3 in 1 Full Automatic Filling MachineUS$ 12,000 - 12,000MOQ: 1 Set
-
3 in 1 Full Automatic Filling MachineUS$ 12,000 - 12,000MOQ: 1 Set
-
3-in-1 CGF Serise Automatic Filling MachineUS$ 15,000 - 15,000MOQ: 1 Set
Product Description
Air transport bottle line
Air transport bottle line by the foot stand on the ground, the fan installed on the air bottle line department.Every fan inlet is equipped with air filter, to prevent the dust was blown into the bottle.Bottle was hanging bottle in the air transport bottle line card bottleneck, wind transferred to triad filling machine.
The main features
1)In addition to supporting feet, hanging plate plastic, nylon pieces, the others all AISI304 stainless steel manufacturing
2)Purification between outer fan inlet is equipped with air filter, prevent the dust was blown into the bottle, effectively to avoid secondary pollution

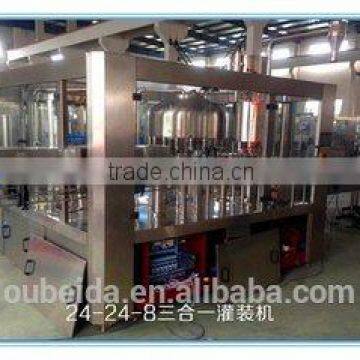

RY12/12/6R type PE bottle washing bottle filling/sealing sanhe one machine
RY12/12/6R type PE bottle washing bottle filling/sealing sanhe one machine is based on the introduction of Italian hot filling technology development of new products. Mainly suitable for juice, tea beverages and dairy drinks hot filling.
The main features
1)Frame:Main body:high quality carbon steel;Appearance;304 stainless steel body,304 stainless steel frame,stainless steel adjustable foot
2)Into the bottle body:On the air bottle and bottle feeding wheel dial direct into the bottle;The bottleneck transmission technology,users transform bottle shape without adjusting equipment level, just change the nylon wheel.
3)Rotating washing bottle:Using the tilting bottles; the blunt bottle nozzle for efficient spray nozzle

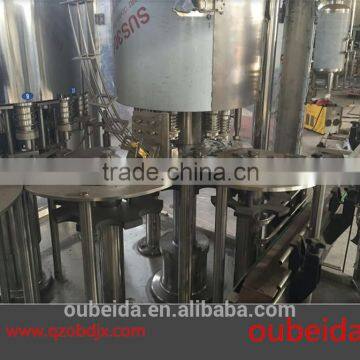

4)Rotary filling:Using pressure filling way,Valve online flow structure,Valve sealing mouth reliable precision, dripping phenomenon will not occur
5)Richard cover:304 stainless steel cover;Under the 304 stainless steel cover slots,cover storehouse and the lower cover slot with electric without cover test system.
6)Send machine:Totally enclosed 304 stainless steel cover;Conveyor belt to cover;Full automatic control system
7)Power system:Using open gear transmission,Each bottle of star wheel for engineering plastic parts,with safety protection agency
8)Electric control system:completed sanhe electric control cabinet PLC bottle machine is controlled by the whole process of into the bottle to bottle.
Packing&Shipping
Packaging | |||||||
Size |
19000x1700x2200 | ||||||
Weight |
2t | ||||||
Packaging Details |
The normal package is wooden box(Size: L*W*H).If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
||||||
