1. Titanium Nitride Coating On Drills Feature
CAC-1250 titanium nitride plating machine is a high-tech environmentally friendly products for a variety of metal surface coating. For example: the watch industry (strap, case, dial, etc.), hardware industry (sanitary ware, ,door handles,door knobs, locks, etc.), the architecture industry (stainless steel plate, stair railings, columns, etc.), precision mold industry (standard mold, etc.), the tool industry (drill bits, carbide cutters, broaches, shaving heads), the automotive industry (piston, piston rings, alloy wheels, etc.), as well as pens, glasses, etc., to the surface both beautiful and wear functional wear layer. The main coated film: ions of gold, silver ion, titanium nitride film, titanium carbide film, zirconium nitride film, titanium aluminum film, chromium nitride, and RP-plated and other superhard functional metal film , the workpiece coated by ion coating machine can improved hardness, wear resistance, anti-corrosion and more beautiful.
2. Main Technical Parameters
Model and Main Technical Parameters of Vakia-CAC Series Vacuum Multiple -Arc Ion Coating Machine | ||||||
Model |
Vakia-CAC-700 |
Vakia-CAC-900 |
Vakia-CAC-1000 |
Vakia-CAC-1250 |
Vakia-CAC-1400 |
Vakia-CAC-1600 |
Size of coating chamber |
700*H900mm |
900*H1100mm |
1000*H1200mm |
1250*H1350mm |
1400*H1600mm |
1600*H1800mm |
Power supply type |
Arc power supply, filament power supply, pulse bias power supply |
|||||
Structure of vacuum chamber |
Vertical front door structure, rear air exhaust system and double-layer water cooling chamber |
|||||
Limit vacuum |
6.0*10-4Pa(unload,clean vessel) |
|||||
Extraction time |
from atmosphere to 8.0*10-3Pa ≤15 minutes |
|||||
Vacuum acquisition system |
Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be selected according to customer requirements) |
|||||
Arc source |
4 units or 6units |
6 units or 8 units |
8 units or 10 units |
10 units or 12 units |
14 units or 16 units |
16 units or 18units |
Bias power supply |
10KW/set |
20KW/set |
20KW/set |
30KW/set |
40KW/set |
50KW/set |
Workpiece baking temperature |
Controllable and adjustable from room temperature to 450°C (PID temperature control) |
|||||
Process gas |
3-path or 4-path process gas flow control and display system, selective automatic gassing system |
|||||
Cooling mode |
Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) |
|||||
Control mode |
Manual/automatic integration mode, touch screen operation, PLC or computer control |
|||||
Total power |
25KW |
30KW |
35KW |
45KW |
60KW |
75KW |
Alarm and protection |
Alarm water shortage, overcurrent and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function |
|||||
Equipment area |
W2m*L3m |
W2.5m*L3.5m |
W3m*L4m |
W4m*L5m |
W4.5m*L6m |
W5m*L7m |
Other technical parameters |
Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa |
|||||
Remarks |
The specific configuration of coating equipment can be designed according to process requirements of coating products |
|||||

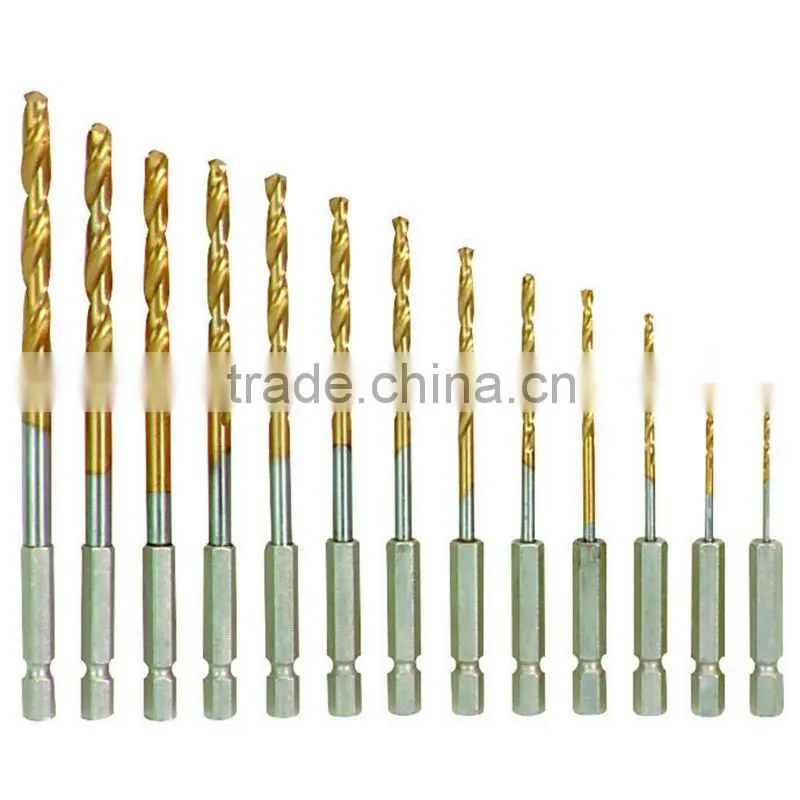

3.Coated Samples
4.Three-dimensional Images of Machine
