Hard Chrome Plating On Injection Moulding Dies Machine/Hard Chrome Plating
1. Feature
(1) Anode layer ion source adopts the international advanced level and plane rectangular arc source adopts domestic leading level;
(2) Multi-channel feedback control system: the arc source control, pneumatic control, process control;
(3) Acquisition process archiving, alarm data, facilitate data collection and equipment maintenance;
(4) Unique octahedral chamber design, both to improve device utilization of space and easy to maintain and repair;
(5) Can be coated superhard coatings: TiN and TiC, ZrN, CrN, TiCN ,TiAlN, DLC, etc.
2. Field of use
Tools, cutting tools, drill bits, mills, high-grade mold, precision parts and electronics industry
3.Main technology parameters
Model and Technical Parameters of VAKIA-HTC Series Functional (Tool) Special Vacuum Ion Coating Machine | |||
Performance/Model |
HTC-700 |
HTC-900 |
HTC-1000 |
Size of coating chamber |
700*H900mm |
900*H1100mm |
1000*H1200mm |
Power supply type |
Arc power supply, filament power supply, pulse bias power supply |
||
Structure of vacuum chamber |
Vertical front door structure, rear air exhaust system and double-layer water cooling chamber |
||
Material of vacuum chamber |
High-quality stainless steel cavity |
||
Limit vacuum |
6.0*10-4Pa |
||
Pump-down time (no-load) |
Pump the atmosphere to 8.0*10-3Pa ≤15 minutes |
||
Vacuum acquisition system |
Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be configured according to customer requirements) |
||
Coating mode |
Carbide tool coating |
||
Arc source |
6 units |
6 units or 8 units |
8 units or 10 units |
Bias power supply |
20KW/1 unit |
30KW/1 unit |
30KW/1 unit |
Rotating mode of workpiece turntable |
Planetary revolution and autorotation, variable frequency speed regulation (controllable and adjustable) |
||
Workpiece baking temperature |
Controllable and adjustable from room temperature to 550°C (PID temperature control) |
||
Process gas |
3-path or 4-path process gas flow control and display system, selective automatic gassing system |
||
Cooling mode |
Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) |
||
Control mode |
Manual/automatic integration mode, touch screen operation, PLC or computer control |
||
Total power |
25KW |
30KW |
35KW |
Alarm and protection |
Alarm water shortage, overcurrent and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function |
||
Equipment area |
W2m*L3m |
W2.5m*L3.5m |
W3m*L4m |
Other technical parameters |
Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa |
||
Remarks |
The specific configuration of coating equipment can be designed according to process requirements of coating products |
||
4. Coated samples

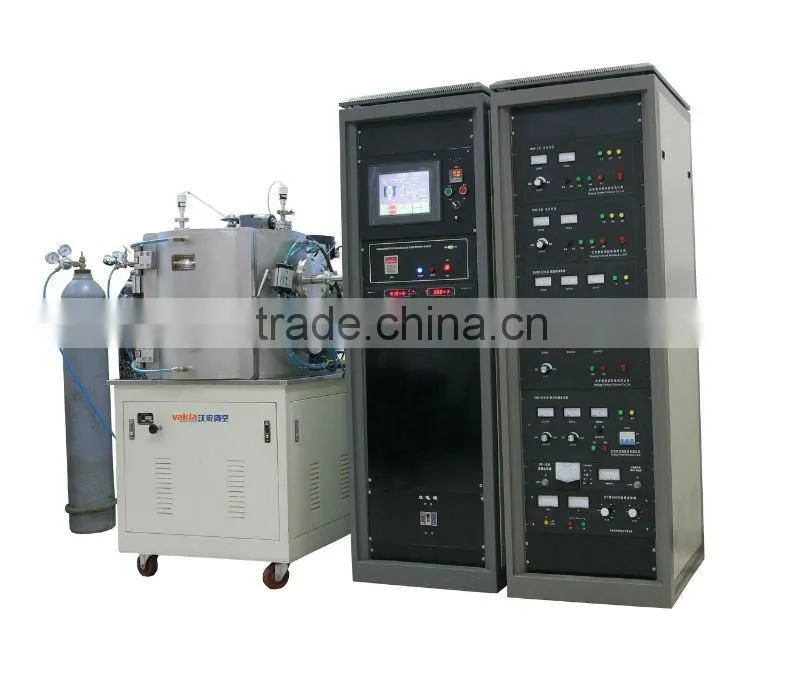

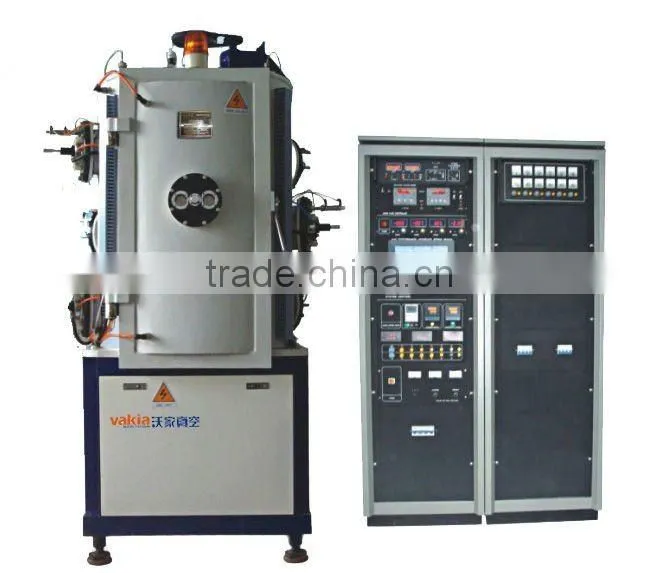

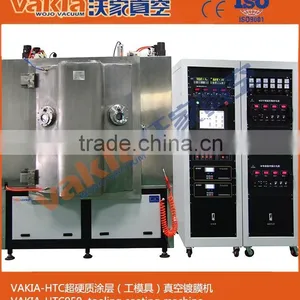

5. Machine show
