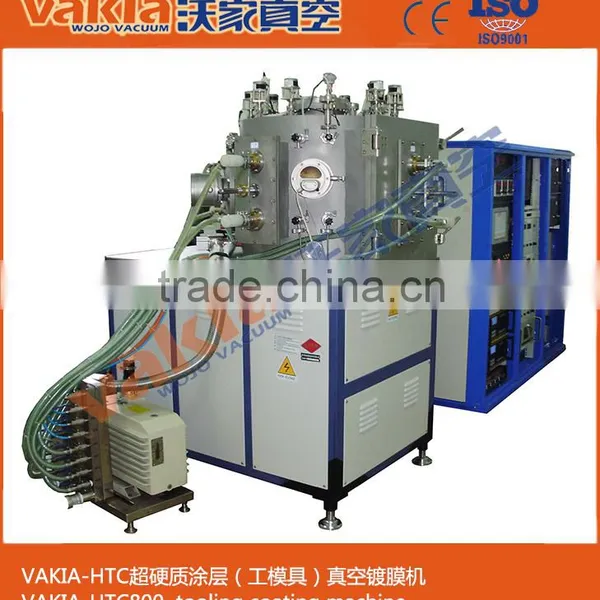

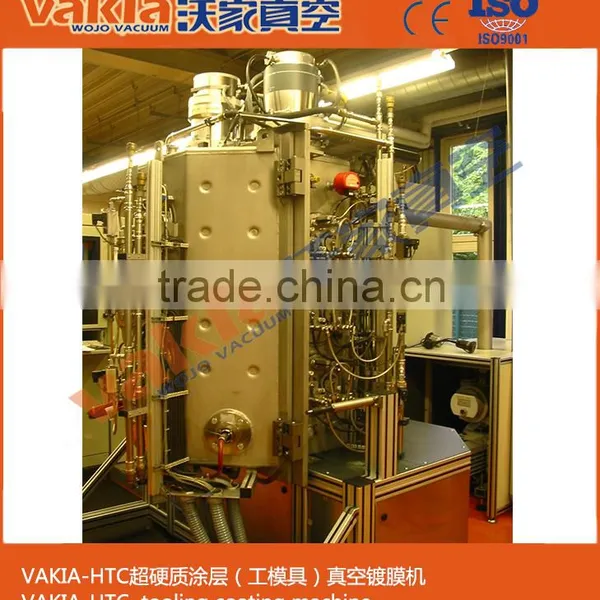

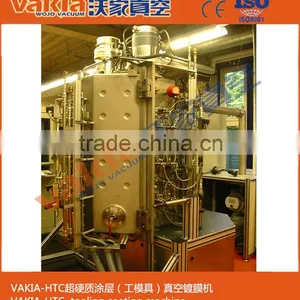

Tooling Coating Machine for Extrusion Guide and Die /reamer/hob/broach/tap/bearing/hardware
1. Feature
(1) Anode layer ion source adopts the international advanced level and plane rectangular arc source adopts domestic leading level
(2) Multi-channel feedback control system: the arc source control, pneumatic control, process control.
(3) Acquisition process archiving, alarm data, facilitate data collection and equipment maintenance
(4) Unique octahedral chamber design, both to improve device utilization of space and easy to maintain and repair.
(5) Can be coated superhard coatings: TiN and TiC, ZrN, CrN, TiCN ,TiAlN, DLC, etc.
(6)Any of our products can be customized to fit your special and unique requirement. The quality of our products
is high accurate
2. Field of Use

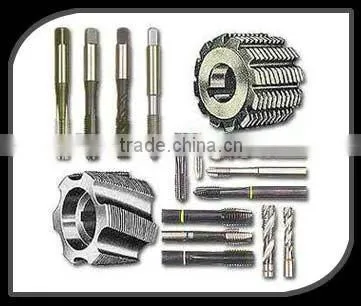

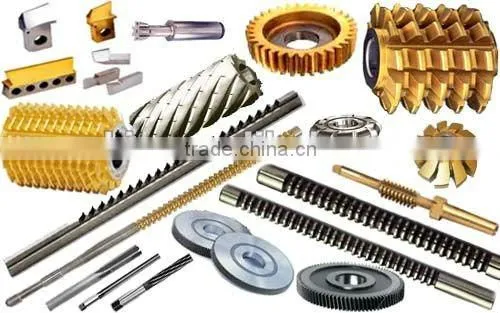

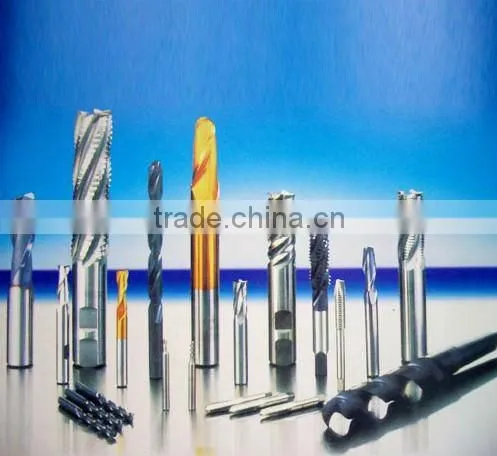

Tools, cutting tools, drill bits, mills, reamer,hob,broach,tap,die,blade,bearing,high-grade mold, drawing dies,plug and forging die precision parts and electronics industry,etc
3.Main Parameters
Model and Technical Parameters of VAKIA-HTC Series Functional (Tool) Special Vacuum Ion Coating Machine | |||
Performance/Model |
HTC-700 |
HTC-900 |
HTC-1000 |
Size of coating chamber |
700*H900mm |
900*H1100mm |
1000*H1200mm |
Power supply type |
Arc power supply, filament power supply, pulse bias power supply |
||
Structure of vacuum chamber |
Vertical front door structure, rear air exhaust system and double-layer water cooling chamber |
||
Material of vacuum chamber |
High-quality stainless steel cavity |
||
Limit vacuum |
6.0*10-4Pa |
||
Pump-down time (no-load) |
Pump the atmosphere to 8.0*10-3Pa ≤15 minutes |
||
Vacuum acquisition system |
Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be configured according to customer requirements) |
||
Coating mode |
Carbide tool coating |
||
Arc source |
6 units |
6 units or 8 units |
8 units or 10 units |
Bias power supply |
20KW/1 unit |
30KW/1 unit |
30KW/1 unit |
Rotating mode of workpiece turntable |
Planetary revolution and autorotation, variable frequency speed regulation (controllable and adjustable) |
||
Workpiece baking temperature |
Controllable and adjustable from room temperature to 550°C (PID temperature control) |
||
Process gas |
3-path or 4-path process gas flow control and display system, selective automatic gassing system |
||
Cooling mode |
Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) |
||
Control mode |
Manual/automatic integration mode, touch screen operation, PLC or computer control |
||
Total power |
25KW |
30KW |
35KW |
Alarm and protection |
Alarm water shortage, overcurrent and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function |
||
Equipment area |
W2m*L3m |
W2.5m*L3.5m |
W3m*L4m |
Other technical parameters |
Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa |
||
Remarks |
The specific configuration of coating equipment can be designed according to process requirements of coating products |
||

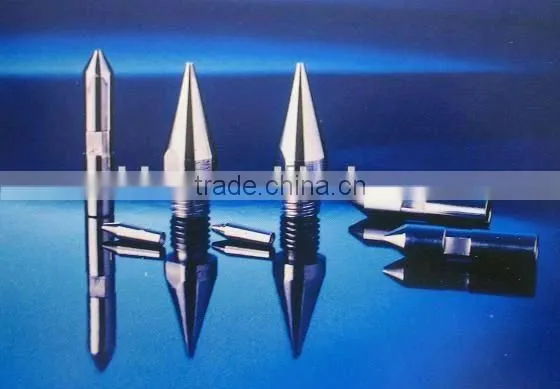

4. Coated Samples
