Optical Thin-film Depositionantireflection Film Coating Machine
US$ 80,000 - 130,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Coating Production Line
Substrate:
Glass
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Optical Vacuum Coating Machine ManufacturerUS$ 80,000 - 120,000MOQ: 1 Set -
Optical Deposition Secure Camera Vacuum Coating MachineUS$ 70,000 - 140,000MOQ: 1 Set
-
Optical Deposition Vacuum Thin Film EvaporatorUS$ 80,000 - 140,000MOQ: 1 Set
-
Optical Thin-film Deposition e Beam EvaporatorUS$ 80,000 - 140,000MOQ: 1 Set
-
Telescope Tablet Coating Machine With High Quality in ChinaUS$ 80,000 - 150,000MOQ: 1 Set
Condition
New
Type
Coating Production Line
Substrate
Glass
Coating
Vacuum Coating
Place of Origin
Shanghai, China
Brand Name
Vakia
Model Number
Vakia-OEC-1250
Voltage
380V
Power(W)
40KW
Dimension(L*W*H)
4x4x2m
Weight
3t
Certification
ISO 9001:2008
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Optical thin-film deposition antireflection film coating machine
antireflection film coating machine
1.Features:
Accurate optic film deposition controller:crystal thickness monitor/aptic monitor
Center-driving or planetary substrae dome is selectable
Uniformed and large area ion beam distribution Hall-ion source
E-beam gun,stable power output,small and unifrom E-beam spot
Well uniformity of film thickness,well repeatability of deposition
2.Applications:
Car mirror,optical lens,spectable,cold light lamp,decorative light,rhinestone
3.Technical Parameters:
| Model and Technical Parameters of VAKIA-OEC Series Vacuum Optical (Electron Gun) Coating Machine | |||
| Performance/Model | VAKIA-OEC-900 | VAKIA-OEC-1200 | VAKIA-OEC-1350 |
| Size of coating chamber | Ø900*H1050mm | Ø1200*H1250mm | Ø1350*H1450mm |
| Frock clamp | Arch single workpiece disc, maximally meeting customers’ requirement on evenness, rotation: 5-30 r/min, stepless variable speed | 1. Arch single workpiece disc, maximally meeting customers’ requirement on evenness, rotation: 530r/min, stepless variable speed 2. Arch three-workpiece disc, planetary revolution and autorotation, meeting customers’ requirement on production amount, rotation: 5-30r/min, stepless variable speed | |
| Vacuum system | Diffusion pump KT-600 (Canon), Roots pump ZJ-300, mechanical pump 2X-70, holding pump 2X-8, 304 stainless steel piping | Diffusion pump KT-800 (Canon), Roots pump ZJ-600, mechanical pump 2X-70, holding pump 2X-8, 304 stainless steel piping | Diffusion pump KT-800 (Canon), Roots pump ZJ-600, mechanical pump 2X-70, holding pump 2X-25, 304 stainless steel piping |
| Limit vacuum: Superior to 6*10-4PA | |||
| Equipped with anti-turbulence device, safe interlock design, optional manual or automatic | |||
| Heating system | Heating mode of heating tube, PID control, maximum: 350°C±1.5°C | ||
| Working gas gassing | Gas mass controller or manual fine tuning gas filling valve | ||
| Vacuum ion bombardment | DC 3KV, 0.6KW rod cathode (for automatically cleaning workpieces before coating) and optional gas ion source | ||
| Evaporation source (optional) | 1. Electron gun: 6KW, high voltage 4KV-10KV, adjustable. Positioning scanning, triangular wave scanning, circular scanning, spiral scanning, square wave scanning, sine wave, good beam spot focusing, high positioning precision and good scan reproducibility | ||
| 2. Crucible: Six-hole Φ38*20 crucible or four-hole Φ38*20 plus arc crucible with hole center arc length of 87 (for evaporation materials with large consumption and low melting point) or hole Φ48*18 crucible | |||
| Ion source (optional) | 1.5KVA Hall ion source is used for cleaning before electroplating or assisted plating in electroplating process, and favorable for improvement of film refractive index, firmness, compactness and adhesion. | ||
| Coating control system (optional) | 1. Crystal controller: Store 1-99 layer automatic coating process, 99 types of program data, precision: 0.5$+1A fixed error. | ||
| 2. Light controller adopts multi-wavelength full spectrum end point analysis technology, determines film by analyzing monitoring chip 370-870mm refractive index (or reflective rate) curve, has high control precision and can also adopt single wavelength control, automatic control and manual control. The additional MACILEOD film calculation software has high integration degree. | |||
| 3. Light controller matches the crystal controller to meet coating requirements of high precision and high repeatability, and upper computer to realize automatic control. | |||
| 4. Domestic light controller: Wavelength 330-870, adjustable, precision: ±1.5NM. | |||

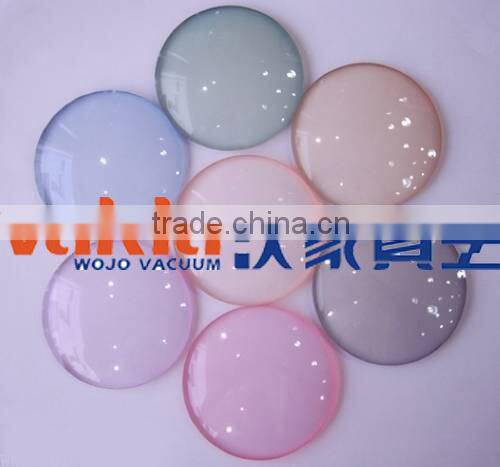

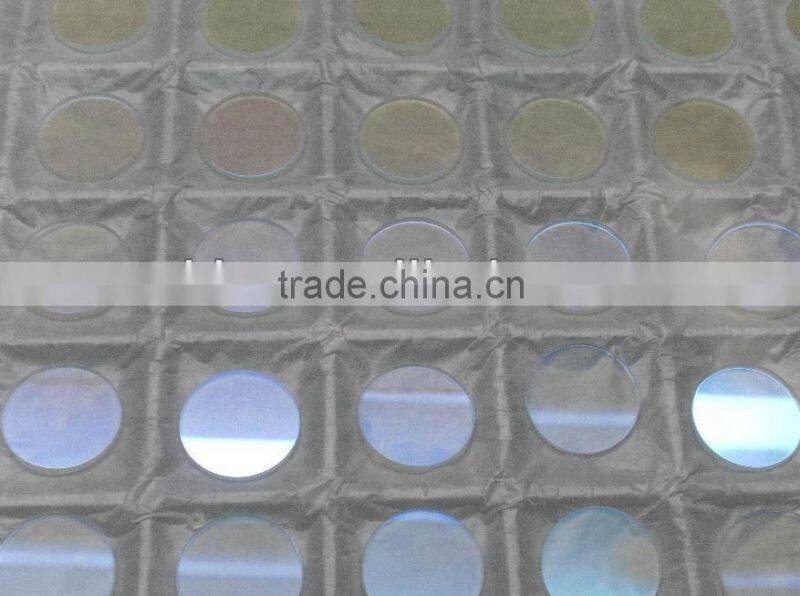

4.Samples:
