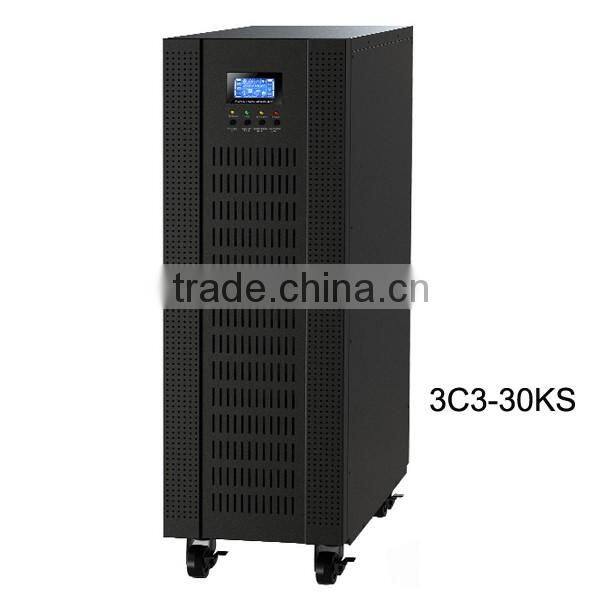

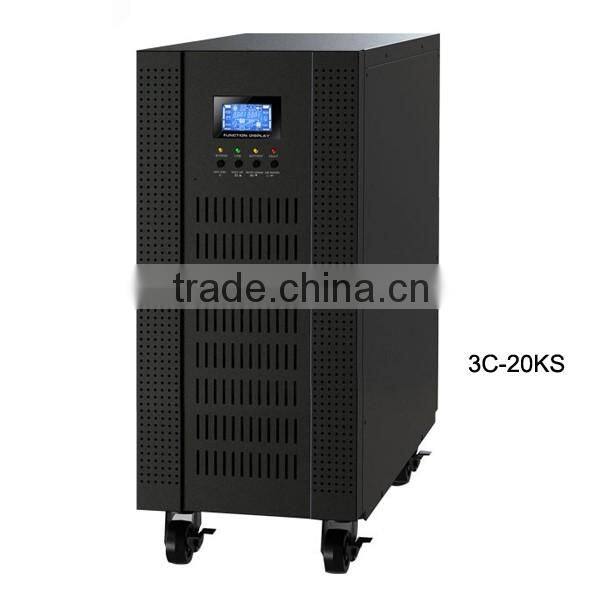

Low Frequency UPS/Industry Online UPS/ Lowest Pure Sine Wave 10 KVA UPS Price
Function & Characteristic:
- True double-conversion
- DSP technology guarantees high performance
- Output power factor 0.8
- Wide input voltage range (110-300 VAC)
- Active power factor correction in all phases
- 50Hz/60Hz frequency converter mode
- Eco mode operation for energy saving (ECO)
- Accepts dual power inputs
- Emergency power off function (EPO
- Generator compatible
- SNMP+USB+RS-232 multiple communications
- 3-stage extendable charging design for optimized battery performance
- Adjustable battery numbers
- Maintenance bypass available
- Optional N+X parallel redundancy
- Optional isolation transformer offers full isolation and complete common mode noise rejection
We specialized in export storage battery, UPS, inverter, solar power system and so on, rely on abundant technical strength, full support of our customers and careful and strict management, our products are safe and sealing technology levels are industry-leading. we believe that the product quality is the base of the enterprise.
Product Specification
| MODEL | GH33-10K (L) | GH33-15K (L) | GH33-20K (L) | GH33-30K (L) | |
| PHASE | 3 phase in / 3 phase out | ||||
| CAPACITY | 10000VA / 8000W | 15000VA / 12000W | 20000VA / 16000W | 30000VA / 24000W | |
| INPUT | |||||
| Nominal Voltage | 3 x 400 VAC (3Ph+N) | ||||
| Voltage Range | 305-478 VAC (3-phase) @ 100% load 190-520 VAC (3-phase) @ 50% load |
||||
| Frequency Range | 46~54 Hz or 56~64Hz | ||||
| Power Factor | ≥0.99 @ 100% load | ||||
| OUTPUT | |||||
| Output Voltage | 3 x 400 VAC (3Ph+N) | ||||
| AC Voltage Regulation | ± 1% | ||||
| Frequency Range | 46~54Hz or 56~64Hz | ||||
| Frequency Range | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz | ||||
| Current Crest Ratio | 3:1 (max.) | ||||
| Harmonic Distortion | ≤ 2 % THD (Linear Load) ≤ 5 % THD (Non-linear Load) | ||||
| Transfer Time | zero | ||||
| Waveform (Batt. Mode) | Pure Sine Wave | ||||
| EFFICIENCY | |||||
| AC Mode | 89% | 89% | 89% | 90% | |
| Battery Mode | 86% | 88% | 87% | 89% | |
| BATTERY | |||||
| Standard Model | Battery Type | 12 V / 9 AH | |||
| Numbers | 18/20 pcs adjustable | 2*18/20 pcs | 3*18/20 pcs | ||
| Recharge Time | 9 hours recover to 90% capacity | ||||
| Charging Current | 1A | 2A | 2A | 4A | |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) | ||||
| Long-run Model | Battery Type | Depending on the capacity of external batteries | |||
| Numbers | |||||
| Charging Current | 4A | 4A | 4A | 12A | |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) | ||||
| INDICATORS | |||||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions | ||||
| ALARM | |||||
| Battery Mode | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Overload | Sounding twice every second | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| Standard Model | Dimension | 815*250*826 | 815*250*826 | 815*250*826 | 815*300*1000 |
| Net Weight | 109kg | 164kg | 164kg | 234kg | |
| Long-run Model | Dimension | 592*250*826 | 592*250*826 | 592*250*826 | 815*250*826 |
| Net Weight | 38kg | 40kg | 40kg | 64kg | |
| ENVIRONMENT | |||||
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) | ||||
| Noise Level | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter | |||
| MANAGEMENT | |||||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC | ||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||
| * L means long-run model | |||||
| **When using internal batteries from 18-19, the unit will de-rate according to below formula: P=Prating X N/20 | |||||
| * Product specifications are subject to change without further notice | |||||
OEM & ODM:
1.Could have your logo, or change the capacity as your design.
2.Factory price, pricing could be lower while the quantity rising.
3.Strict QA, QC process, guarantee the quality and delivery time.
Sample & Mass Production:
1.Sample ready in 7-15 days, depends on the requests.
2.Mass production ready in 15-30 days, depends on the qty & factory’s producing.
Hunan Coowone Trading Co., Ltd. was founded in 2014, businessed as a professional sales of back-up power and storage battery. Product quality, reasonable prices, and perfect after-sale service are always the reasons our customers praised us for. With the help of owned factory’s production and excellent sales teams, Coowone products have been sold over 20 countries and regions in the world.
Our products are widely used in different fields, such as banking, securities, telecommunications, transportation, taxation, health care, education, military, government agencies, scientific research machinery and mining production enterprise.
Product quality and reasonable price are always the base of our development. We have industry certificates such as ISO9001:2000, and a completed quality control system. Our team continuously improve the service, delivery, and other works to build a win-win cooperation with our customers.
If you are interested in any of our products, please feel free to contact us for further information. We look forward to becoming your business partner in the near future.
Shipment:
1. Trade term: FOB or EXW.
2. If by air, we can arrange an international express (UPS, DHL, FEDEX, EMS, etc.)
3. If by sea, we usually use the port of Changsha, but Shenzhen, Guangzhou, or other ports are ok.
Payment:
1.Sample: 100% of the sample cost before sampling.
2.Mass Production: 30% deposit in advance, 70% balance when finished.
3.Payment terms: usually T/T, also support West Union, PayPal, etc
Quality Insurance:
1.All products will have 5 layer's of QC before delivery.
2.Checking the raw material after they arrived in our factory.
3.Checking all the details while the production line operated.
4.Testing the products after they’re finished from productions.
5.Checking all the products and cartons after they’re packed.
6.Some products will have different QC processes but strict also.
