High Frequency Ups 15kva Three Phase Delta Online Ups

High Frequency Ups 15kva Three Phase Delta Online Ups thumbnail-1
High Frequency Ups 15kva Three Phase Delta Online Ups thumbnail-2
High Frequency Ups 15kva Three Phase Delta Online Ups photo-1
High Frequency Ups 15kva Three Phase Delta Online Ups photo-2
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
OEM
Model Number:
GH 31 15K(L)
Contact Supplier Request Quote Chat Now
Hunan Coowone Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name OEM
Model Number GH 31 15K(L)
Phase Three Phase
Protection Unbalanced Loads
Weight 164kg
Output Voltage 208/220/230/240VAC
Type On-line
Application Telecommunications
Product Description

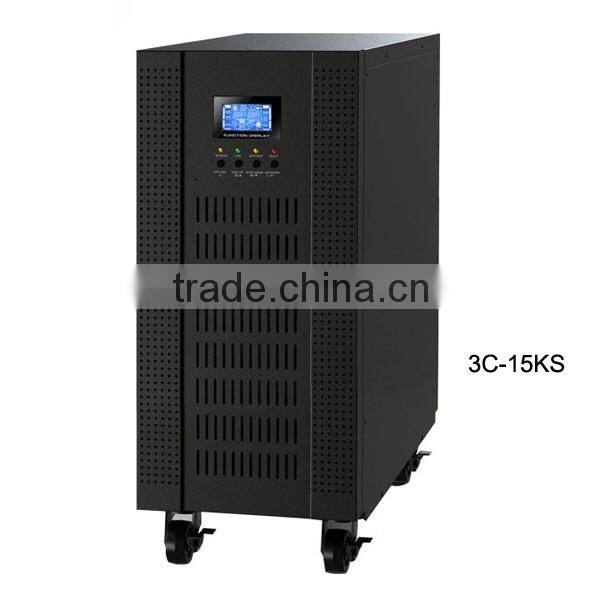

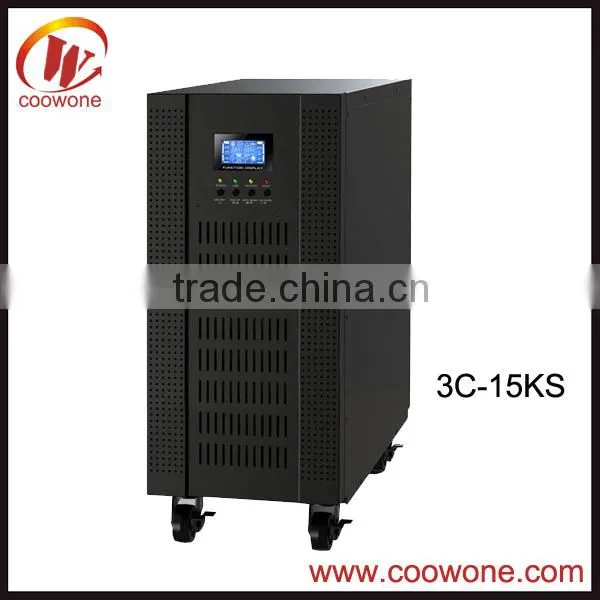

      High frequency ups 15kva three phase delta online ups



         Function & Characteristic:

  • True double-conversion
  • DSP technology guarantees high performance
  • Output power factor 0.8
  • Wide input voltage range
  • 50Hz/60Hz frequency converter mode
  • ECO mode operation for energy saving (ECO)
  • Emergency power off function (EPO)
  • Generator compatible
  • SNMP+USB+RS-232 multiple communications
  • 3-stage extendable charging design for optimized battery performance
  • Optional maintenance bypass switch





We specialized in export storage battery, UPS, inverter, solar power system and so on, rely on abundant  technical strength, full support of our customers and careful and strict management, our products are safe and sealing technology levels are industry-leading. we believe that the product quality is the base of the enterprise.

High frequency ups 15kva three phase delta online ups  High frequency ups 15kva three phase delta online ups

Product Specification



MODEL GH 31 10K(L) GH 31 15K(L) GH 31 20K(L) GH 31 30K(L)
PHASE 3 phase in / 1 phase out
CAPACITY 10000 VA / 8000 W 15000 VA / 12000 W 20000 VA / 16000 W 30000 VA / 24000 W
INPUT
Nominal Voltage 3 x 400 VAC (3Ph+N)
Voltage Range 190-520 VAC (3-phase) @ 50% load
305-520 VAC (3-phase) @ 100% load
Frequency Range 46~54 Hz or 56~64Hz
Power Factor ≥ 0.8 @ 100%
OUTPUT
Output Voltage 208/220/230/240VAC
AC Voltage Regulation (Batt. Mode) ± 1%
Frequency Range (Synchronized Range) 46~54Hz or 56~64Hz
Frequency Range (Batt. Mode) 50 Hz ± 0.2 Hz or 60 Hz ± 0.2 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≤ 3 % THD (Linear Load)   ;     ≤ 5 % THD (Non-linear Load)
Transfer Time AC Mode to Batt. Mode zero
Inverter to Bypass zero
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
AC Mode 91% 89% 89% 90%
Battery Mode 91% 88% 87% 88%
BATTERY
Standard Model Battery Type 12 V / 9 AH
Numbers 20 pcs 2*20 pcs 3*20 pcs
Typical Recharge Time 9 hours recover to 90% capacity
Charging Current (max.) 1A Default, 1A/2A/4A/6A (Adjustable)
Charging Voltage 273 VDC ± 1%
Long-run Model Battery Type Depending on the capacity of external batteries
Numbers 18/20 ajustable
Charging Current (max.) 2A Default, 1A/2A/4A/6A (Adjustable)
Charging Voltage 273 VDC ± 1%
INDICATORS
LCD Panel UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continuously sounding
PHYSICAL
Standard Model Dimension, D X W X H (mm) 419*190*688mm 815*250*826mm 815*300*1000mm
Net Weight (kgs) 83kg 164kg 164kg 234kg
Long-run Model Dimension, D X W X H (mm) 419*190*318mm 815*250*826mm
Net Weight (kgs) 28kg 40kg 40kg 64kg
ENVIRONMENT
Operation Humidity 0-95 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 58dB @ 1 Meter Less than 60dB @ 1 Meter Less than 58dB @ 1 Meter
MANAGEMENT
Smart RS-232/USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser
* L means long-run model
* Product specifications are subject to change without further notice




Our Services



OEM & ODM:

         1.Could have your logo, or change the capacity as your design.

            2.Factory price, pricing could be lower while the quantity rising.

            3.Strict QA, QC process, guarantee the quality and delivery time.



Sample & Mass Production:

            1.Sample ready in 7-15 days, depends on the requests.

            2.Mass production ready in 15-30 days, depends on the qty & factory’s producing.

Company Information



Hunan Coowone Trading Co., Ltd. was founded in 2014, businessed as a professional sales of back-up power and storage battery. Product quality, reasonable prices, and perfect after-sale service are always the reasons our customers praised us for. With the help of owned factory’s production and excellent sales teams, Coowone products have been sold over 20 countries and regions in the world.

Our products are widely used in different fields, such as banking, securities, telecommunications, transportation, taxation, health care, education, military, government agencies, scientific research machinery and mining production enterprise.

Product quality and reasonable price are always the base of our development. We have industry certificates such as ISO9001:2000, and a completed quality control system. Our team continuously improve the service, delivery, and other works to build a win-win cooperation with our customers.

If you are interested in any of our products, please feel free to contact us for further information. We look forward to becoming your business partner in the near future.

High frequency ups 15kva three phase delta online ups





 Honor Certificate
High frequency ups 15kva three phase delta online ups



Packaging & Shipping



Shipment:

             1. Trade term: FOB or EXW.

             2. If by air, we can arrange an international express (UPS, DHL, FEDEX, EMS, etc.)

             3. If by sea, we usually use the port of Changsha, but Shenzhen, Guangzhou, or other ports are ok.

FAQ



 Payment:

              1.Sample: 100% of the sample cost before sampling.

              2.Mass Production: 30% deposit in advance, 70% balance when finished.

              3.Payment terms: usually T/T, also support West Union, PayPal, etc



Quality Insurance:

              1.All products will have 5 layer's of QC before delivery.

              2.Checking the raw material after they arrived in our factory.

              3.Checking all the details while the production line operated.

              4.Testing the products after they’re finished from productions.

              5.Checking all the products and cartons after they’re packed.

              6.Some products will have different QC processes but strict also.
