Product Details
| Place of Origin: | Hunan, China | Brand Name: | OEM | Model Number: | GL- 10K |
| Phase: | Three Phase | Protection: | Unbalanced Loads | Weight: | 180KG |
| Output Voltage: | 3 x 380VAC/400VAC (3Ph + N) | Type: | On-line | Application: | Instrumentation |
Product Description

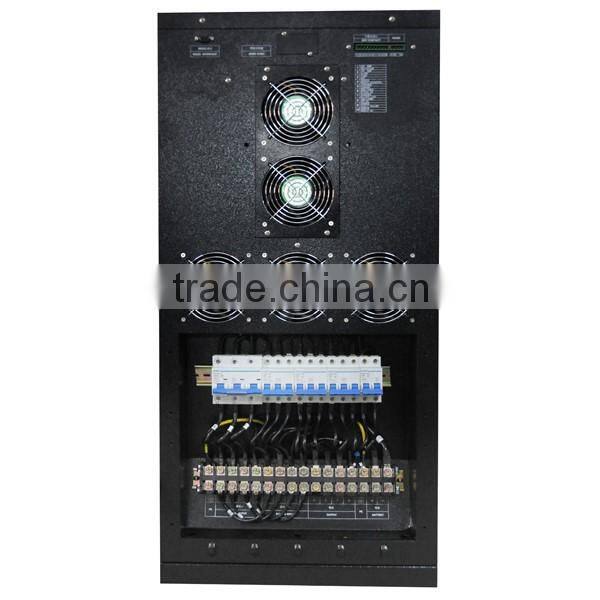

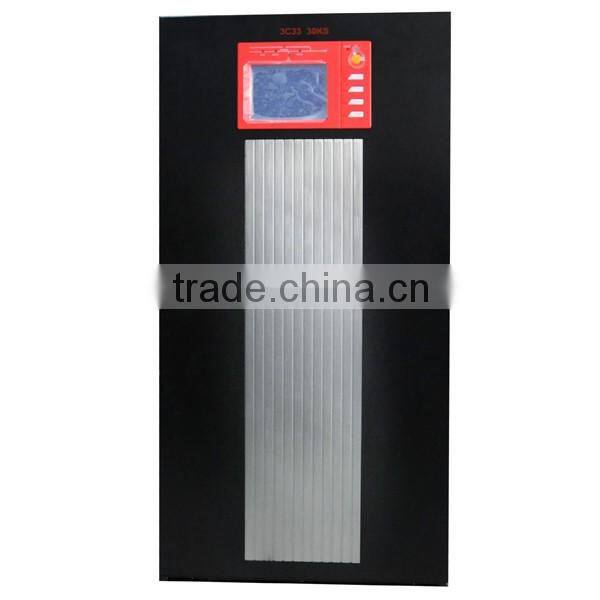

Pakistan Intelligent Online High Frequency All Kind 10Kva UPS Price
Function & Characteristic:
- Online double-conversion
- DSP technology guarantees high reliability

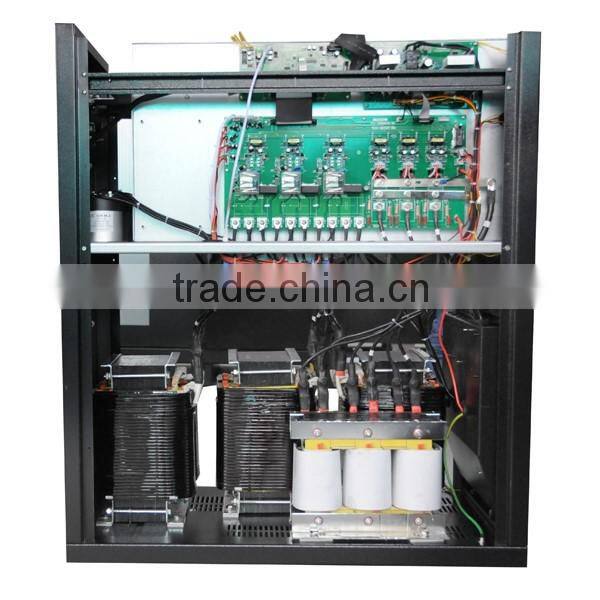

- True galvanic isolation transformer design
- Control designed to withstand all kinds of loads
- Intelligent battery management to prolong battery lifecycle
- Redundant fan design and independent ventilation enhance durable operation under harsh environment
- Adjustable battery numbers
- Accept dual-mains input
- Parallel operation with up to 4 units (option)
- Variety of communication options available
We specialized in export storage battery, UPS, inverter, solar power system and so on, rely on abundant technical strength, full support of our customers and careful and strict management, our products are safe and sealing technology levels are industry-leading. we believe that the product quality is the base of the enterprise.
Product Specification
| MODEL | GL- 10K | GL-20K | GL- 30K | GL-40K | GL- 60K | GL- 80K | Giant 100K | Giant 200K | ||
| CAPACITY | 10KVA/8KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW | 100KVA/80KW | 200KVA/160KW | ||
| INPUT | ||||||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||
| Acceptable Voltage Range | 305VAC ~ 460VAC | |||||||||
| Frequency | 46-54Hz or 56-64Hz | |||||||||
| INVERTER | ||||||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||
| Precision | Stationary: ±1% Transitory: ±5% (load variations 100-0-100%) | |||||||||
| Frequency | 50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz | |||||||||
| Max. Synchronisation Speed | ±1 Hz/s | |||||||||
| Waveform | Pure Sinewave | |||||||||
| Total Harmonic Distortion (THDv) | <2% (Linear Load) <5% (Non-linear Load) | |||||||||
| Phase Displacement | 120º ±1% (balanced load) 120º ±2% (imbalances 50% of the load) | |||||||||
| Dynamic Recovery Time | 1 cycle at 98 % of the static value | |||||||||
| Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms | |||||||||
| Admissible Crest Factor | 3:1 | |||||||||
| Admissible Power Factor | 0.6~1 (inductive or capacitive) | |||||||||
| Imbalance Output Voltage @ 100% Unbalanced Load | <1% | |||||||||
| Current Limit | High overload, short-circuit: RMS Voltage Limit High Crest-Factor current: Peak Voltage Limit | |||||||||
| STATIC BYPASS | ||||||||||
| Type | Solid state | |||||||||
| Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||
| Frequency | 50/60 Hz | |||||||||
| Activation Criterion | Microprocessor control | |||||||||
| Transfer Time | Zero | |||||||||
| Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms | |||||||||
| Transfer to Bypass | Immediate, for overloads above 160% | |||||||||
| Retransfer | Automatic after alarm clear | |||||||||
| MAINTENANCE BYPASS | ||||||||||
| Type | Without interruption | |||||||||
| Voltage | 3 x 400V (3Ph + N) | |||||||||
| Frequency | 50/60 Hz | |||||||||
| Overall Efficiency | Line Mode | 90% | 91% | 92% | 93% | |||||
| Battery Mode | 90% | 91% | 93% | 93% | ||||||
| BATTERY & CHARGER | ||||||||||
| Battery Type and Numbers | 12VDC x 16 pcs | 12VDC x 32 pcs (29~32 pcs adjustable) | ||||||||
| Nominal Battery Voltage | 192 VDC | 384 VDC (Based on 32pcs batteries) | ||||||||
| Charging Method | CC/CV | |||||||||
| Precision | ±1% | |||||||||
| Charging Current | Max.: 40 A | |||||||||
| Charging Voltage | 216 VDC | 432 VDC (Based on 32pcs batteries) | ||||||||
| PHYSICAL | ||||||||||
| Dimensions, D x W x H(mm) | 656 x 405 x 817 | 656 x 405 x 941 | 840 x 432 x 1140 | 975 x 554 x 1286 | 1200 x 910 x 1680 | 1500 x 1140 x 1800 | ||||
| Net Weight (Kgs) | 180 | 205 | 295 | 330 | 451 | 519 | 950 | 1350 | ||
| * Product specifications are subject to change without further notice | ||||||||||
Hunan Coowone Trading Co., Ltd. was founded in 2014, businessed as a professional sales of back-up power and storage battery. Product quality, reasonable prices, and perfect after-sale service are always the reasons our customers praised us for. With the help of owned factory’s production and excellent sales teams, Coowone products have been sold over 20 countries and regions in the world.
Our products are widely used in different fields, such as banking, securities, telecommunications, transportation, taxation, health care, education, military, government agencies, scientific research machinery and mining production enterprise.
Product quality and reasonable price are always the base of our development. We have industry certificates such as ISO9001:2000, and a completed quality control system. Our team continuously improve the service, delivery, and other works to build a win-win cooperation with our customers.
If you are interested in any of our products, please feel free to contact us for further information. We look forward to becoming your business partner in the near future.
1.Warranty: 2 years.
2. Factory price, pricing could be lower while the quantity rising.
3. OEM cooperation with your brand, Could have your logo, or change the capacity as your design.
4. Strict QA, QC process, guarantee the quality and delivery time.
5. One of the largest storage battery, uninterruptable power supply and inverter manufactures in China.
Q1: How do you control the production quality?
A :1.All products will have 5 layer's of QC before delivery.
2.Checking the raw material after they arrived in our factory.
3.Checking all the details while the production line operated.
4.Testing the products after they’re finished from productions.
5.Checking all the products and cartons after they’re packed.
6.Some products will have different QC processes but strict also.
Q2 : Do you accept OEM/ODM?
A : ODM&OEM are warmly welcomed !!!
Q4: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
Q5: What is your terms of payment?
A:1.Sample: 100% of the sample cost before sampling.
2.Mass Production: 30% deposit in advance, 70% balance when finished.
3. Payment terms: usually T/T, also support West Union, PayPal, etc
Q6: What’s the delivery time?
A: 1.Sample ready in 7-15 days, depends on the requests.
2. Mass production ready in 15-30 days, depends on the qty & factory’s producing.
| | | |
