optical lens coating machine

FOB Price

USD $90,000 - $160,000 / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port FOB Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Coating Production Line	Substrate:	Glass
Coating:	Vacuum Coating	Place of Origin:	Shanghai, China	Brand Name:	Vakia
Model Number:	Vakia-OEC-1350	Voltage:	380V	Power(W):	30KW
Dimension(LWH):	4x4x2m	Weight:	3t	Certification:	ISO 9001:2008
Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

optical lens coating machine

optical lens

1.Features:

1. The traditional vertical or efficient horizontal, equipped with large crucible gun, the film surface is smooth and uniformity.
7. 2. Equipped with high-power ion source, improve the coating quality and efficiency;
3.Equipped quartz crystal film thickness control device, can realize the film forming rate and automatic process control;
4. The design of structure can meet the demands of vacuum technology, vacuum system adopt free-oil system to ensure the whole system work under no oil condition, enssure film clean;
5. The vacuum interlock protection of operating system, vacuum pump with water, power outage alarm function;
6.Touch screen and PLC control, realize the parametric Settings, real-time monitoring and intelligent fault diagnosis

2.Applications:

Car mirror,optical lens,resin lens,spectable,cold light lamp,decorative light,rhinestone

3.Technical Parameters:

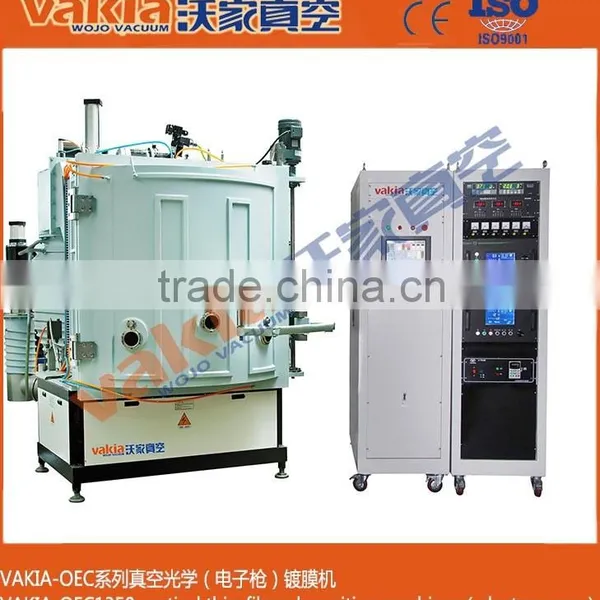

Model and Technical Parameters of VAKIA-OEC Series Vacuum Optical (Electron Gun) Coating Machine
Performance/Model	VAKIA-OEC-900	VAKIA-OEC-1200	VAKIA-OEC-1350
Size of coating chamber	Ø900*H1050mm	Ø1200*H1250mm	Ø1350*H1450mm
Frock clamp	Arch single workpiece disc, maximally meeting customers’ requirement on evenness, rotation: 5-30 r/min, stepless variable speed	1. Arch single workpiece disc, maximally meeting customers’ requirement on evenness, rotation: 530r/min, stepless variable speed 2. Arch three-workpiece disc, planetary revolution and autorotation, meeting customers’ requirement on production amount, rotation: 5-30r/min, stepless variable speed
Vacuum system	Diffusion pump KT-600 (Canon), Roots pump ZJ-300, mechanical pump 2X-70, holding pump 2X-8, 304 stainless steel piping	Diffusion pump KT-800 (Canon), Roots pump ZJ-600, mechanical pump 2X-70, holding pump 2X-8, 304 stainless steel piping	Diffusion pump KT-800 (Canon), Roots pump ZJ-600, mechanical pump 2X-70, holding pump 2X-25, 304 stainless steel piping
	Limit vacuum: Superior to 6*10-4PA
	Equipped with anti-turbulence device, safe interlock design, optional manual or automatic
Heating system	Heating mode of heating tube, PID control, maximum: 350°C±1.5°C
Working gas gassing	Gas mass controller or manual fine tuning gas filling valve
Vacuum ion bombardment	DC 3KV, 0.6KW rod cathode (for automatically cleaning workpieces before coating) and optional gas ion source
Evaporation source (optional)	1. Electron gun: 6KW, high voltage 4KV-10KV, adjustable. Positioning scanning, triangular wave scanning, circular scanning, spiral scanning, square wave scanning, sine wave, good beam spot focusing, high positioning precision and good scan reproducibility
	2. Crucible: Six-hole Φ3820 crucible or four-hole Φ3820 plus arc crucible with hole center arc length of 87 (for evaporation materials with large consumption and low melting point) or hole Φ48*18 crucible
Ion source (optional)	1.5KVA Hall ion source is used for cleaning before electroplating or assisted plating in electroplating process, and favorable for improvement of film refractive index, firmness, compactness and adhesion.
Coating control system (optional)	1. Crystal controller: Store 1-99 layer automatic coating process, 99 types of program data, precision: 0.5$+1A fixed error.
	2. Light controller adopts multi-wavelength full spectrum end point analysis technology, determines film by analyzing monitoring chip 370-870mm refractive index (or reflective rate) curve, has high control precision and can also adopt single wavelength control, automatic control and manual control. The additional MACILEOD film calculation software has high integration degree.
	3. Light controller matches the crystal controller to meet coating requirements of high precision and high repeatability, and upper computer to realize automatic control.
	4. Domestic light controller: Wavelength 330-870, adjustable, precision: ±1.5NM.

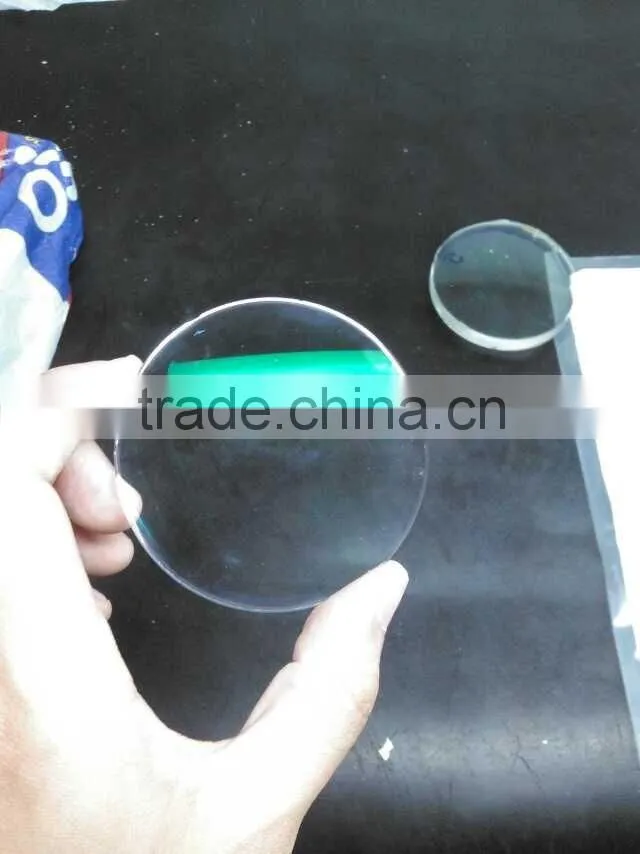

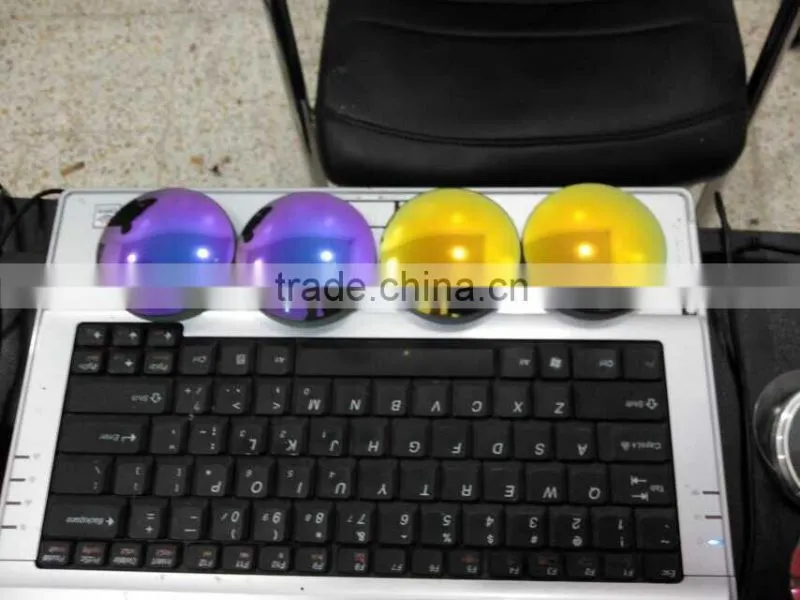

4.Samples:
