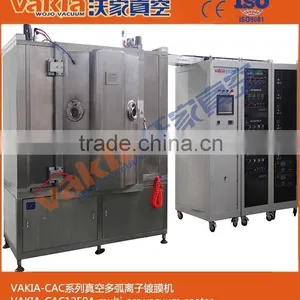

Floor Tile Metallizing Vacuum Coating Machine
US$ 50,000 - 120,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Coating Production Line
Substrate:
Ceramic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Multi Function Coating MachineUS$ 50,000 - 140,000MOQ: 1 Set -
Shanghai Vakia Vacuum Coater Machine and PartsUS$ 50,000 - 140,000MOQ: 1 Set
-
Glass,Crystal,and Lights Decorative Coating MachineUS$ 50,000 - 120,000MOQ: 1 Set
-
Multi-arc Combination With Medium Frequencey Magnetron Sputtering Vacuum Coating MachineUS$ 60,000 - 100,000MOQ: 1 Set
-
Yiwu Jewelry Coated by Vacuum Coating MachineUS$ 60,000 - 150,000MOQ: 1 Set
Condition
New
Type
Coating Production Line
Substrate
Ceramic
Coating
Vacuum Coating
Place of Origin
Shanghai, China
Brand Name
Vakia
Model Number
Vakia-CAC-1400
Voltage
380V
Power(W)
45KW
Dimension(L*W*H)
3m*4m*4m
Weight
4t
Certification
ISO9001:2008
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

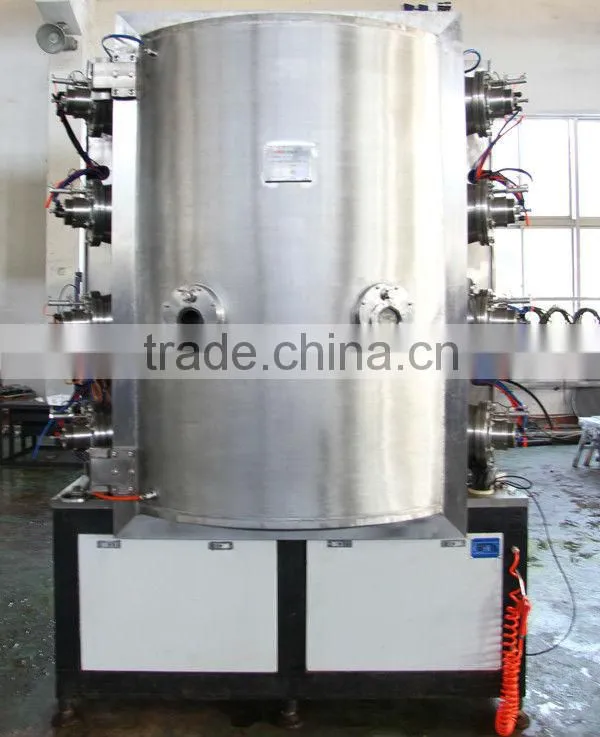

floor tile metallizing vacuum coating machine
floor tile
1).Feature:
1.High ionization rate,high deposition speed and strong adhehsion
2.Cleanness,pollition-free,instead of water plating
3.Advanced control system and easy to operated at various workpieces.
2).Application:
ceramic,watch,hardware,building material,tool,spectacle,kitchenware,sanitary ware,3C
3).Coating function:
Protective coating,hard coating,decorative coating
4).Detail congfiguratios:

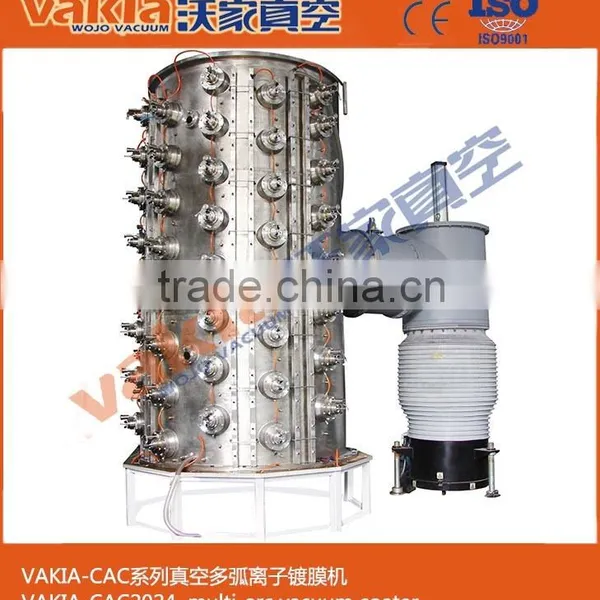

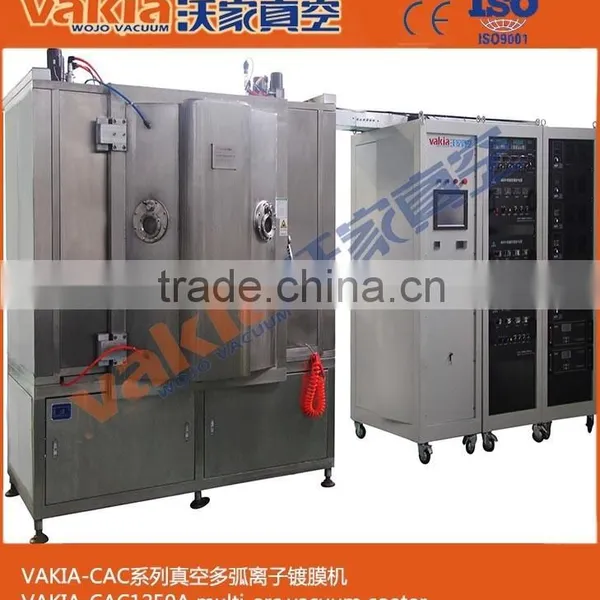

| Model and Technical Parameters of VAKIA-CAC Series Vacuum Multiple Arc Ion Coating Machine | ||||||
| Performance/Model | VAKIA-CAC-700 | VAKIA-CAC-900 | VAKIA-CAC-1000 | VAKIA-CAC-1250 | VAKIA-CAC-1400 | VAKIA-CAC-1600 |
| Size of coating chamber | Ø700*H900mm | Ø900*H1100mm | Ø1000*H1200mm | Ø1250*H1350mm | Ø1400*H1600mm | Ø1600*H1800mm |
| Power supply type | Arc power supply, filament power supply, pulse bias power supply | |||||
| Structure of vacuum chamber | Vertical front door structure, rear air exhaust system and double-layer water cooling chamber | |||||
| Material of vacuum chamber | High-quality stainless steel cavity | |||||
| Limit vacuum | 6.0*10-4Pa | |||||
| Extraction time (no load) | Pump the atmosphere to 8.0*10-3Pa ≤15 minutes | |||||
| Vacuum acquisition system | Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be configured according to customer requirements) | |||||
| Arc source | 4 units or 6 units | 6 units or 8 units | 8 units or 10 units | 10 units or 12 units | 14 units or 16 units | 16 units or 18 units |
| Bias power supply | 10KW/1 unit | 20KW/1 unit | 20KW/1 unit | 30KW/1 unit | 40KW/1 unit | 50KW/1 unit |
| Rotating mode of workpiece turntable | Planetary revolution and autorotation, variable frequency speed regulation (controllable and adjustable) | |||||
| Workpiece baking temperature | Controllable and adjustable from room temperature to 450°C (PID temperature control) | |||||
| Process gas | 3-path or 4-path process gas flow control and display system, selective automatic gassing system | |||||
| Cooling mode | Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) | |||||
| Control mode | Manual/automatic integration mode, touch screen operation, PLC or computer control | |||||
| Total power | 25KW | 30KW | 35KW | 45KW | 60KW | 75KW |
| Alarm and protection | Alarm water shortage, overcurrent and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function | |||||
| Equipment area | W2m*L3m | W2.5m*L3.5m | W3m*L4m | W4m*L5m | W4.5m*L6m | W5m*L7m |
| Other technical parameters | Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa | |||||
| Remarks | The specific configuration of coating equipment can be designed according to process requirements of coating products | |||||
5).Samples:
