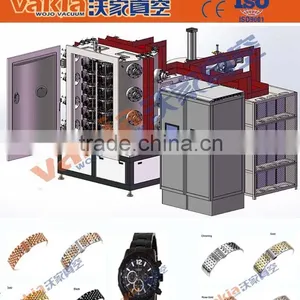

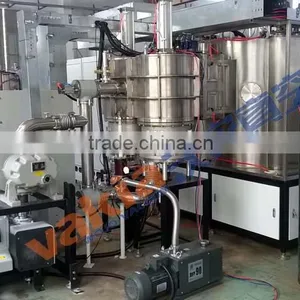

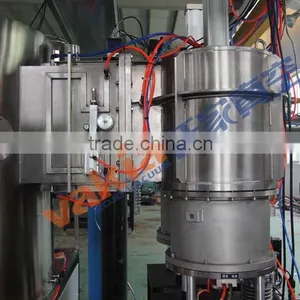

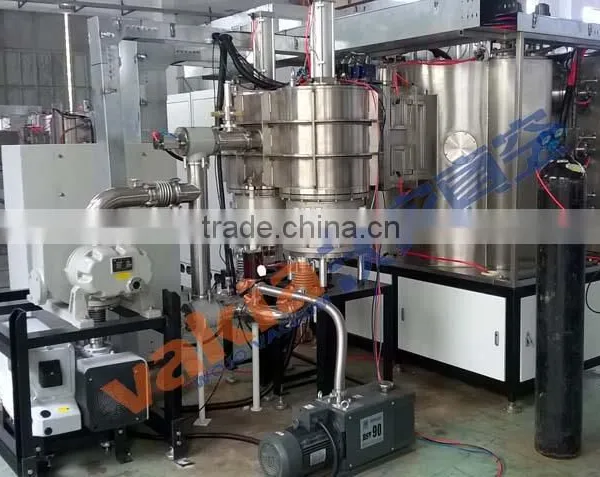

PVD Gold Thin Film Coating in Watches / Watch Cases PVD Plating Machine / PVD Gold Plating Equipment
PVD plating in the watch industry application
Physical Vapor Deposition (PVD) decorative hard coatings in the home appliances & electronics made of
stainless steel material has been used widely for decades. It gives an attractive colors and high wear
resistance for our luxury consumer goods such as: watch components, wring instruments or spectacles. Some
manufactures want to maintain both the high wear resistance of PVD and the high reflective finishing surface
which provides the product with a high quality image.
ASC series coating equipment can produce highly reflective gold films specifically for high quality
aesthetic demand.
Benefit
Robust design, large batches, fast cycle, flexible coating processes are the basic design concepts Vakia Vacuum Coating has been pursuing.

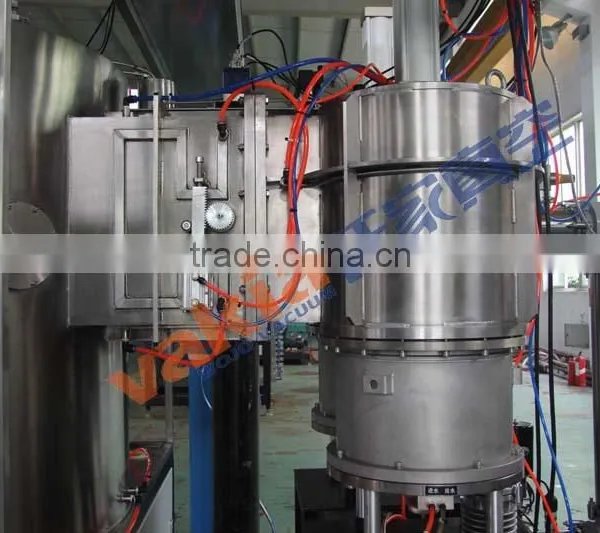

| ASC-1250 Specifications | |||||||
| MODEL | VAKIA-ASC1250 | ||||||
| TECHNOLOGY | Magnetron Sputtering (DC or MF) + Ion Plating | ||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1250*H1250mm | ||||||
| CHAMBER TYPE | Cylinder, vertical, 1-door | ||||||
| SPUTTERING SYSTEM | Exclusively design for thin black film deposition | ||||||
| DEPOSITION MATERIAL | Aluminum, Silver, Copper, Chrome, Stainless Steel, |
||||||
| DEPOSITION SOURCE | 2 Cylindrical Sputtering Targets + 8 Steered Cathodic |
||||||
| GAS | MFC- 4 ways, Ar, N2, O2, C2H2 | ||||||
| CONTROL | PLC(Programmable Logic Controller) + |
||||||
| PUMP SYSTEM | SV300B - 1 set (Leybold) | ||||||
| WAU1001 - 1 sets (Leybold) | |||||||
| D60T- 2sets (Leybold) | |||||||
| Turbo Molecular Pumps: 2* F-400/3500 | |||||||
| PRE-TREATMENT | Bias power supply: 1*36 KW | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators |
||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L3000*W3000*H2000mm | ||||||
| TOTAL WEIGHT | 7.0 T | ||||||
| FOOTPRINT | ( L*W*H) 5000*4000 *4000 MM | ||||||
| CYCLE TIME | 30~40 minutes (depending on substrate material, |
||||||
| POWER MAX.. | 155 KW | ||||||
| AVERAGE POWER CONSUMPTION (APPROX.) | 75 KW | ||||||

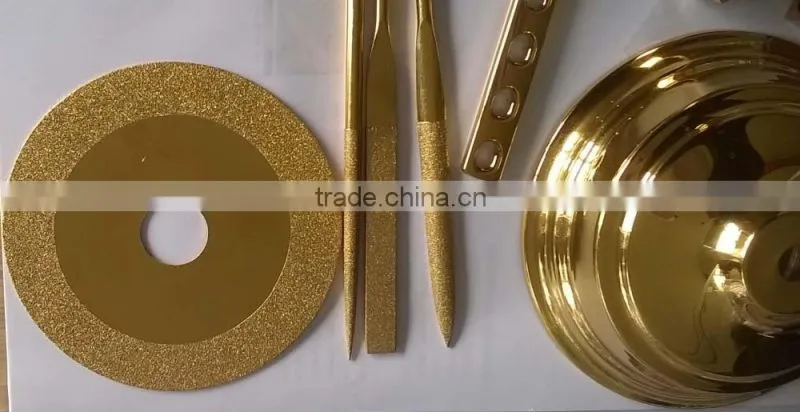

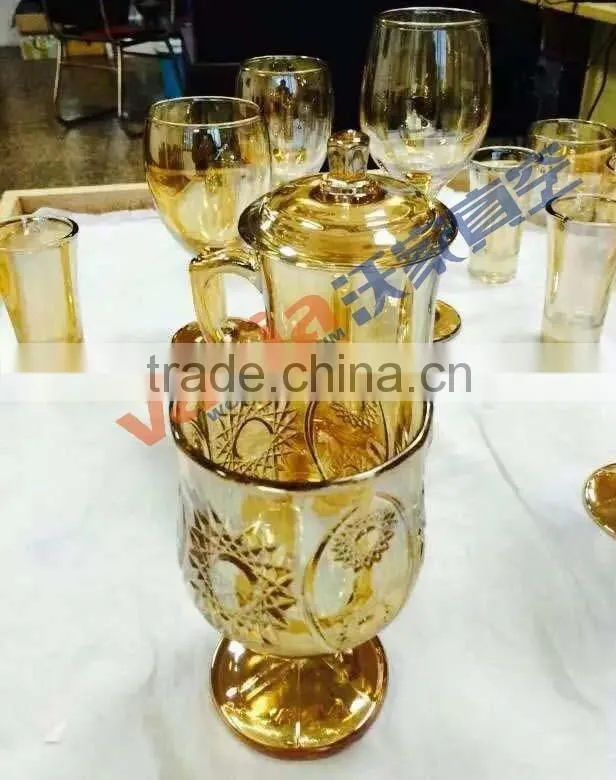

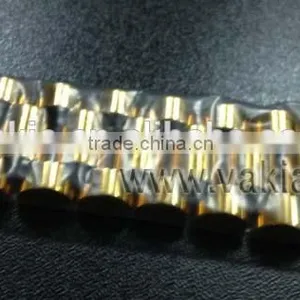

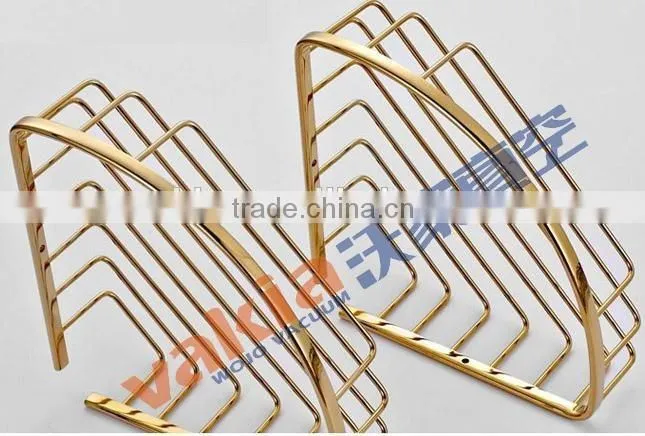

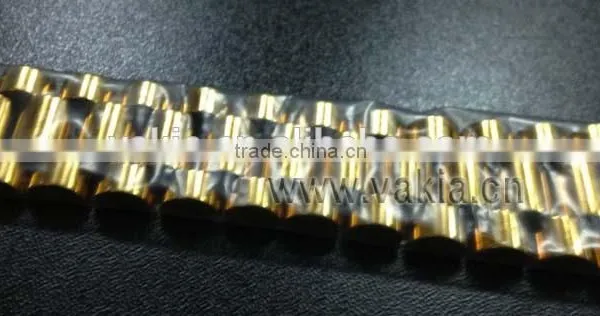

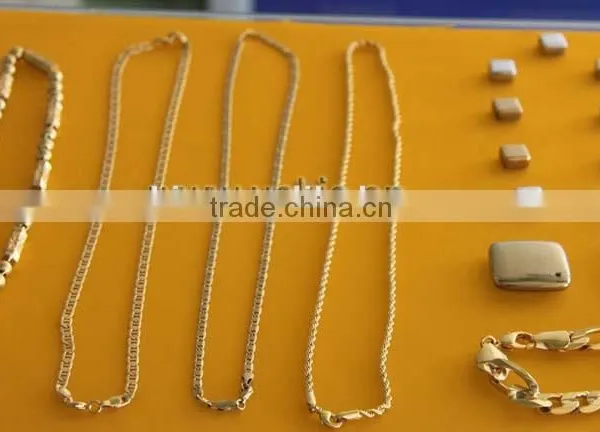

Other Coating Samples:
Our Service
Service Makes the Difference
PVD coating equipment’s proposal and budget calculation;
- Customized coating equipment manufacturing;
- On-site assembly, training and maintenance;
- Total coating solutions;
- Advanced coating recipes development.
Benefits
Tailor-made Equipment
Vakia team of experts follow customers demand, provide the unique equipments and solutions.
Because we know that there is no "one equipment fits all" coating.
Quality Assurance
Quality is always our top priority. We are familiar with the international standards & regulations.
All our designs comply meet or exceed ISO9001:2008 standards.We use top grade components
and we perform extensive testings to make sure our equipment's quality.
Technology Support
We exceed the expectations of our customers with innovative & advance technology,
competitive solutions.
Personalized Assitance
Our sales representatives are working closely with our customers through the whole process.
We will guide and assist you to develope your vision and ensure a perfect-match machine.
We provide the expert guidance on each step of the cooperation.
After-Sale-Service
Equipment installation: Our qualified assemble technicians are sent to your site to ensure
a proper assembling. Operators and Maintainer's training to guarantee the coatings' perfect finishing.

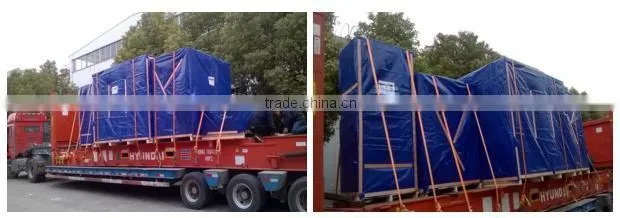

Packaging Photos
