Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Coating Machinery > New High Efficiency Chrome Vacuum Coat Plating Machine (car Wheels)Low Cost Vacuum Coating Machine
New High Efficiency Chrome Vacuum Coat Plating Machine (car Wheels)Low Cost Vacuum Coating Machine
US$ 97,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Coating Production Line
Substrate:
Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vacuum Coating Machine (Lamp Bases Holder)US$ 90,000 - 150,000MOQ: 1 Set -
Vacuum PVD Coating Processing EquipmentUS$ 80,000 - 170,000MOQ: 1 Set
-
Door Handles Vacuum Coating Machine/door Handles Coating/door Handles PaintingUS$ 50,000 - 170,000MOQ: 1 Set
-
Water Faucet Vacuum Pvd Coating MachineUS$ 40,000 - 100,000MOQ: 1 Set
-
Mini Multi Purpose Vacuum Coating MachineryUS$ 40,000 - 140,000MOQ: 1 Set
Condition
New
Type
Coating Production Line
Substrate
Steel
Coating
Vacuum Coating
Place of Origin
Shanghai, China
Brand Name
VAKIA
Model Number
VAKIA-SRC-1400
Voltage
380v
Power(W)
70kw
Dimension(L*W*H)
4x5x3m
Weight
4tons
Certification
ISO9001:2008
Warranty
1 YEAR
After-sales Service Provided
Engineers available to service machinery overseas

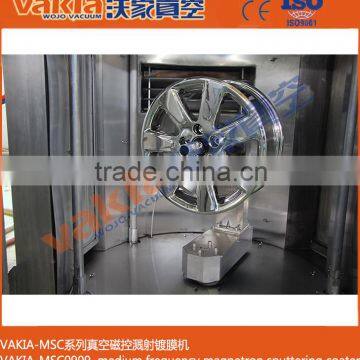

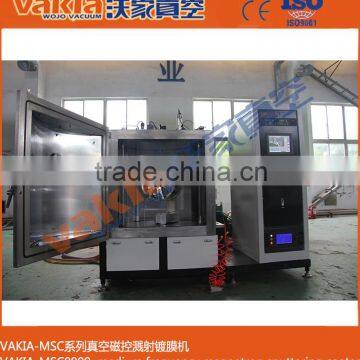

China car wheel vacuum plasma plating coating machine
1.Feature
Vertical chamber,sandwich water-cooling,made of SUS304 stainness steel
Pump system:Mechnical pump+roots pump+maintain pump+diffsion pump or molecular pump
Operate at touch screen,controlled by PLC,integration of automatic and manual modes
Alarm at unusual circumstance and taking safty measures production process,automatic storage of parameters Pules arc supp;y,pulse bias supply Anode layer ion soirce
2.Charactristic
High ionization rate,high deposition speed and strong adhesion
Clearness,pollution-free,instead of water plating
Advanced control system and easy to operate,deposition at various workpeices
3.Application
Watch,hardware,build material,tools,kitchenware,3C, China car wheel .ECT.
4.Technical parameters
| Model and Technical Parameters of VAKIA-SRC Series Vacuum Magnetron Sputtering and Evaporation Coating Machine | ||||||
| Performance/Model | VAKIA-SRC-900 | VAKIA-SRC-1000 | VAKIA-SRC-1200 | VAKIA-SRC-1400 | VAKIA-SRC-1500 | VAKIA-SRC-1800 |
| Structure of vacuum chamber | Vertical double door, vertical single door, horizontal single door and rear vacuum acquisition system | |||||
| Power supply type | Rsistance evaporation power supply, ion bombardment power supply, filament power supply, pulse bias power supply, DC magnetron power supply, intermediate frequency magnetron power supply | |||||
| Size of coating chamber | Ø900*H1100mm | Ø1000*H1200mm | Ø1200*H1500mm | Ø1400*H1800mm | Ø1,500*H1900mm | Ø1800*H2000mm |
| Material of coating chamber | High-quality stainless steel | |||||
| Limit vacuum | 8.0*10-4Pa | 8.0*10-4Pa | 8.0*10-4Pa | 8.0*10-4Pa | 8.0*10-4Pa | 8.0*10-4Pa |
| Pump-down time (no-load) | Pump the atmosphere to 5.0*10-2Pa ≤8 minutes | |||||
| Vacuum acquisition system | Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be configured according to customer requirements) | |||||
| Coating mode | Evaporation coating + Magnetron sputtering coating | |||||
| Film type | Metal film, translucent film, nonconductive film, electromagnetic shielding film, dielectric film and so on | |||||
| Magnetron target type | Rectangular magnetron target, cylindrical magnetron target and twin magnetron targets | |||||
| Magnetron supply power and number of magnetron targets | Select according to different coating process and customer requirements | |||||
| Maximum limit diameter of workpiece turning | 6-shaft260mm | 6-shaft Ø280mm 8-shaft Ø260mm | 6-shaft Ø360mm 8-shaft Ø280mm | 6-shaft Ø420mm 8-shaft Ø350mm | 6-shaft Ø460mm 8-shaft Ø380mm | 6-shaft Ø560mm 8-shaft Ø460mm |
| Evaporation electrode | Standard configuration 2 pieces | |||||
| Evaporation power | 15KW | 15KW | 20KW | 25KW | 30KW | 35KW |
| Total power | 50KW | 50KW | 65KW | 85KW | 100KW | 135KW |
| Process gas | 2-path or 3-path process gas flow control and display system, selective automatic gassing system | |||||
| Cooling mode | Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) | |||||
| Rotating mode of workpiece turntable | Planetary revolution and autorotation, variable frequency speed regulation (controllable and adjustable) | |||||
| Control mode | Manual/automatic integration mode, touch screen operation, PLC or computer control | |||||
| Alarm and protection | Alarm water shortage, overcurrent and overvoltage, open circuit and other abnormal conditions o execute relevant protective measures | |||||
| Equipment area | W3m*L3m | W3m*L3m | W3.5m*L4m | W5m*L5m | W6m*L6m | W6m*L8m |
| Other technical parameters | Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa | |||||
| Remarks | The specific configuration of coating equipment can be designed according to process requirements of coating products | |||||
5.Samples
