Product Description

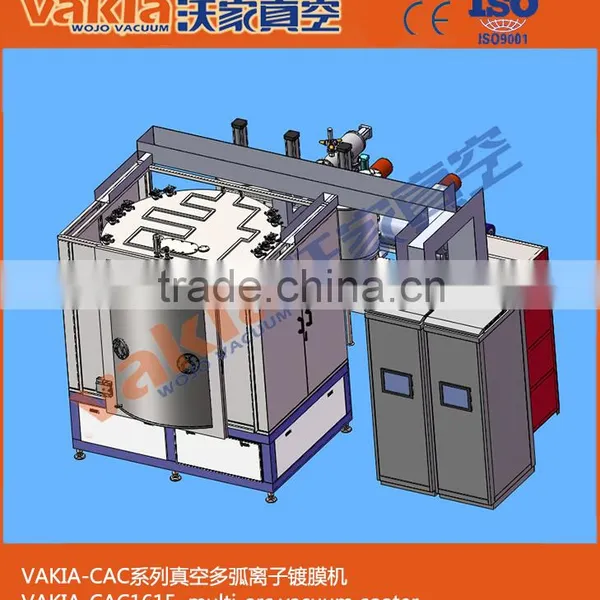

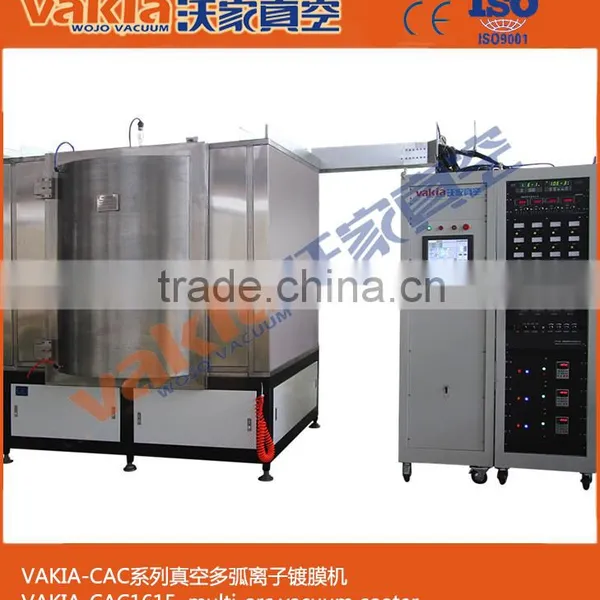

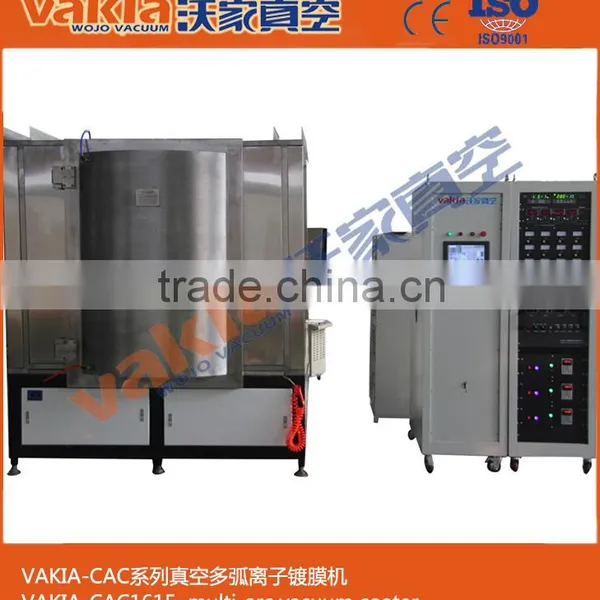

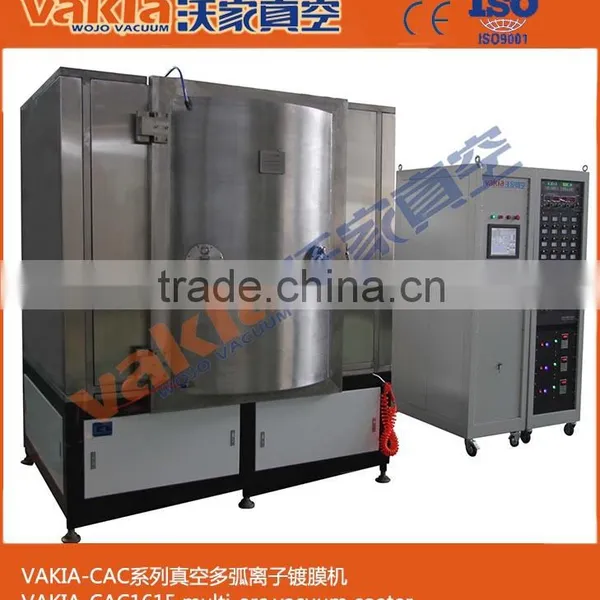

Metal Gold Coating Machine is consist of vacuum coating chamber, vacuum pumping system, arc source system, cooling system, gas system, electrical control system, workpiece rotating rack, and others. This machine is mainly applied in the coating for metal, glasses, and ceramics.
Coating Function
Protective coating, Hard coating, Decorative coating.
Application
Watch, Hardware, Spectacle, Kitchenware, Sanitary ware, Building material, Tool
crystal glass, 3C. The substrates can be metal, ceramics, glass etc.
Metal Gold Coating Film color
Most of the color can be coated such as golden, silver, red, purple, blue, gray, black and multi-color and makes the product look more graceful and attractive.
Product Characteristic
1. With fast film deposition rate, bright color, and almost all the color can be done.
2. The film that is good density, high purity and uniform.
3. Cleanness, pollution-free, instead of water plating.
4. Advanced control system and easy to operate, deposited at various workpiece.

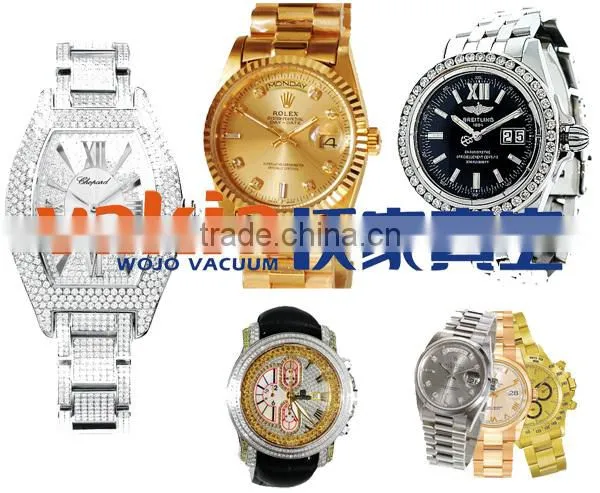

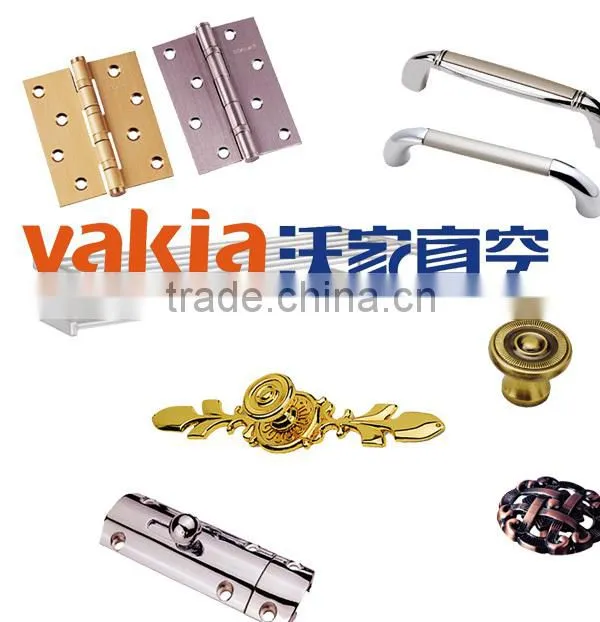

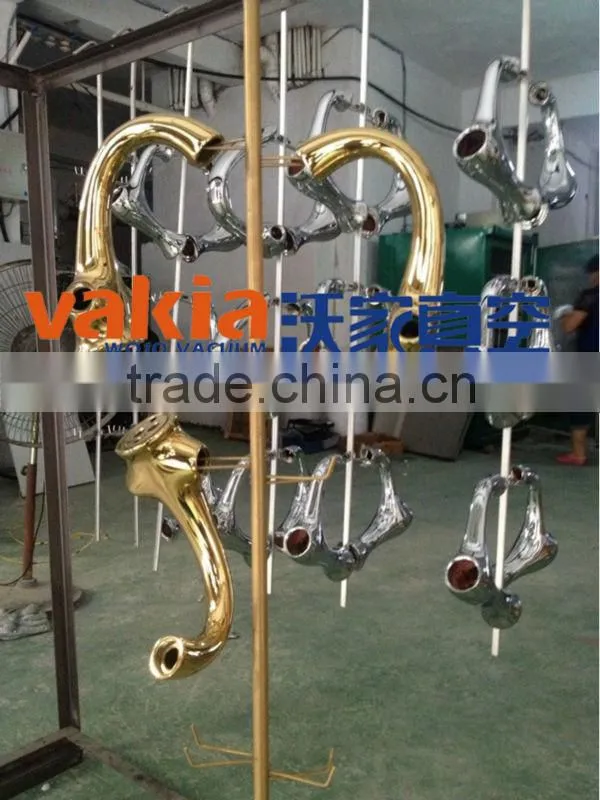

Coating Samples ( Metal Gold Coating Machine)
Main Technology Specifications ( Metal Gold Coating Machine)
Vakia-CAC Series Multi-arc Ion Coating Machine | |||||||||||||||
|
Performance/ Model |
CAC-900 |
CAC-1000 |
CAC-1250 |
CAC-1400 |
CAC-1600 |
||||||||||
Size of coating chamber |
900x1100mm |
1000x1200mm |
1250x1350mm |
1400x1600mm |
1600x1600mm |
||||||||||
Power supply type |
Arc power supply, filament power supply, pulse bias power supply |
||||||||||||||
Structure of vacuum chamber |
Vertical front door structure, rear air exhaust system and double-layer water cooling chamber |
||||||||||||||
Material of vacuum chamber |
superior stainless steel vacuum chamber |
||||||||||||||
Limit vacuum |
6.0x10-4Pa (unload, clean vessel) |
||||||||||||||
Extraction time |
from atmosphere to 8.0*10-3Pa ≤15 minutes |
||||||||||||||
Vacuum pumping system |
Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be selected according to customer requirements) |
||||||||||||||
Arc source |
6 units or |
8 units or |
10 units or |
14 units or |
16 units or |
||||||||||
Bias power supply |
20KW/set |
20KW/set |
30KW/set |
40KW/set |
50KW/set |
||||||||||
|
Rotating mode of workpiece turntable |
Planetary revolution and rotation, variable frequency speed regulation (controllable and adjustable) |
||||||||||||||
Workpiece baking temperature |
Controllable and adjustable from room temperature to 450°C (PID temperature control) |
||||||||||||||
Process gas |
3-path or 4-path process gas flow control and display system, selective automatic gassing system |
||||||||||||||
Cooling mode |
Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) |
||||||||||||||
Control mode |
Manual/automatic integration mode, touch screen operation, PLC or computer control |
||||||||||||||
Total power |
30KW |
35KW |
45KW |
60KW |
75KW |
||||||||||
Alarm and protection |
Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function |
||||||||||||||
Equipment area |
W2.5m*L3.5m |
W3m*L4m |
W4m*L5m |
W4.5m*L6m |
W5m*L7m |
||||||||||
Other technical parameters |
Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa |
||||||||||||||
Remarks |
The specific configuration of coating equipment can be designed according to process requirements of coating products |
||||||||||||||
Company Information
Shanghai Vakia Coating Technology Co., Ltd is a leading vacuum coating engineering integrated provider in China. We committed to providing competitive comprehensive solutions and services for enterprises, science research institutes and coating centers.
Advantages of our factory
1. We have been in this business line for more than 10 years, products exports worldwide.
2. We are granted ISO 9001.
3. Can be ordered by customer demand
4. Work closely with customers to avoid any errors or misunderstanding.
5. We have complete facilities and skilled workers.
6. We owe strict quality control and excellent after sales service.
