Stainless Steel Tableware Gold, Rose gold, Blue, Black color Coating
The multi-arc ion plating machine is application vacuum arc discharge technology to evaporation source technology ,to ignite the evaporation source (cathode) in a vacuum environment, and the formation of a self-sustaining arc discharge with the anode, release cathode substances ions from the cathodic arc brilliant point. Due to the current local focus, the Joule heat generated so that the local outbreak of the cathode material to ionization, combined with the reaction gas under the action of the workpiece bias, the formation of a plated film deposited on the workpiece surface.
Main Configuration:
1. Vacuum chamber is vertical one open door , 304 stainless steel manufactures, vacuum chamber internal diameter from φ1000mm-Φ1300mm;
2. Vacuum system by Rotary vane pump, Roots pump and Oil Diffusion Pumps or Molecular Pump Constitution;
3. Coating system uses 1-2 intermediate frequency magnetism to control the sputtering power source, has 1-2 pair of non-balanced magnetism to control the target, and has 6-14 hot cathode electric arcs;
4. High efficiency pulse bias power source;
5. The gasification system uses domestically produced or the import gaseous mass flowmeter, the gas flow amount control (demonstration) meter;
6. The electrically controlled system establishment electric circuit overloaded, cuts off the water supply, dies the acousto-optics alarm device;
7. Control system (touch-screen +PLC), real time display detailed parameter, completely automatic control entire production process, and automatic memory technological parameter

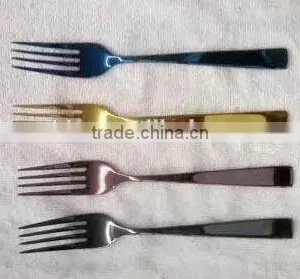

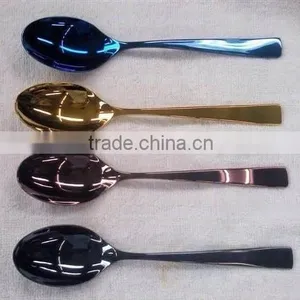

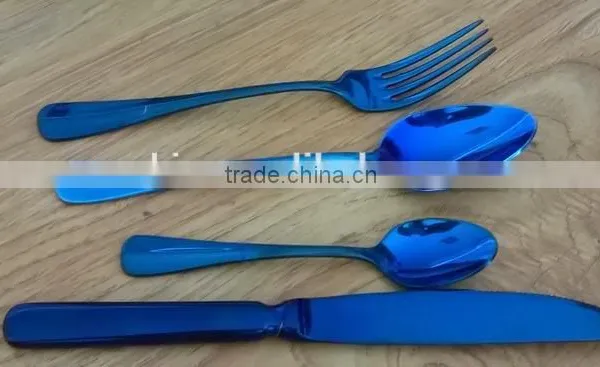

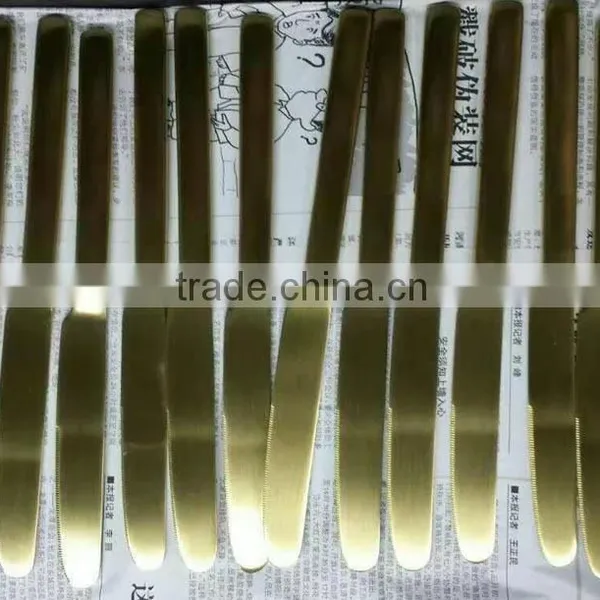

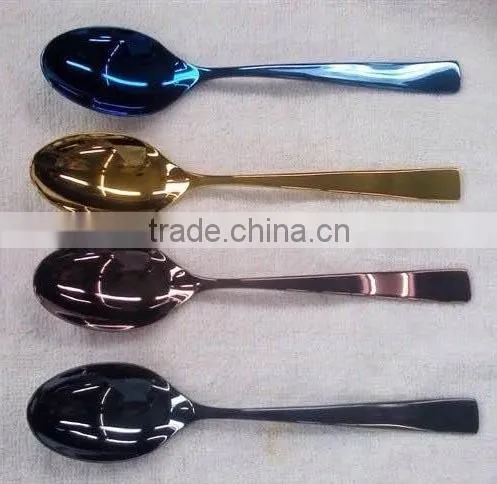

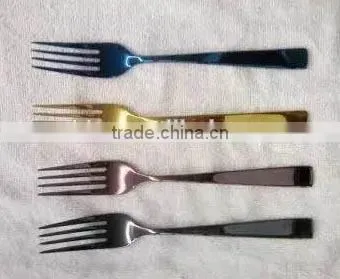

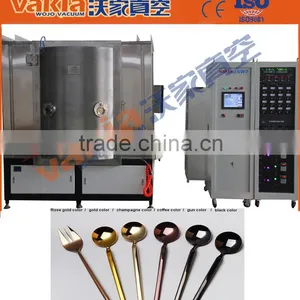

Color:gold, rose gold, silver, colorful, sapphire blue, black etc.
Coating:TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN and DLC
Remark:Specially tailored according to customers’ products and process requirements.
