Specifications
Support vehicles with OBD II/EOBD protocol.Read ,clear DTC
Read data stream
Read freeze frame data ,oil service reset
1. Features
- Small size and easy to plug into or detach from the OBD II port of your BMW.
- Powerful tool with full electronic control unit diagnostics.
- Reads/clears OBD II and manufacture specific fault codes, displays full detailed codes information, and offers you potential solutions without going to the mechanic.
- Ensures the health of your BMW with reset functions as oil service light reset, front brake reset, rear brake reset, spark plugs reset, brake fluid reset, etc.
- Saves your money by monitoring the fuel economy.
- Slick app makes it easy for you to sort through and understand the data.
2. Functions
1). Diagnosis
Diagnose all the compatible electronic control systems of your BMW.
[Version info]Look up vehicle related information.
[Reads trouble codes]Reads trouble codes and shows their detailed information.
[Clears trouble code]Clears all trouble codes
[Clears trouble code]Clears all trouble codes
2). Service Reset
You can reset oil service light, front brake, rear brake, spark plugs, brake fluid etc.
[Oil service light reset]After changing the oil of the car, reset the oil service light.
Note: More reset options are available,please kindly check in the screenshot below.

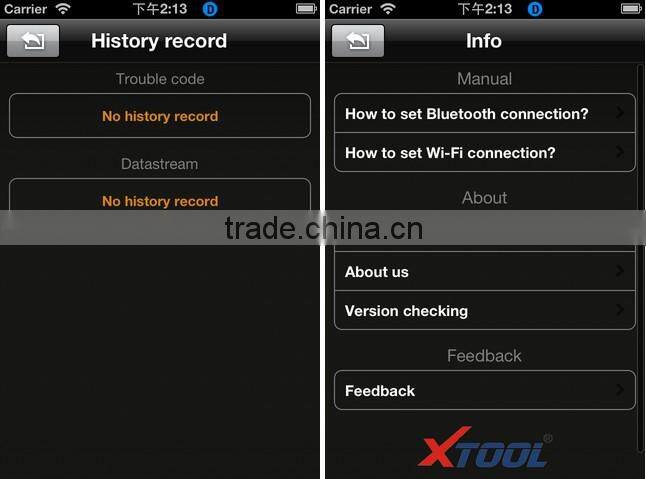

3). History
You can review the saved diagnostic data of the tested cars, such as live data, freeze frame data and my dashboard data.
4).“i”Information
Press click “i” button and you can find information on the product or give us a feedback.
3. Technical specification
Operating temperature: 0~50°C
Storage Temperature: -20~70°C
Relative Humidity: < 90%
Input Voltage: 8~18V
Power: <0.9W
Vehicle Compatibility
IOBD2 BMW bluetooth works with all BMW vehicles with OBD2 connector from 1996 till now.
Supported device and APP
OS | Device | Mode |
Apple iOS | IPod touch | iPod Touch 1st generation,2nd generation,3rd genaretion,4th generation |
iPhone | iPhone, iPhone 3, iPhone 3GS iPhone 4, iPhone 4s, iPhone 5 | |
iPad | iPad, iPad 2,ipad 3,iPad Mini |
Recommended APP: IOBD2 and IOBD2 BMW (can search and download it in Apple store and Google Play Store)
Bluetooth Connection
IOBD2 BMW can be connected with all devices based on Apple iOS with bluetooth, It is very reliable.
Cautions & Warnings:
Please read following tips before you use iobd2:
- Please plug the iOBD2 adapter correctly into your car by following the installation instructions before operating.
- When driving the car, please do not operate this unit. Any distraction may cause an accident.
- iOBD2 communicates with cars via bluetooth. Please do not use this product in the places with strong electro-magnetic interference in order to ensure communication proper.
All information on this manual is based on the latest iOBD2 version. XTOOLTECH reserves the right to make changes at any time without notice.

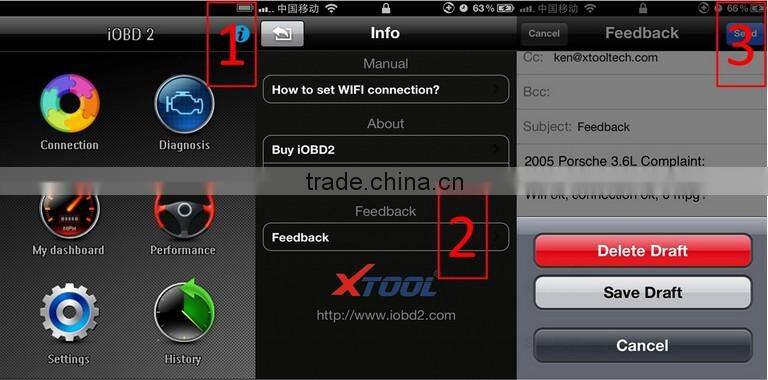

If you meet any problem when testing your car,please give us a feedback according to the below steps,Engineer will reply you asap within 1-2 working days:
iOBD2 bluetooth BMW adaptor
iOBD2-BMW app (Download from AppStore/iTunes)
User manual

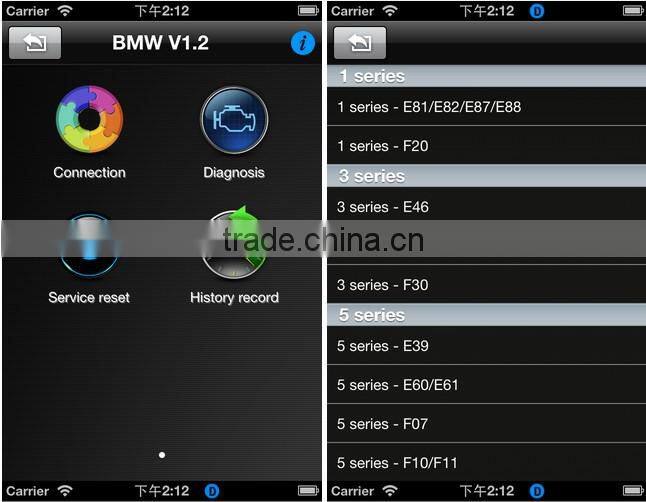

Screenshot of Software
The Three Flavors of OBD II
While the parameters, or readings, required by OBD II regulations are uniform, the auto manufacturers had some latitude in the communications protocol they used to transmit those readings to scanners. Naturally, each felt they had the one true way, so we have three different OBD II communications protocols in use.
What Communications Protocol does my vehicle use?
As a rule of thumb, GM cars and light trucks use SAE J1850 VPW (Variable Pulse Width Modulation). Chrysler products and all European and most Asian imports use ISO 9141 circuitry. Fords use SAE J1850 PWM (Pulse Width Modulation) communication patterns.
There are some variations among captive imports such as the Cadillac Catera, a German Opel derivative, which uses the European ISO 9141 protocol.
On 1996 and later vehicles, you can tell which protocol is used by examining the OBD II connector:
J1850 VPW--The connector should have metallic contacts in pins 2, 4, 5, and 16, but not 10.
ISO 9141-2--The connector should have metallic contacts in pins 4, 5, 7, 15, and 16.
J1850 PWM--The connector should have metallic contacts in pins 2, 4, 5, 10, and 16.
