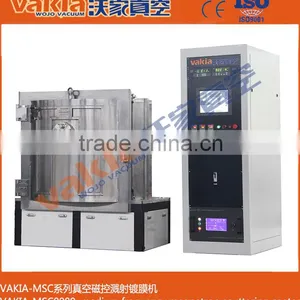

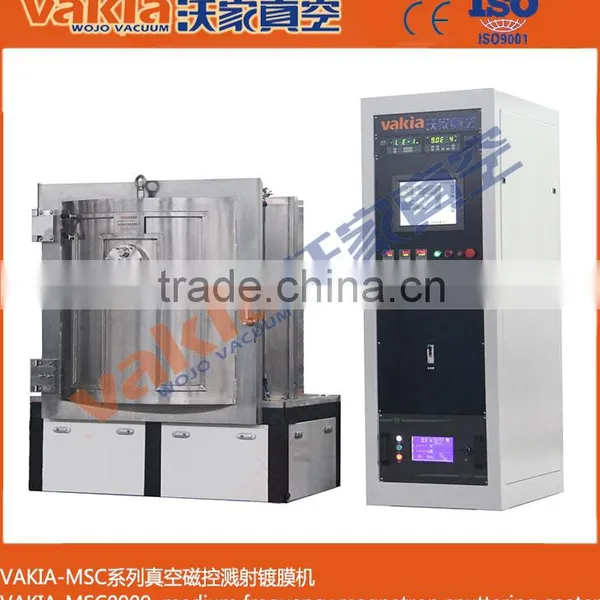

Bright Chrome Plating/magnetron sputtering coating machine for bright chrome
- 15 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- electrostatic flocking machine
- powder coating lab test machine electrostatic powder experiment spray machine optiflex 2 type
- electrostatic powder coating machine experiment lab powder spray machine optiflex 2 type
- It is suitable for high pressure cascade of spray gun of various types of spray machine
- Zinc Ash Recovery Furnace zinc ash recovery machine Zinc Ash Separator zinc ash regeneration unit
- Electric adjustment multi - mode liquid crystal intelligent electrostatic powder spraying machine
Product Details
Type: | Other, Coating Production Line, Coating production line | Substrate: | Glass | ||
Coating: | Other, SPUTTERING | Place of Origin: | Shanghai, China | Brand Name: | VAKIA |
Model Number: | MSC-600 | Voltage: | 380v | Power(W): | 55kw |
Dimension(L*W*H): | 4x4x2m | Weight: | 5t | Certification: | ISO 9001:2008 |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Bright Chrome Plating/magnetron sputtering coating machine for bright chrome
1.Product Features
1) film thickness controllability and well repeatability,can be a reliable system of pre-plated thickness of the films and sputtering in a larger surface of uniform film;
2) Preparation of special material of the film, you can use different materials and sputtering hybrid film, compound film,also can be sputtered into the TiN imitation gold film.
3)Used in Stainless Steel Tableware chrome/golden coating
2.Main technical parameter
Model and Main Technical Parameters of VAKIA-DSC Series Vacuum Magnetron Sputtering Coating Machine | ||||||
Performance/Model | VAKIA-DSC -700 | VAKIA-DSC -900 | VAKIA-DSC -1000 | VAKIA-DSC -1250 | VAKIA-DSC -1400 | VAKIA-DSC -1600 |
Size of coating chamber | 700*H900mm | 900*H1100mm | 1000*H1200mm | 1250*H1350mm | 1400*H1600mm | 1600*H1800mm |
Power supply type | Filament power supply, pulse bias power supply, DC magnetron power supply, intermediate frequency magnetron power supply, radio frequency magnetron power supply, linear ionization source | |||||

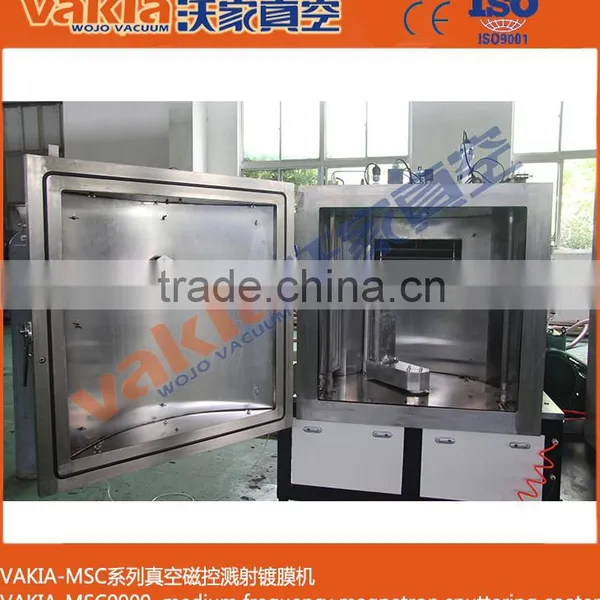

Structure of vacuum chamber | Vertical double door, vertical front door structure, rear air exhaust system | |||||
Material of vacuum chamber | High-quality stainless steel cavity | |||||
Limit vacuum | 6.0*10-4Pa | |||||
Pump-down time (no-load) | Pump the atmosphere to 8.0*10-3>Pa ≤15 minutes | |||||
Vacuum acquisition system | Diffusion pump or molecular pump + Roots pump + Mechanical pump + rotary vane pump (the specific model can be configured according to customer requirements) | |||||
Coating mode | Magnetron sputtering coating | |||||
Film type | Metal film, reactive film, compound film, multilayer film and semiconductor film | |||||
Magnetron target type | Rectangular magnetron target, cylindrical magnetron target and twin magnetron targets | |||||
Magnetron supply power and number of magnetron targets | Select according to different coating process and customer requirements | |||||
Bias power supply | 10KW/1 unit | 20KW/1 unit | 20KW/1 unit | 30KW/1 unit | 40KW/1 unit | 50KW/1unit |
Rotating mode of workpiece turntable | Planetary revolution and autorotation, variable frequency speed regulation (controllable and adjustable) | |||||
Process gas | 3-path or 4-path process gas flow control and display system, selective automatic gassing system | |||||
Cooling mode | Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) | |||||
Control mode | Manual/automatic integration mode, touch screen operation, PLC or computer control | |||||
Total power | 30KW | 35KW | 40KW | 50KW | 65KW | 80KW |
Alarm and protection | Alarm water shortage, overcurrent and over-voltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function | |||||
Equipment area | W2m*L3m | W2.5m*L3.5m | W3m*L4m | W4m*L5m | W4.5m*L6m | W5m*L7m |
Other technical parameters | Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure: 0.5-0.8MPa | |||||
Remarks | The specific configuration of coating equipment can be designed according to process requirements of coating products |

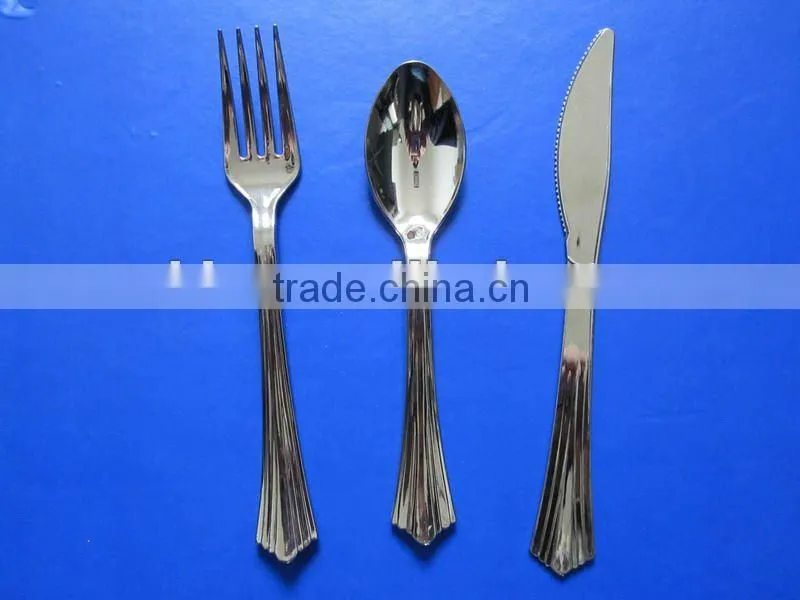

3.Coated samples showcase:
