Plastic Silver Cutlery Coating Machinery

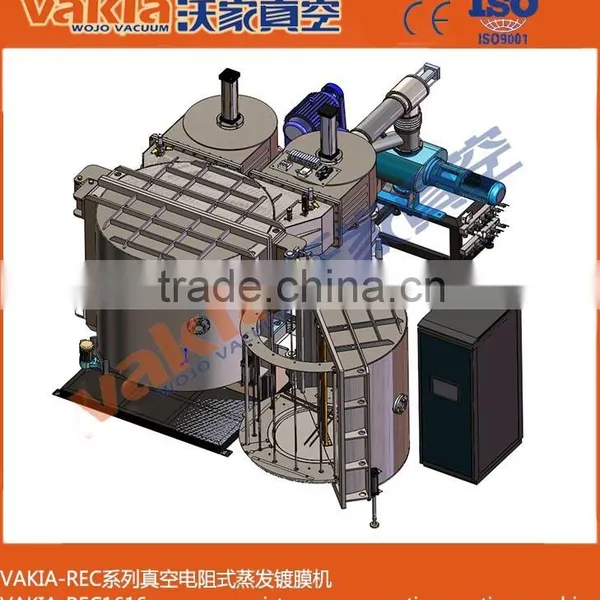

Plastic Silver Cutlery Coating Machinery photo-1

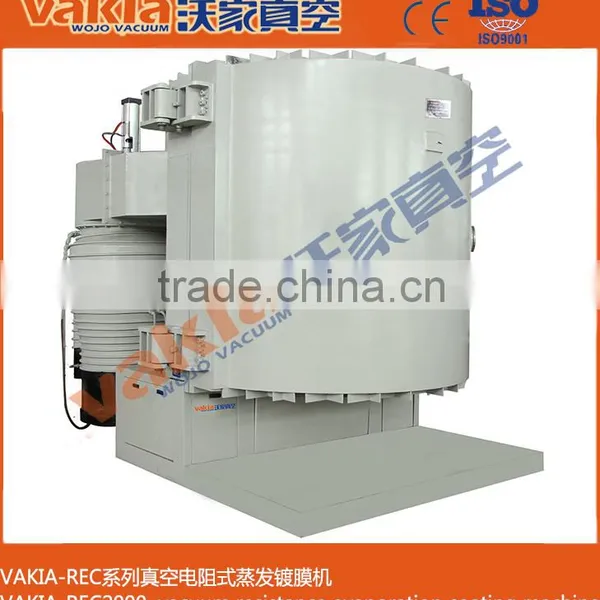

Plastic Silver Cutlery Coating Machinery photo-2
US$ 30,000 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, vacuum coating machine
Substrate:
Other, plastic, ceramic, glass
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, vacuum coating machine
Substrate Other, plastic, ceramic, glass
Coating Vacuum Coating
Place of Origin Shanghai, China
Brand Name Vakia
Model Number Vakia-MSC
Voltage 380V
Power(W) 35 KW
Dimension(L*W*H) 6mx6.5mx3.2m
Weight 7 T
Certification ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

This MSC-Series plastic silver cutlery coating equioment consist of vacuum coating chamber, vacuum pumping system, deposition system, cooling system , electrical control system , workpiece rotating rack , and others.

Film Function:

Decorative film, functional coating.



Application field:

The substrates can be plastic, ceramics, glass etc.



Product Characteristic

1) With fast film deposition rate, bright color, and almost all the color can be done.

2) The film that is good density, high purity and uniform.

3) Cleanness, pollution-free, instead of water plating.

4) Advanced control system and easy to operate, deposited at various workpiece.

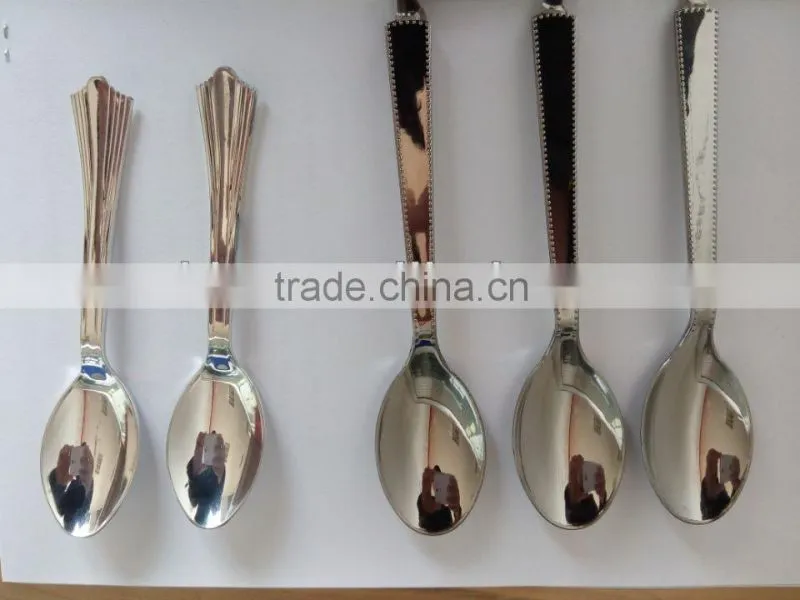

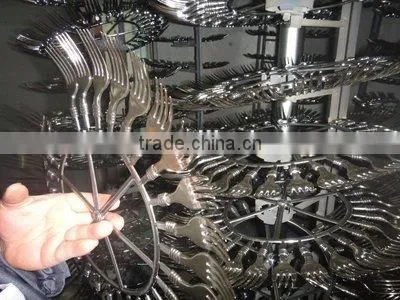

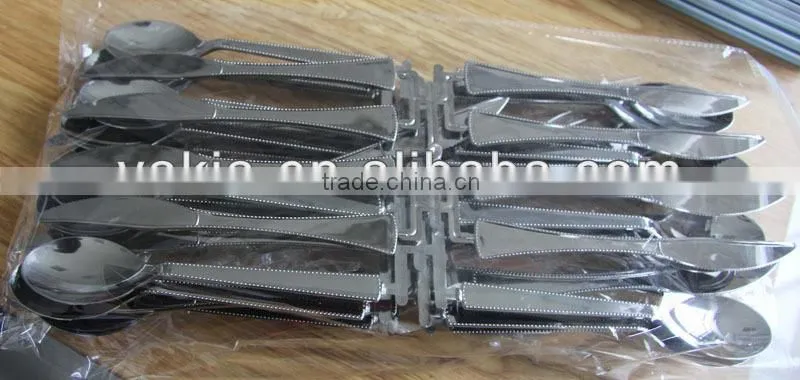

Coating Samples:

 plastic silver cutlery coating machineryplastic silver cutlery coating machineryplastic silver cutlery coating machinery

Main Technology Specifications ( plastic cultery plating equioment ):

property type

MSC-700

MSC-900

MSC-1000

MSC-1250

         MSC-1400

MSC-1600

chamber size(mm)

700x900

900x1100

1000x1200

1250x1350

1400x1600

1600x1800

power supply type

Filament supply, pulsed bias supply, DC magnetron supply, Medium frequency magnetron supply, RF magnetron supply

chamber structure

vertical double door, rear exhausting system

chamber material

High grade SUS 304

ultimate vacuum

6.0×10-4Pa

pumping time / no-load

From atmosphere to 8.0×10-3Pa≤10min

vacuum system

diffusion pump/ molecular pump+ roots pump + mechanical pump + maintain pump

coating way

magnetron sputtering coating

coating type

metal films , reflection films, compound films(nitride, oxide),multi layer films, semiconductor films

target type

rectangle /cylindrical / twin magnetron target

target quantity

Equipment according to different coating process and customers' requires

magnetron

power supply

10Kw/unit

20Kw/unit

20Kw/unit

30Kw/unit

40Kw/unit

50Kw/unit

workpiece rotation stand

planetary rotation, frequency control

cooling way

water circulatory cooling with cooling tower or cryogenic system

control type

manual / automatic , touch screen , PLC or computer control

total power

30KW

35KW

40KW

50KW

65KW

80KW

alarm and maintain

alarm for lacking water or other abnormalities and automatic protect

Equipment area

W2m×L3m

W2.5mxL3.5m

W3mxL4m

W4mxL5m

W4.5mxL6m

W5xL7m

Other technical parameters

water press≥0.2MPa,water temp≤25°C air press0.5-0.8MPa

Remarks

The specific configuration of coating equipment can be designed according to process requirements of coating products





 WHY CHOOSE US



Rich experience

We have been engaged in more than for 12 years. Our company had good reputation with customer from Europe, South America, Thailand and India etc. We have a professional team for sale and quality control.



Good service
1. One year guarantee for whole machine except of Lifetime Maintenance

2. 24 hours technical support

3. Calling or door-to-door service

4. Use-friendly English software, user manual and detailed Videos/CD

Reasonable price
High efficiency and perfect machine performance always consider saving cost for you. All we considered just reduce costs and create profile for you.



Perfect quality

We have strict quality control from producing to delivery. Our company had strong technology support, 80% of our colleagues are master or bachelor's degree. We have cultivated a group of managers who are familiar with product quality, good at modern concept of management.

Advantages of our factory:

1. We have been in this business line for more than 12 years, products exports worldwide.

2. We are granted ISO 9001.

3. Can be ordered by customer demand

4. Work closely with customers to avoid any errors or misunderstanding.

5. We have complete facilities and skilled workers.

6. We owe strict quality control and excellent after sales service.

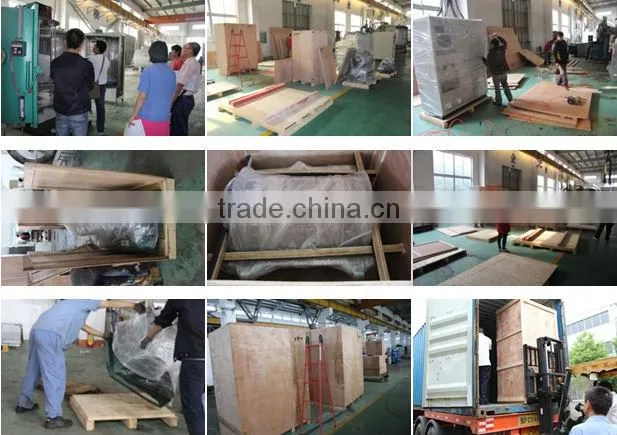

Packaging & Shipping





Company Information

Shanghai Vakia Coating Technology Co., Ltd is a leading vacuum coating engineering integrated provider in China. We committed to providing competitive comprehensive solutions and services for enterprises, science research institutes and coating centers.



The products we manufacture are as follows:

Resistance evaporation coating machine, Multi-arc ion coating machine, Magnetron sputtering coating machines, Inline magnetron sputtering coating system, Tooling coating machines, Multi-arc combination with magnetron sputtering vacuum coating machine, and Optical thin-films coating machines etc.
