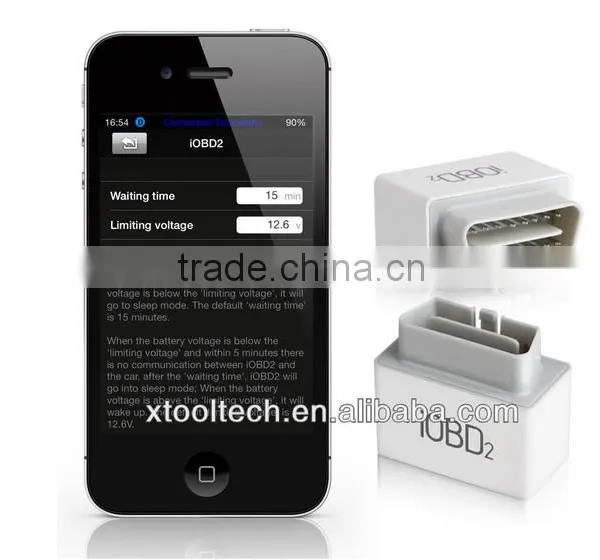

iOBD2 Interface Bluetooth OBD 2 OBD II Car Diagnostic Auto Scanner Tool

Specifications

Support vehicles with OBD II/EOBD protocol.
Read ,clear DTC
Read data stream
Read freeze frame data and vehicle information

iOBD2 is an app for your car. It turns your Phone/Pad into an advanced display for your engine data.

•  Now you do not need to drive on with the MIL light on.
• Now you do not need to wait to go to the garage with your car to know what is wrong.
•  Now you can prepare the garage staff in advance by knowing what is wrong with your car.
• Now you can see what is wrong with your car on your holiday so that you know if you can drive on.
• Now you can know what your fuel consumption, torque, or acceleration is, in real time.
• Now ever wished you had your own customizable gauges, showing only the data you were interested in.
• Please verify that your vehicle is OBD-II/EOBD compliant before purchasing!

Get the benefit of multiple gauges without the overwhelming clutter and the expense!
(Note: Not all OBD-II compliant vehicles will have support for all of these parameters)

Supported OBDII protocols:

1. ISO15765-4 (CAN)
2. ISO14230-4 (KWP2000)
3. ISO9141-2
4.J1850 VPW
5.J1850 PWM

Vehicle Compatibility

IOBD2 works with all 1996 and & newer model year cars and light trucks (OBDII & CAN)-domestic and import.

Supported device and APP





Bluetooth communication has received MFi authorization and certification from the Apple.

OS	Device	Mode
Apple  iOS (Require iOS4.3 or later)	IPod touch	iPod Touch 1st generation,2nd generation,3rd genaretion,4th generation
	iPhone	iPhone, iPhone 3, iPhone 3GS iPhone 4, iPhone 4s, iPhone 5
	iPad	iPad, iPad 2,ipad 3,iPad Mini
Android  (Require OS2.3 or later )	All android smart phone and tablet

Recommended APP:  IOBD2 (can search and download it in Apple store and Google Play Store)

BluetoothConnection

IOBD2 can be connected with all devices based on Apple iOS and Android OS with Bluetooth, It is very reliable.

Function:

Performance gauges:
- Engine speed
- Corrected vehicle speed
- Open/closed loop
- Boost/vacuum combo gauge
- Acceleration (and braking)

Fuel economy gauges:
- Inst. fuel economy
- Avg fuel economy

Engine gauges:
- Timing (spark advance)
- Engine coolant temp.
- Intake air temp.
- Ambient air temp.
- Manifold absolute pressure
- Mass air flow
- Fuel trims, short and long term
- Percent engine load
- Catalyst temp.
- Fuel pressure
- Lambda gauge
- Air/fuel ratio

• Diagnostic

[Diagnostic] function includes:
[Read DTC]: Read the current DTC that engine has stored, and DTC info.
[Clear DTC]: Clear all the current DTC.
[Display DTC Definition]: Show all the definition and explanation of DTCs.
[Guide Maintenance]:Guide how to maintenance the problems of car according to the trouble codes.
[Live data]: Read all the running parameters that related to the ECU.
[Freeze frame data]: OBD system will record the system running parameters related to the malfunction the moment when it occurred at the same time when it set the DTC. And this group of data is called freeze frame data.
[Readiness test]: Readiness reflects the status that all the valid diagnostic functions. The diagnostic functions are referring to the important monitoring functions in OBD system, e.g. Oxygen sensor monitoring, Oxygen sensor heater monitoring, and EGR system monitoring, etc. These diagnostic functions are closely related to the engine emission control.
[Read vehicle info]: Read vehicle info such as Vehicle Identification Number(VIN), Calibration IDs(CALID) and Calibration Verification Number (CVN).
[Oxygen Sensor test]: This service is to allow access to the on-board oxygen sensor monitoring test results. The same information may be obtained by the use of [Mode 6 test].
[Mode 6 test]: This service is to allow access to the results for on-board diagnostic monitoring tests of specific components/systems that are not continuously monitored. Examples are catalyst monitoring and the evaporative system monitoring.
[EVAP System Test]: The purpose of this service is to enable the external test equipment to control the operation of an on-board system, test or component.

•  My dashboard

The [My dashboard] function includes:
[Idle mode]: engine rotational speed ,water temperature,battery voltage,Air-intake temperature,Instant  fuel consumption ( static),average fuel consuption ,Ever wished you had your own customizable gauges, showing only the data you were interested in

[Cruise mode]: vehicle speed, The current engine load, water temperature, Vehicle travel time, vehicle travel average speed, Continuous running mileage, instant fuel consumption(dynamic),Ever wished you had your own customizable gauges, showing only the data you were interested in.

[Sport mode]: show you the engine rotational speed, vehicle speed, water temperature.

[Performance mode]: show you the vehicle speed, capacity, torque, horsepower and you can also customize your gauges here.

•  Driving Track (Racetrack mapping)

It is to show the drive’s driving track of the vehicle to give data and foundation for drive’s reference. Open the Location Services of the mobile, connect iobd2 to the vehicle and open iobd2 APP, choose “My Dashboard”, and it will record the track of the vehicle. Quit “My Dashboard” then it will stop recording the track of the vehicle.

Open “Setting” of your mobile, Choose Privacy, let the Location Services ON, and let iOBD2 ON (Picture 6, Picture 7), go to iobd2 APP “My Dashboard”, and start driving the vehicle, then it will record the track of the vehicle. The route is saved in “History”

• Performance test

The [Performance test] function includes:
[Accelerate/Decelerate test]: Test acceleration / deceleration process time and distance
[0 to 400m acceleration test]: test spend time from 0 to 400 meters.

• Setting

It allows users to change the unit of temperature, mileage, vehicle speed, fuel, fuel consumption, torque and horsepower, set the alarm for over speed, fatigue driving and water temperature,and set parameters of vehicle weight, fuel consumption coefficient and vehicle speed coefficient according to their needs on [Customize My Dashboard] .

• History

It is to save and review the recorded diagnostic data of the tested cars, such as live data, freeze frame data, trip record and my dashboard data. The data can be shared to Facebook and Twitter .

• Cautions & Warnings:

Please read following tips before you use iobd2:

1. Please plug the iOBD2 adapter correctly into your car by following the installation instructions before operating.
2. When driving the car, please do not operate this unit. Any distraction may cause an accident.
3. iOBD2 communicates with cars via Bluetooth. Please do not use this product in the places with strong electro-magnetic interference in order to ensure communication proper.

All information on this manual is based on the latest iOBD2 version. XTOOLTECH reserves the right to make changes at any time without notice.

Operating specification:

Dimension: 48*42*25 mm/1.89*1.66*0.99in.
Weight: 80g/ 2.83oz.

Operating Voltage: 8-19V DC
Operating Temperature: -20- to 70
Bluetooth Standard: 2.1/2.0/1.2/1.1
