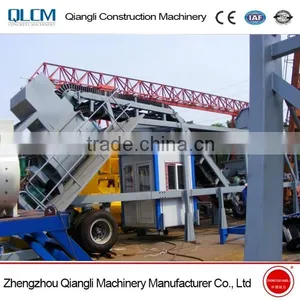

Mobile Concrete Batching Mixing Plants, YHZS90 Wet Mix Concrete Mixing Plant

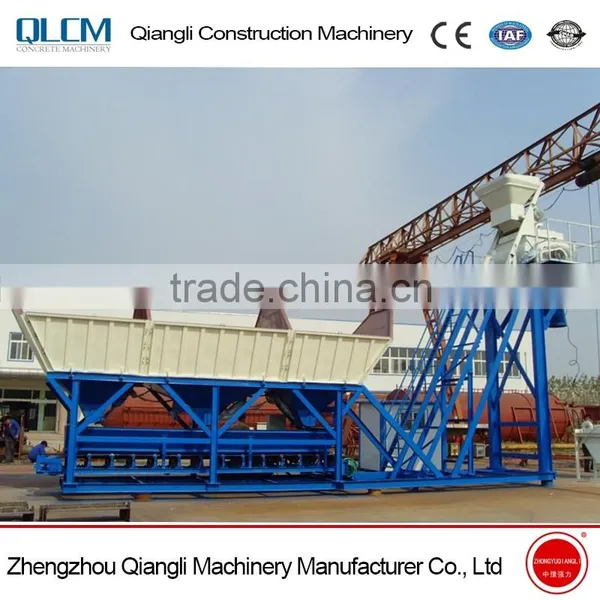

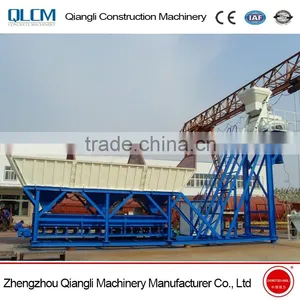

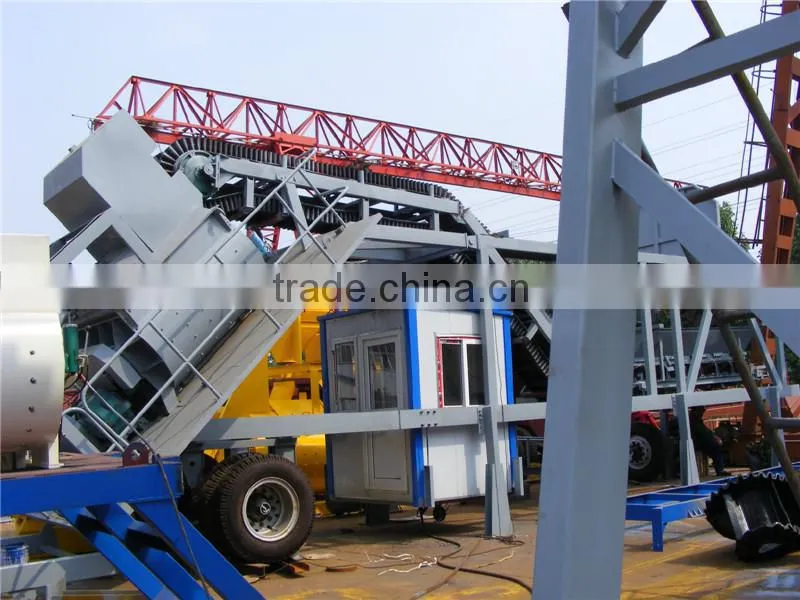

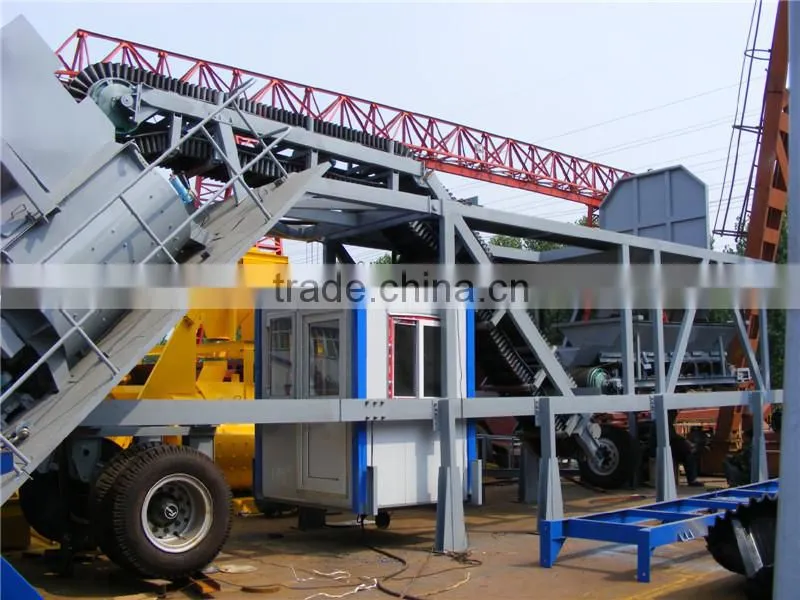

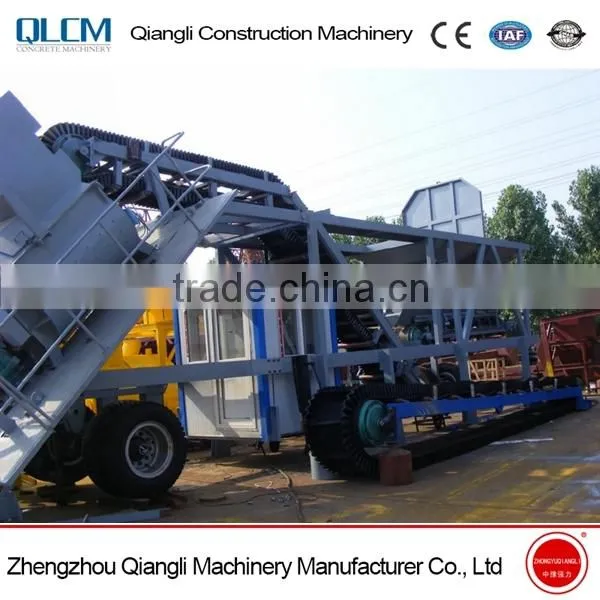

YHZS90 plant
Sketch
Main technical parameter
Model |
YHZS90 |
Rated Productivity |
90m3/h |
Main Mixer |
JS1500 |
Max. Aggregate Diameter |
80mm |
Capacity of Aggregate Bin |
3×8.38m3 |
Aggregate Conveying Mode |
Flat Belt Conveyor |
Aggregate Weighing Precision |
3X 3000Kg ±2% |
Cement Weighing Precision |
1500Kg ±1% |
Fly Ash Weighing Precision |
600Kg ±1% |
Water Weighing Precision |
600Kg ±1% |
Additive Weighing Precision |
50Kg ±1% |
General Power |
125Kw |
Total Weight |
45T |
Outline dimension (L*W*H) |
33.8m×14.8m×10.8m |
Discharging Height |
3.8 m |
Cement Silos |
1*100t |
Screw Conveyors |
2*LSY273(8m) φ273 |
Discharging Gate
Belt Conveyor

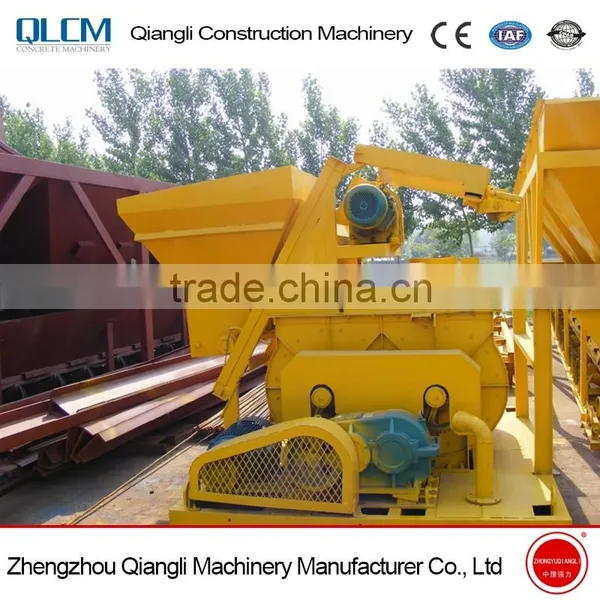

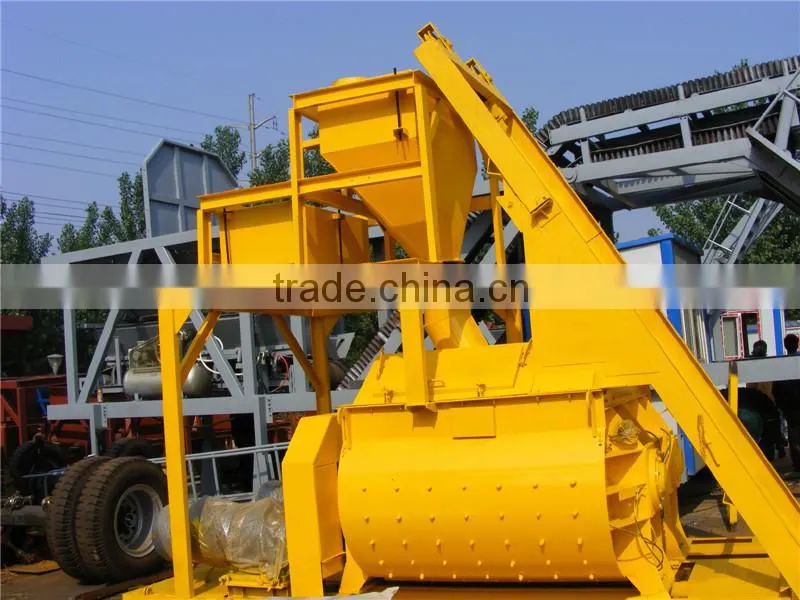

Main Mixer
Item |
Parameter |
Model of mixer |
JS1500 |
Discharge capacity |
1500L |
Feeding capacity |
2400L |
Productivity |
70-90m³/h |
Working cycling time |
60s |
Mixing motor power |
22KW *2 |
Max. Size of aggregate |
60/80mm |
Mixing blade speed |
19.5 r/m |
Mixing blade quantity |
2*8 pcs |
Water pump power |
3KW |
Working state dimension |
5530mm*3400mm*10860mm |
Overall weight |
11130kg |

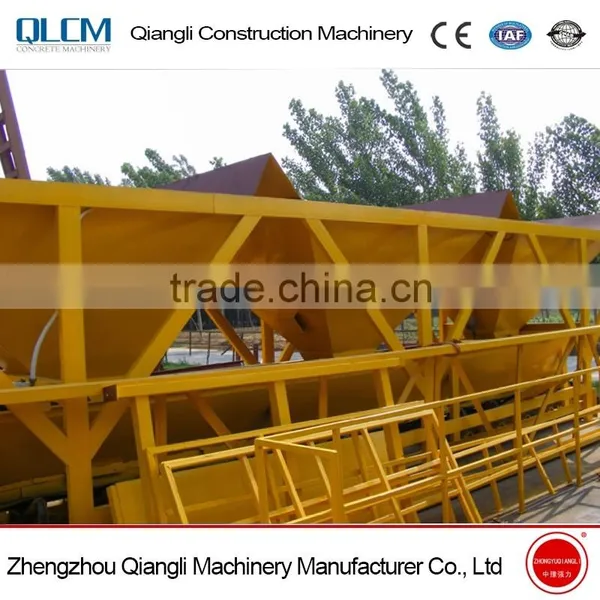

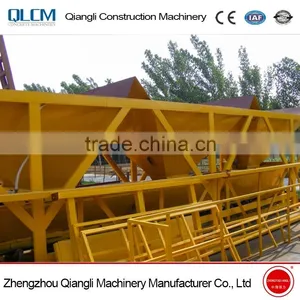

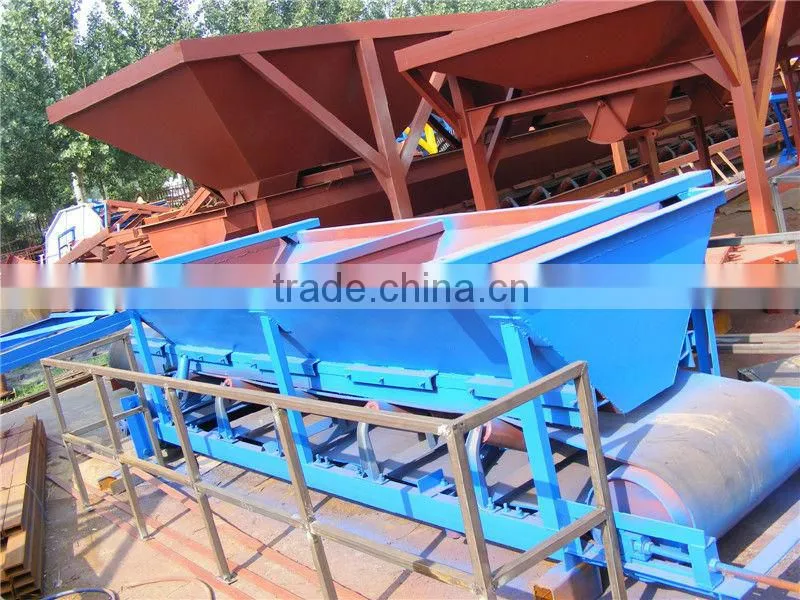

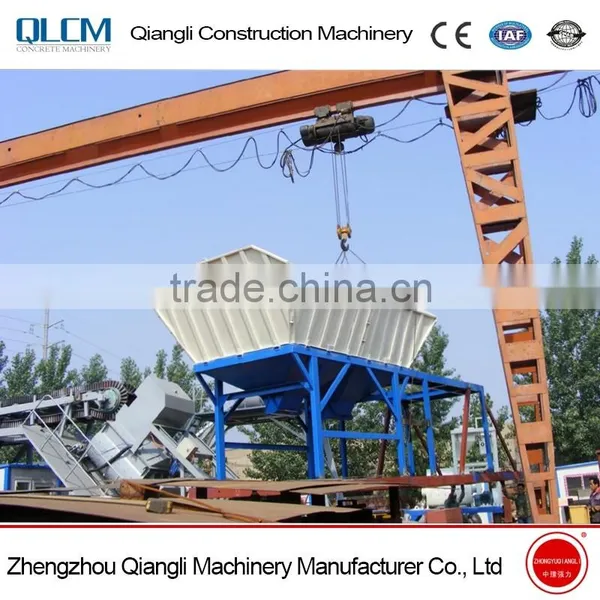

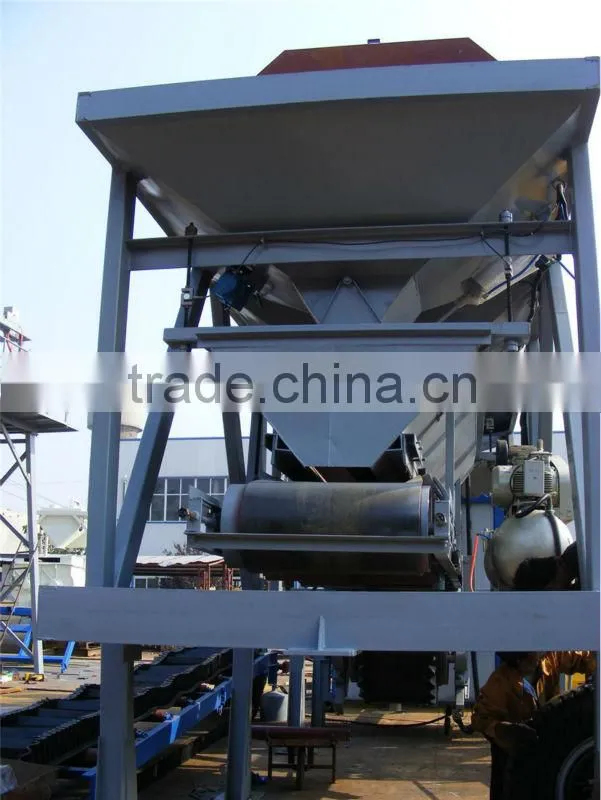

Concretr batching machine
Item |
PLD2400 |
Bin(s) |
3 |
Capacity of weighing hopper |
2.4m³ |
Capacity of storage hopper |
12m³×3 |
Productivity |
120m³/h |
Accuracy of batching |
±2% |
Kinds of aggregate |
3 |
Max. weighing capacity |
4000kg |
Feeding height |
3200mm |
Power |
11kw |
Overall dimension |
9800×2840×3900mm |
Overall weight |
8500kg |
Cement silo
Model |
100T |
Silo Diameter (A) |
3,000mm |
Silo Body Height (H1) |
9,810mm |
Silo Cone Height (H2) |
2,579mm |
Silo Height (H3) |
19,789mm |
Total Height (H4) (including handrails) |
20,902mm |
Discharging Height (H5) |
7,400mm |
Total Weight |
8T |
Material |
Q235 |
Accessories |
Dust Collector, Handrails, Inside& Outside Ladders, Inlet Tube, Butterfly Valve, Support Legs, Broken arch. |
Painting |
Anti-Rust Painting |

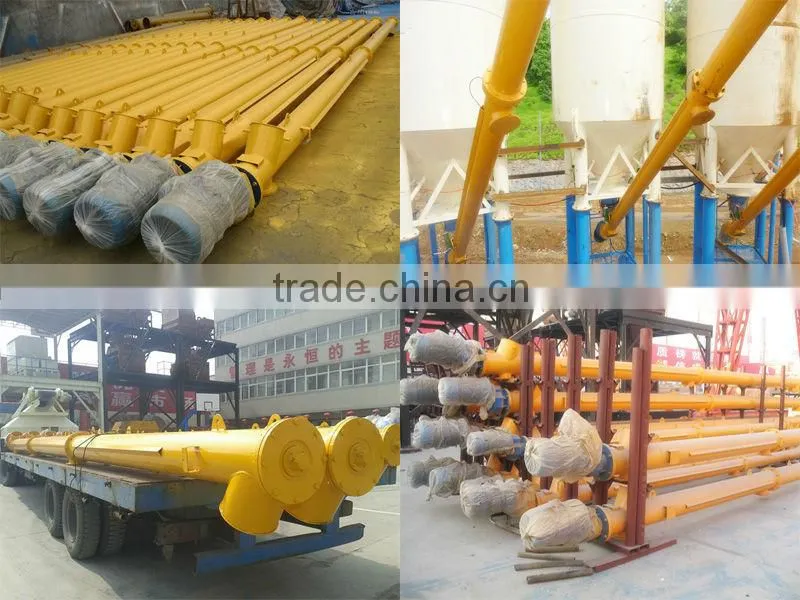

Screw conveyor
model |
Delivery angel to the ground |
Delivery distance (m) |
Max. Delivery capacity(T/H) |
Pipe diameter(mm) |
Motor power(kw) |
LSY273 |
0-45° |
4-15m |
30T/H |
273mm |
7.5-18.5kw |
Configuration |
Model/Specifications |
Quantity |
Unit |
Strong Current Cabin |
|
1 |
set(s) |
Weak Current Cabin |
|
1 |
set(s) |
Operation Desk |
HZS75 |
1 |
set(s) |
Control Room |
3240*2320*2500mm |
1 |
set(s) |
Control Computer |
EVOC |
1 |
set(s) |
LCD |
19" |
1 |
set(s) |
Contactor |
Schneider |
1 |
set(s) |
Autoswitch |
Schneider |
1 |
set(s) |
Mini-relay |
|
1 |
set(s) |
Thermo-relay |
|
1 |
set(s) |
PLC |
OMRON |
1 |
set(s) |
Weighing Transmitter |
|
1 |
set(s) |
UPS |
|
1 |
set(s) |
Air Conditioner |
1.5 pieces |
1 |
set(s) |
Electrical Control Accessories |
Schneider |
1 |
set(s) |
Monitor |
14" |
1 |
set(s) |
Camera |
|
4 |
set(s) |
Printer |
Needle type |
1 |
set(s) |
Electric Cables and Accessories |
|
1 |
set(s) |
Control room
Welcome to visit our factory!
