Xtool Iobd2 Bluetooth Obd Hardware Exclusive for Audi

3. Vehicle Compatibility

iOBD2 MFi BT VW works with all 1996 and & newer VW cars.

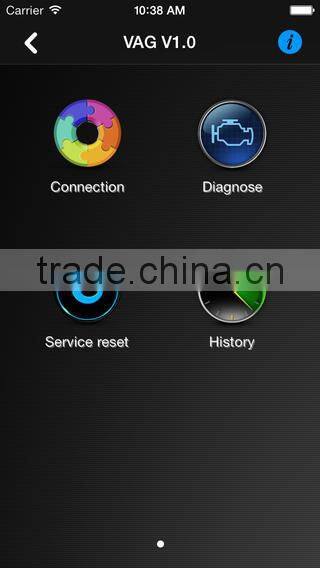

4. Supported Devices and App

5. Bluetooth Connection

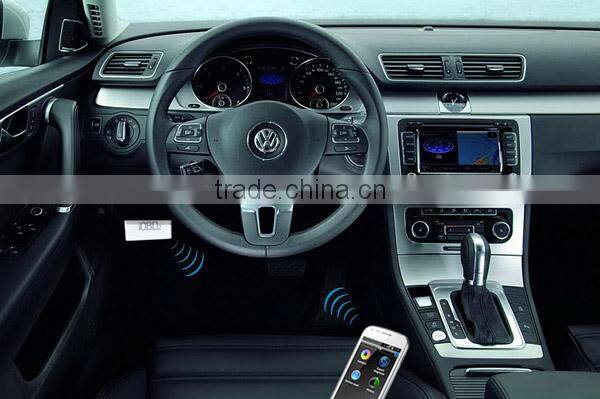

iOBD2 MFi BT VW connected with iPhone and Android smartphone via Bluetooth.

6. Functions

1). Diagnosis

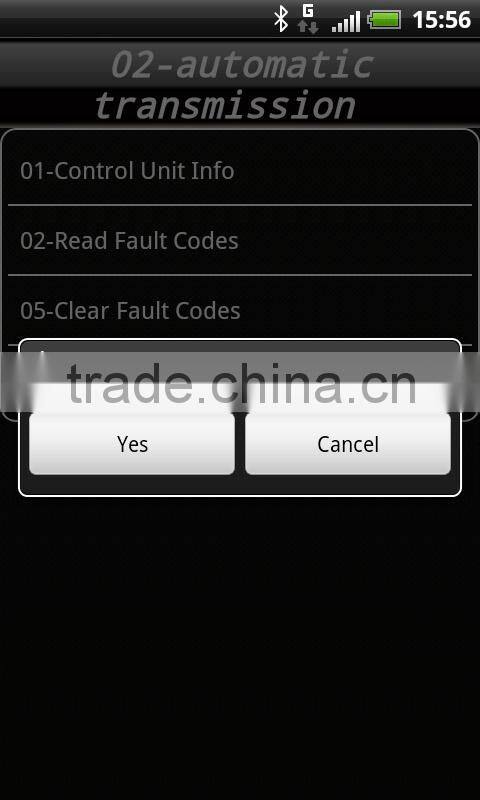

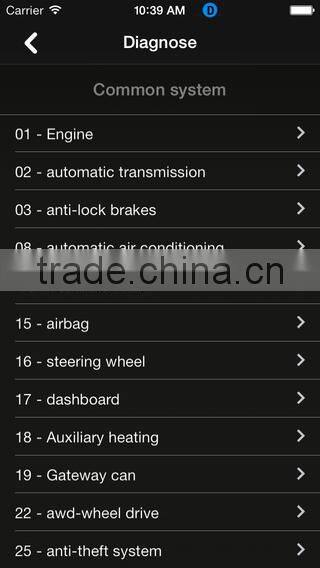

Diagnose all the electronic control systems of VW series cars.

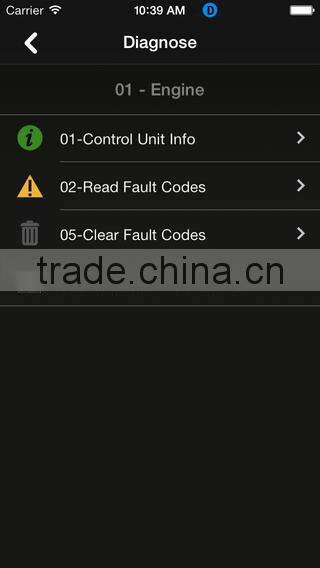

[View Control Unit Information]

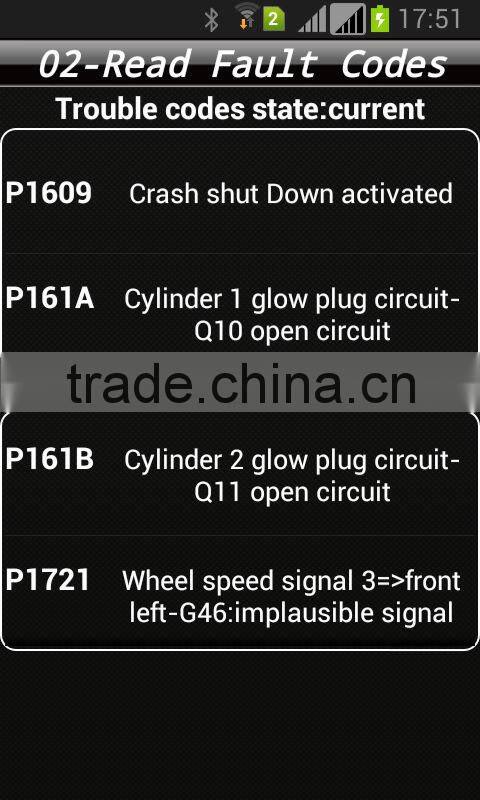

[Read Trouble Codes] Reads trouble codes and shows detailed trouble codes information.

[Clears trouble codes] Clears all trouble codes.

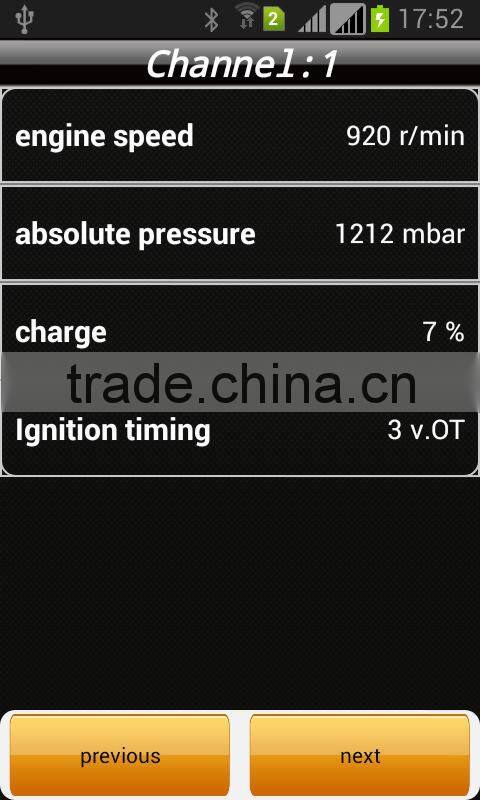

[Data Measurement Block]

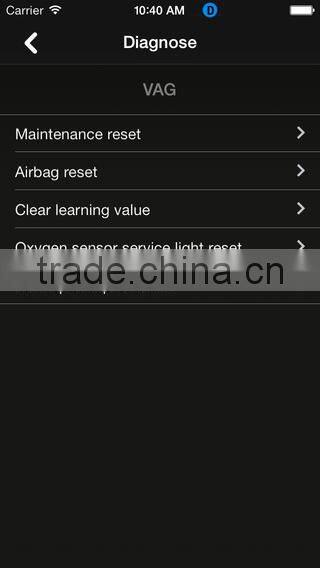

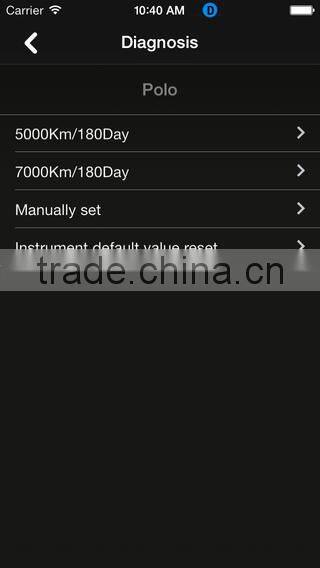

2). Reset Service

This function makes it easy for you to reset oil service light, oxygen sensor service light. Just one click to reset, no more steps needed like inputting the channel number.

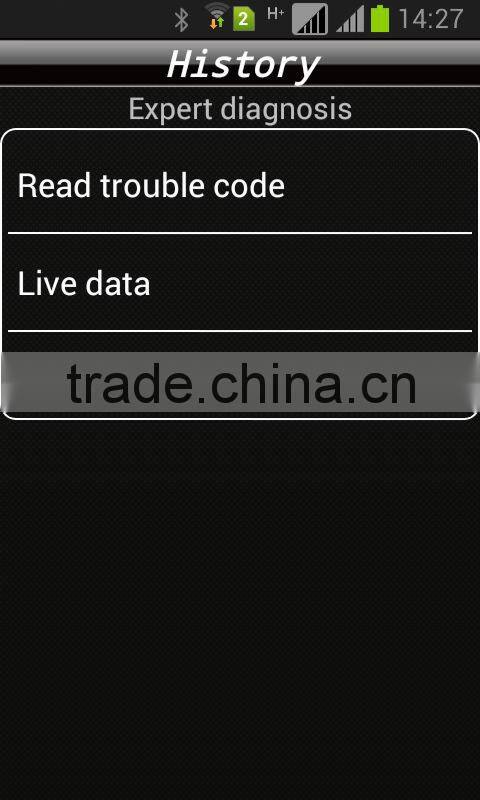

3). History

You can review the saved diagnostic data of the tested cars, such as trouble codes, live data and vehicle information.

5). Information

Press  button to refer more information on iOBD2 or give us a feedback.

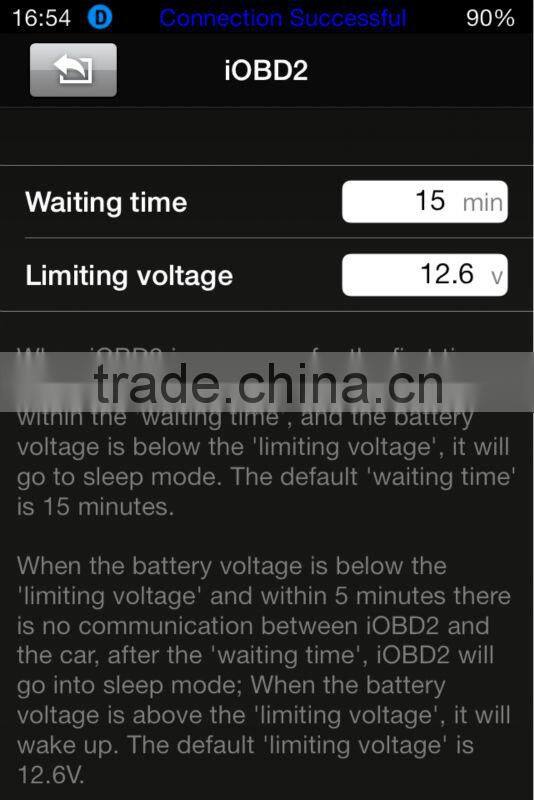

6)  Sleep Mode

With this sleep mode feature, you can leave the iOBD2 adaptor plugged all times without worry of the battery drain as the standby current is only 10mA when iOBD2 goes into sleep mode.

• When iOBD2 is power on for the first time, if it does not communicate with the car within Waiting Time, and battery voltage is below the Limiting Voltage, it will go to sleep mode. The default waiting time is 15 minutes. This parameter can be modified.
• When the battery voltage is below the Limiting Voltage and within 5 minutes there is no communication between iOBD2 and the car, iOBD2 will go into sleep mode. When the battery voltage is above the Limiting Voltage, it will wake up. The default Limiting Voltage is 12.6V. This parameter can be modified.

7. Technical specification

Dimension: 48*42*25 mm/1.89*1.66*0.99in.

Weight: 80g/ 2.83oz.

Operating Voltage: 8-19V DC

Operating Temperature: -20 to 50°C

Storage Temperature: -20 to 70°C

Bluetooth Standard: 2.1/2.0/1.2/1.1

8. Package Includes:

--iOBD2 MFi BT Bluetooth adaptor

--User manual

--App downloads manually from Apple app store or Google play store

9. OBD II Functions

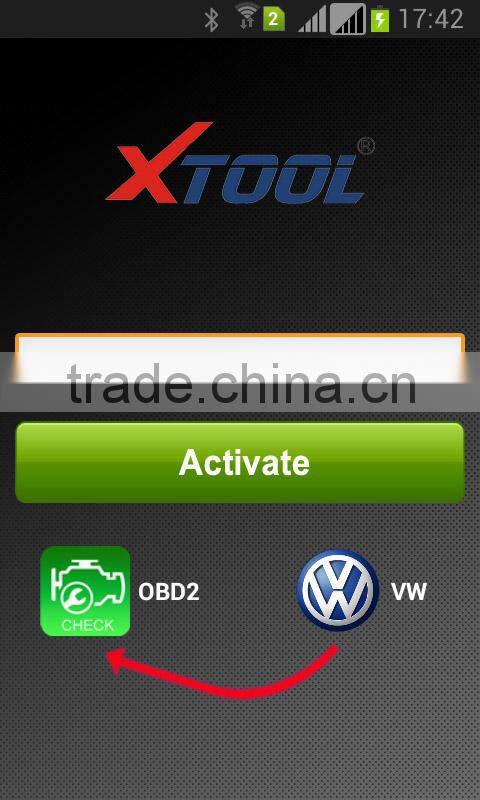

The iOBD2 MFi BT adaptor also supports to diagnose the engine of car that is OBD II/EOBD compliant. To enable this function, you need to switch to app iOBD2 (OBD2 version).

Supported OBDII Protocols:

ISO15765-4 (CAN)

ISO14230-4 (KWP2000)
ISO9141-2

J1850 VPW
J1850 PWM

Vehicle Compatibility

OBD2 version app works with all cars and light trucks that are OBDII/EOBD compliant.

- 1996 or newer North American cars

- 2001 or newer European cars

- 2004 or newer Asian cars

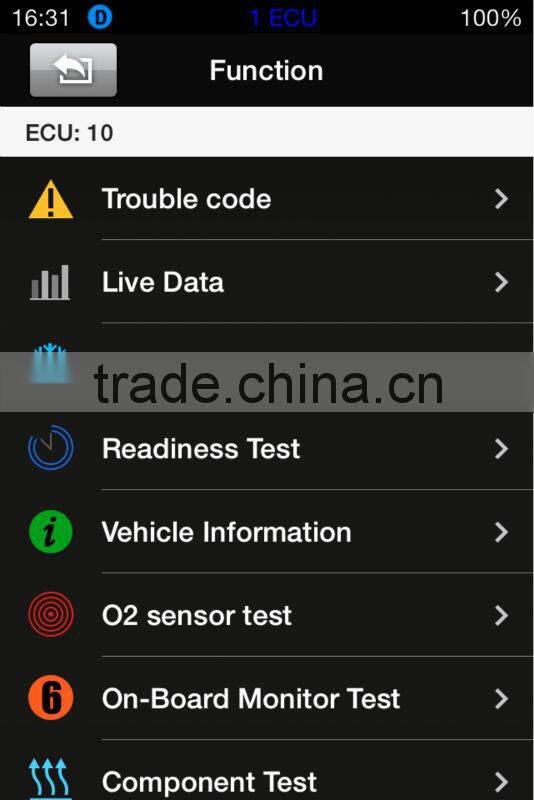

Diagnostic Function:

The [Diagnostic] functions include:

[Trouble code]: Reads the current DTC with detailed information on reasons lead to the DTC and advice to repair the car.

[Live data]: Reads all the running parameters related to the ECU.

[Freeze frame]: ECU will set DTCs and record the data stream of the car engine at the moment when emissions related faults occurred. The data is called freeze frame data.

[Readiness test]: Shows the status of readiness test. Click Readiness test in the menu, the screen will display the test status of the car.

Supported and complete: It means the car supports this test and has completed.

Supported but incomplete: It means the car supports this test but it is not yet completed.

Unsupported: It means the car does not support this test.

[Vehicle information]: Read vehicle info such as Vehicle Identification Number (VIN), Calibration IDs (CALID) and Calibration Verification Number (CVN).

[O₂ sensor test]: This service is to allow access to the on-board oxygen sensor monitoring test results.

[On-board monitor test]: To monitor the operation of the system of external device control panel.

[Component test]: Allowed to access a particular component / the diagnostic monitoring results of incontinuous monitoring system. E.g., the monitoring of the catalyst and evaporation system.
