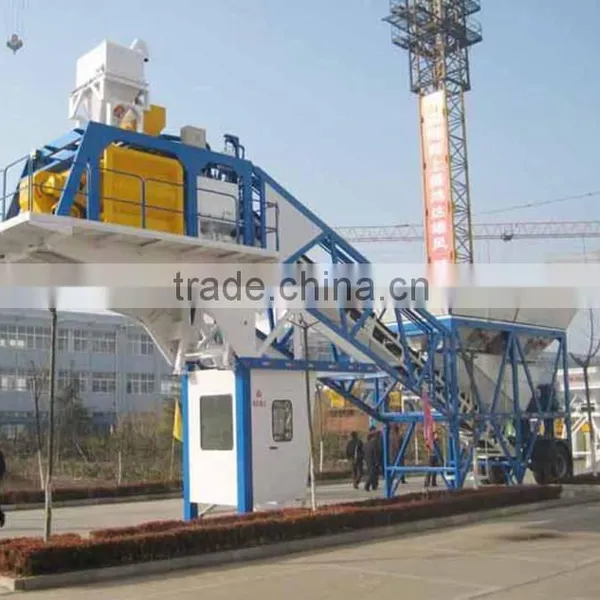

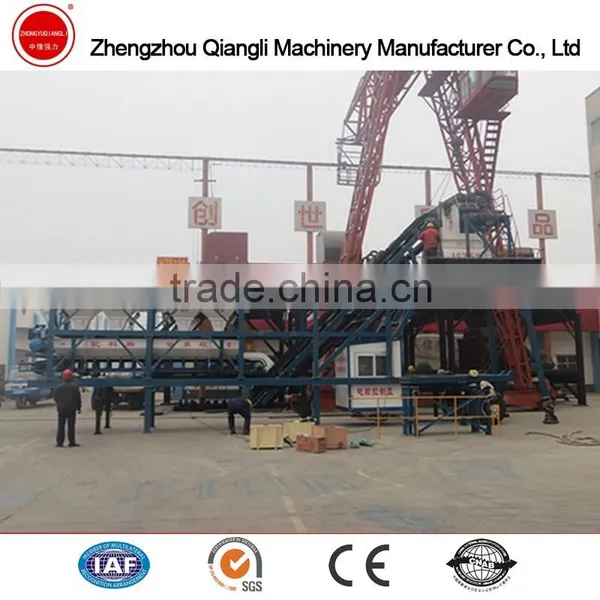

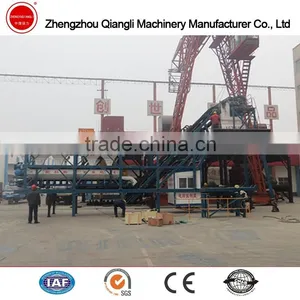

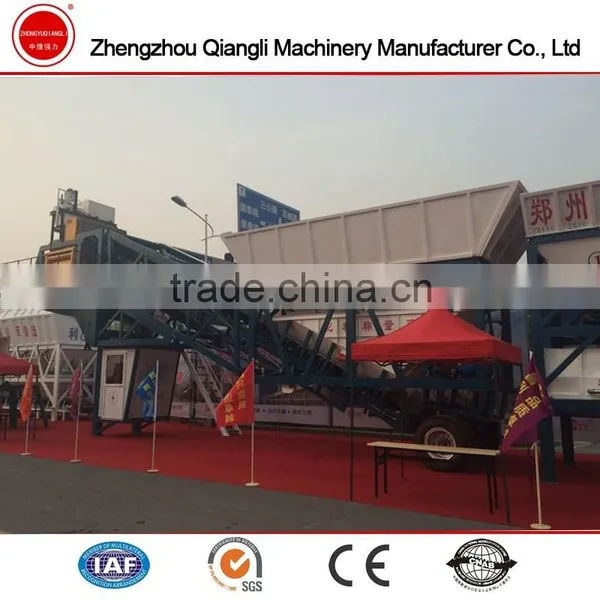

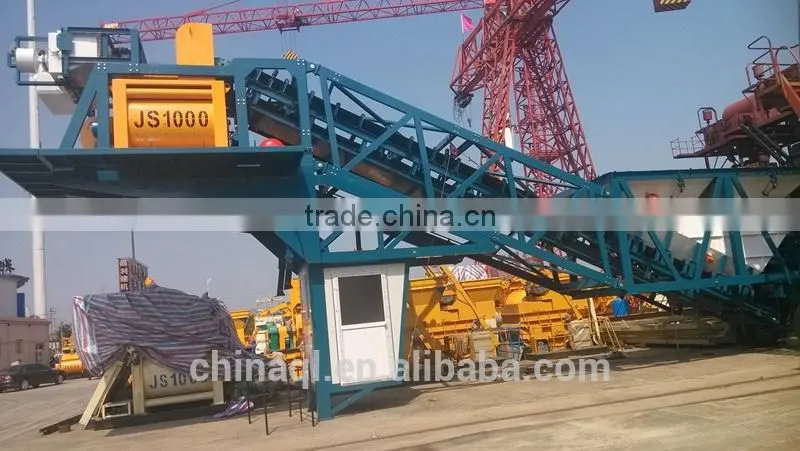

YHZS50 mobile concrete mixing plant

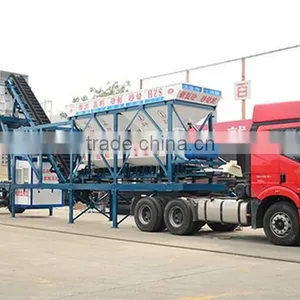

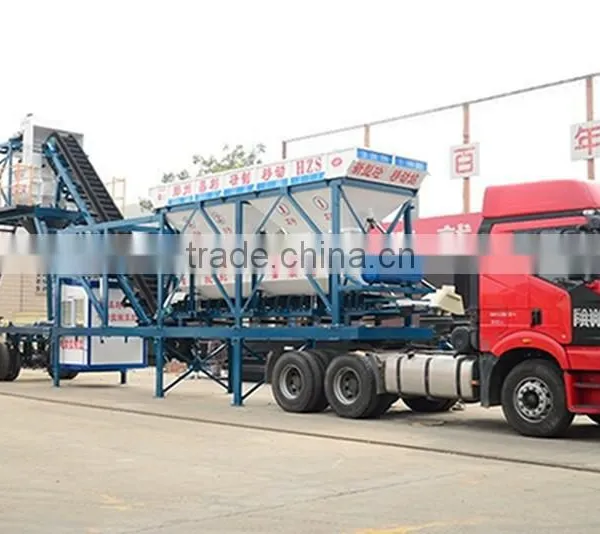

Mobile Condition
SKetch
Technical Specification
Model |
YHZS50 |
Rated Productivity |
50-60m3/h |
Main Mixer |
JS1000 |
Max. Aggregate Diameter |
80mm |
Capacity of Aggregate Bin |
3×8.38m3 |
Aggregate Conveying Mode |
Flat Belt Conveyor |
Aggregate Weighing Precision |
3X 3000Kg ±2% |
Cement Weighing Precision |
1500Kg ±1% |
Fly Ash Weighing Precision |
600Kg ±1% |
Water Weighing Precision |
600Kg ±1% |
Additive Weighing Precision |
50Kg ±1% |
General Power |
120Kw |
Total Weight |
41T |
Outline dimension (L*W*H) |
33.8m×14.8m×10.8m |
Discharging Height |
3.8 m |
Cement Silos |
1*100t |
Screw Conveyors |
1*LSY273(8m) φ273 |
Discharging Gate
Belt Conveyor

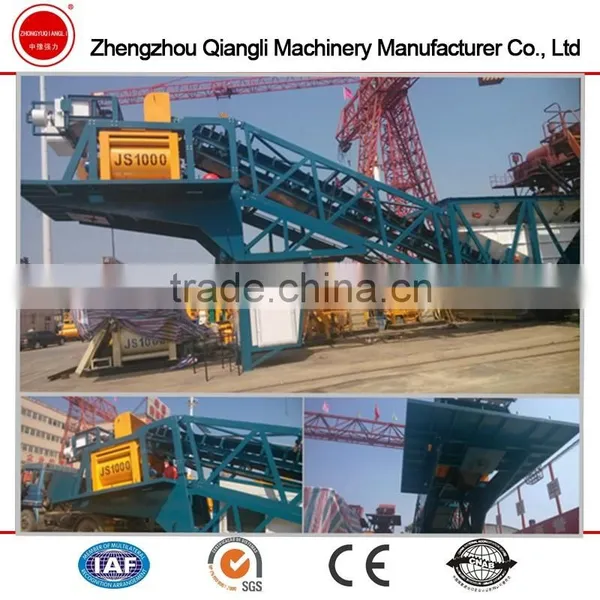

JS1000 Concrete Mixer
Item |
Parameter |
|
Charge Volume |
1600L |
|
Discharge Volume |
1000L |
|
Productivity |
40-50m3/h |
|
Max Size of Aggregate |
80/60(Pebble/Macadam) mm |
|
Mixing Blade |
Rev |
26.1r/min |
|
Qty |
2x9 |
Mixing Electromotor |
Type |
Y225S-4 |
|
Power |
2x18.5kW |
Power of Lubricate Electromotor |
0.06kW |
|
Power of Hydraulic Device Electromotor |
2.2kW |
|
Outline dimension |
Operating State |
3500 X2400 X2152mm |
( LxWxH) | ||
Weight |
8200kg |
|
PLD1600 batching machine
Configuration
Configuration |
Model/Specifications |
Quantity |
Unit |
Electric Drum |
TDY75-11-1.25-10050 |
1 |
set(s) |
Weighing Hopper |
Capacity 1.03m3 |
3 |
piece(s) |
stroage silo |
capacity 10.0m3 |
4 |
set(s) |
clylinder |
SC100×250 |
6 |
set(s) |
clylinder |
SC100×300 |
3 |
piece(s) |
tension sensor |
1T |
9 |
piece(s) |
Vibrator |
180W |
3 |
piece(s) |
horizontal belt machine |
29600mm*1000mm |
1 |
set(s) |
overall steel structure |
overall type |
1 |
set(s) |
Air compressor
50t/100t cement silo
Configuration
Model |
100T |
Silo Diameter (A) |
3,000mm |
Silo Body Height (H1) |
9,810mm |
Silo Cone Height (H2) |
2,579mm |
Silo Height (H3) |
19,789mm |
Total Height (H4) (including handrails) |
20,902mm |
Discharging Height (H5) |
7,400mm |
Total Weight |
8T |
Material |
Q235 |
Accessories |
Dust Collector, Handrails, Inside& Outside Ladders, Inlet Tube, Butterfly Valve, Support Legs, Broken arch. |
Painting |
Anti-Rust Painting
|
Fully Automatic Control (English/Russian/French/Spanish System)
Configuration
Configuration |
Model/Specifications |
Quantity |
Unit |
Strong Current Cabin |
|
1 |
set(s) |
Weak Current Cabin |
|
1 |
set(s) |
Operation Desk |
HZS60 |
1 |
set(s) |
Control Room |
3240*2320*2500mm |
1 |
set(s) |
Control Computer |
EVOC |
1 |
set(s) |
LCD |
19" |
1 |
set(s) |
Contactor |
Schneider |
1 |
set(s) |
Autoswitch |
Schneider |
1 |
set(s) |
Mini-relay |
|
1 |
set(s) |
Thermo-relay |
|
1 |
set(s) |
PLC |
OMRON |
1 |
set(s) |
Weighing Transmitter |
|
1 |
set(s) |
UPS |
|
1 |
set(s) |
Air Conditioner |
1.5 pieces |
1 |
set(s) |
Electrical Control Accessories |
Schneider |
1 |
set(s) |
Monitor |
14" |
1 |
set(s) |
Camera |
|
4 |
set(s) |
Printer |
Needle type |
1 |
set(s) |
Electric Cables and Accessories |
|
1 |
set(s) |
Control Room
Mixer
CE ISO Certificate
Welcome to visit our factory!
