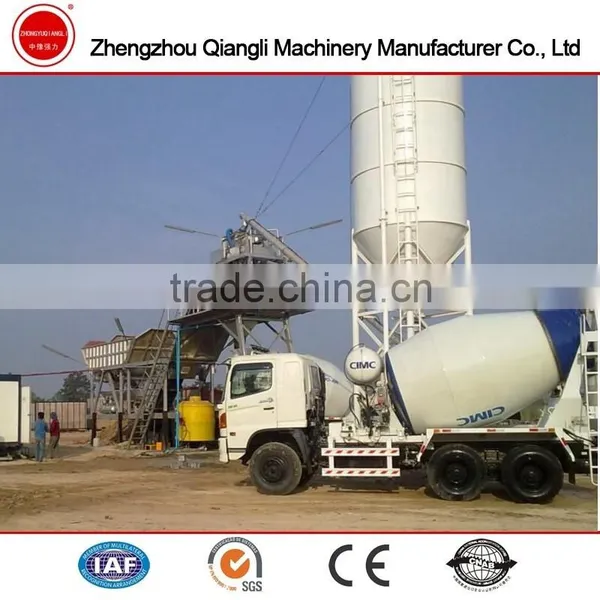

YHZS35 Mini Mobile Concrete Bacthing Plant for Sale

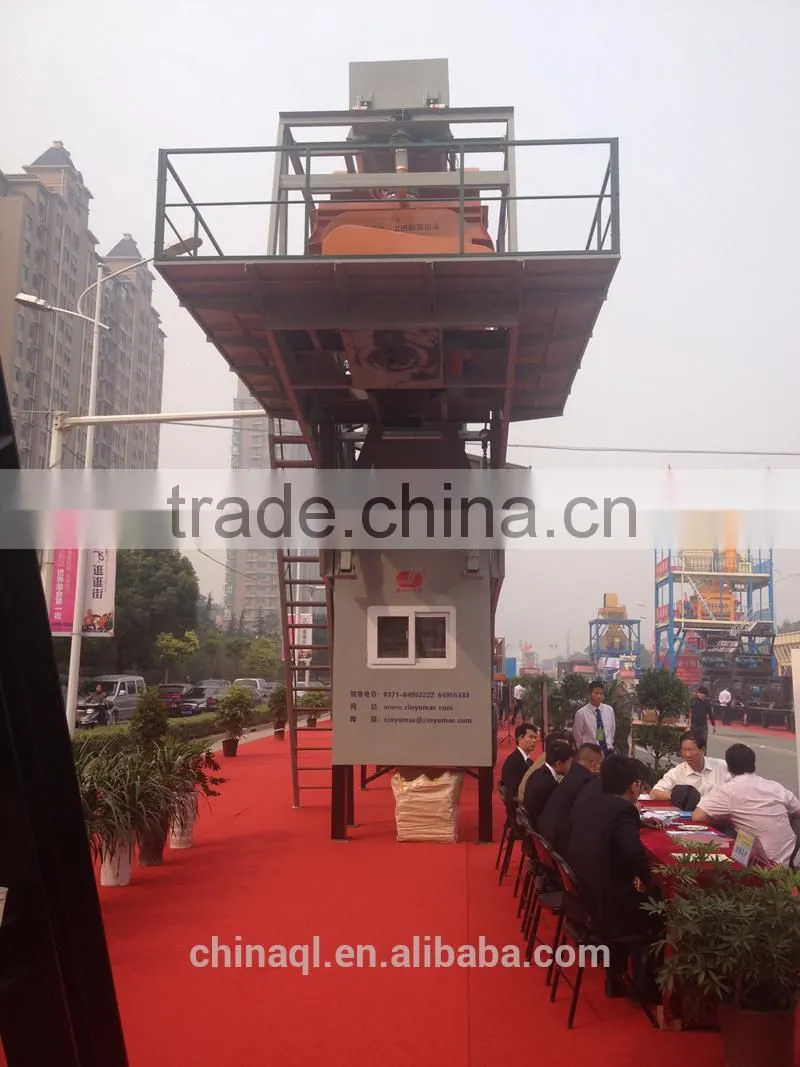

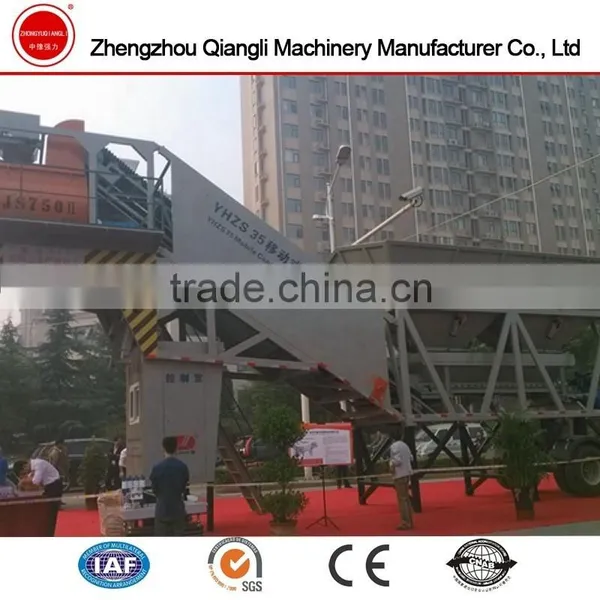

YHZS35 in China Construction Expo.

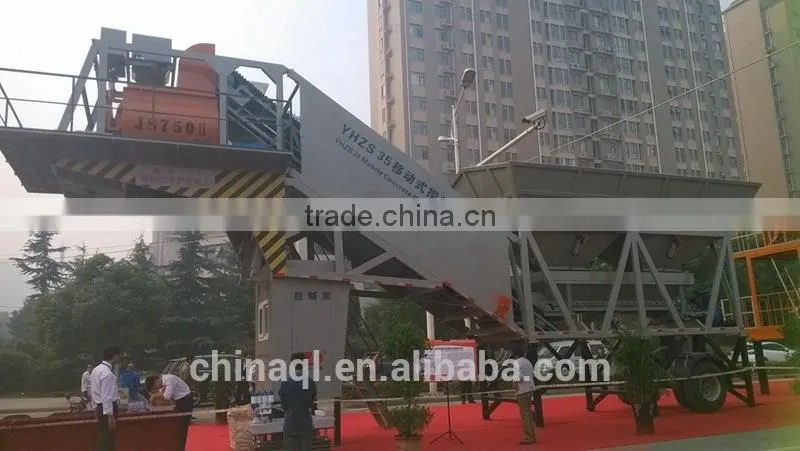

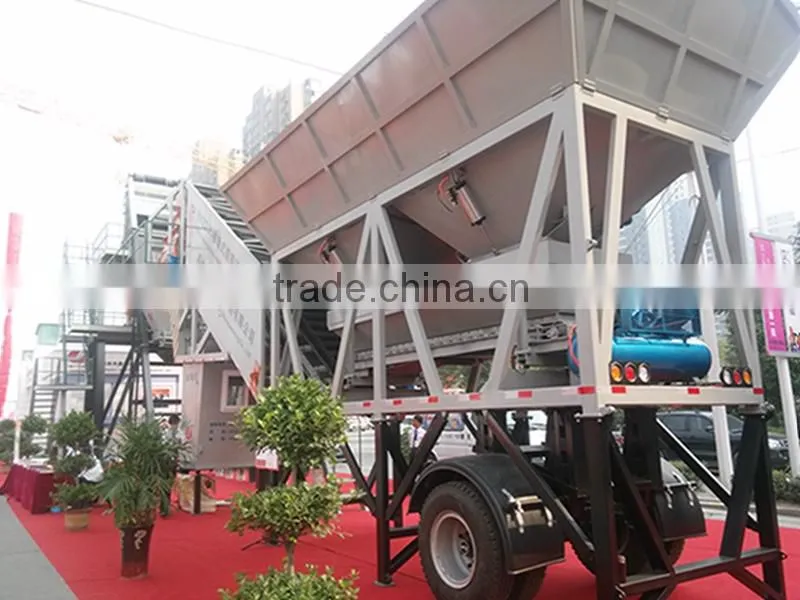

Rear View
More

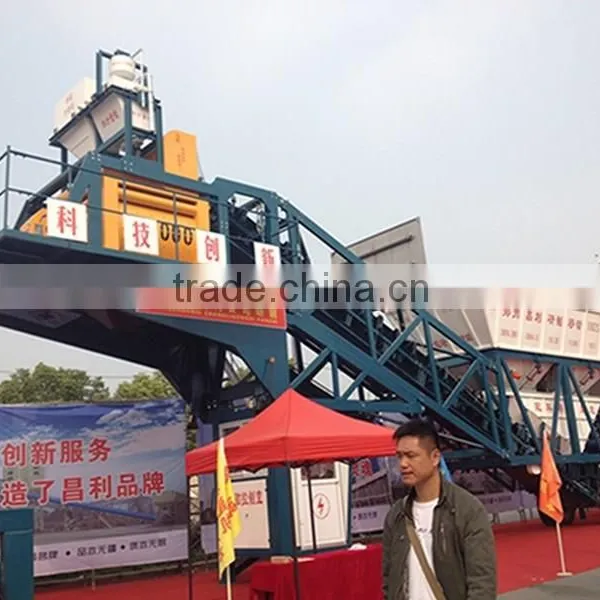

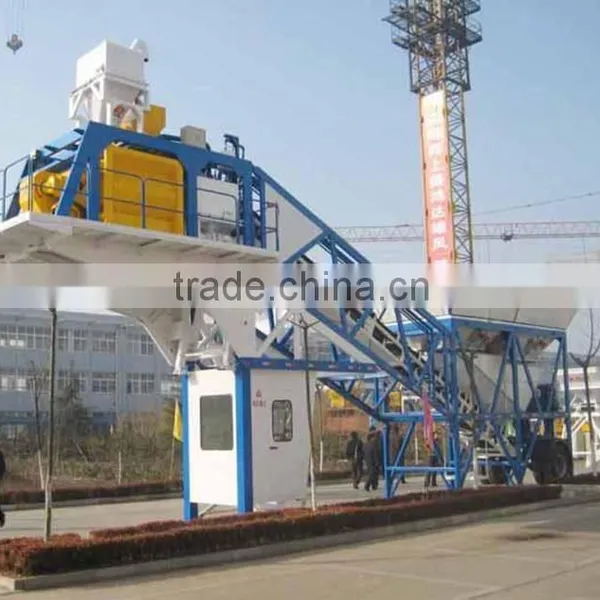

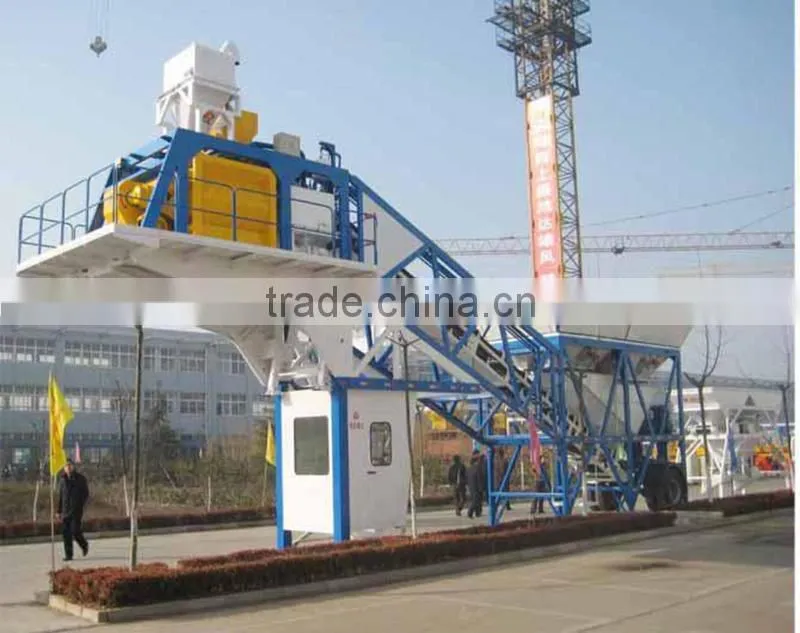

YHZS50 General View

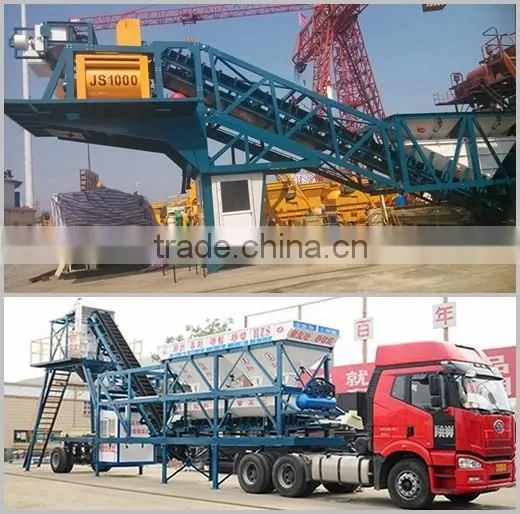

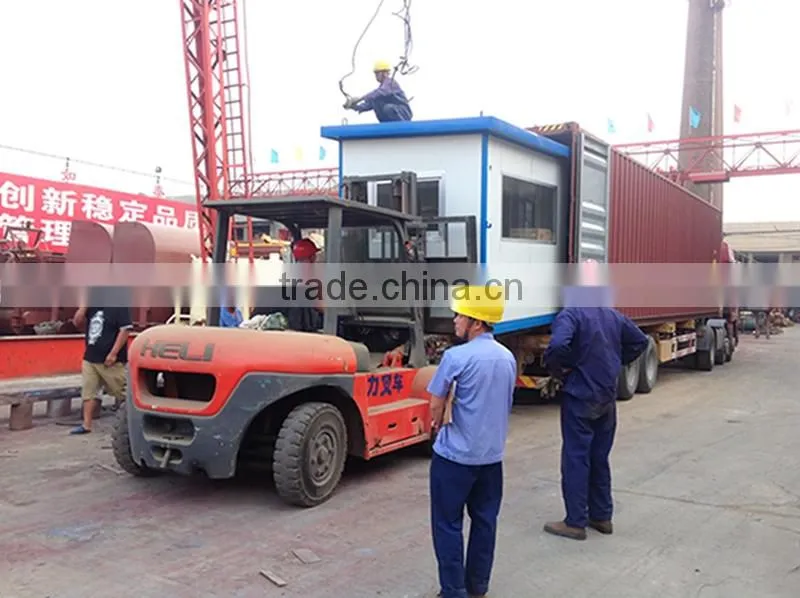

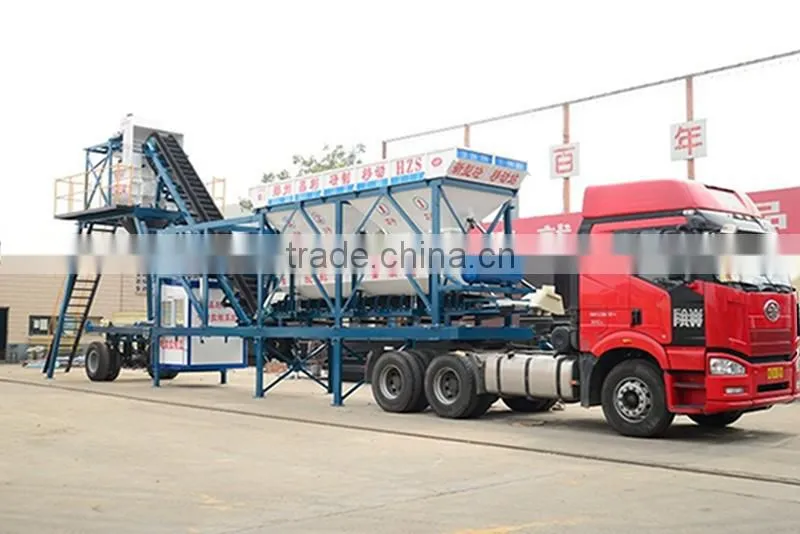

Mobile Condition
Technical Specification
Model |
YHZS35 |
Rated Productivity |
30-35 m3/h |
Main Mixer |
JS750 |
Power of Main Mixer |
30KW |
Max. Aggregate Diameter |
80mm |
Delivery Capacity |
0.75m3 |
Feeding Mode |
Lift Hopper |
Batching Unit |
PLD1200 |
Measuring Scope & Accuracy of Aggregate |
2200Kg ±2% |
Measuring Scope & Accuracy of Cement |
450Kg ±1% |
|
Measuring Scope & Accuracy of Water (by flow meter) |
200Kg ±1% |
Additive Weighing Precision |
30Kg ±1% |
Discharging Height |
3.8 m |
Outline Dimension(at work)(L X W X H) |
19.8m×8.2m×8.5m |
General Power |
60.0KW |
Total Weight |
16T |
Control Mode |
Automatic computer control |
Cement Silos |
50t |
Screw Conveyor |
8,000mm φ219 screw conveyor. |
JS750 Concrete Mixer
Type |
JS750 |
Feeding Capacity |
1200L |
Discharge Capacity |
750L |
Productivity |
30-35 m³/h |
|
Mixing Motor Power
|
30KW |
Max Aggregate Size |
80mm |
Water Pump Power |
39.5m/min |
Water Supply Accuracy |
29.3turn/min
|
PLD1200 batching machine
Configuration
Type |
PLD1200 |
Kinds of Aggregate |
3 |
Weighing Hopper Capacity (L) |
1200 |
Aggregate Bin Capacity (L) |
3×7.3m³ |
Productivity ( m³ /h) |
60 |
Feeding Height (mm) |
2656/2981 |
Batching Accuracy |
± 2% |
Power |
3×4kw |

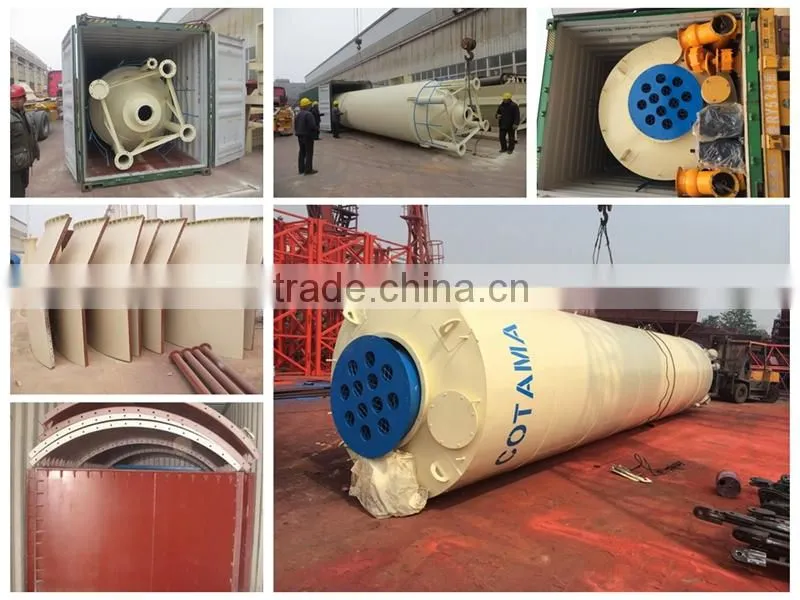

50t cement silo
Configuration
Model |
50T |
Silo Diameter (A) |
2,150mm |
Silo Body Height (H1) |
10,350mm |
Silo Cone Height (H2) |
1,169mm |
Silo Height (H3) |
18,829mm |
Total Height (H4) (including handrails) |
19,829mm |
Discharging Height (H5) |
7,410mm |
Total Weight |
4T |
Material |
Q235 |
Accessories |
Dust Collector, Handrails, Inside& Outside Ladders, |
Inlet Tube, Butterfly Valve, Support Legs, Broken arch. | |
Painting |
Step 1: Anti-Rust Painting Step 2: Surface Painting |
Remark |
We can supply custom service. |
Fully Automatic Control (English/Russian/French/Spanish System)
Configuration
Strong Current Cabin |
|
1 |
set(s) |
Weak Current Cabin |
|
1 |
set(s) |
Operation Desk |
YHZS35 |
1 |
set(s) |
Control Room |
3240*2320*2500mm |
1 |
set(s) |
Control Computer |
EVOC |
1 |
set(s) |
LCD |
19" |
1 |
set(s) |
Contactor |
Schneider |
1 |
set(s) |
Autoswitch |
Schneider |
1 |
set(s) |
Mini-relay |
|
1 |
set(s) |
Thermo-relay |
|
1 |
set(s) |
PLC |
OMRON |
1 |
set(s) |
Weighing Transmitter |
|
1 |
set(s) |
UPS |
|
1 |
set(s) |
Air Conditioner |
1 pieces |
1 |
set(s) |
Electrical Control Accessories |
Schneider |
1 |
set(s) |
Monitor |
|
2 |
set(s) |
Camera |
14" |
2 |
set(s) |
Printer |
Needle type |
1 |
set(s) |
Electric Cables and Accessories |
|
1 |
set(s) |

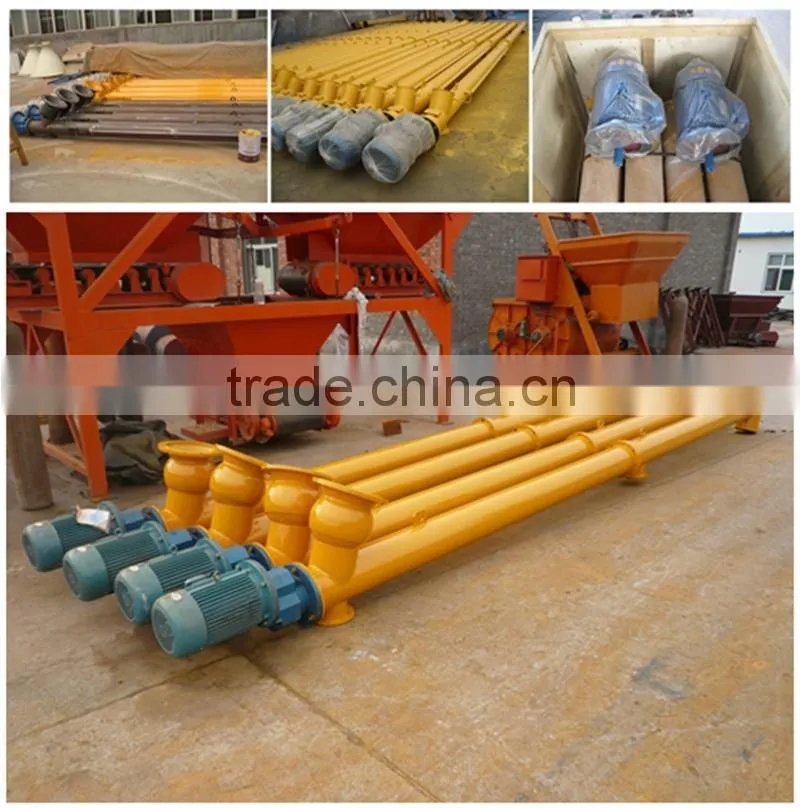

LSY219 Screw Conveyor

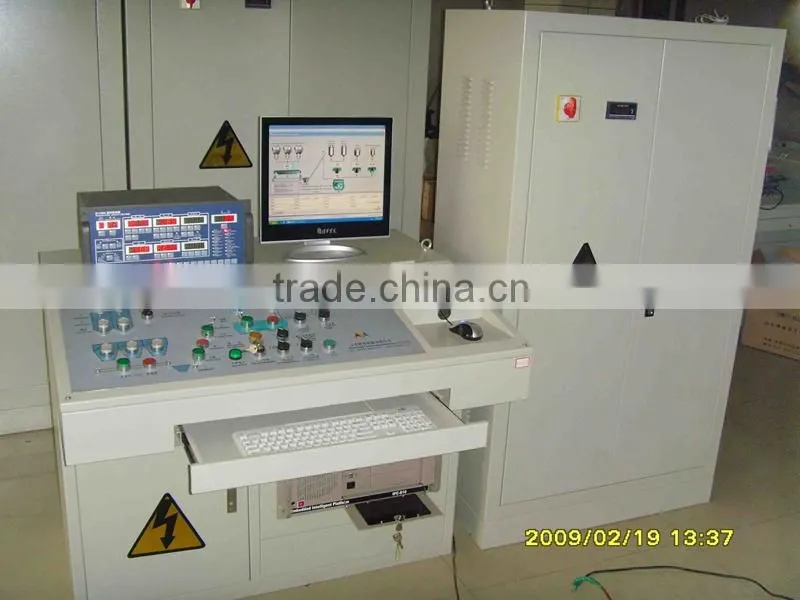

Control Room

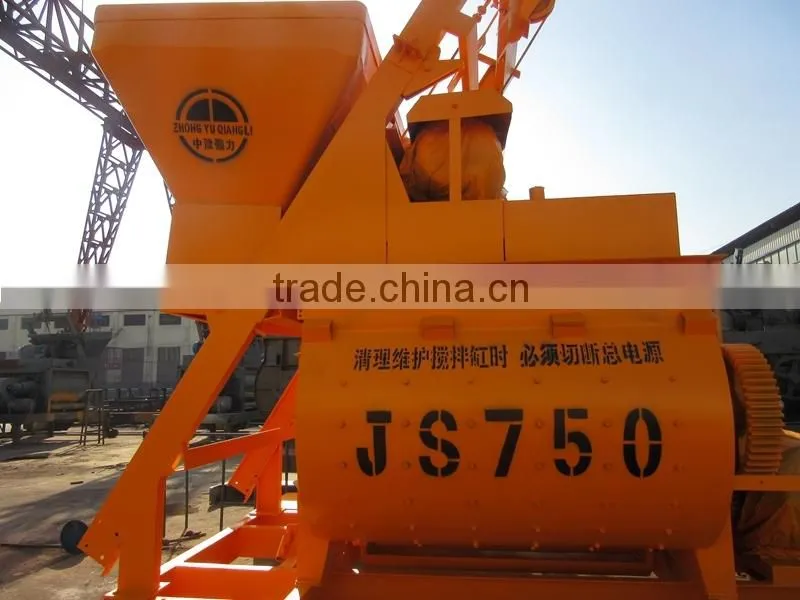

Mixer
Welcome to visit our factory!
