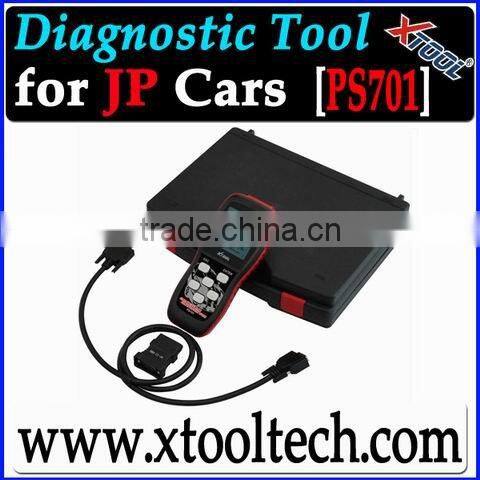

PS701 JP Diagnostic Tool (free Update )

Specifications

                                                   PS701

PS701 is a diagnostic tool for all Japanese cars, can diagnose TOYOTA, HONDA, MITSUBISHI, SUBARU, SUZUKI, KIA and NISSAN;

PS701 can test for all electronic control systems not just for OBD2 engine system;

PS701 can be comparable with the original equipment in some degree and can do matching keys for most cars.

1.PS701 can test TOYOTA, the testing manual is as follows:

2. PS701 can test SUZUKI, the testing manual is as follows:

3. PS701 can test SUBARU, the testing manual is as follows:

4. PS701 can test NISSAN, the testing manual is as follows:

package:
1. machine composition:
    mainframe,
    main testing cables,
    testing connectors: NISSAN 14PIN (old car version); Honda 3pin(old car version) and obd2 connector),
    user's manual and Nynon bag
2. overall size: 36×20×10cm
3. weight:1.5KG

 Specifications
1. Display: Backlit, 160 x160 pixel display with contrast adjustment
2. Operating Temperature: 0 to 50°C (32 to 122 F°)
3. Storage Temperature: -20 to 70°C (-4 to 158 F°)
4. relative humidity: <90%
5. External Power: 12.0v Volts provided via vehicle battery
6. mainframe power: 3W
7. Mainframe dimensions: 225mm Length 98mm Width  36mm Height
8. exterior memory: supports TF card
