High capacity good manufacture portable concrete mixer and pump
Concrete mixer pump machine is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance. The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.

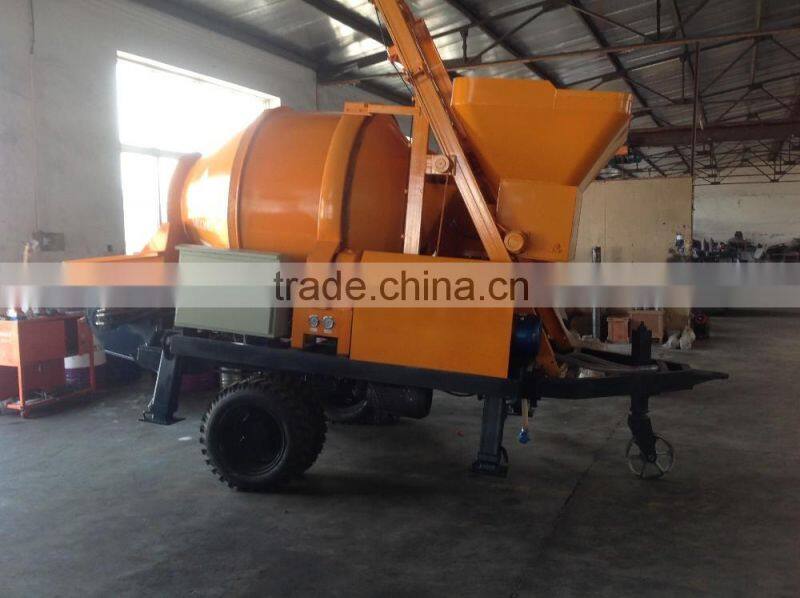

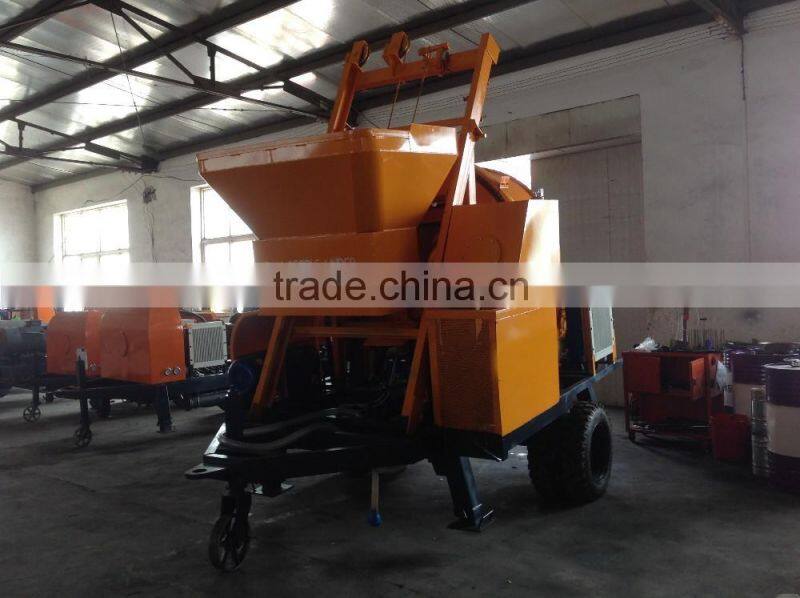

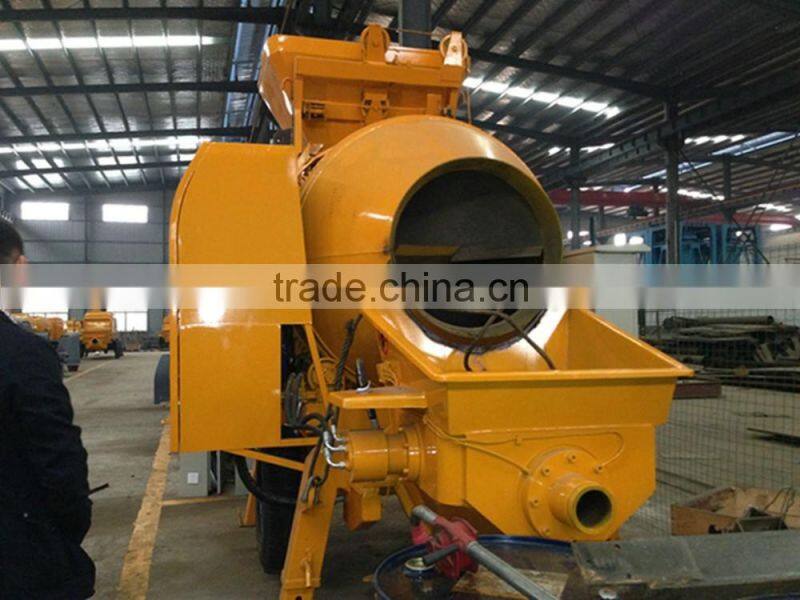

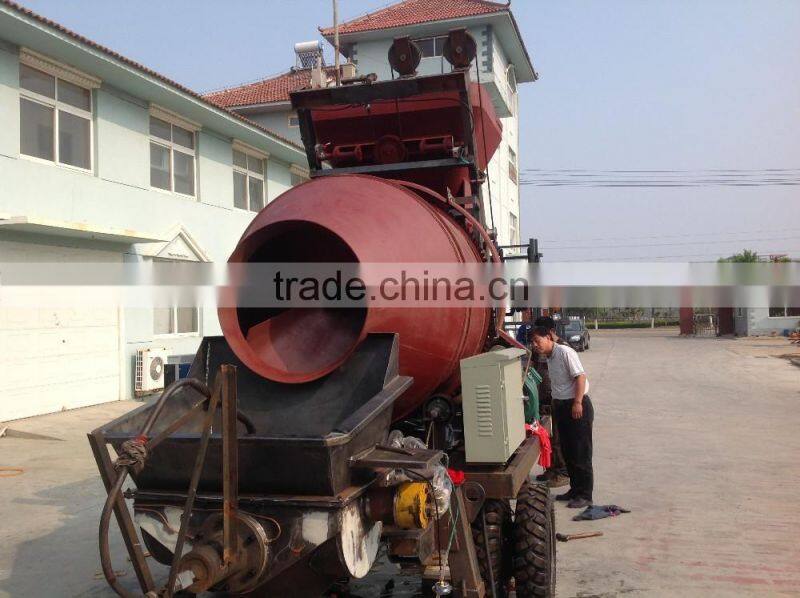

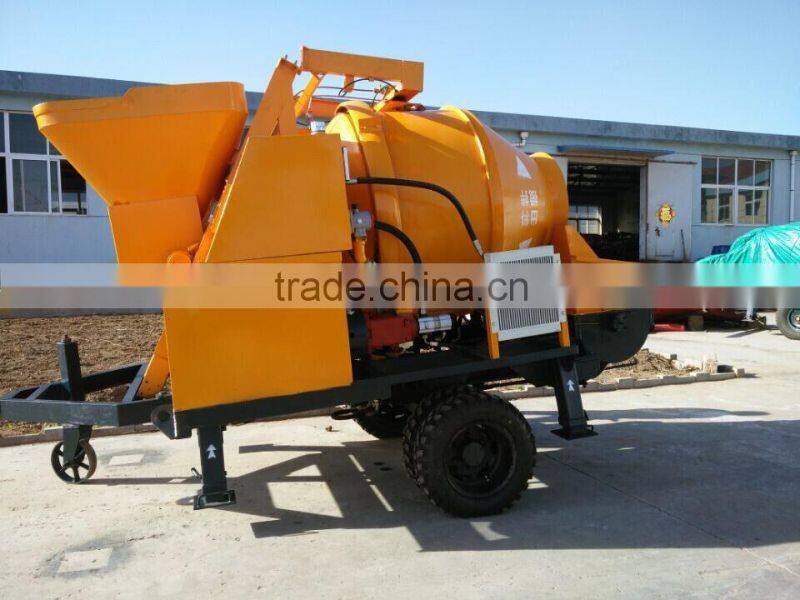

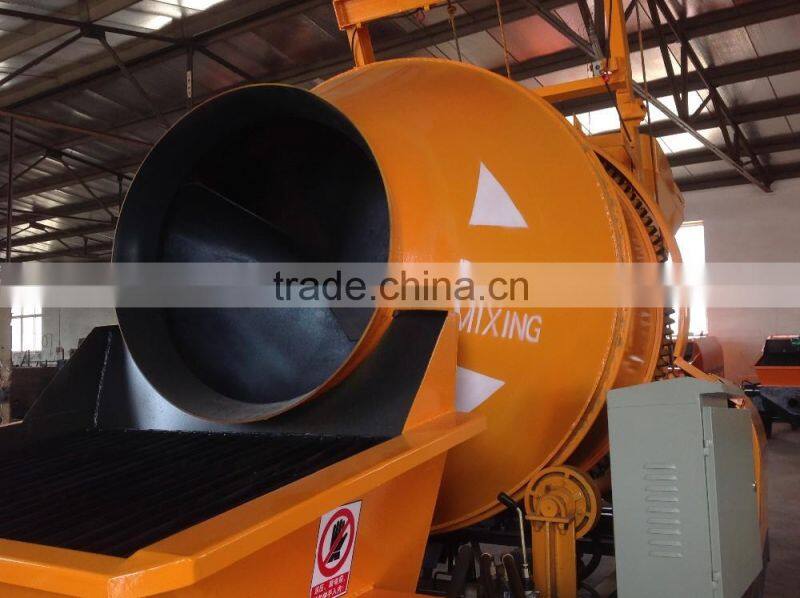

Photo of Concrete Mixer Pump machine:

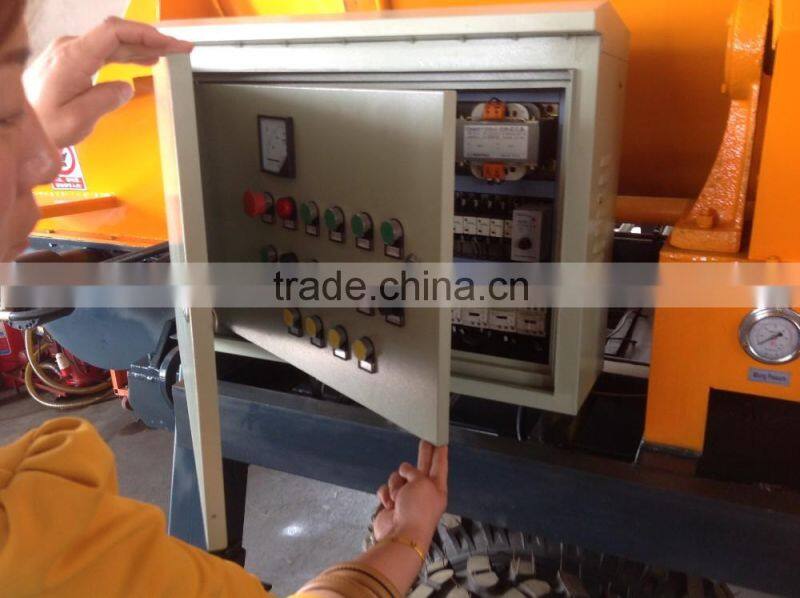

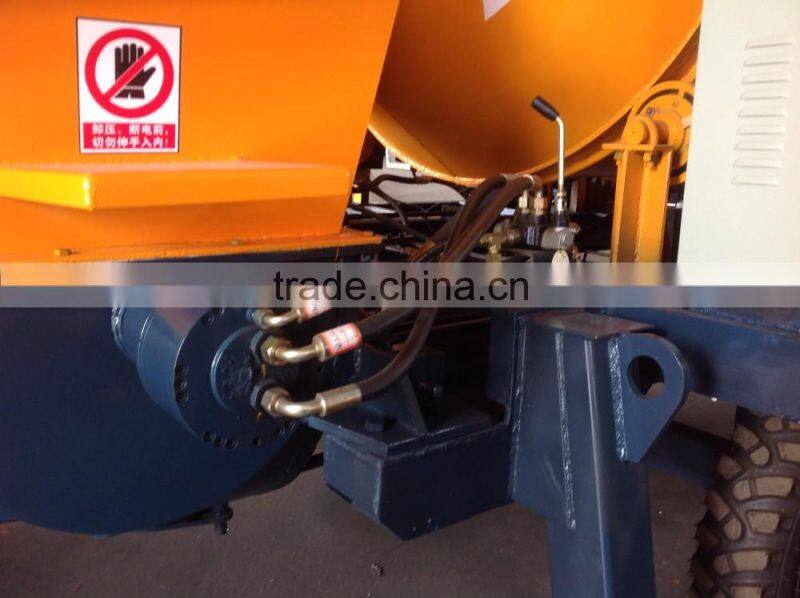

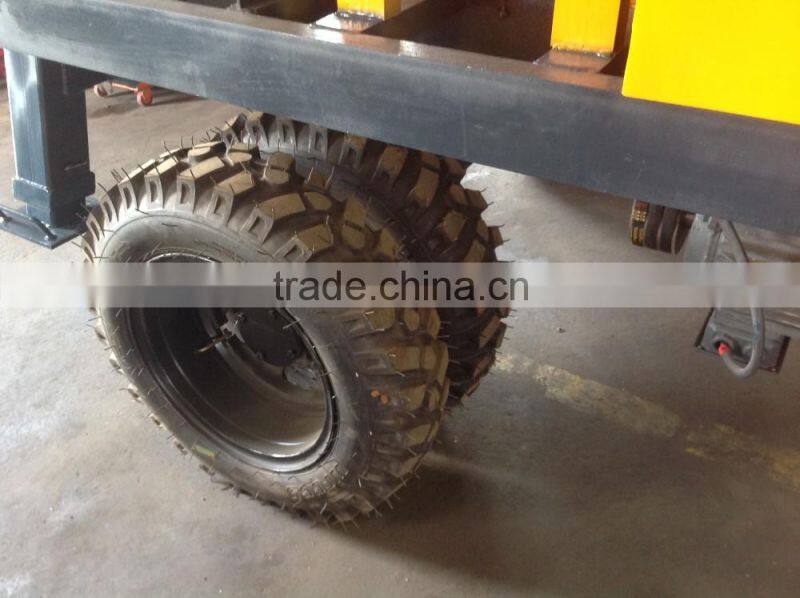

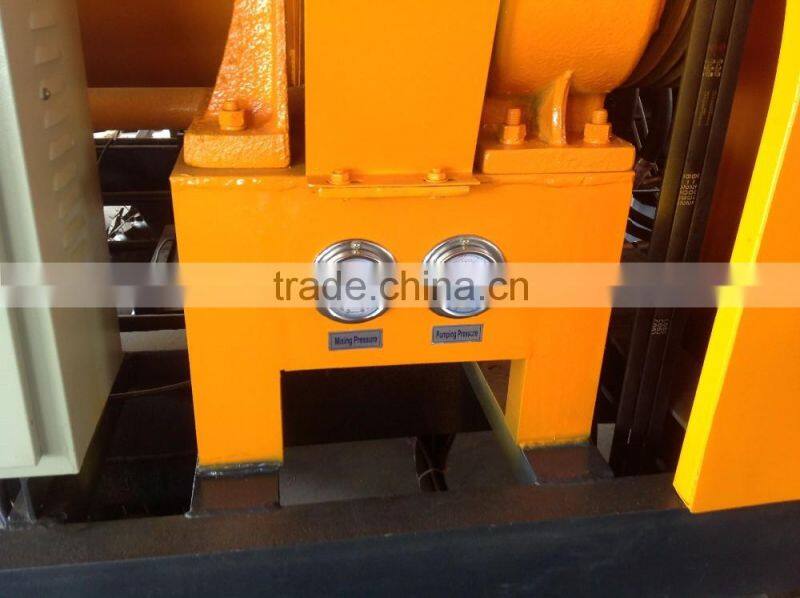

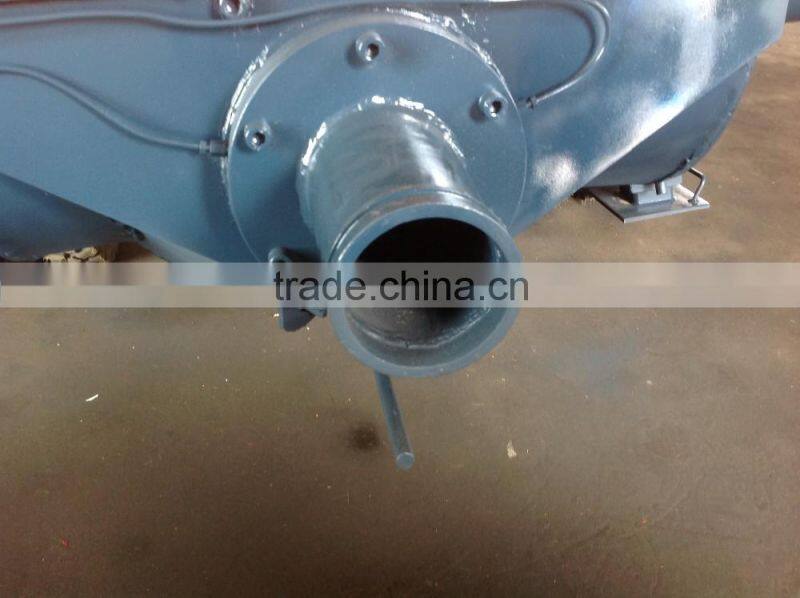

Detail of Concrete Mixer Pump Machine:
Features for Concrete Pump Mixer Machine:
1.It is more convinient to the places where electricity is in shortage.
2.Engine is put inside, which can be protected from damaging.
3.Water tank and water dial gauge are uniquely attached along with our machine.
4.Drag rod is especially equipped on our machinery.
5.Longer warranty.
Mixer system:
1. Double motors for mixer mixing with features of quick and homogeneous mixing.
2.Grinding wheels for mixing drum rotation, stable and reliable.
3.Vibrating device for aggregate complete discharging.
Pump system:
1.Fully hydraulic pumping system with double concrete cylinders and double oil cylinders, stable and reliable.
2.Hydraulic parts are Chinese famous brands or world famous brands with high and reliable quality.
Main parameter:
Model |
JBS30-10-62R |
||
Machine Performance |
Max. Theoretical Concrete Output |
m³/h |
30 |
|
Mixing Max. Charging Capacity |
m³ |
0.56 |
|
Mixing Max. Discharging Capacity |
m³ |
0.35 |
|
Max. Concrete Pumping Pressure |
Mpa |
10 |
|
Distribution valve |
|
S Valve |
|
Concrete cylinder diameter×stroke |
mm |
1400×1100 |
|
Hopper capacity |
L |
400 |
|
Outlet diameter |
mm |
100 |
Power system |
Diesel engine model |
|
|
|
Electrical engineering power |
kw |
62 |
|
Rotate speed |
r/min |
2300 |
|
Winding power |
kw |
5.5 |
|
Mixing Power |
kw |
4.5 |
|
Water pump motor power |
kw |
0.55 |
Hydraulic system |
Circuit type |
|
Open circuit |
|
Pumping system pressure |
MPa |
31.5 |
|
Mixing system pressure |
MPa |
6 |
|
Capacity of oil tank |
L |
350 |
|
The biggest transportation is away from vertically (/Level) |
m |
120/500 |
Other parameters |
Max. aggregate diameter |
mm |
20 |
|
Mixing Max. aggregate diameter |
mm |
60 |
|
Inside diameter of delivering pipe |
mm |
100-80 |
|
Dimensions:length×width×height |
mm |
6000*2300*3150 |
|
Total weight |
kg |
4500 |
As a professional manufacture in this trade for over 10 years,we have rich experience of shipping by sea and by train and other transportation.
1. We have over 10 years experience.
2. When trainning your operators, our engineers will give them advice on how to operate the machines correctly;
3. We will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
4. Call us at any time if you have problems about our concrete plants;
5. If needed, we will send engineers to your site to solve your problems.
6. Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
7. We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
We also can supply other construction machinery like concrete batching plant, concrete pump, tower crane, construction elevator, asphalt mixing plant etc.
Zhengzhou Qiangli Machinery Manufacturing Co., Ltd. was established in 2002. It is a comprehensive
group corporation combined with design, production and sale sectors, located in Construction Machinery
Base---Xingyang, Zhengzhou City.
Our main products are Concrete Mixing/Batching plant, Stabilized Soil Mixing Station, Concrete Batching
Machine, Concrete Mixer, Concrete Pump, Concrete Mixing Truck, Concrete Block Making Machine,Tower Crane, and other construction machinery.
We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home
and abroad. Holding high quality products and honest operation as tenets, we have developed international market very well, such as Russia, Southeast Asia, Central Asia, Mid-East, South Africa,America, etc, more than twenty countries and regions.
How to order:
If you are interest in our concrete mixer pump,please contact with me at any time:
