Vertical Wood Log Peeler Machine 0086-13673685830 With Four-edge Knife

Vertical Wood Log Peeler Machine 0086-13673685830 four-edge knife

Contact Details

Contact Person: Cathy

Skype: Taizy2031

Mobile: 0086-13673685830

Introduction

The machine can peel wood, also known as wood peeling machine, belonging to one of wood working machinery products.

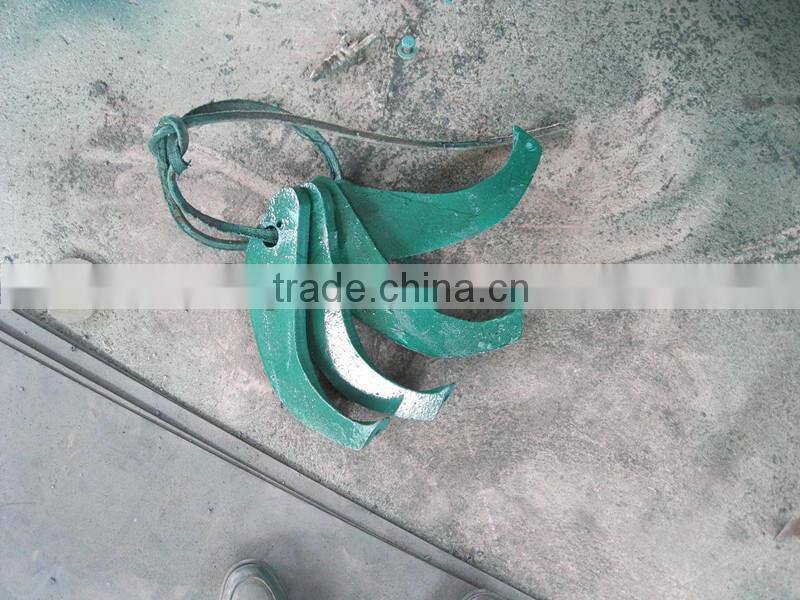

1.Using four-edge knife, easy to use and low cost.

2.Knife plate voltage controlled by the hydraulic control, advanced structure, reliable performance.

3.Feed part adopt stepless speed. It has good peeling effect on the cold wood, curved wood, eucalyptus, oak, elm and other tree species has a good hard.

4. Peeling the net high productivity, little injury for the wood .

Technical parameters

Notes & Troubleshooting

1) Notes:

a. Please oil the speed reducer before using.

b. Turn the switch on, please check the cutter head could rotate forward.

c. Avoids too much moistly, and no raining.

d. Maintainance is required in a fixed time(Change the lubricant, check if the screw loose)

2) Troubleshooting

a. Cann't clean the bark competely: Tighten the lead screw properly

b. Wood Scratch: Adjust the 4 knives in tune, and loosen the the lead screw properly.

c. The big wood couldn't get in smoothly: Check the spring if it's loosen, adjust the spring screw to make the spring force inceasing. Adjust the screw of top cutter to increase the open size.

d. Wood is stucked: Loosen the screw, if necessary, dischage the cutter. Open the main engine, meanwhile, to make the electric motor reverse and push the wood out.

Why choose us ?

1.Reasonable price with high quality.

2.Best on-line and aftersales services.

3.Professional Chinese manufacture.

4.We service your 24 hours-7 days.

5.Manual and video will be sent if needed.

6.You can visit our factory at any time.

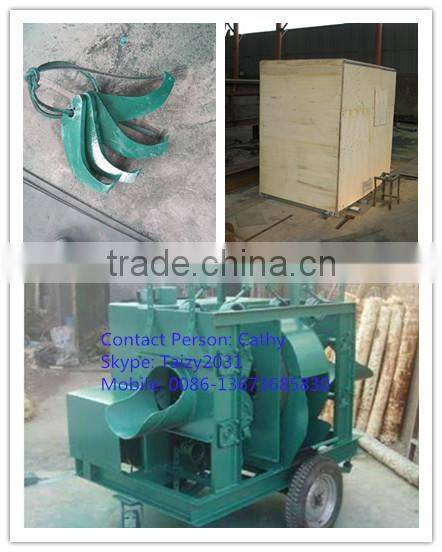

More pictures for you review
