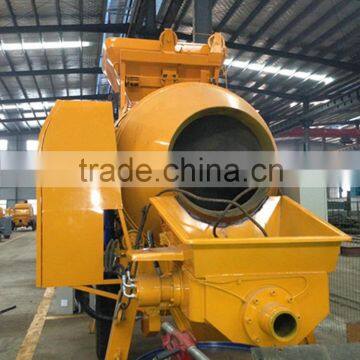

Cheap JBS30-10-37 30m3 Electrical Concrete Mixer With Pump
|
Items
|
Units |
Parameters
|
||
JBS30-10-37 | ||||
Whole performance of machine |
|
Max. theo. concrete output |
m3/h |
30 |
ncrete pumping pressure |
MPa |
10 |
||
Distribution valve type |
|
S Valve |
||
Concrete cylinder diameter×stroke |
mm |
140*845 |
||
Hopper capacity |
L |
400 |
||
Outlet diameter |
mm |
100 |
||
Power system |
|
Winding motor power |
kw |
5.5 |
Stir the motorPower |
kw |
4.5 |
||
Water pump motor powe |
kw |
0.55 |
||

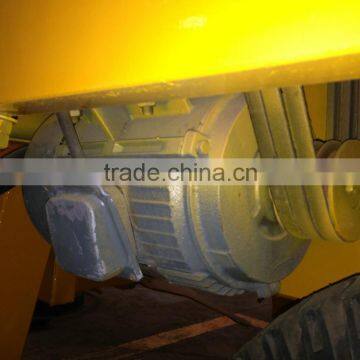

Electrical engineering power |
kW |
37 |
||
Rotate speed |
r/min |
2300 |
||
Hydraulic system |
|
Circuit type |
|
Open circuit |
Pumping system pressure |
MPa |
28 |
||
Distribution system pressure |
MPa |
14 |
||
Mixing system pressure |
MPa |
6 |
||
Capacity of oil tank |
L |
350 |
||
|
The biggest transportation is away from vertically (/Level) |
m |
120/500 |
|
Other parameters |
|
Max. aggregate diameter |
mm |
Scree:20 |
Inside diameter of delivering pipe |
mm |
100-80 |
||
Dimensions:length*width*height |
mm |
4200*2300*150 |
||
Total weight |
kg |
4200 |
||
2. Main technical feature

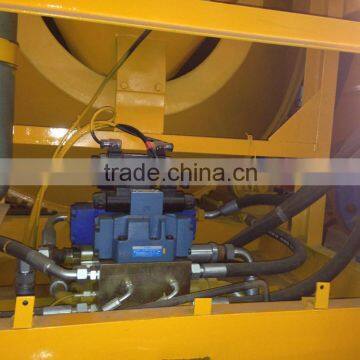

2.1 Hydraulic system
- Ø Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judgeing and removing trouble.
- Ø Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability,high reliability and high resist contaminative capability.
- Ø Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.
- Ø Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.
- Ø Cone sealing of all pipes make the pipe joints seal reliably.
- Ø The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.
- Ø Adopt emulsification technology of initiative and passivity recovery integration.
2.2 Electric control system
- Ø Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.
- Ø The wire remote equipment is convenient for operation far away.
- Ø Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.
2.3Mechanical system
- Ø The design of hopper and S valve and so on adopt I-DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
- Ø The agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.
- Ø Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be useed in lower abrasion. Xinsai’s spectacles wear plate and cutting ring use high wear material, making the components’ life prolonged greatly.
2.4 Lubrication system
The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealings.

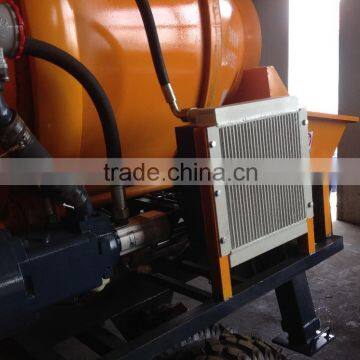

2.5Cooling system
The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status.
1 SET TO A 20GP, 3 SETS TO A 40HQ
1. installation, debugging, operators training;
2. maintenance:
A. when training your operators, our engineers will give them advice to operate the machines
correctly;
B. we will send you the operation manual which can help you operate the machines properly,
it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete plants;
D. If needed, we will send engineers to your site to solve your problems.
3. providing some documents needed for your customs clearance, like commercial invoice,
packing list, certificate of origin etc;
4. spare parts supply;
Zhengzhou Qiangli Machinery Manufacturer Co., Ltd has many years R&D experience in construction machinery, especially in concrete mixing plants, concrete mixing trucks and construction hoist. We will serve our client with high quality and reasonable price.
