High efficiency construction equipment and good concrete truck mixer price from China manufacture
Ready mix concrete trucks are used by construction workers to carefully place large amounts of cement.New models of various concrete mixer trucks are released every year, but the overall function of the vehicles is the same.In addition to transporting and pouring concrete, these trucks also mix the cement along the way.
It is the top-choice concrete equipment widely used in new rural construction,urban construction,tunnel,airport,seaport,high-speed rail site,beam field,bridge construction projects and so on.
Concrete Mixer Truck have a large drum on the back that carries the concrete.Workers pour a mixture of cement, sand or gravel, and water into this drum through a chute before the truck leaves.The drum, which has blades inside, then begins slowly revolving as the cement is transported from one location to another.This constant motion mixes the contents inside to create concrete and also keeps the mixture from hardening.Once the truck arrives at its destination, the motion of the drum is reversed to push the cement mix forward and out the chute so it can be poured.
Main Models of Concrete Mixers Truck are 3m3, 4m3, 5m3, 6m3, 8m3, 9m3, 10m3, 12m3, 14m3/h, etc.

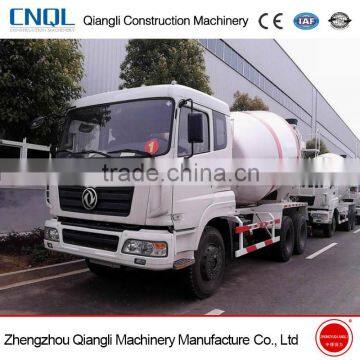

Concrete mix truck:

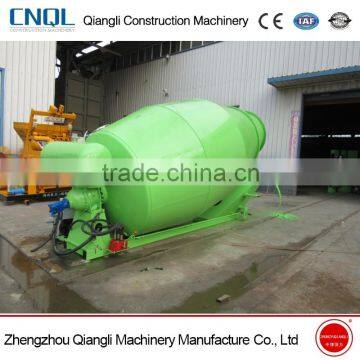

Concrete truck mixer drum:
Feature:
1.The whole truck is convenient and stable with strong intensity
2.Special purpose chassis is specially developed for rural market, even narrow country road can be easily handled.
3.Steel structure adopts high-strength steel shot blasting, structure strength improved 20%, strong bearing capacity and great anti-knock effects.
4.Optimized design of concrete mixing tank, improve loading ability, mixing on average without separation.
5.Mixing blade adopt three-dimensional double helix mixing design, reducing remnant rate to 0.6%,better than international standard 2%, leading the industry standard 0.7%-1%
6.The blade has unique wear-resisting protection structure, improving blade service life 80%
7.The design of low angle of inclination,center of gravity is lower 5% than similar concrete mixing truck,safety factor higher 10%.
8.Feeding inlet and discharging outlet with reasonable design, faster feeding and discharging,easy operation.
Main parameter:
SPECIFICATION | ||
Model |
CLW5120GJB3 |
|
Drive |
Left Hand Drive |
|
Model Year |
2015 |
|
Drive model |
4×2 |
|
|
Wheelbase 1st axle-2nd axle |
4200mm
|
|
|
Complete Dimensions (L×W×H) |
7950×2490×3900mm Only for reference, should be subject to the existence. |
|
Engine |
YC6J180-33, 180hp, 6 Cylinder, Turbo Diesel,180HPs/2100RPM, Discharge 11120ml, Euro 3 emission standard, Air-air cooling ,electrical control diesel engine. |
|
Gear box |
FAST-8 Gear-box,9 forward+ 1 reverse |
|
Suspension |
Leaf spring 8/12 |
|
Clutch |
Φ430mm, pull-type Diaphragm spring. |
|
Brakes |
Service brake: Two-circuit air pressure braking. Parking brake: Air pressure braking Exhaust brake: Air pressure braking |
|
Steering |
ZF integral Power steering, with adjustable steering wheel. |
|
Frame section(mm) |
300×90×(8+6) |
|
Tires |
10.00-20 |
|
Electrical system |
Alternator 28V/80A,Batteries 12V/175Ah |
|
Fuel tank capacity |
300L, Steel tank. |
|
Kerb weight |
7605kgs |
|
|
Axles loading capacity Front Rear |
5,000kgs 9000kgs (single stage reducer) |
|
Cab |
Dongfeng Single sleeper, tilt cab mechanical hydraulic overturn, left-hand drive, electrical window, Central locking |
|
Accessories |
Tool box, cold boot, inter axle differential |
|
performance |
Max. speed 85km/hour |
|
Tank Geometric volume |
10m3 |
|
Valid mixing tank volume |
6m3 |
|
Type of tank board |
The mixing drum is made of 5mm thick Mn steel, and the ends of drum are 6mm thick. |
|
Tank wielding |
automatic welding |
|
others |
China famous brand of wear-resistant steel gear pumps, planetary motor, valve, gearbox, radiator, 300L pneumatic water storage tank |
|
Feed rate |
≥3 m3 /min |
|
Discharge rate |
2 m3/min |
|
Residual rate of discharge |
<0.7% |
|
Work condition |
City transport concrete or sand puld or in bad road |
|
Production lead |
10-15 days |
|
warranty |
12 months, from the date of supply. |
|
As a professional manufacture in this trade for over 10 years,we have rich experience of shipping by sea and by train and other transportation.
1. We have CE,ISO,SGS certificate and over 10 years experience.
2. When trainning your operators, our engineers will give them advice on how to operate the machines correctly;
3. We will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
4. Call us at any time if you have problems about our concrete plants;
5. If needed, we will send engineers to your site to solve your problems.
6. Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
7. We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
We also can supply other construction machinery like concrete batching plant, concrete pump, tower crane, construction elevator, asphalt mixing plant etc.
Zhengzhou Qiangli Machinery Manufacturing Co., Ltd. was established in 2002. It is a comprehensive
group corporation combined with design, production and sale sectors, located in Construction Machinery
Base---Xingyang, Zhengzhou City.
Our main products are Concrete Mixing/Batching plant, Stabilized Soil Mixing Station, Concrete Batching
Machine, Concrete Mixer, Concrete Pump, Concrete Mixing Truck, Concrete Block Making Machine,Tower Crane, and other construction machinery.
We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home
and abroad. Holding high quality products and honest operation as tenets, we have developed international market very well, such as Russia, Southeast Asia, Central Asia, Mid-East, South Africa,America, etc, more than twenty countries and regions.
How to order:
If you are interest in our concrete mixer machine,please contact with me at any time:
