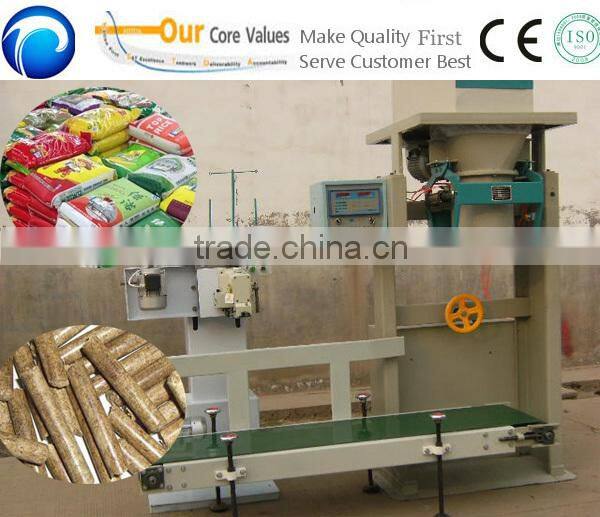

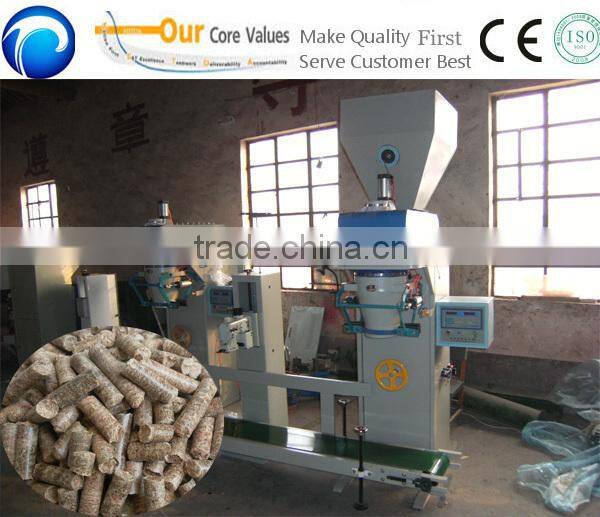

Introduction of 50kg/bag Wood Pellet Packing Machine
TZ series Computer quantitative packaging machine. Mainly by the host,
conveyor belts, sewing machine, computer controller, and other components.
Host production with no bucket metering, variable frequency control three-speed cutting. Standard of measurement accuracy. Convenient for clean-up and not blocking material.
Feature of 50kg/bag Wood Pellet Packing Machine
1) Take three speeds feeding to guarantee the precision at min weight and the speed at max weight.
2) The head of bag stitching machine, conveyor, and hot sealing machine can rise and fall. And at the same time, the system is applied to sealing and convey with max and min bags.
3) There is shock-absorbing device in weighing system; it could avoid the shock of other devices through floor and tube to affect the weighing system.
4) There is good seal in system, and it has dust catcher and aspirator.
5) The is guide groves in conveyor roller and guide bars in conveyor belts to avoid cracks.
Function of 50kg/bag Wood Pellet Packing Machine
1 .There is detecting device in system.
2 .Processes function of automatic modifying drop height.
3. Processes function of self-test, error pilot and fault code indication.
4.With the serial interfere to communicate the computer.
5.With five-figure password to control the accumulator in system.
6.Pre-set filling number in system.
technical parameters of 50kg/bag Wood Pellet Packing Machine
Weighing capacity |
3~4 packs/min |
Weighing range |
2-50 kg / pack |
Weighing errors |
±0.3% |
Control method |
PLC microcomputer control |
Power supply |
AC380V |
Host power |
1.1kw |
Gas supply |
No oil, clean instrument air |
Pressure |
0.4---0.5MPa |
Air Consumption |
0.4Nm3/min |
Conveyor:
The length of the conveyor |
2.0m |
Conveyor belt width |
400mm |
Maximum transmission capacity |
15 bags / min |
Power supply |
AC380V |
Power |
0.75kw |
Joint charter:
Sealing Sewing Machine Model |
TZ-18 |
Maximum sewing speed |
1700 stitches / min |
Needle gauge length |
6.5—11mm |
Maximum sewing thickness |
8 mm |
The stitches form of |
double chain |
Suture Specification |
21S / 5,20 S / 3 Polyester line 30S / cotton |
Needle type |
80800 200-250 # |
Power supply |
AC380V |
Power |
0.55kw |
Bags Type |
spacious pockets |
Form |
polypropene |
Any questions,please feel free to contact me!
