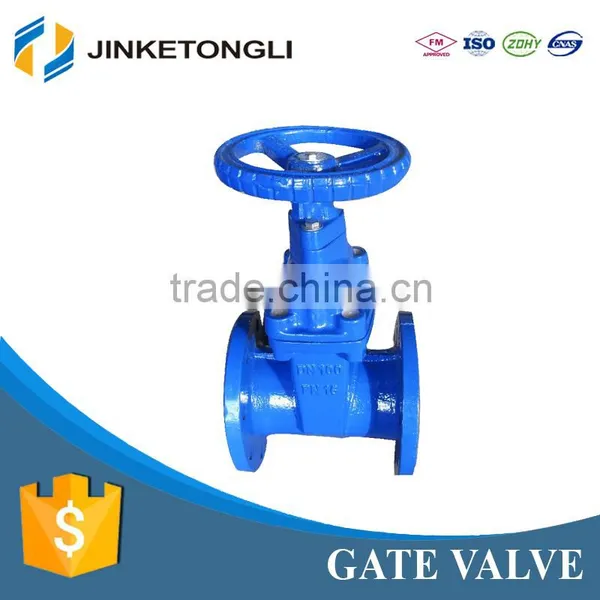

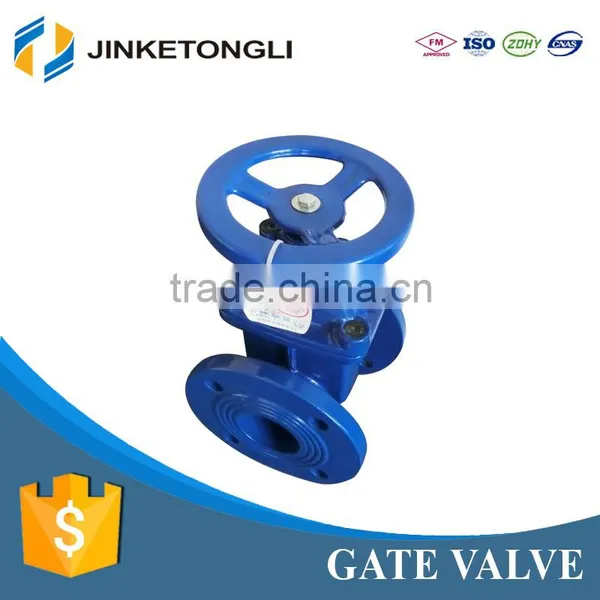

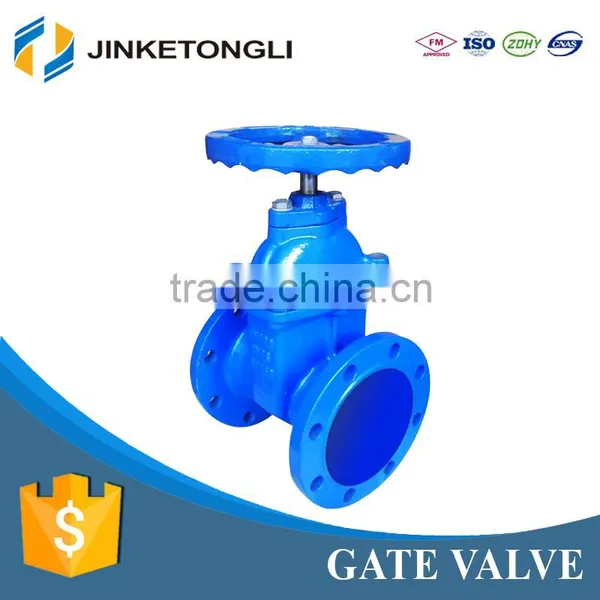

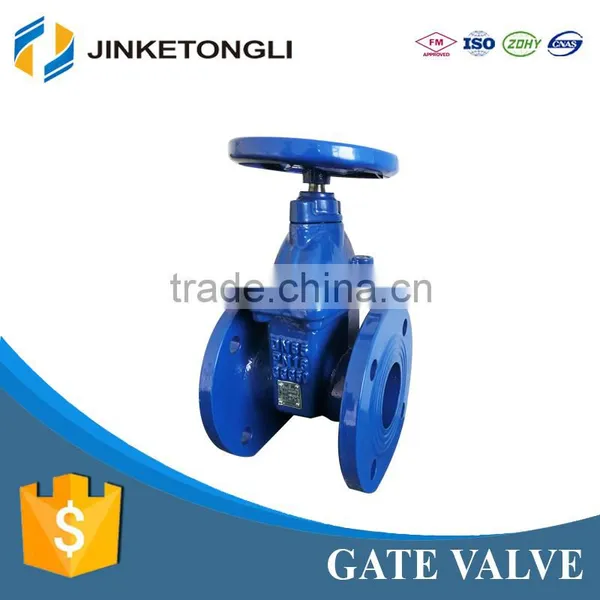

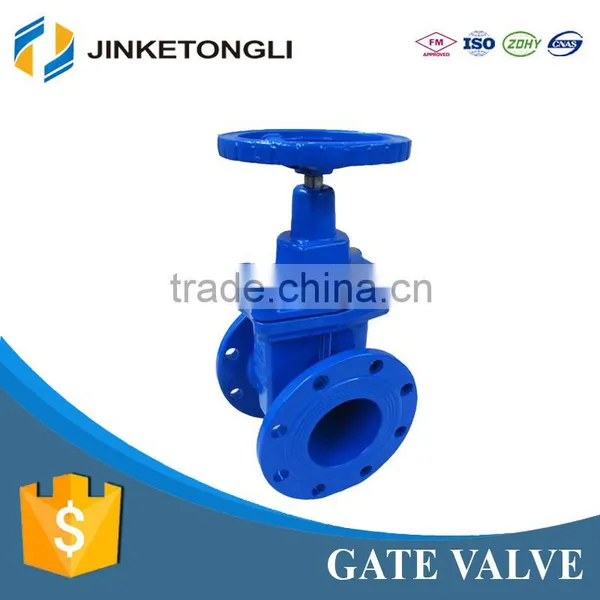

made in china urban construction Cast Iron forged gate valve

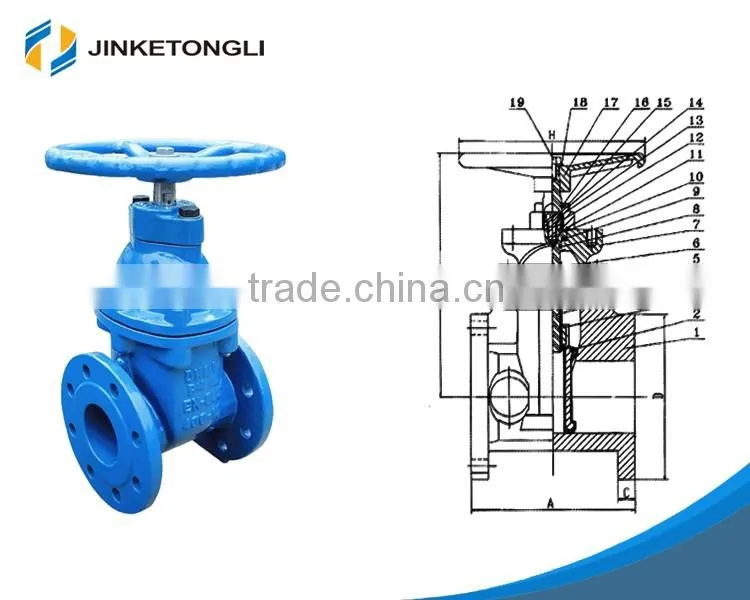

NO. |
PARTS NAME |
MATERIAL |
1 |
Valve Body |
Ductile Iron ASTM A536 |
2 |
Resilient Wedge |
Ductile Iron ASTM A536+EPDM ASTM D 2000 |
3 |
Wedge Nut |
Bronze ASTM B 584 UNS C83600 |
4 |
Stem |
Bronze ASTM B 150 UNS C61400 |
5 |
Bonnet Gasket |
EPDM ASTM D2000 |
6 |
Bonnet Screw |
Alloy Steel ASTM A 574M Zinc Plated |
7 |
Bonnet |
Ductile Iron ASTM A536 |
8 |
Stem Primary O-ring |
EPDM ASTM D2000 |
9 |
Stem Thrust Washer(lower) |
Bronze ASTM B 584 UNS C83600 |
10 |
Stem Thrust Washer(upper) |
Stainless Steel ASTM A 276 UNS S41000/C83600 |
11 |
Gland Seal O-ring |
EPDM ASTM D2000 |
12 |
Stem Seal Bushing |
Bronze ASTM B 584 UNS C83600 |
13 |
Stem Secondary O-ring |
EPDM ASTM D2000 |
14 |
Gland Flange |
Ductile Iron ASTM A536 |
15 |
Gland Flange Screw |
Alloy Steel ASTM A 574M Zinc Plated |
16 |
Stem Ring wiper |
EPDM ASTM D2000 |
17 |
Square Operating Nut |
Cast Iron ASTM A 126-B |
18 |
Flat Washer |
Carbon Steel Zinc Plated |
19 |
Screw |
Alloy Steel ASTM A 574M Zinc Plated |

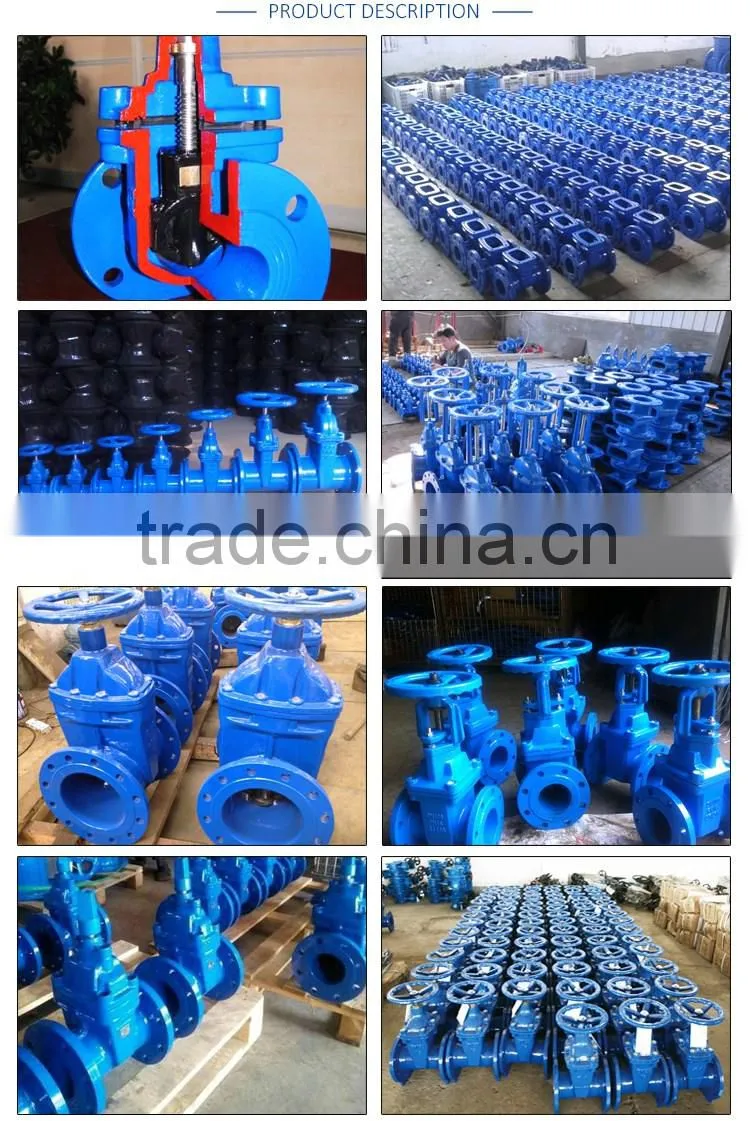

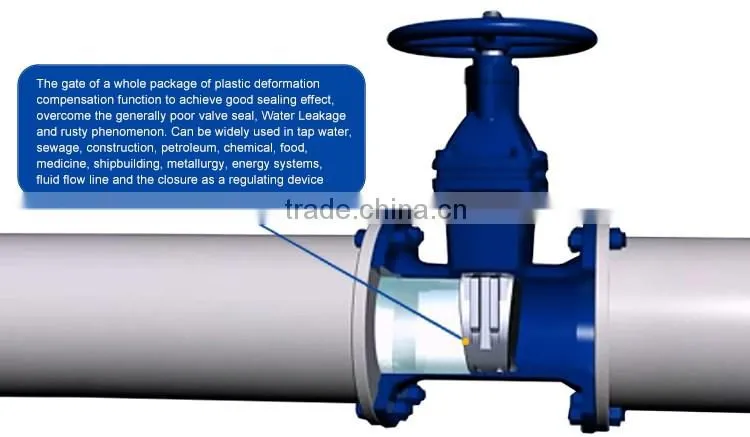

JKTL gate valve provides full flow with minimal pressure drop. JKTL gate valve features a Class 125 flanged,
flat face end connection for easy installation and accessibility. JKTL gate valve flanged may be used in
commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general
utility services. Please refer to JKTL technical data sheets, chemical resistance guides and catalogs for
engineering and installation information. Choose JKTL gate valves for the most specified, versatile and
economical valve option in commercial, mechanical and industrial applications.
