2016 hot sale top and bottom side carton sealer
Contact:Cathy
Mobile/Whatsapp/Wechat:+86 13673629307
Skype:taizy2031
QQ:2419066501
Tel:0086-371-86660712
Fax:0086-371-86660713
1.Introduction of top and bottom side carton sealer
a.adopts instant adhesive tapes for sealing the carton.
b.Efficient, Economic,Easy to adjust.
c.Left & right conveying. Finish the up & down sealing at one time.
d.can adopt lettering tape,improving the appearance of packing
e.Right and Left driving make sure the heavy carton move.
f. Belt tension & tape tension can be adjust easily.
g. Can be applied in sealing hard and soft carton.
2.Technical parameter of top and bottom side carton sealer
Model |
TZ-56 |
Max packing size(L×W×H) |
L ∞ ×W500×H600mm |
Min packing size(L×W×H) |
L150×W180xH150mm |
Table Height |
580mm~780mm |
Sealing Speed |
700~1200pcs/hour |
Tape Width |
48/60/75mm |
Voltage |
220/380V 50Hz 60hz |
Machine size |
L1020×W850×H1450 |
Machine weight |
130kg |
3. working theory of top and bottom side carton sealer
Model 1: Workers packing -- automatic folding lid - automatic sealing tape -- --automatic sealing carton
Model 2: Workers packing -- Workers folding lid - automatic sealing tape -- --automatic sealing carton

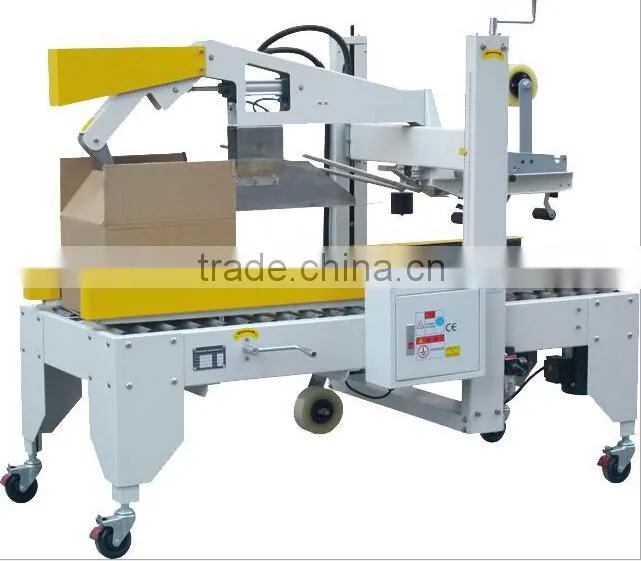

4.More picture of top and bottom side carton sealer
Purchase process
Our customer
Packing and shipping pictures
Any questions,please feel free to contact me.
