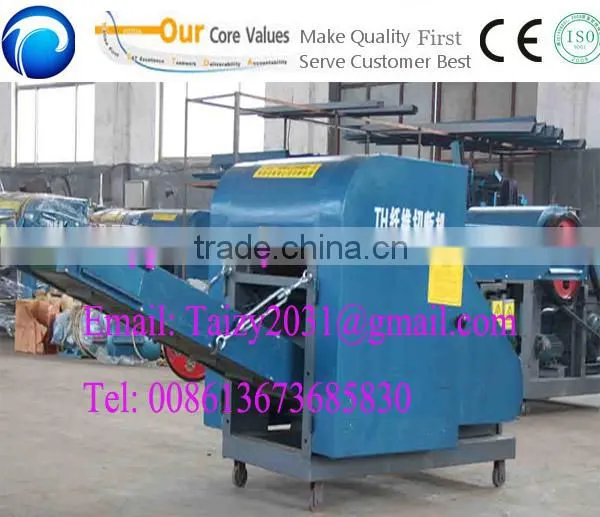

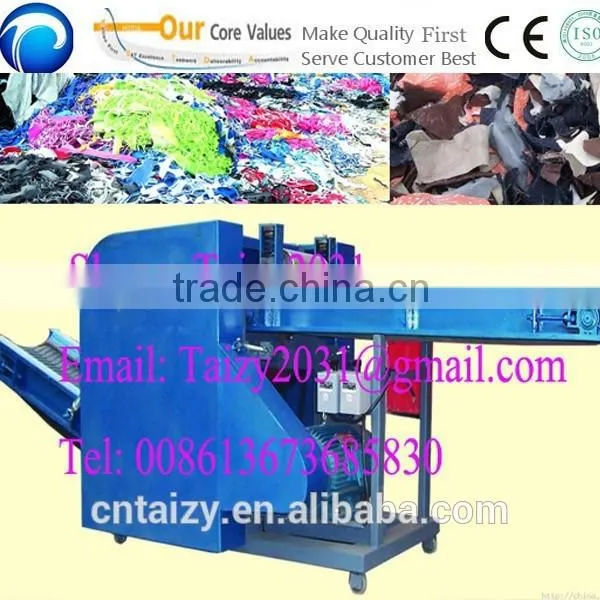

fibre cutting machine recycled cloth cutting machine
contact information
Mobile: 0086-13673685830
Phone No: 0086-371-86660712
Fax No: 0086-371-86660713
Skype: Taizy2031
1.Introduction of fibre cutting machine
The machine can be used to cut all kinds of fibre rags. Such as glass fibre, aramid fibre,aynthetic fibre and so on. The Cutting machine has one fixed blade and two movable blades. With the help of high rotation of movable blades roller, the raw material will be cut into small pieces when they pass the fixed blade.It is made and designed on the base of better character and advanced experience of the similar product domestic and abroad. In addition, it can meet the requirement of best quality, high output, low cost and also has a feature of reasonable structure, easy operation and safe production and so on
2.Feature of fibre cutting machine
a.Our TZ serial fiber cutting machne use a variety of high quality materials, after hundreds of process precision processing and into. Broad scope, can quickly cut up all kinds of scrap cloth, cotton waste yarn, used clothing, cotton, chemical fiber, linen, leather, plastic film, non-woven fabric, paper, trademark and so on a wide range of Angle materials (the other can be equipped with strong magnetic separation, case the hard iron metal injury blades),
b.Our cutting machine,the chopped material uniform size, length of arbitrary adjustable. Whole mobile convenience, stable and reliable work, convenient maintenance, high production efficiency, 3.can solve a lot of manual labor chop cut, for the next step of opening and rework process to do good, is your ideal choice.
3.Main parameter of fibre cutting machine
Model |
TZ-500A |
TZ-500B |
TZ-800C |
TZ-800D |
TZ-1200A |
TZ-1200B |
Power |
3kw |
3kw |
5.5kw |
7.0kw |
9kw |
13.2kw |
Dimension |
1.8*1*1.1m |
2.8*1*1.1m |
3.2*1*1.1m |
6*1*1.1m |
6*1.4*1.2m |
6*1.4*1.2m |
Capacity |
300kg/h |
300kg/h |
800kg/h |
800kg/h |
1000-1500kg/h |
1000-1500kg/h |
Cutting times |
288/min |
288/min |
432/min |
1036/min |
777/min |
1036/min |
Conveyor |
1000*350mm |
1000*350mm |
1400*350mm |
2800*350mm |
2800*700mm |
2800*700mm |
Output conveyor |
NO |
1400*350mm |
1400*350mm |
2800*350mm |
2800*700mm |
2800*700mm |
Cutting thickness |
20mm |
20mm |
30-50mm |
30-50mm |
30-60mm |
30-60mm |

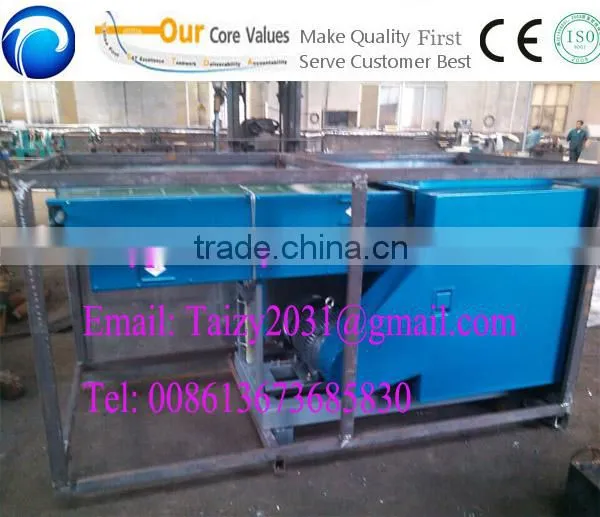

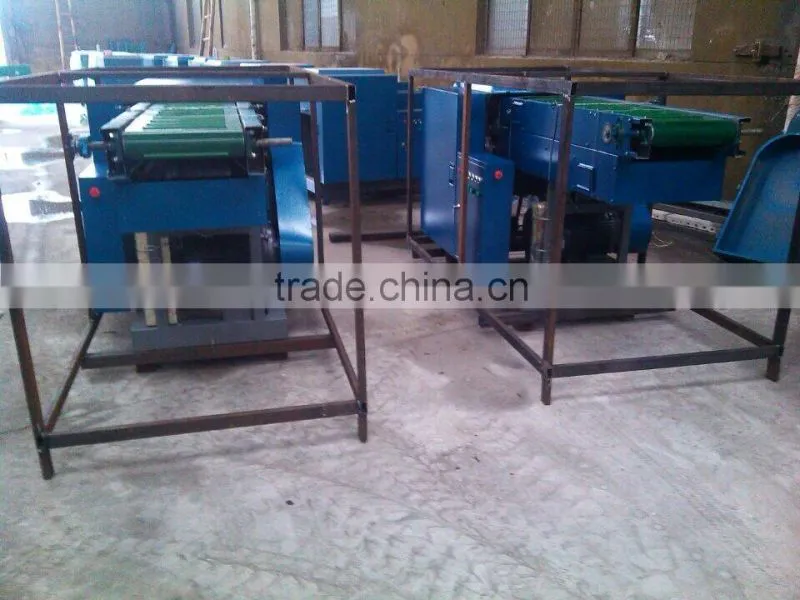

more pictures for you review.
Any questions,please feel free to contact with me!
