Help CenterAuto Closer Door Hinge
Related Products
Specifications

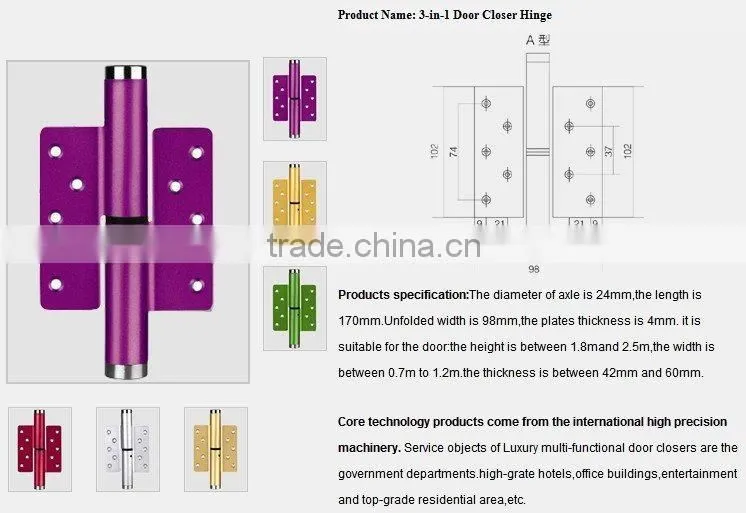

auto closer door hinge,Multifunctional hinge,3-in-1 door closer hinge.Easy opening and closing,shock absorbing.auto closer door hinge1.Specifications
Shaft Diameter |
Φ24mm |
Page Length |
171mm |
| Expanded Width | 98mm |
| Thickness | 5mm |
2.The specifications of doors fit
Length : 1.8mm-2.5m
Width : 0.7-1.2m
Thickness : 42-60mm
| Door type | Door weight | hinge needed |
| Light | ≤25kg | A multi-functional hinge (plus a load-bearing hinge) |
| General | ≤45kg | 2 multi-functional hinges |
| Heavy | ≤85kg | 3 multi-functional hinges |
| over heavy | ≤100kg | 4 multi-functional hinges |
3.Speeds in different interval
| Static interva (80°-180°) | Quickly closing range |
| Quickly-being closed interval (45°-80°) | Quickly-being closed interval |
| Quickly-being closed interval (15°-45°) | For safety slowly-being closed interva |
| Quickly-being closed interval (0°-15°) | A little fast,competely being closed interval |
4.Features
1, technical performance: reliable and stable, durable working life, (50 million or more circles)
1)special-made aluminum, high quality steel or stainless steel, advanced hydraulic oil (pour point -45 degrees, flash point 190 degrees) used; imported spring and superior rubber seals (150+ degrees heat -resistant )
2) strict scientific management, advanced processing technology ensure first-class quality.
3), for the parts from producing to finishing, high-precision testing equipments used, after series of strict testing, reliable and stable performance ensured,
2, nice looking shape, no need of connection.
1), no connecting parts,. petite structure, elegant shape
2),Application of advanced technology , diversified color and style, better usage, better visual effect as well
3 easy installations
1) No difference from normal hinge installation, simplicity, flexibility, easy operation.
2) no harm to the door, frame, wall and other home structure
4 high safety factor usage
1) unique function of shock absorbing. Max-guarantee human safety when door is slammed by outside large pressure.
2) due to the shock absorbing, make the door and door frame not destroyed ,meanwhile prolong the working life
5 door closing speed can be adjusted
control the closing speed by adjusting the bottom screws.
