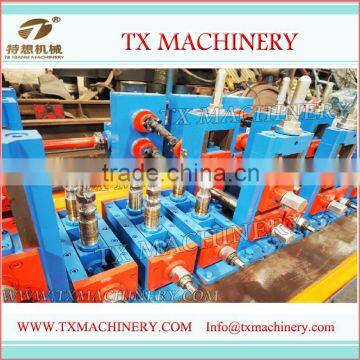

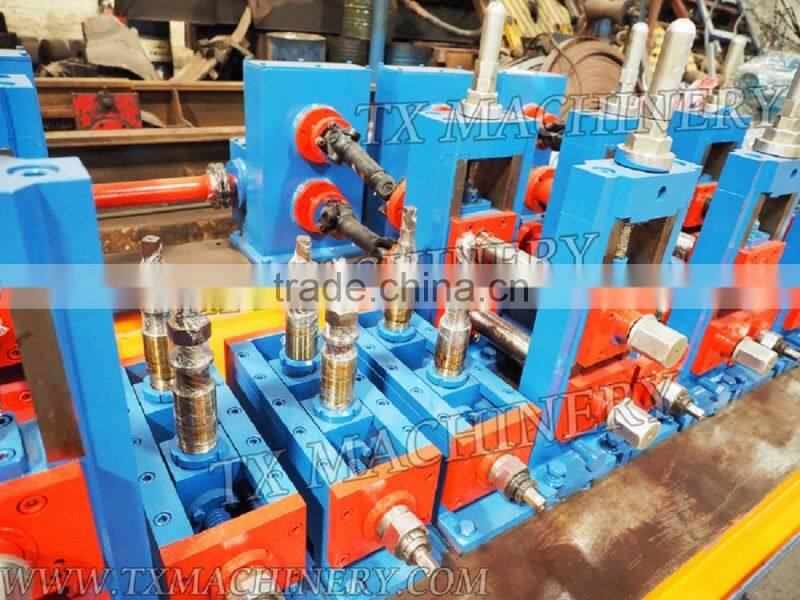

HG50 Tube Mill ERW Carbon Steel Pipe Welding Making Machine
...............................................................................................................................
Basic information:
1) Material: carbon steel, alloy steel
2) Mechanical properties: σB≤520mpa; σS≤340mpa
3) Coil ID: φ470-φ510mm
4) Coil OD: φ900-φ1800mm
5) Coil weight: ≤3 tons
6) Width: 40-200mm
7) Installed capacity: approx. 350KW
8) Compressed air capacity: 2m3/min 4-7Kg/cm2
9) Water consumption: 20tons/hr
10) Water consumption for high frequency: 30tons/hr
11) Workshop: height(5M min)(from crane to floor) x width(8M) x length(50M min). Two sets of 5 tons overhead crane are recommended.
Finished product:
1) Round pipe: φ16-φ63.5mm
2) Square pipe: 50×50 mm Max
3) Rectangular pipe: 40×60mm Max
4) Wall thickness: 0.8-3.0mm (round pipe); 0.8-2.5mm (square, rectangular pipe)
Production flow:

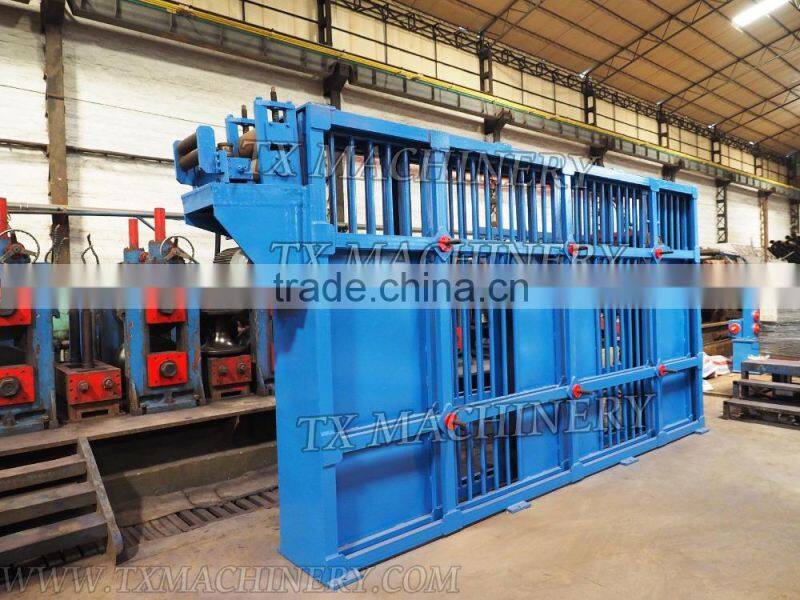

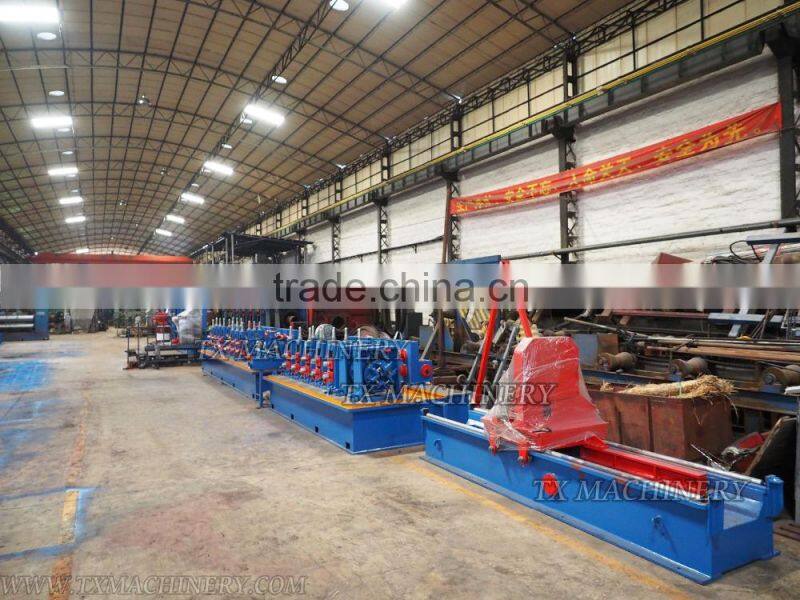

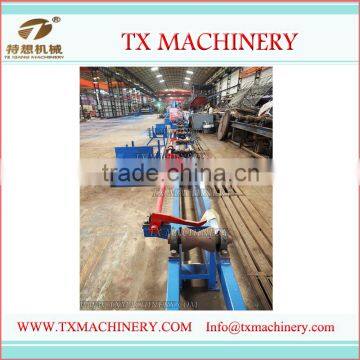

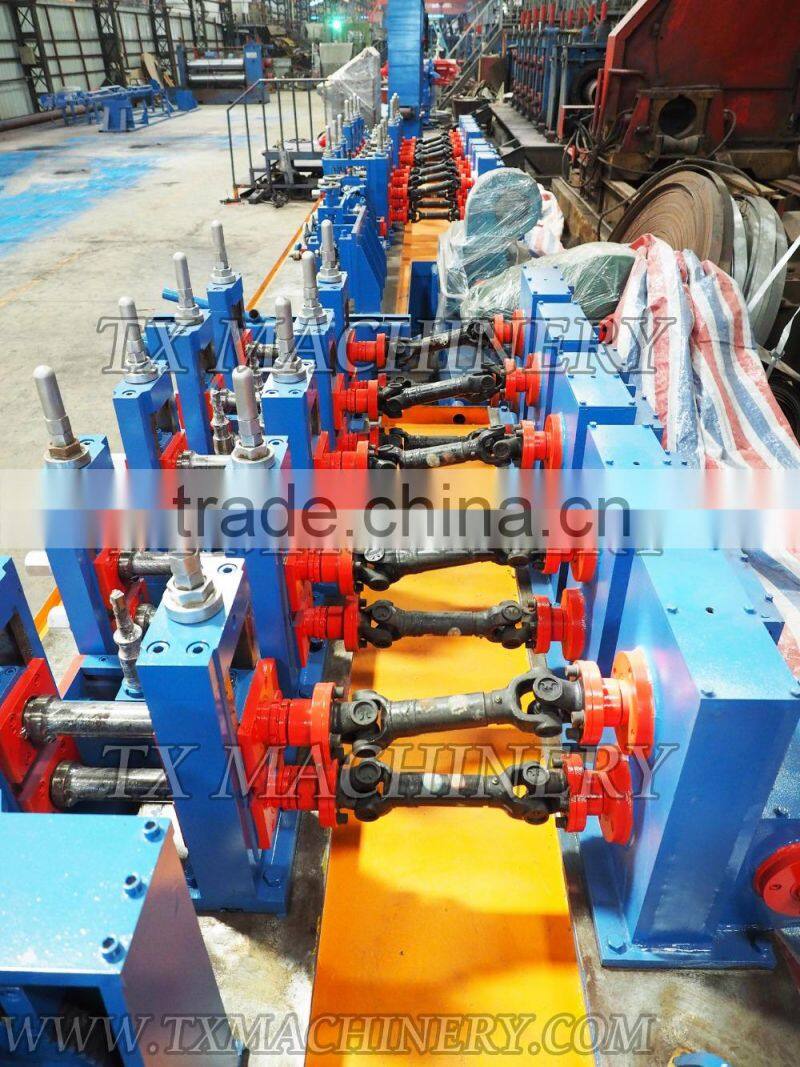

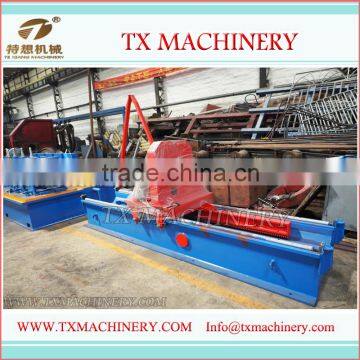

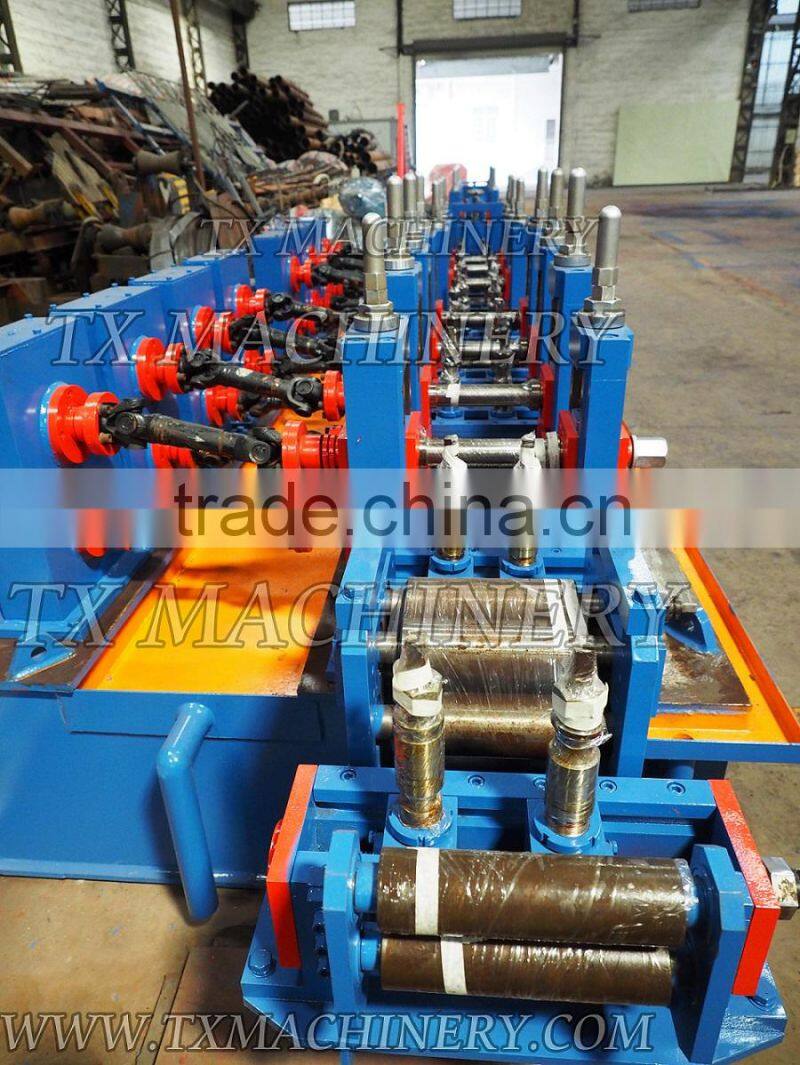

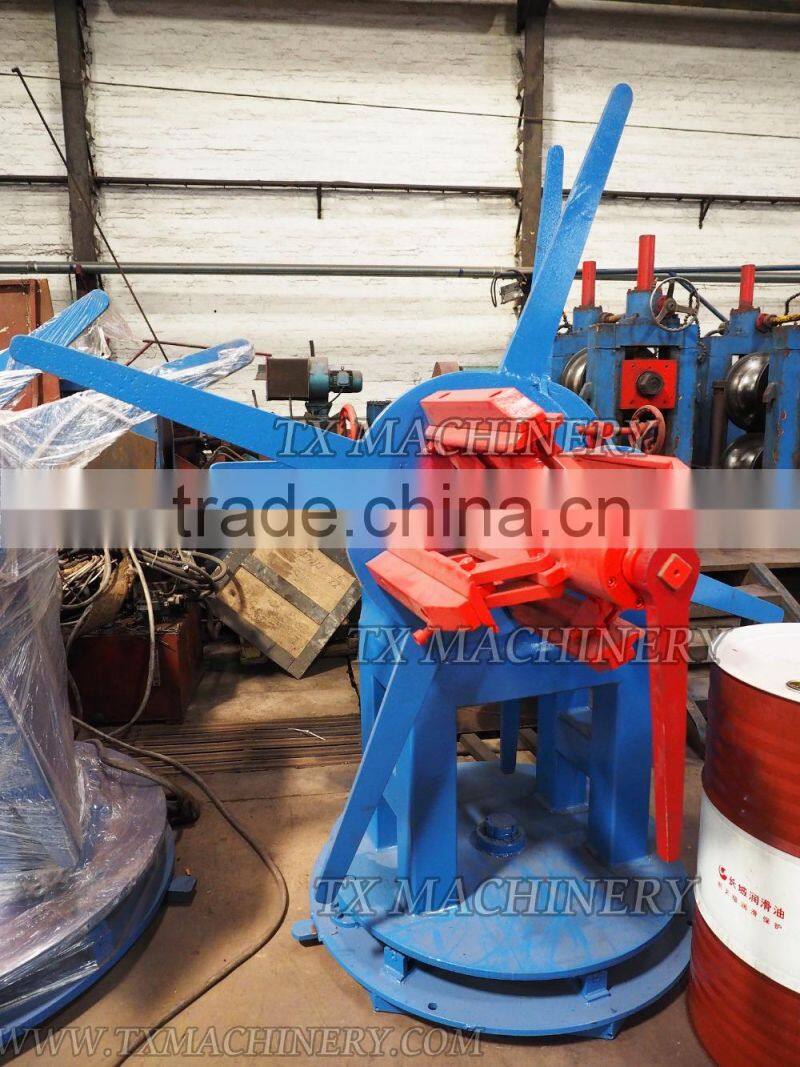

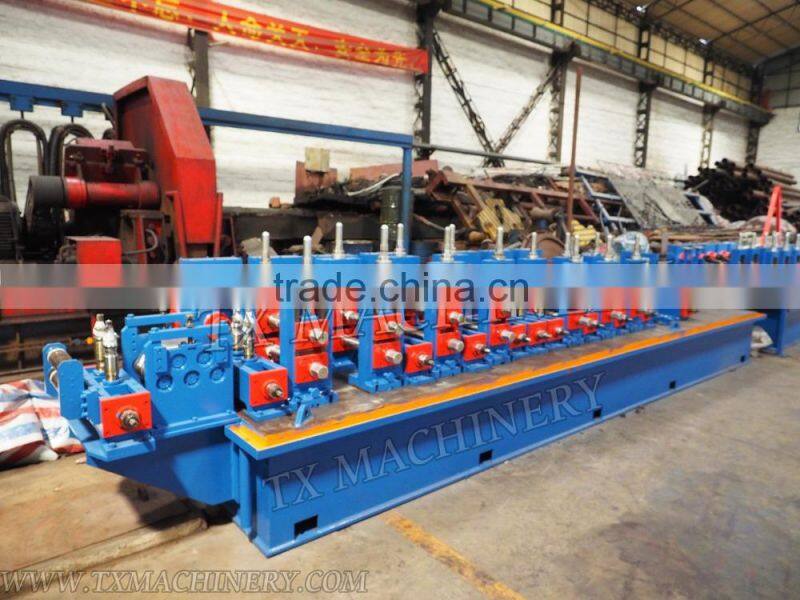

uncoiling → cutting and welding → accumulator → forming, HF welding, deburring, cooling, sizing, straightening → flying saw → runout table, discharge unit → packing → weighing → marking → storage
Electrical panel shipped should be sea worthy packing and treated by anti-rust,
the cargo shall be properly packed in seaworthy packing to the specific items.
The other equipment are naked shall be strong enough to withstand long distance oceanic transportation and multiple handling. Waterproof material shall be adopted where ever it is necessary to protect the cargo from moisture, rain and sea water.
1. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Foshan City, Guangdong Province, China. It is about 55KM from Guangzhou Baiyun Airport, by car takes about one hour. We will pick you up at the airport.
2. Q:How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the end. Each part of the machine components are strictly processed by advanced machine tools and experienced staffs. Every machine element is checked and inspected by our QC. Each machine before delivery shall test run and be well checked.
3. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
4. Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
5. Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand components
6. Q: Do you have a warranty on your machines?
A: we guarantee one year warranty. At the same time, we provide lifelong technical support.
7. Q: Once a machine arrives at our factory what happens then?
A: We will send you technician or engineer who will assist the commissioning and installation of your machine, with training for your staff.
8. Q: What kind of controls do you use on your machines?
A: Yaskawa, Omron, Delta, Schneider, Siemens, and Mitsubishi and etc.
9. Q: What is your delivery time?
A: Depending on the type of machine, duration of 25 days to 185 days from date of order.
