Competitive Price Industrial Dryer Machine

Competitive Price Industrial Dryer Machine photo-1
US$ 2,400 - 8,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
taizy
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name taizy
Model Number TZ-1
Type Dryer
Voltage 220V
Power(W) 9kw
Weight 300kg
Dimension(L*W*H) 1.55*0.8*2.2
Certification ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



Competitive price industrial dryer machine

Introduction  of  industrial dryer machine

It is widely used in sea cucumber,fish products,Chinese herb,dehydrated vegetable , fruit dried . Also can be sued into plastic resins, electrical originals, such as baking finish.

1. Hot air is circled inside the oven. The hot efficiency is high ,the energy source can be saved.

2. It is use forced ventilation effect, in which there are adjustable points wind board. Drying, heat source materials uniform may be steam, electricity,infrared, choose widely.

3. Low noise, the running balance, automatic temperature, install maintain convenient.



Advantage of industrial dryer machine

1. Energy saving:Most of the air is circulating inside the drying chamber which can considerably save the energy.



2. Sanitary working condition: The inside surface is lined with stainless steel and full welded. The sealed working condition can make sure sanitary working condition.



3. Uniform drying temperature:air distributor is fixed at each side of the drying chamber to make sure uniform air flow. So the temperature difference between the top and bottom is less than 2 °C.

 So the raw material can evenly dried.



4. Easy temperature control: The drying temperature can be easily controlled by PLC control system.



5. Low noise working condition:Heat resisting and low noise circulation fan is combined.





Main technical parameter of industrial dryer machine

Model

Number of Trolley

Number of

Plate

Motor

Area of the plates

Productivity

Dimension

(m)

TZ-1

1

24

9kw

5.76m²

50kg/8h

1.55*0.8*2.2

TZ-2

2

48

12kw

11.52m²

100kg/8h

2.1*1.1*2.3

TZ-4

4

96

18kw

23.04m²

200kg/8h

2.1*2*2.3

TZ-6

6

144

22kw

34.56m²

300kg/8h

2.6*2.1*2.3

TZ-8

8

192

30kw

46.08m²

400kg/8h

4*2*2.3

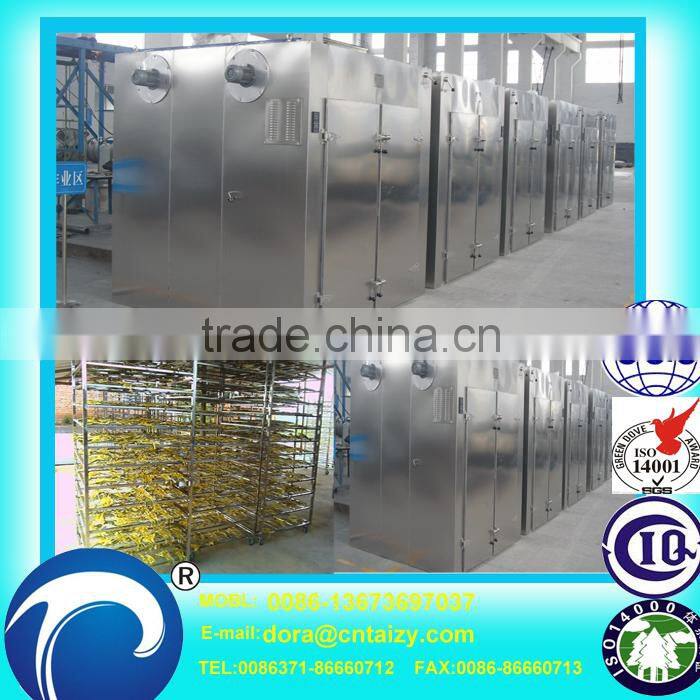

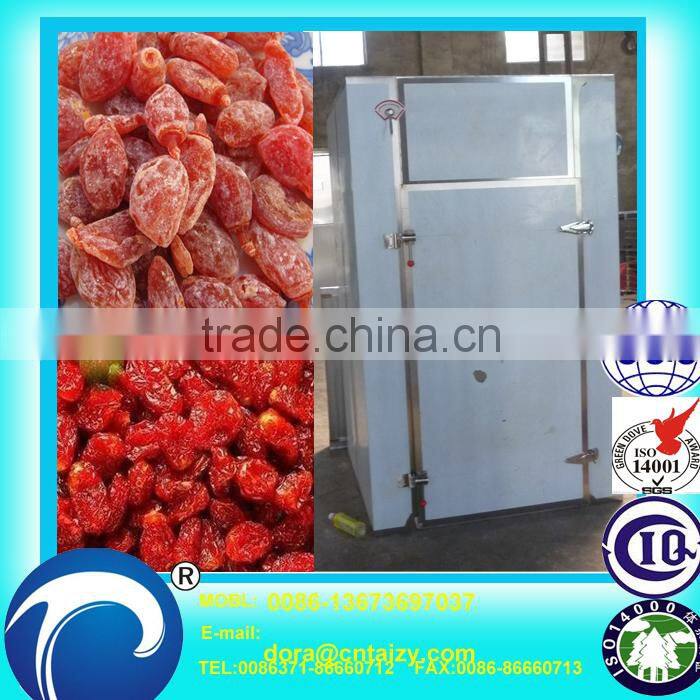

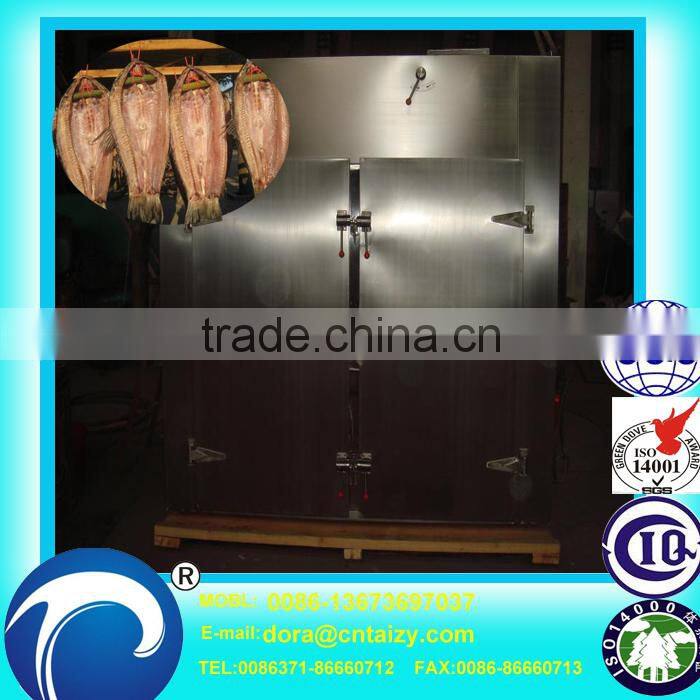

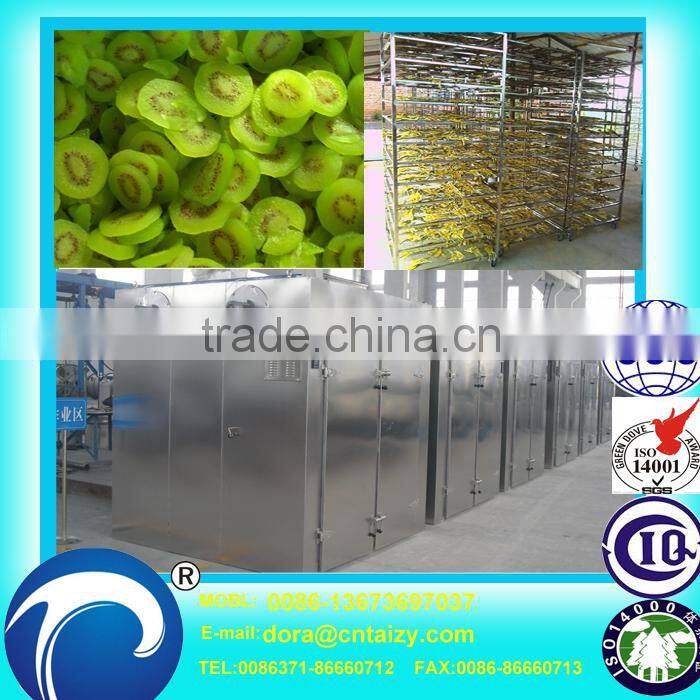

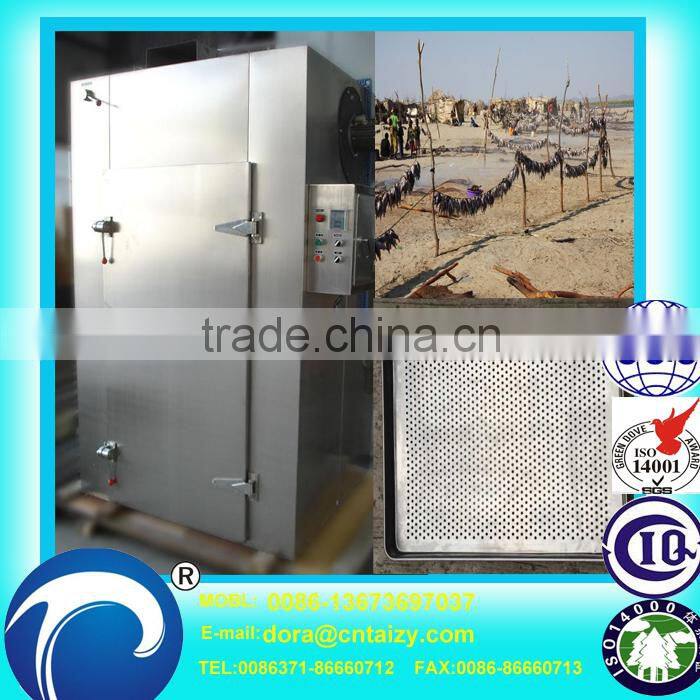

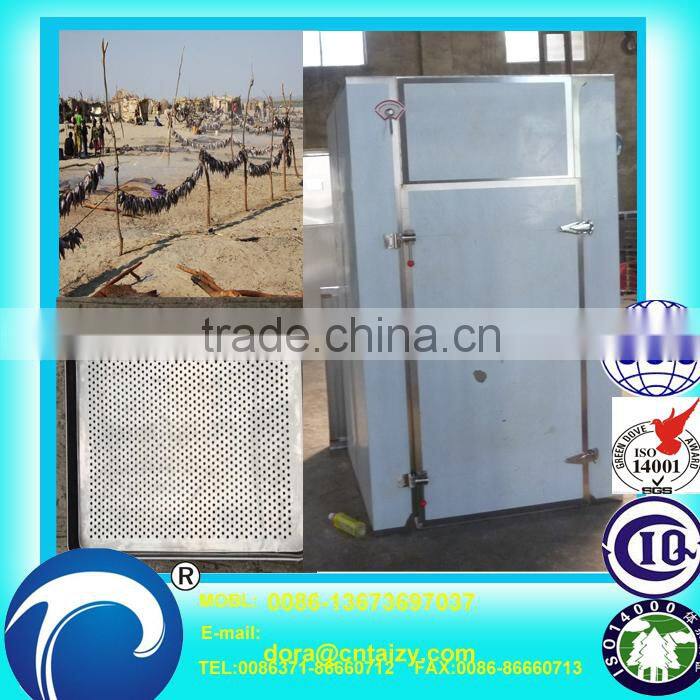

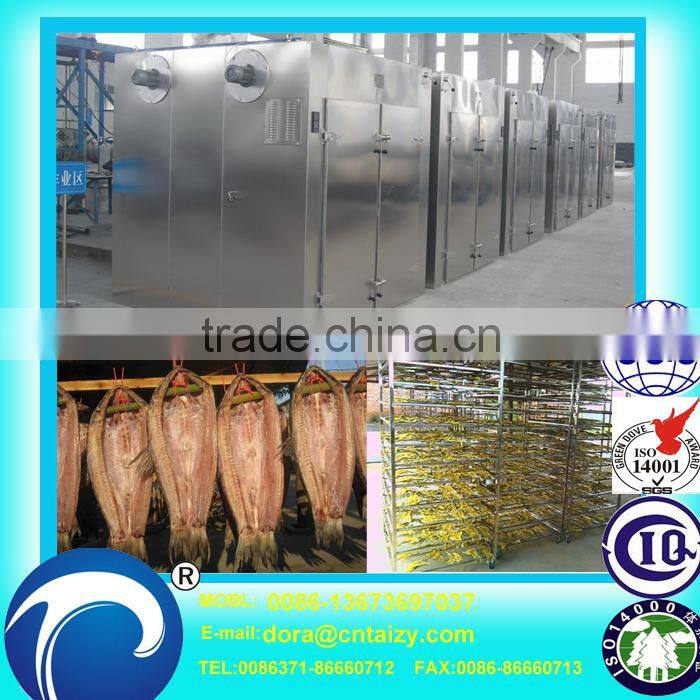

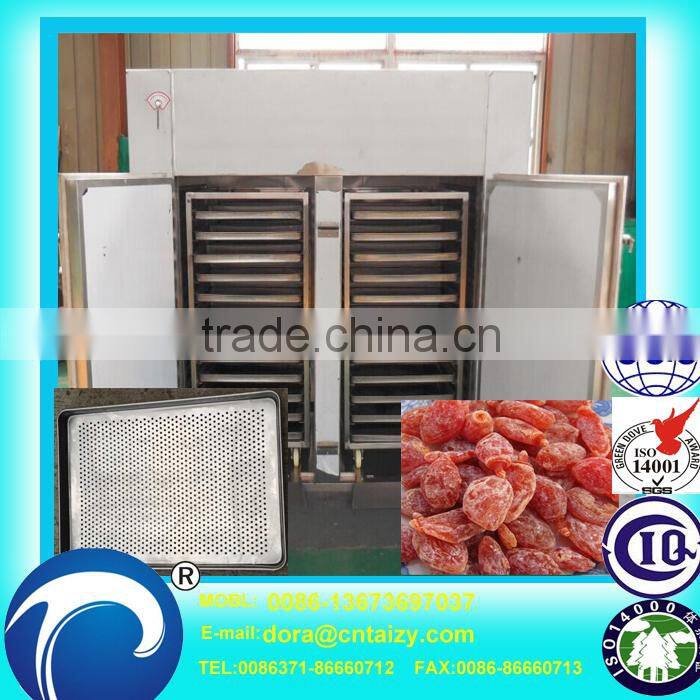

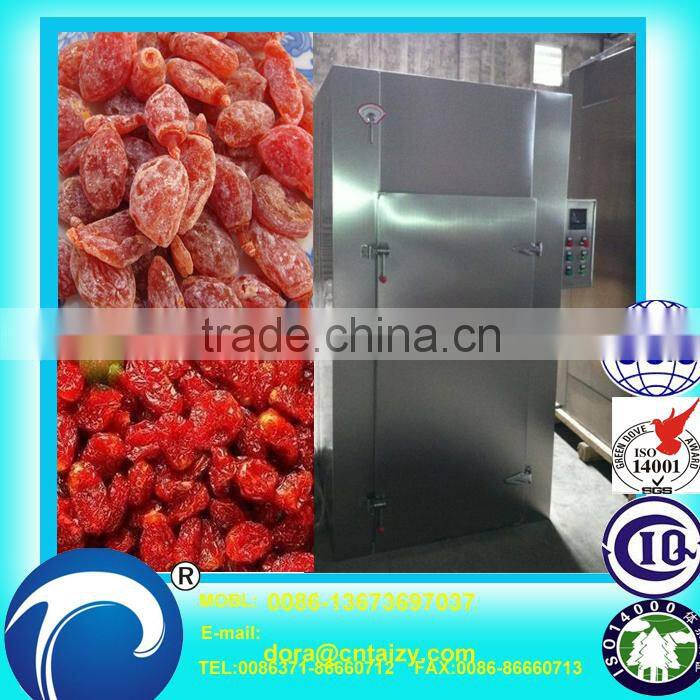

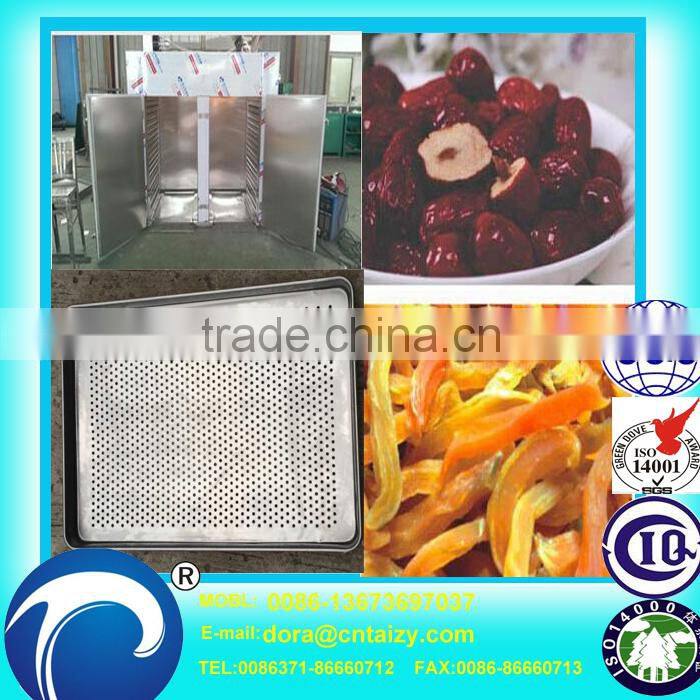

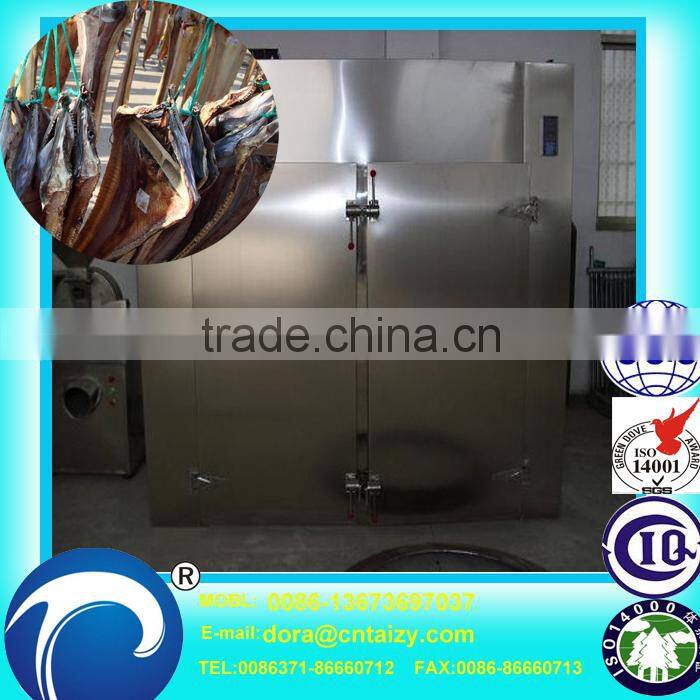

Pictures of industrial dryer machineCompetitive price industrial dryer machineCompetitive price industrial dryer machineCompetitive price industrial dryer machineCompetitive price industrial dryer machineCompetitive price industrial dryer machineCompetitive price industrial dryer machineCompetitive price industrial dryer machineCompetitive price industrial dryer machineCompetitive price industrial dryer machineCompetitive price industrial dryer machineCompetitive price industrial dryer machine

 If you have any question,please contact me freely!
